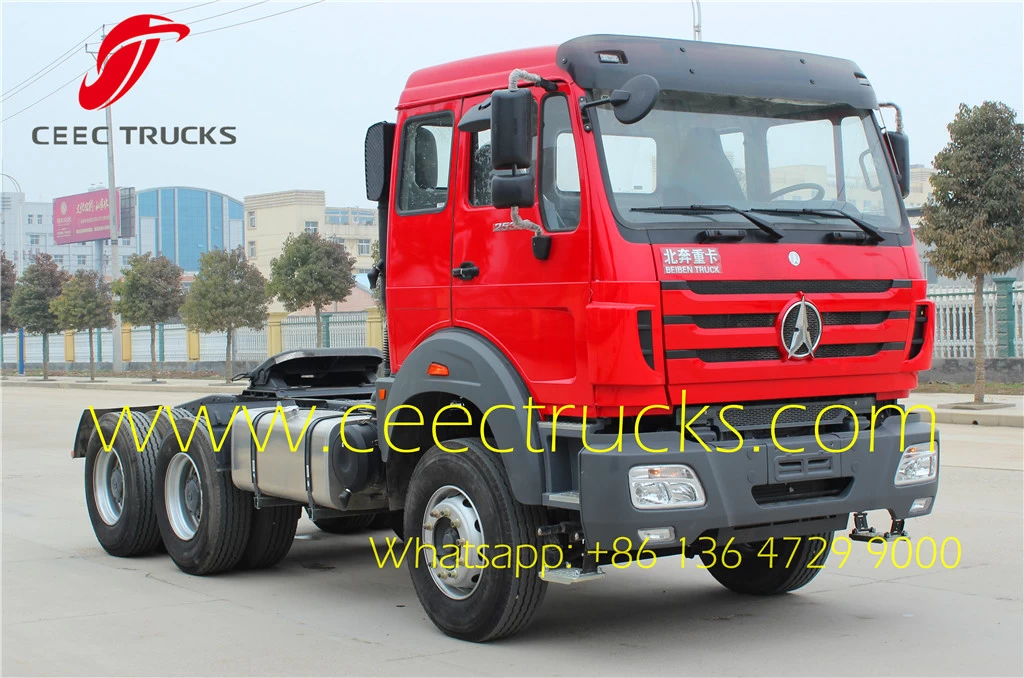

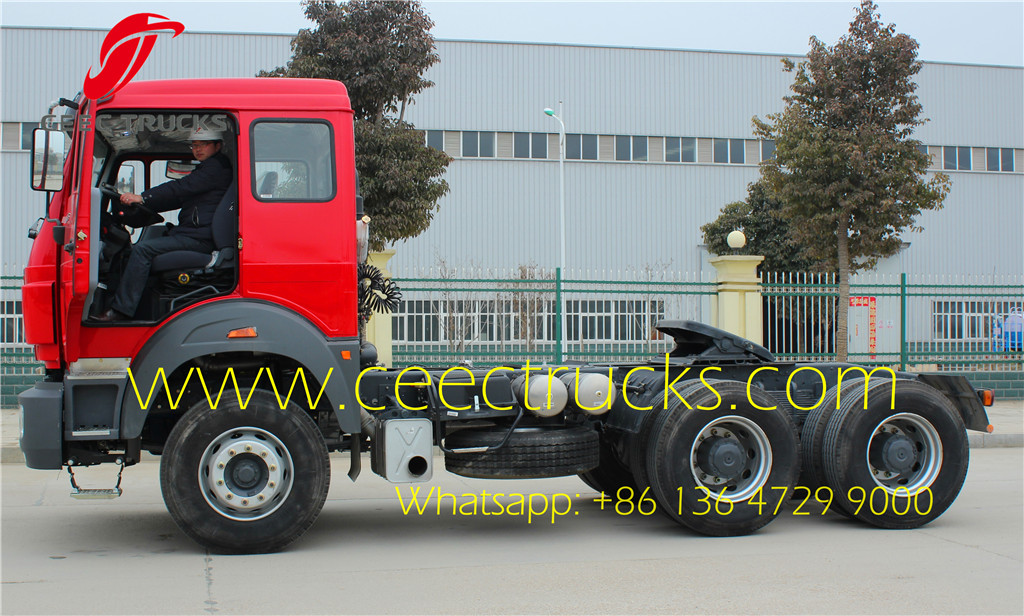

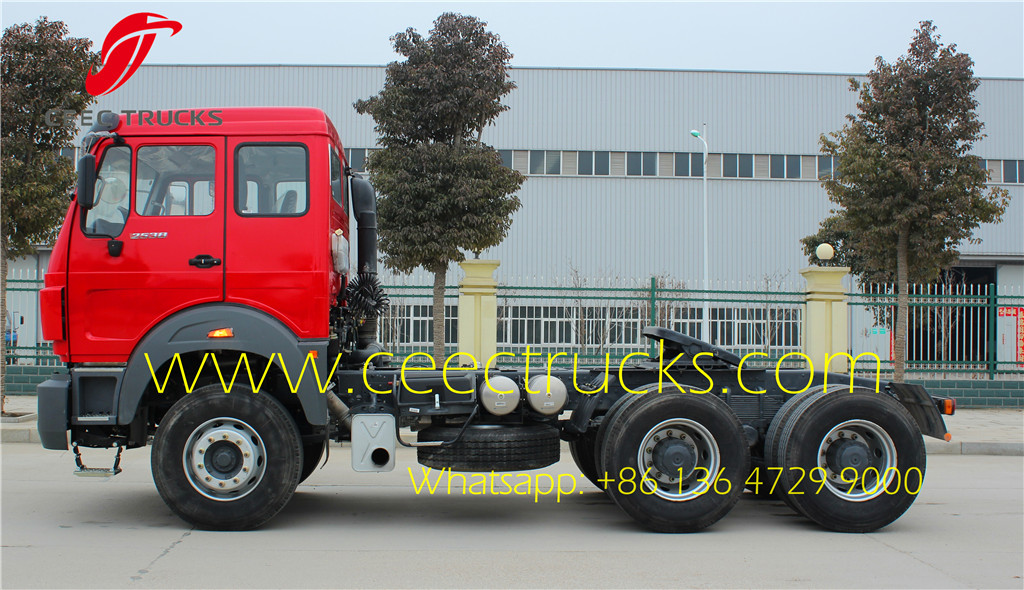

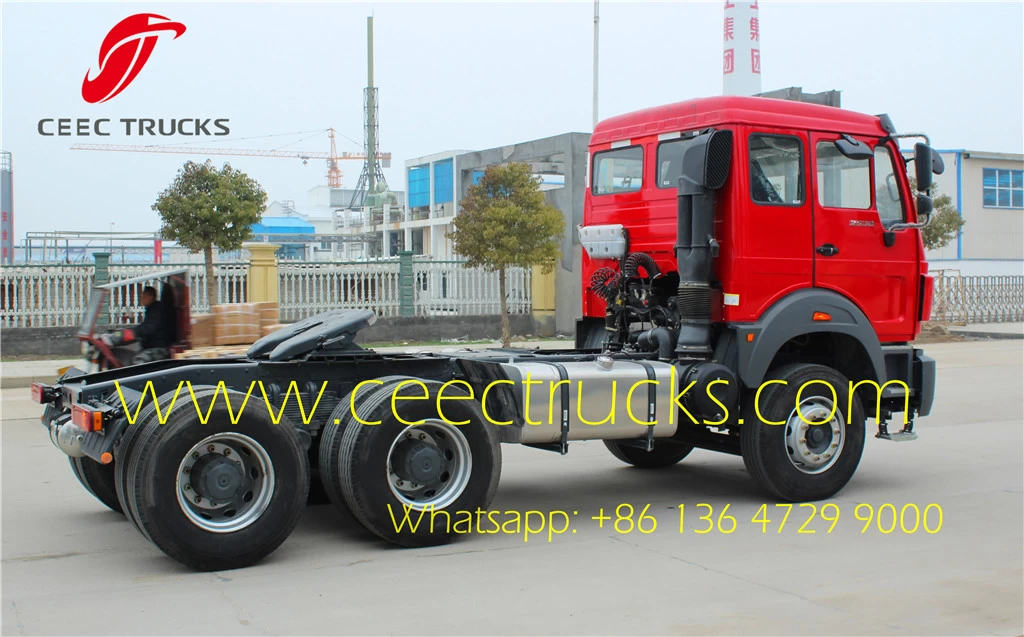

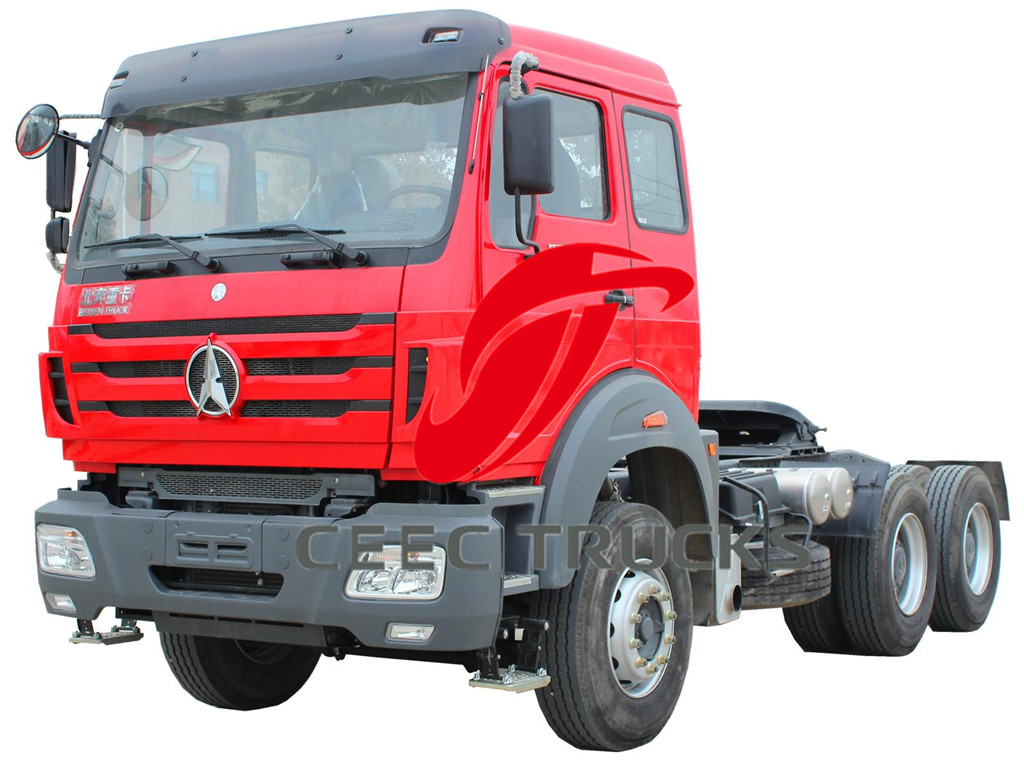

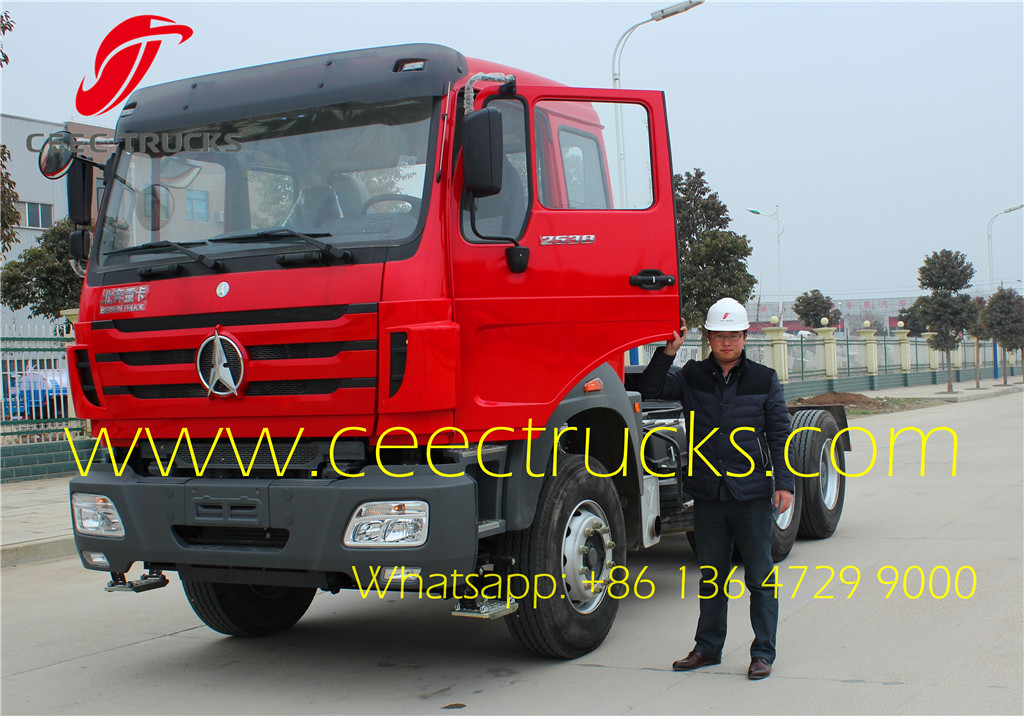

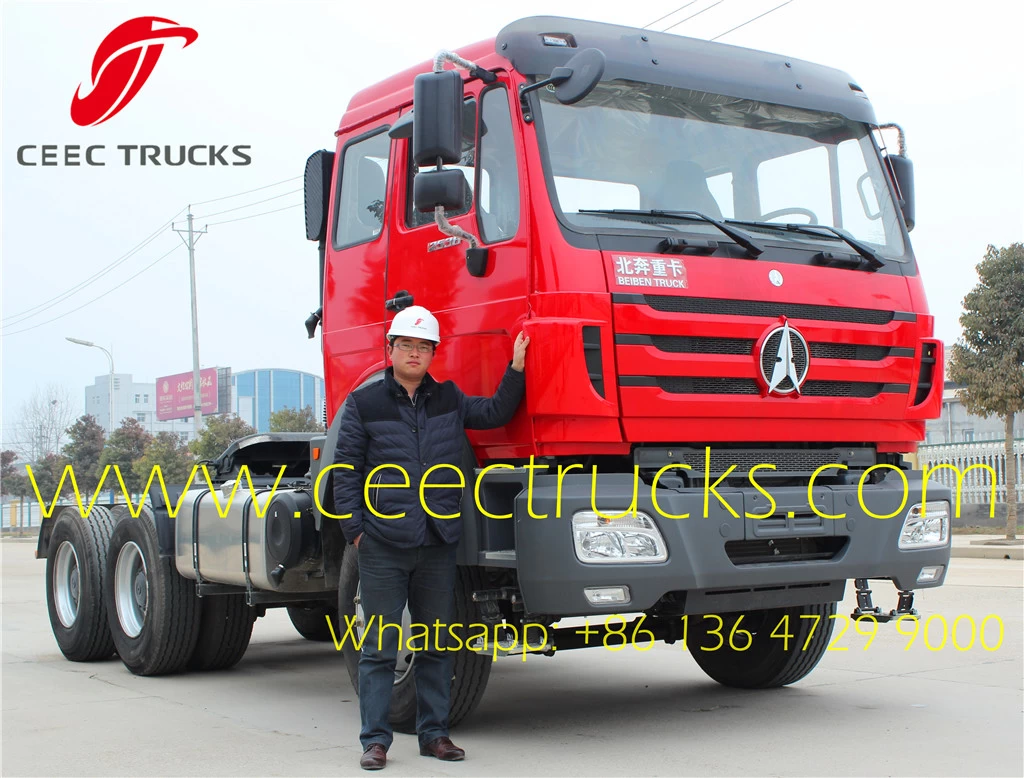

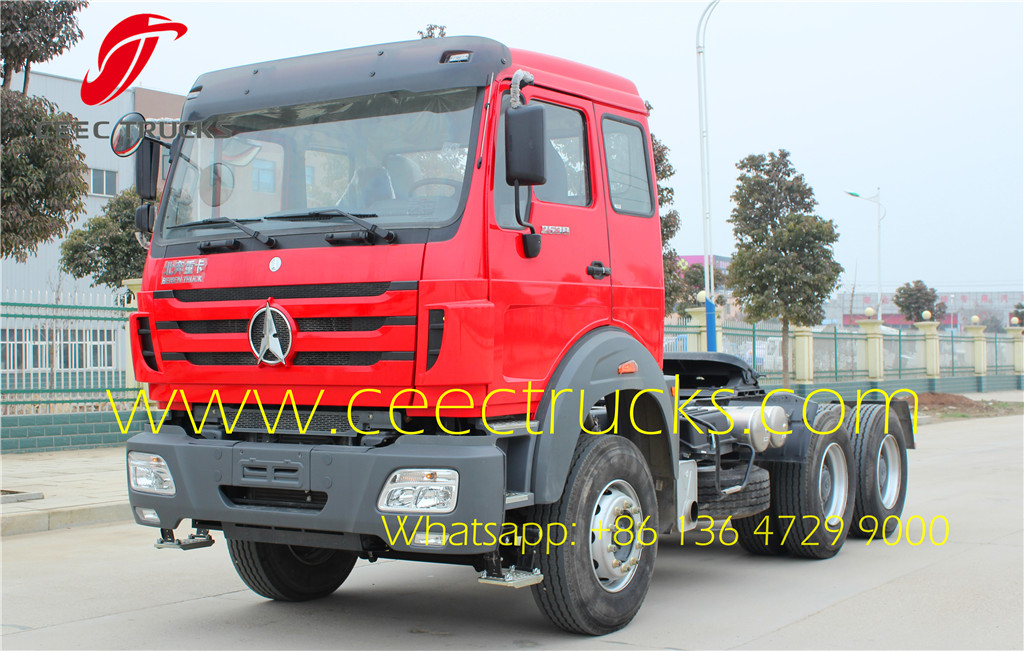

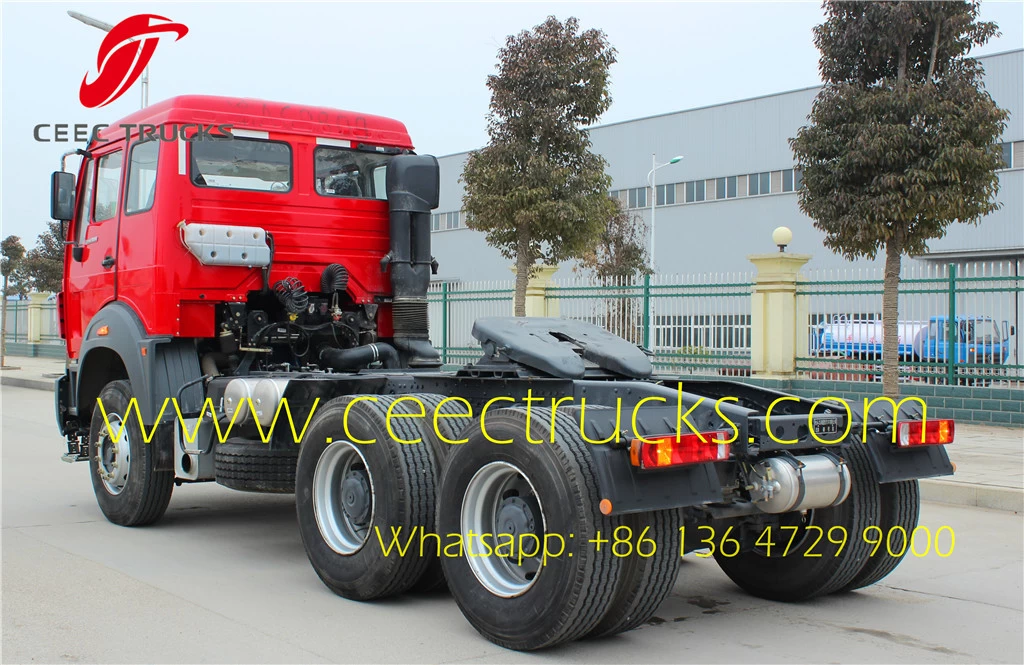

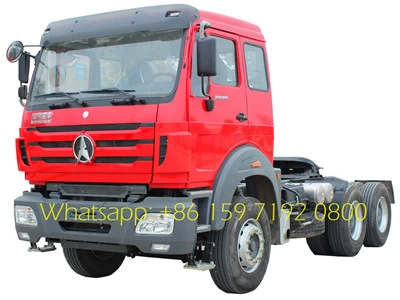

| BEIBEN TRACTOR TRUCK FOR SALE 2638 6X4 380HP Euro II
|
| Wheel base (mm)
|
3450+1450
|
| Curb weight (kg)
|
9200
|
| Max Speed:(Km/h)
|
≥90
|
| Engine
|
Model
|
WD615.38, water-cooled,four strokes,6 cylinders straight in line,turbocharged,
|
| Fuel type
|
diesel
|
| Min rate of consuming fuel(g/(kW.h))
|
225g/Kw.h
|
| Rated Power / rotating
(KW/(r/min)
|
250Kw/2200rpm
|
| Emission
|
EUROâ…¡
|
| Maximum Torque / rotating speed(N.m/(r/min))
|
1750Nm/1200-1600rpm
|
| Displacement(ml)
|
11596
|

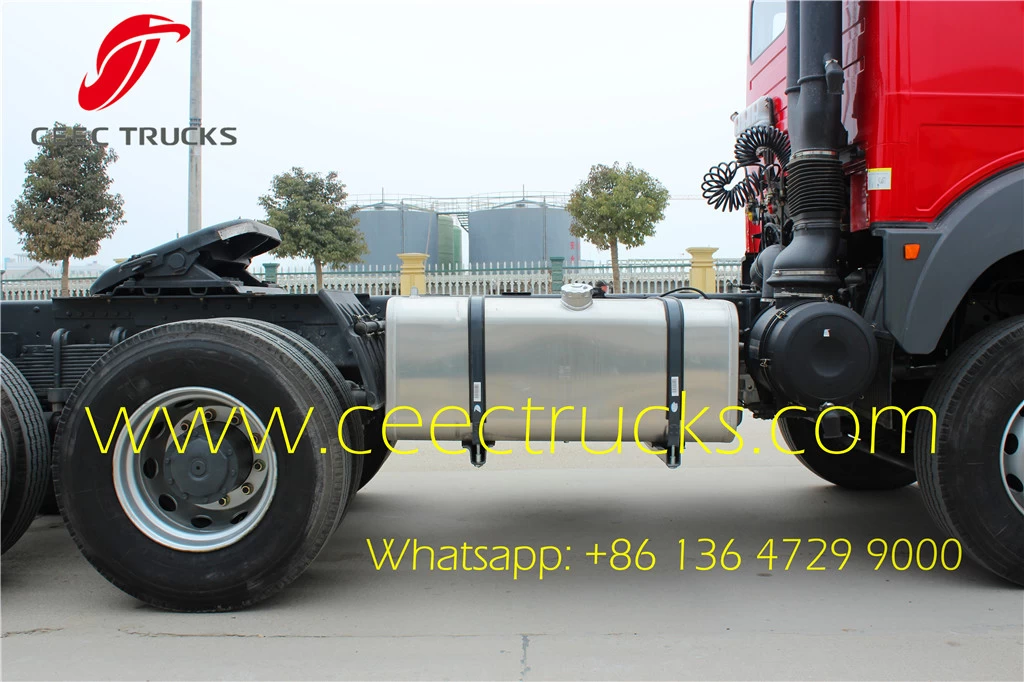

| Fuel tanker capacity (L)
|
400
|
| Clutch
|
Model
|
#430, Single dry frictional disc,Hydraulic boosting
|
| Gearbox
|
Model
|
RT11509C, mechanical type,9 Forward speed gear.
|
| Gear ratio of speed
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R1:14.86 R2:3.33
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
Model
|
ZF8098, whole circulation in ball type, hydraulic boosting
|

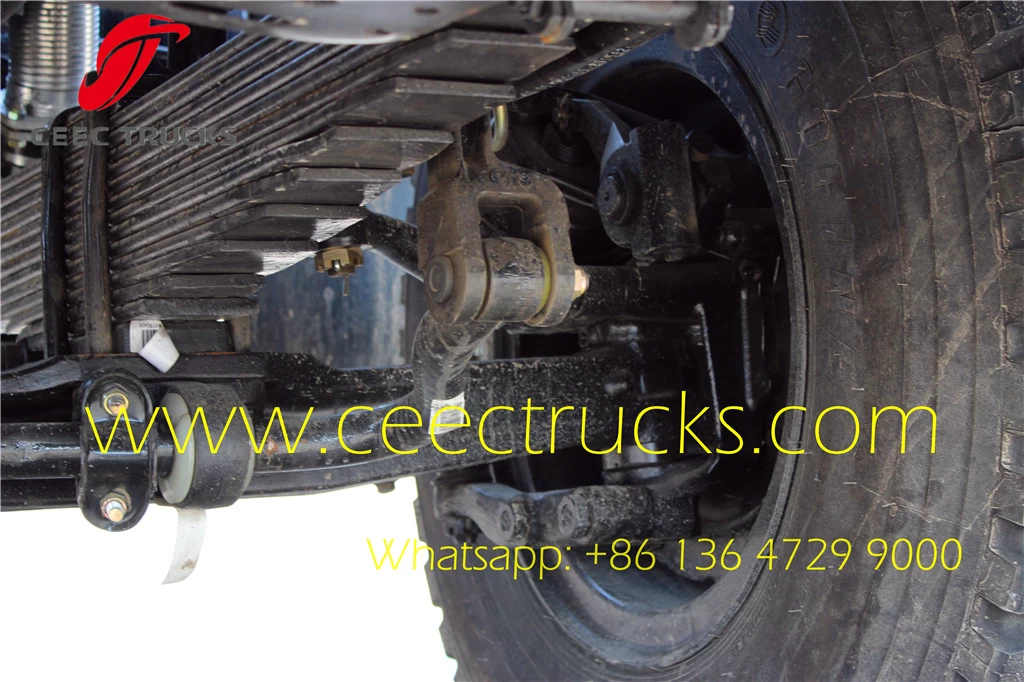

| Suspension system
|
Front Suspension
|
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension,
|
| Rear Suspension
|
Non-free standing stabilization spring, stabilization suspension,
|
| Frame
|
Fish belly shape, variable width, variable sections
|
| Cross section dimension of frame(mm)
|
317×70×8
|

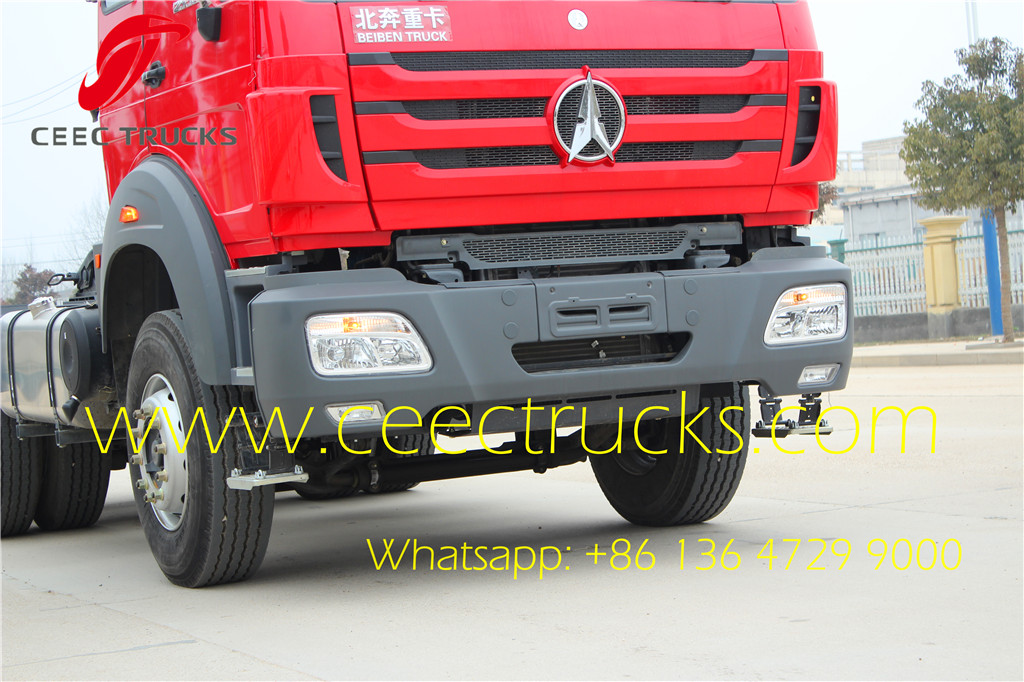

| Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7/5.263
|

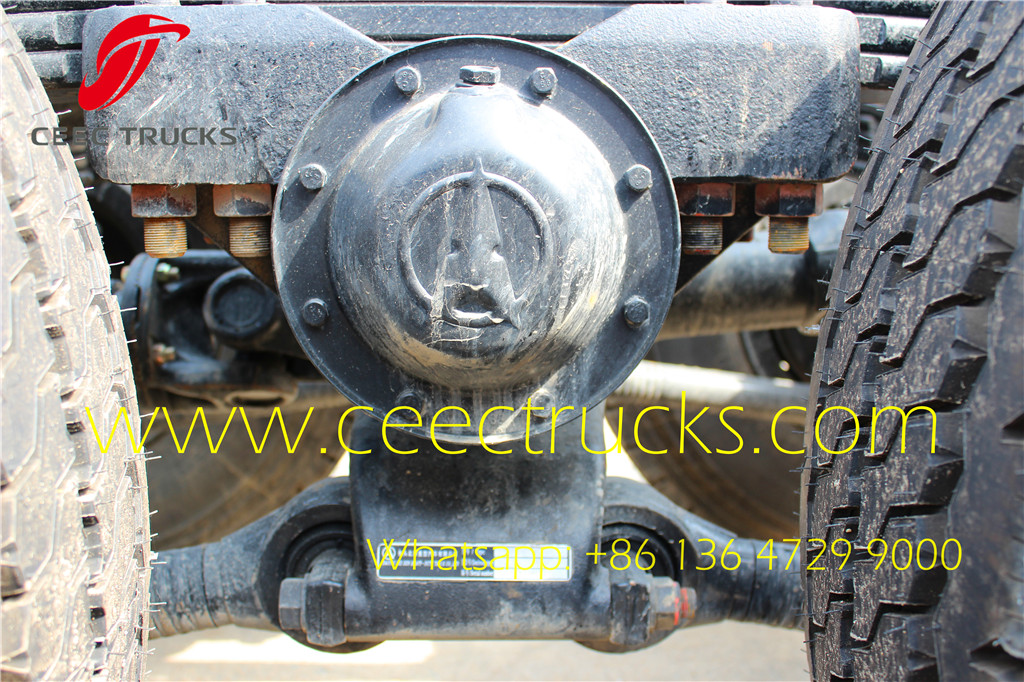

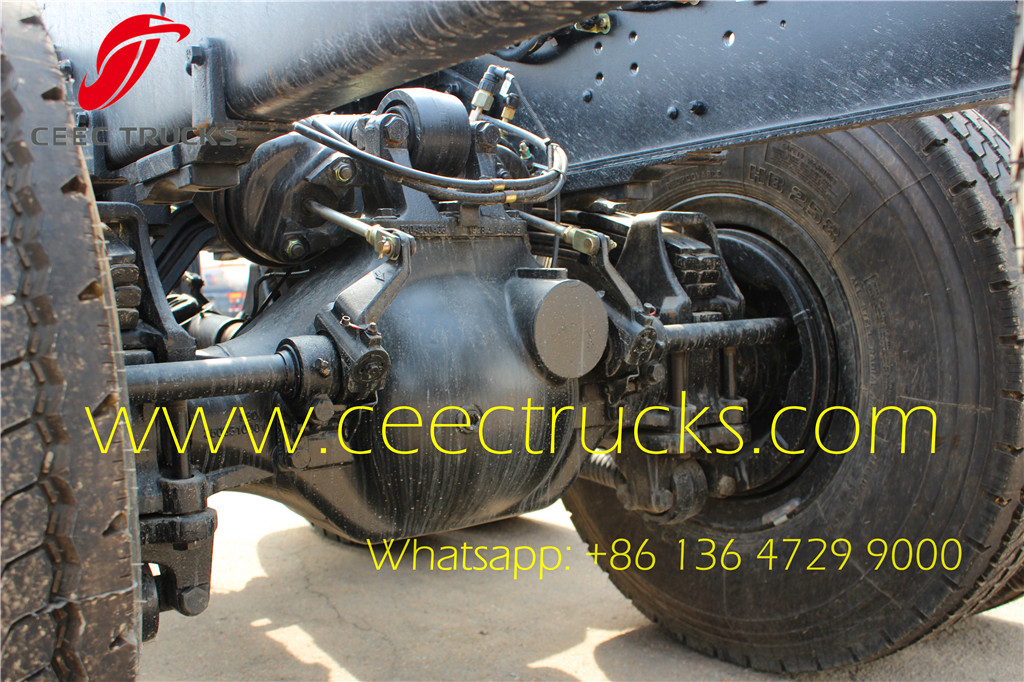

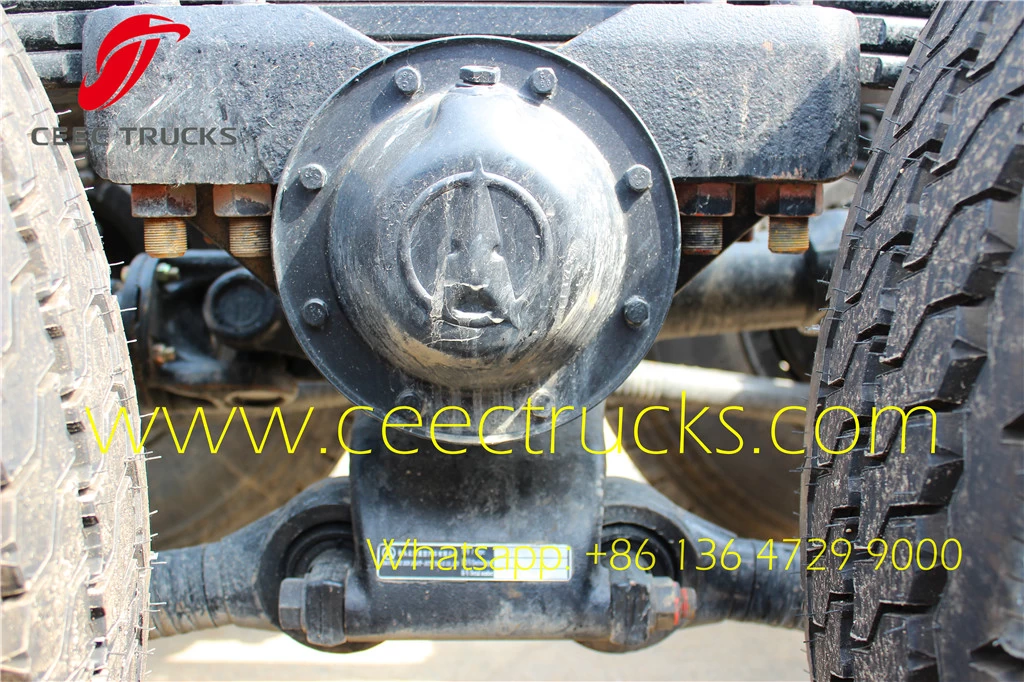

| Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Middle axle: HD7/016DGS-13/5.263
Rear axle: HL7/015DS-13/5.263
|
| Tire
|
12.00R20 radial
|
| Qty of tire
|
11
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|

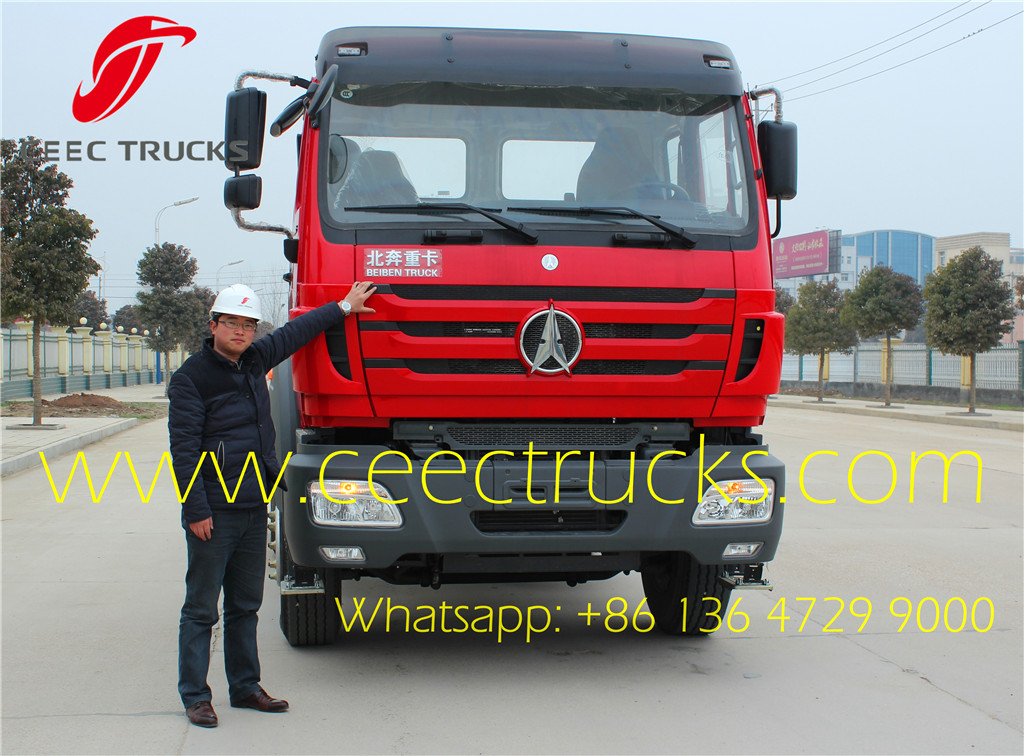

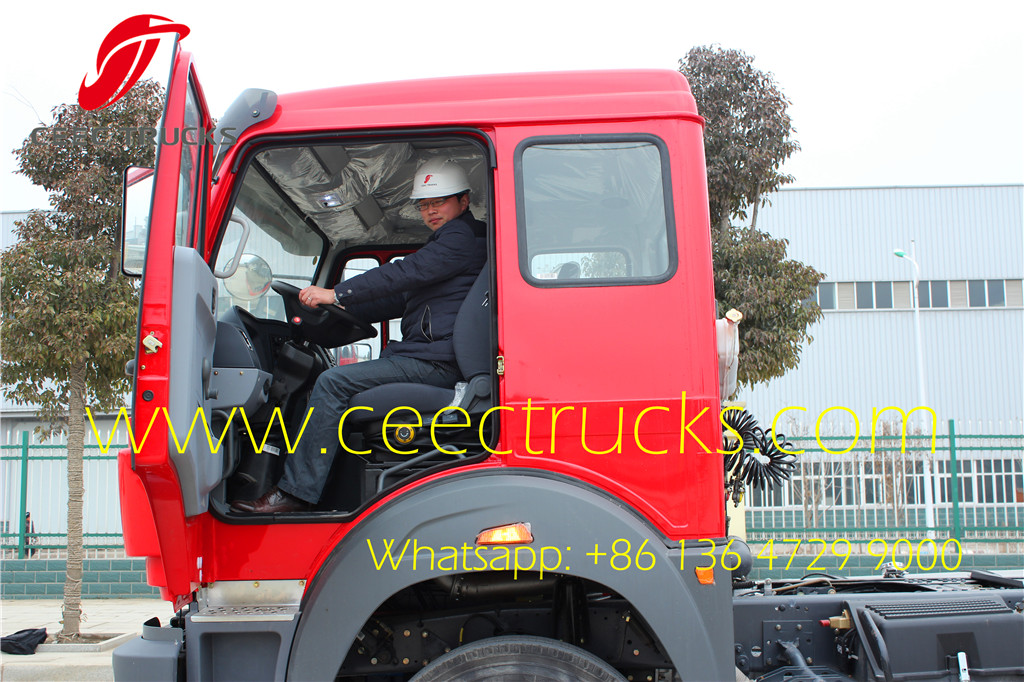

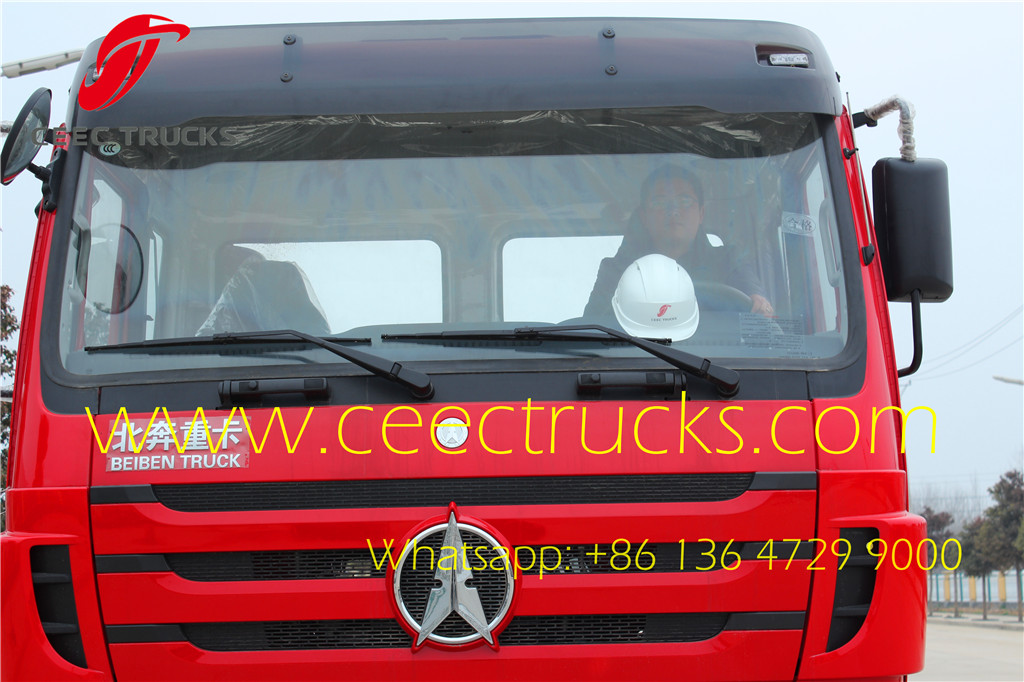

| Cab
|
Long cab with sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly;
|
| Interior trimming: Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio (with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted.
|
| Exterior trimming: Single layer road bumper, three steps, with new mirror. with outer sun visor
|

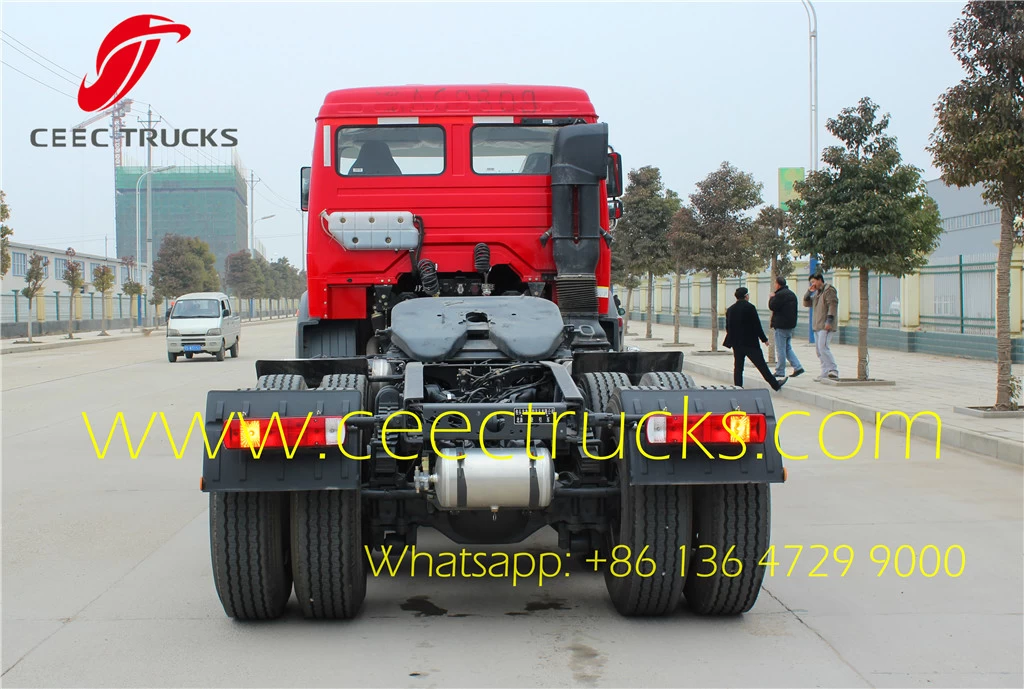

| Fifth wheel
|
#90 single direction JOST
|
