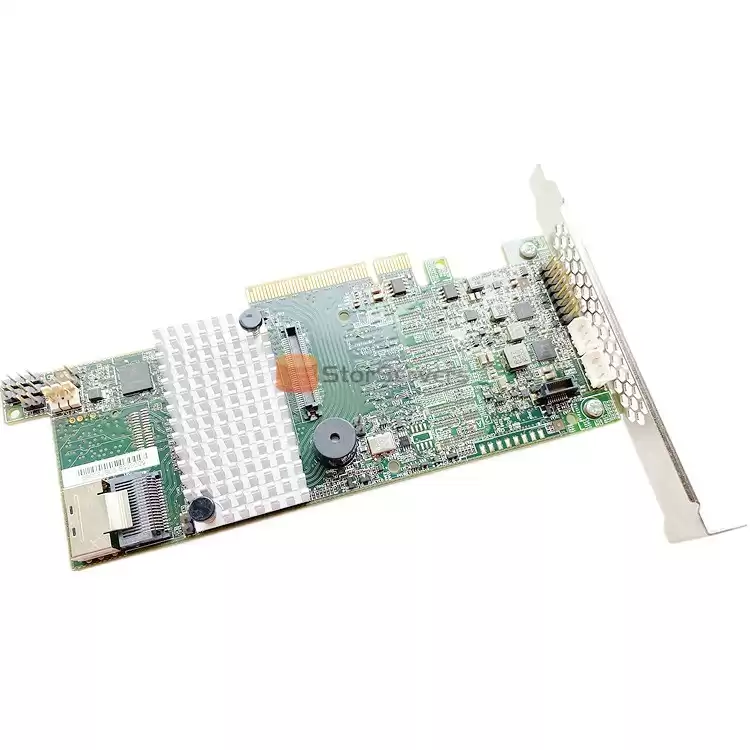

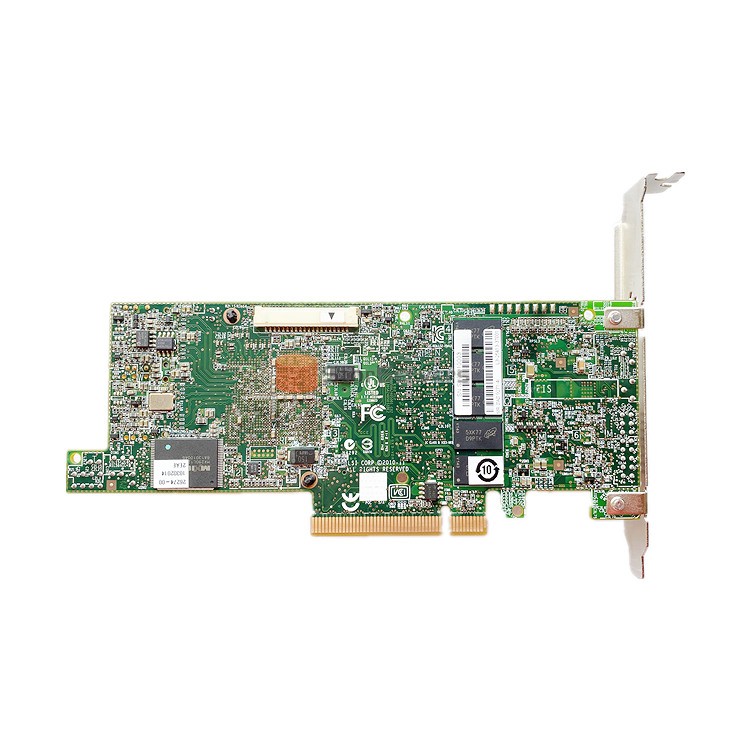

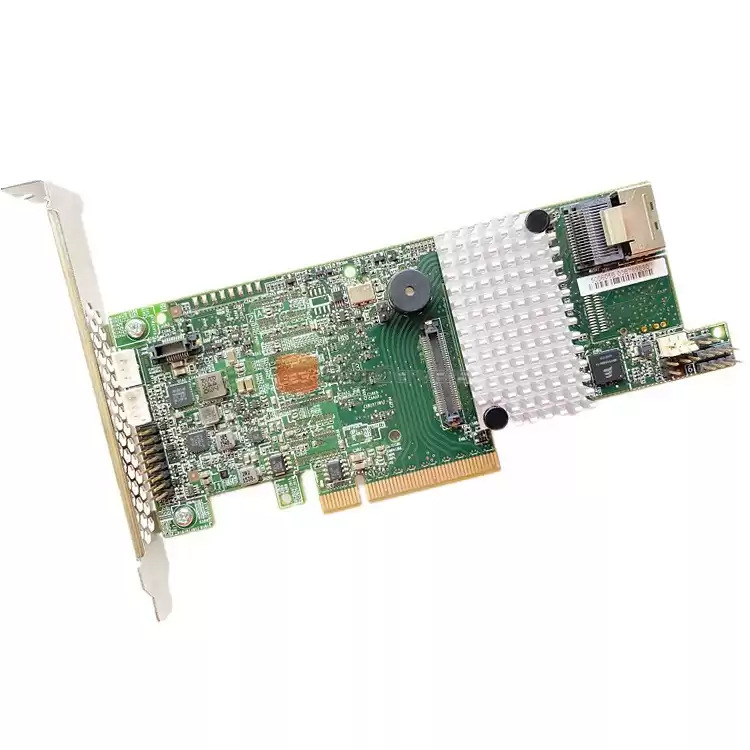

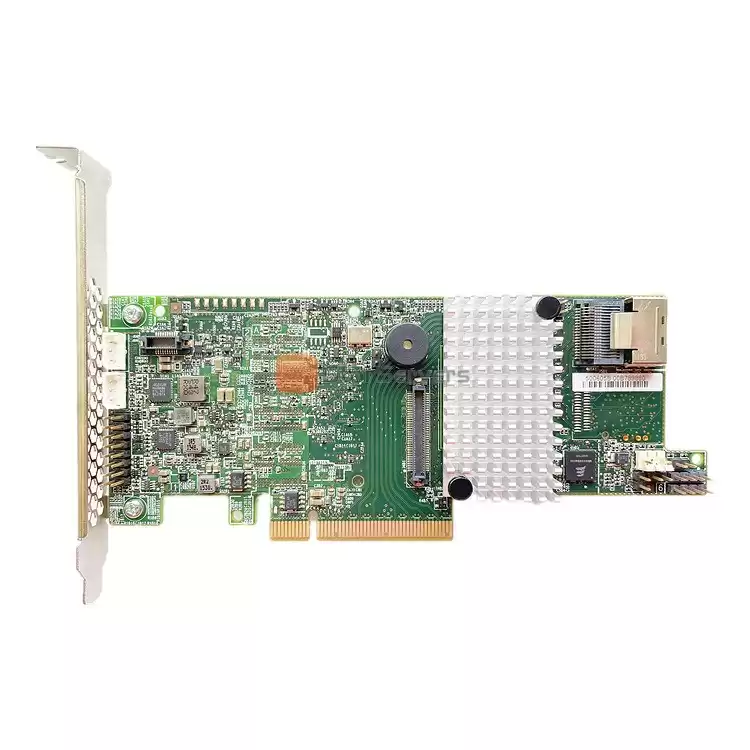

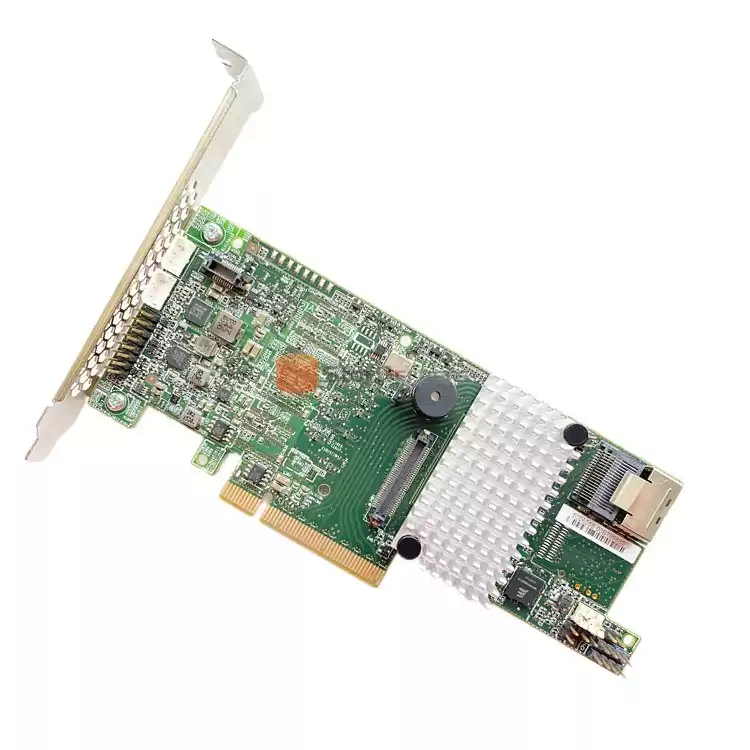

LSI megaraid SAS 9271 4i L5-25413-17 LSI00328 RAID CARD
Key Features
■ Four internal 6Gb/s SATA+SAS ports
■ One Mini-SAS internal connector (SFF8087)
■ LSI SAS 2208 Dual- core 6Gb/s ROC
–x2 800MHz PowerPC Processors
■ PCI Express 3.0 Host Interface
■ 1GB DDRIII cache memory
■ RAID Levels 0, 1, 5, 6, 10, 50 and 60
■ Support for NAND flash or BBU cache protection solution
Key Advantages
■ Unmatched RAID performance
■ Connect up to 128 3Gb/s and 6Gb/s SATA and SAS hard drives or SSDs
■ Helps users realize potential of solid-state storage deployments
■ CacheVault technology option for greener, lower total cost cache protection (LSICVM01)
■ Heat-tolerant battery backup option (LSIiBBU09)
Specification
| Model |
LSI 9271 4i |
| MPN |
L5-25413-17 LSI00328 |
| Connectors |
One Mini-SAS SFF8087 internal connector (side mount) |
| Device Support |
Up to 128 SAS and/or SATA hard drives and SSDs |
| Data Transfer Rates |
Up to 6 Gb/s per port |
| Host Bus Type |
x8 lane PCI Express 3.0 compliant |
| l/0 Processor/SAS Controller |
LSI SAS 2208 Dual-Core RAID on Chip (ROC) |
| Cache Memory Options |
1 GB 1333MHz DDRIII SDRAM |
| RAID levels |
0 , 1 , 5 , 6 ,10 , 50 , 60 |
| Availability |
In Stock |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About Us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
