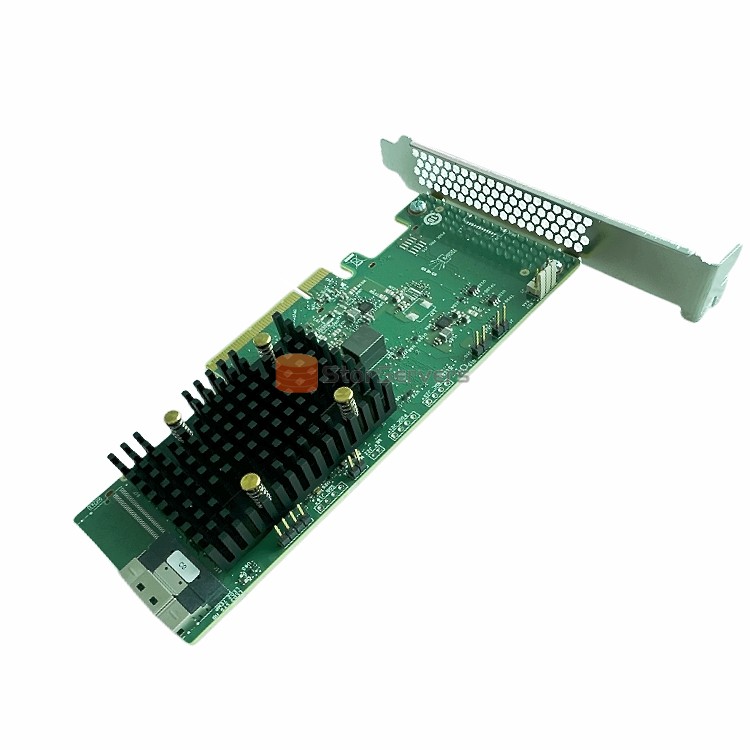

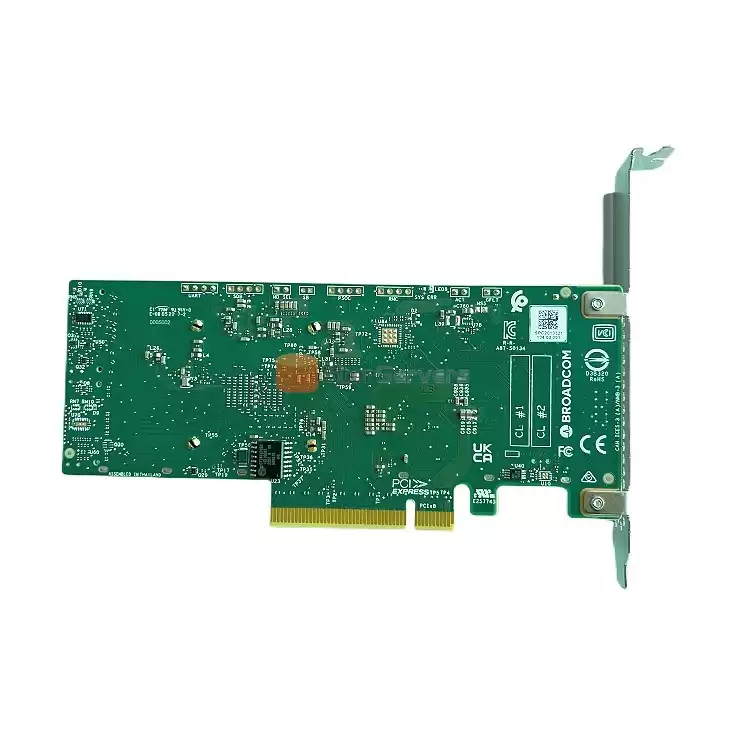

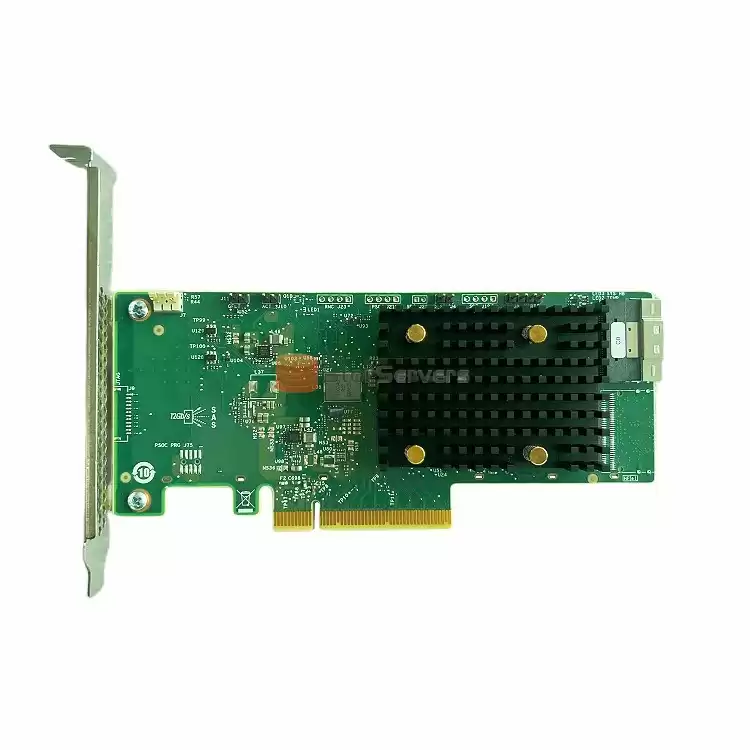

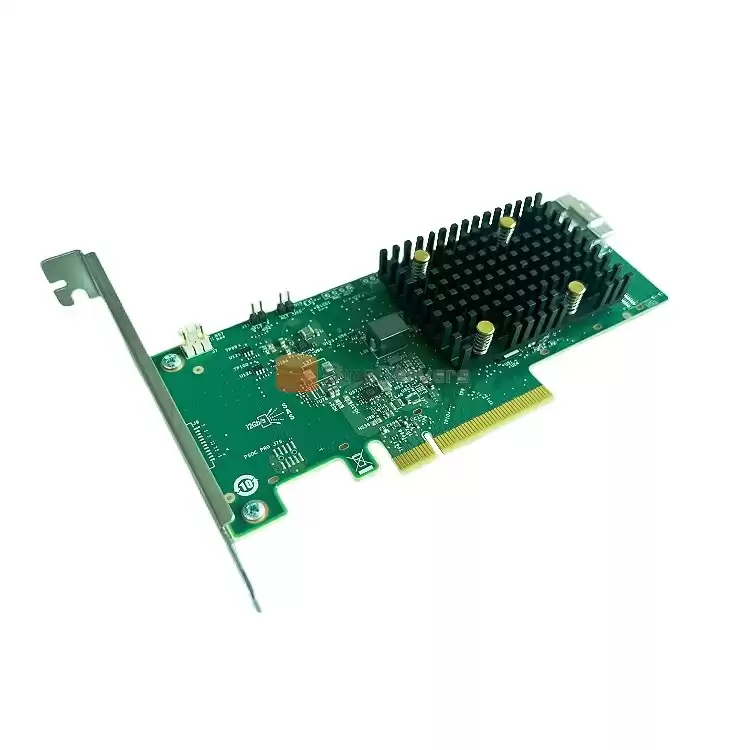

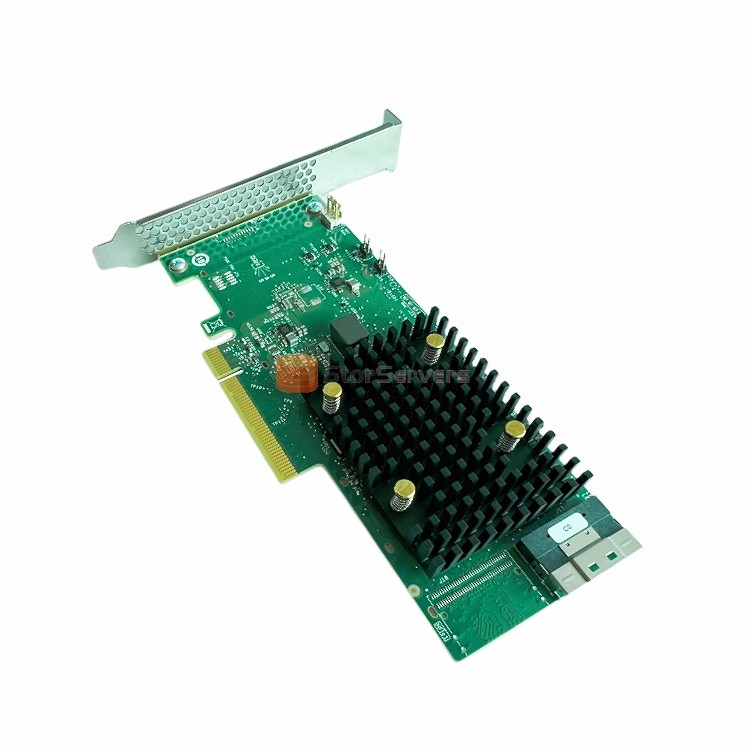

LSI 9540-8i 05-50134-03 raid card for server
Key Features
− 12Gb/s SAS
− 6Gb/s SATA
− Gen 4.0 PCIe (NVMe)
• Hardware Secure Boot
• Universal Backplane Management (UBM) ready
• RAID levels 0, 00, 1, 5, 6, 10, 50, and 60
− 13,700 MB/s (RAID 256K Seq Rd)
− 3M IOPs (4K RAID RR)
− 240K RAID 5 IOPs (4K RW)
• MegaRAID SafeStore™ Software for SED Key Management
• CacheVault™ flash backup
• x8 PCIe Gen 4.0 Host Interface
− Supports x8, x4, x2, x1 PCIe lanes at a transfer rate up to 16.0GT/s per lane, full duplex
− Lane and polarity reversal
• SFF-9402 Compliant Connector Pinout
• Up to 32 NVMe devices
• Form Factor Friendly Cable Exit
Specification
| Model |
LSI 9540-8i |
| Ports |
8 internal |
| PN |
05-50134-03 |
| Connectors |
One x8 SFF-8654 |
| Storage Interface |
12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| I/O Processor/ SAS Controller |
SAS3808 |
RAID Levels
|
0, 00, 1, 10
|
Max Devices Per Controller
|
SAS/SATA: 63 NVMe: 4
|
| Host Interface |
x8 PCIe Gen 4.0 |
Cache Size
|
-- |
Cache Protection
|
-- |
| Typical Power |
6.0W |
| Physical Dimensions |
6.127 in. × 2.712 in. |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
