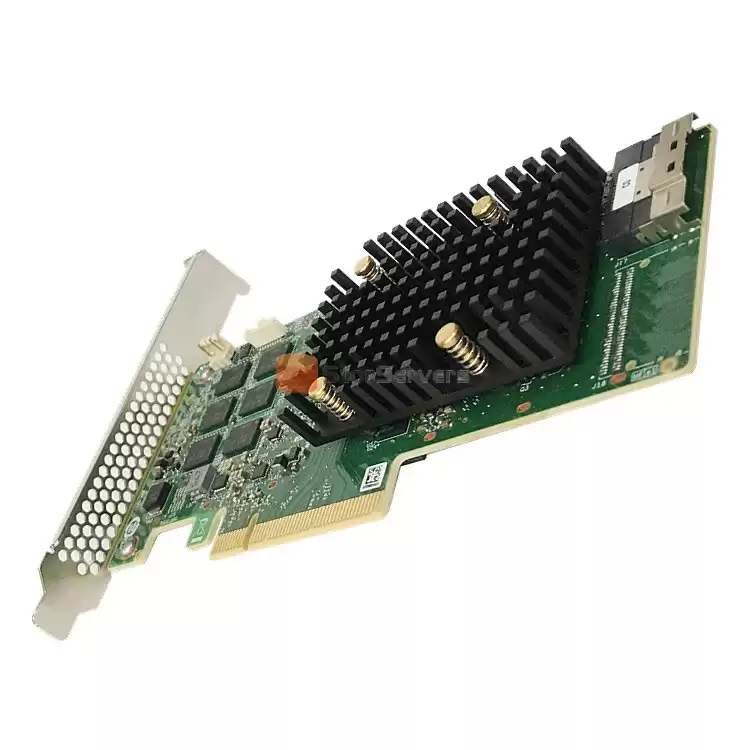

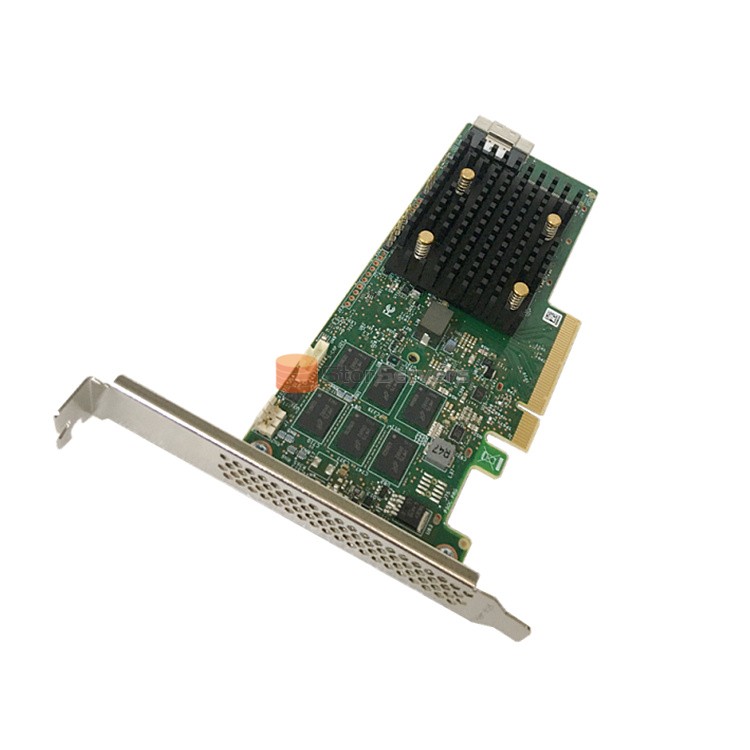

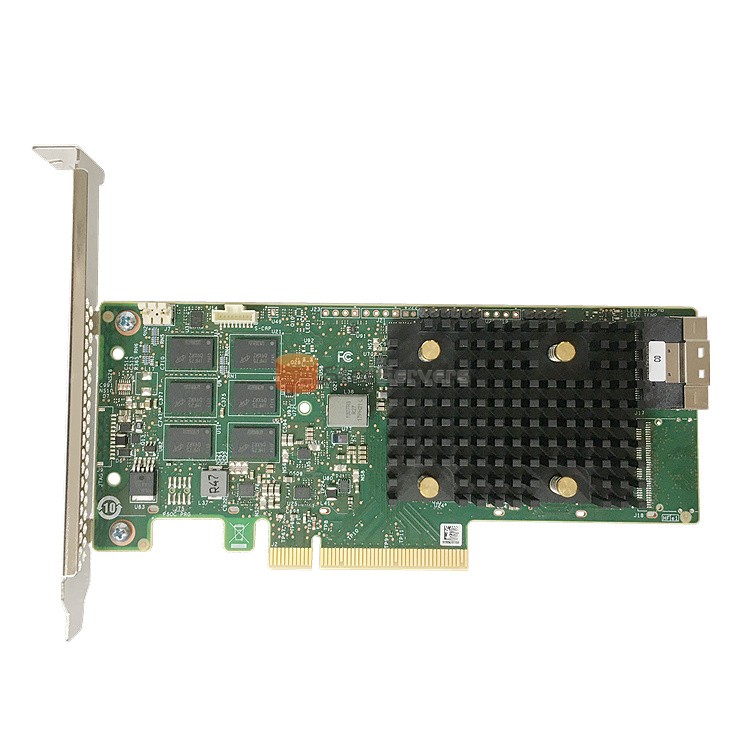

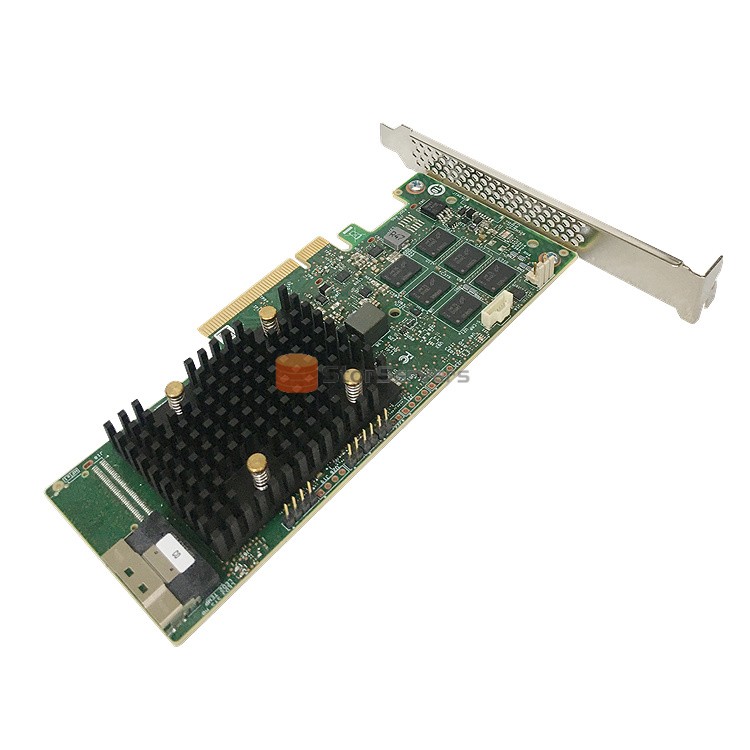

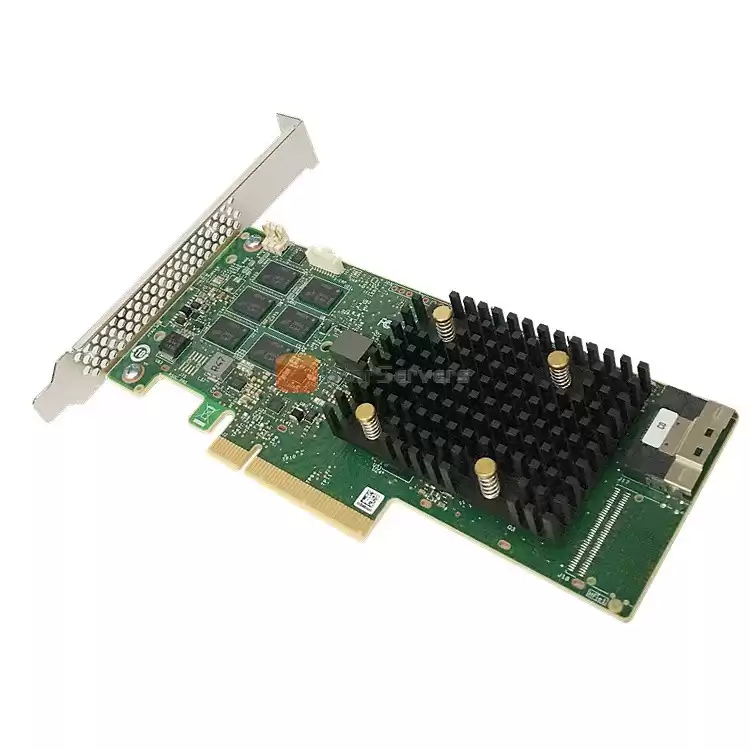

Key Features
• Tri-Mode Storage Interface
− 12Gb/s SAS
− 6Gb/s SATA
− Gen 4.0 PCIe (NVMe)
• Hardware Secure Boot
• Universal Backplane Management (UBM) ready
• RAID levels 0, 00, 1, 5, 6, 10, 50, and 60
− 13,700 MB/s (RAID 256K Seq Rd)
− 3M IOPs (4K RAID RR)
− 240K RAID 5 IOPs (4K RW)
• MegaRAID SafeStore™ Software for SED Key Management
• CacheVault™ flash backup
• x8 PCIe Gen 4.0 Host Interface
− Supports x8, x4, x2, x1 PCIe lanes at a transfer rate up to 16.0GT/s per lane, full duplex
− Lane and polarity reversal
• SFF-9402 Compliant Connector Pinout
• Up to 32 NVMe devices
• Form Factor Friendly Cable Exit
