LSI CVM02 8G 05-25444-00 CacheVault
Key Features
• Cached data protection for MegaRAID 95xx, 94xx, and 93xx series adapters.
• NAND flash protects the integrity of cached data in the event the system stops responding, crashes, or experiences kernel panics or power failures.
• Automatically transfers cached data to flash storage when a power failure occurs.
• Eliminates the need for lithium-ion batteries and associated hardware maintenance cost, resulting in a greener, lower total cost cache protection solution.
• Does not require special IATA shipping compliance.
• Suitable for file, web, database, and email servers, storage appliances, high-performance computing, digital content, medical imaging, and similar applications.
The following MegaRAID controllers support the LSICVM02 CacheVault Kit:
MegaRAID SAS 9361-4i RAID controller
MegaRAID SAS 9361-8i RAID controller
MegaRAID SAS 9380-4i4e RAID controller
MegaRAID SAS 9380-8e RAID controller
Specification
| Model |
LSI CVM02 8G |
| MPN |
05-25444-00 |
| PN |
LSI00418 |
| Super-capacitor model |
FBU02 |
| MegaRAID controllers supported |
LSI 9361-8i , LSI 9361-4i , LSI 9380-8e , LSI 9380-4i4e |

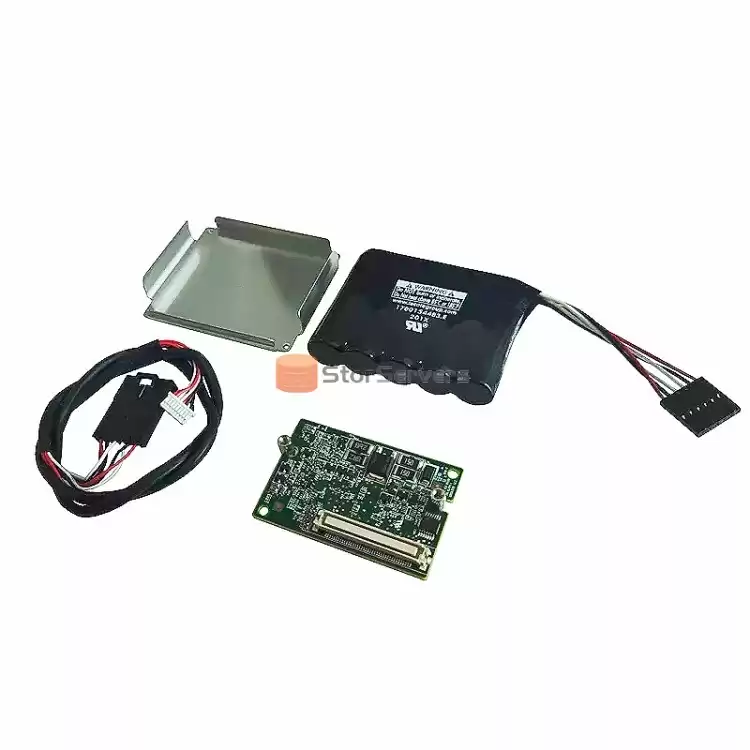

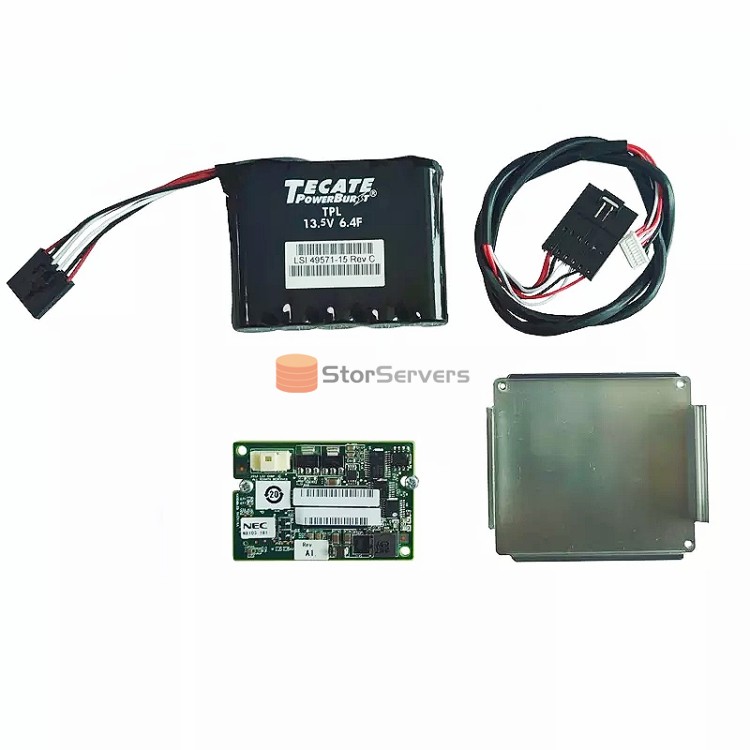

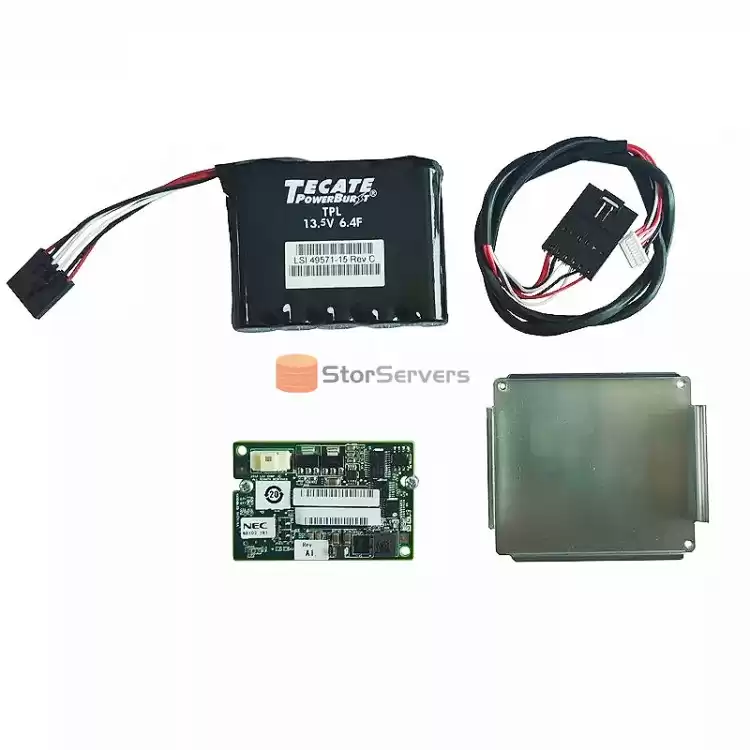

| Kit contents |
Flash module , Super-capacitor , Mounting clip/screws
240-mm cable , 620-mm cable
|
| Time to cache protection |
Immediate Capacitor charges in seconds while the system boots |
| Shipping requirements |
Standard |
| Data recoverable for |
3+ years |
| Operating temperature |
0°C to 55°C |
| Storage temperature |
–40°C to 70°C |
| Availability |
In Stock |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
