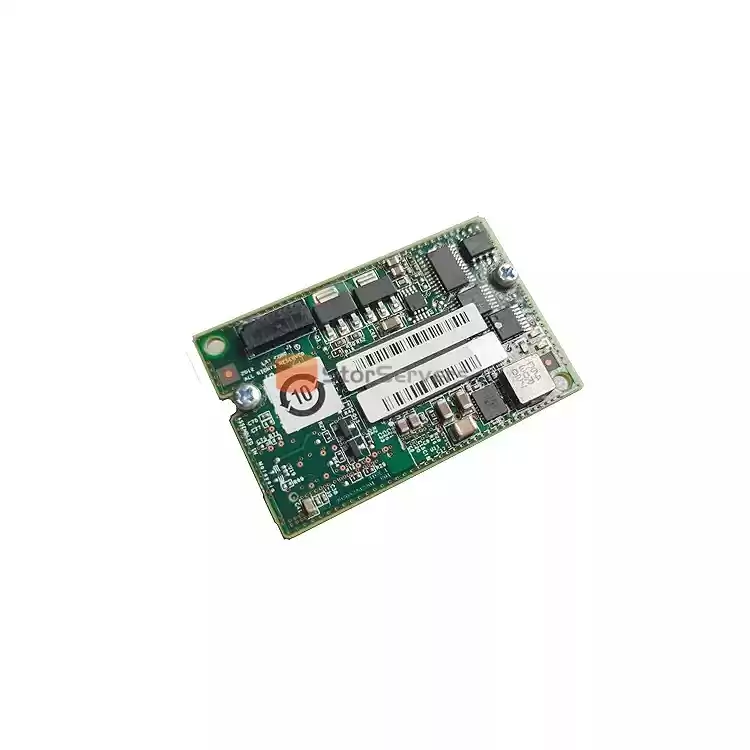

LSI CVM02 4G 05-25444-00 CacheVault
Key Features
• Cached data protection for MegaRAID 95xx, 94xx, and 93xx series adapters.
• NAND flash protects the integrity of cached data in the event the system stops responding, crashes, or experiences kernel panics or power failures.
• Automatically transfers cached data to flash storage when a power failure occurs.
• Eliminates the need for lithium-ion batteries and associated hardware maintenance cost, resulting in a greener, lower total cost cache protection solution.
• Does not require special IATA shipping compliance.
• Suitable for file, web, database, and email servers, storage appliances, high-performance computing, digital content, medical imaging, and similar applications.
Benefits of CacheVault Technology vs. BBUs
Older generations of RAID controllers used lithium-ion-based battery backup units (BBUs) to keep the data resonate in the cache memory until power could be restored. Data was only available for up to 72 hours. Over the life of a controller, the battery will need to be replaced numerous times, as it is only good for about 1 ½ years, which increases cost of ownership. Unlike super-capacitors, batteries cannot sit on the shelf for a long period of time without requiring re-charging, making inventory management costly. Furthermore, shipping and disposing of lithiumion batteries require special considerations and fees.
Simple Installation
• The MegaRAID 93xx 12Gb/s SAS/ SATA adapters enable CacheVault protection with the CVFM02 kit. This kit includes both the supercapacitor and a separate flash module that attaches to the base adapter.
• The MegaRAID 95xx and 94xx Tri-Mode series adapters have the flash embedded on the adapter board. CacheVault technology is added by attaching the CVPM05 module. A separate flash module is not necessary when using the MegaRAID 95xx and 94xx Tri-Mode adapter series.
• Both kits include cables and optional mounting clips that can be used to mount the super-capacitor based on the system architect’s preference. A remote mount board that can be used to mount the super-capacitor in an empty PCI Express slot is also available separately.
Specification
| Model |
LSI CVM02 4G |
| MPN |
05-25444-00 |
| PN |
LSI00418 |
| Super-capacitor model |
FBU02 |
| MegaRAID controllers supported |
9361-8i 9361-4i 9380-8e 9380-4i4e |

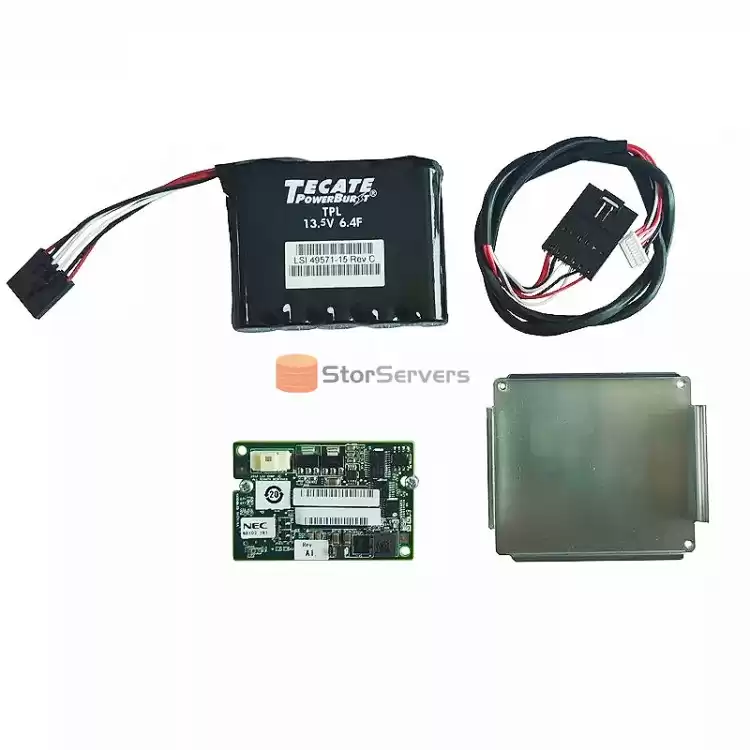

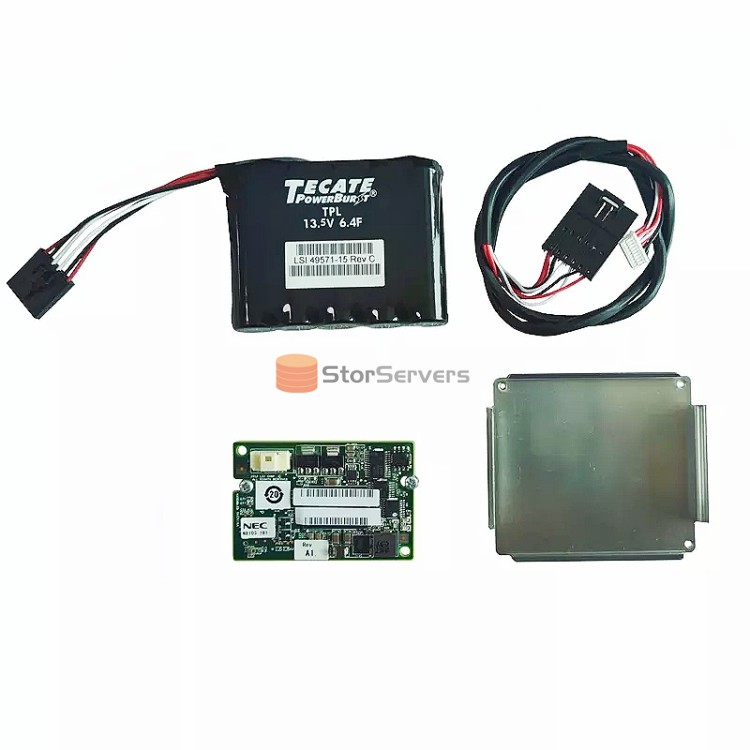

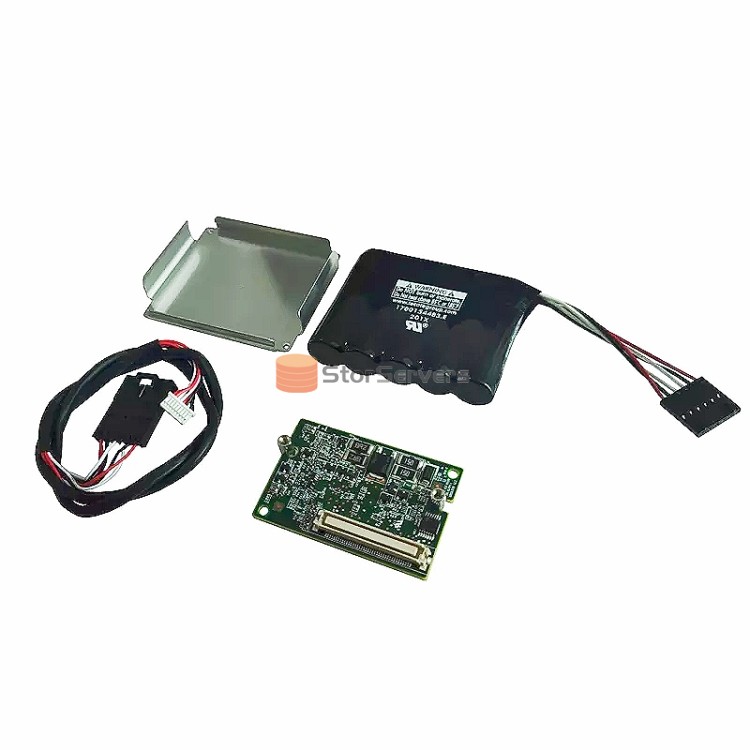

| Kit contents |
Flash module , Super-capacitor , Mounting clip/screws
240-mm cable , 620-mm cable
|
| Time to cache protection |
Immediate Capacitor charges in seconds while the system boots |
| Shipping requirements |
Standard |
| Data recoverable for |
3+ years |
| Operating temperature |
0°C to 55°C |
| Storage temperature |
–40°C to 70°C |
| Availability |
In Stock |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
