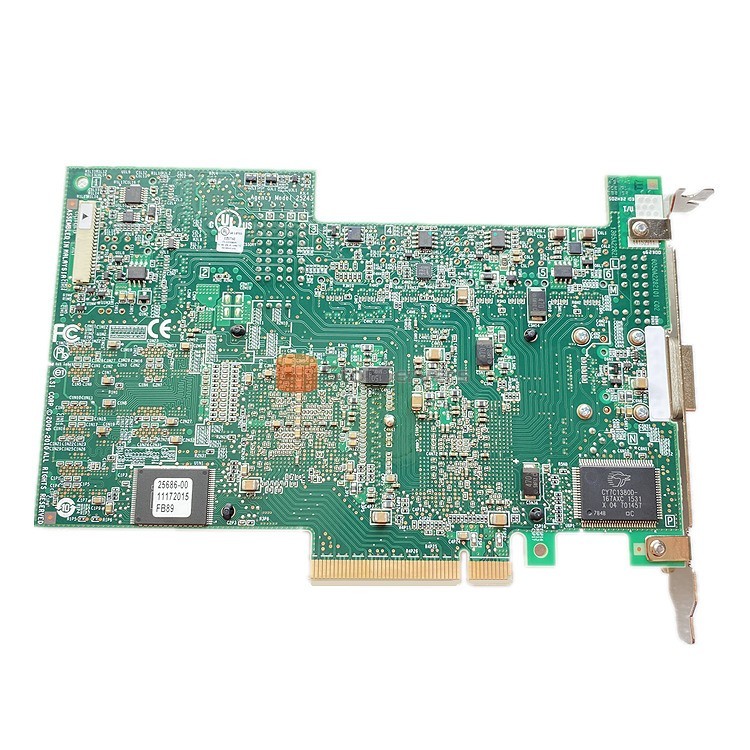

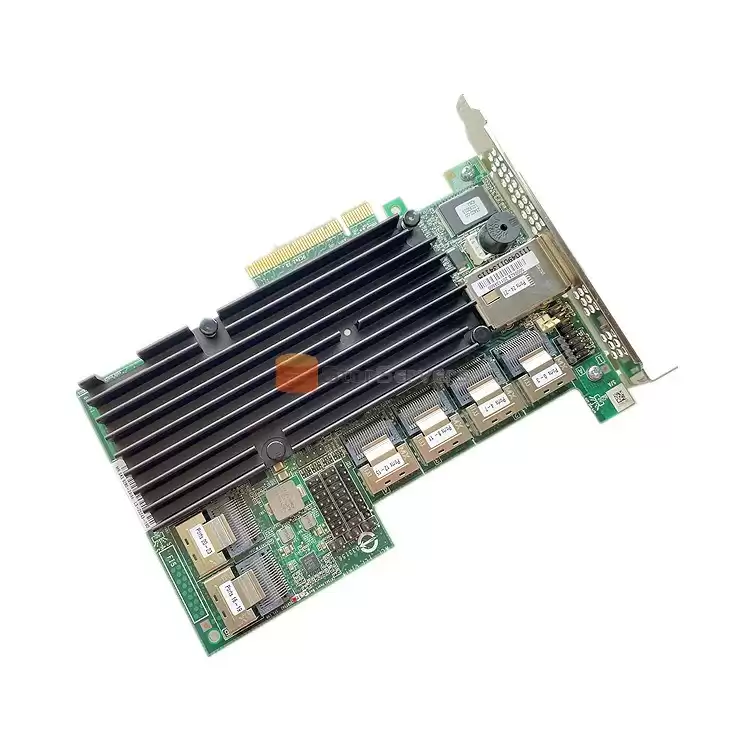

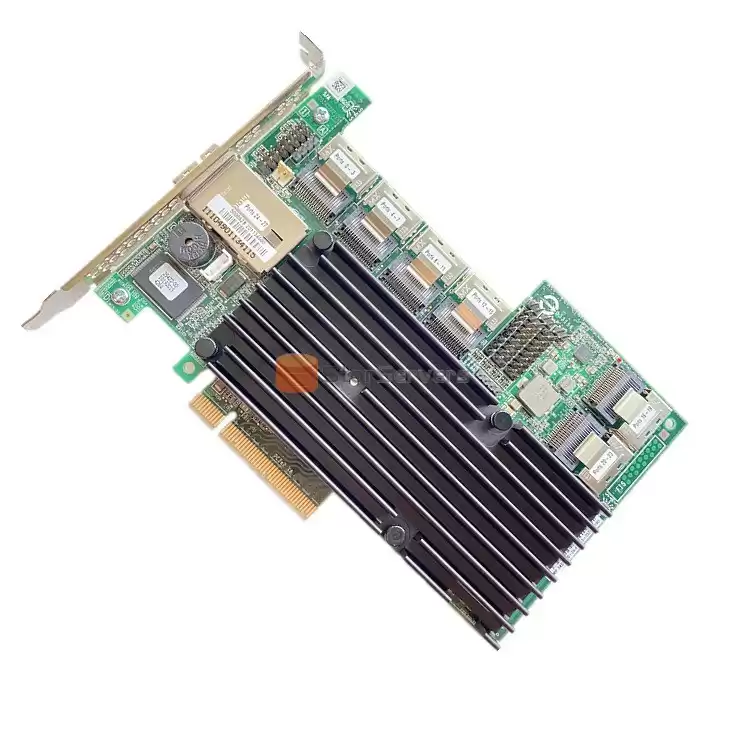

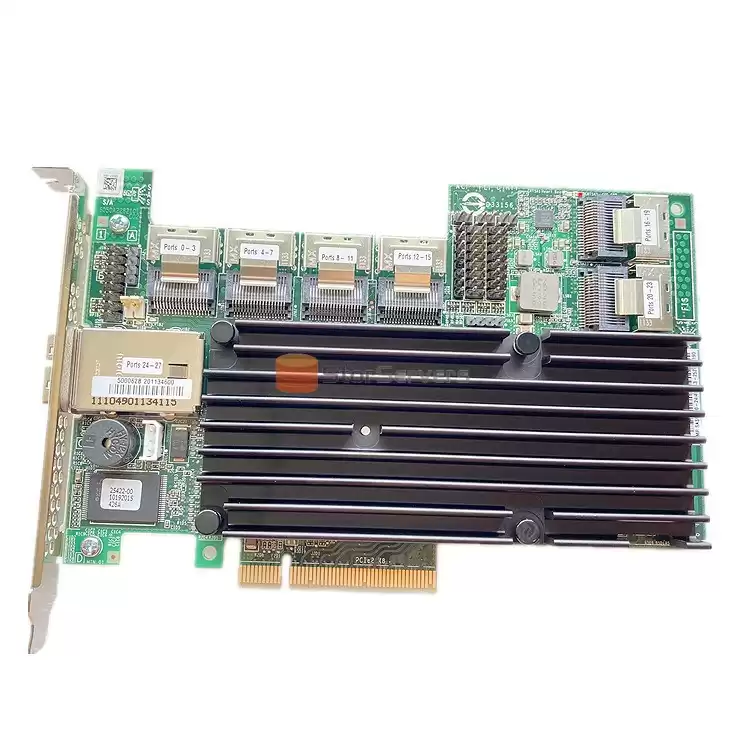

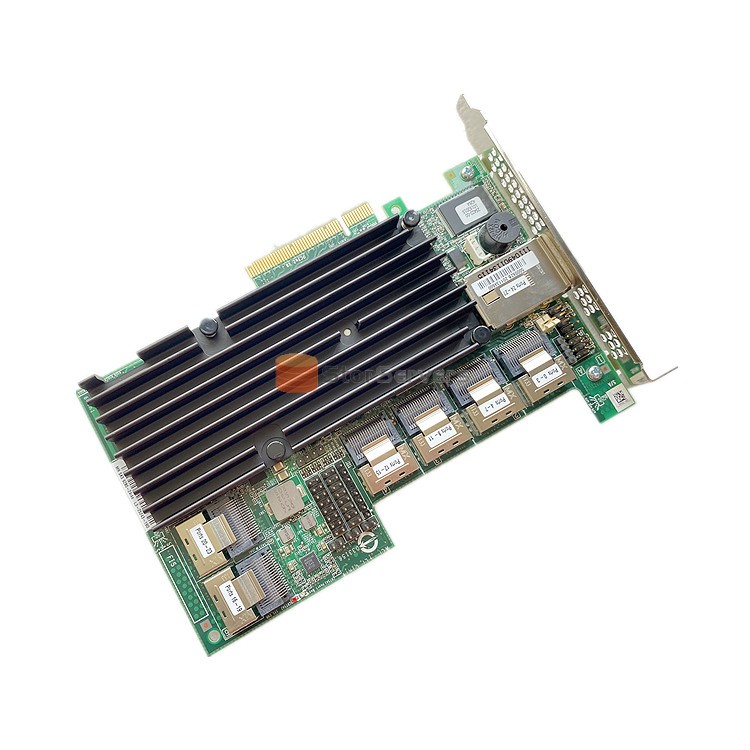

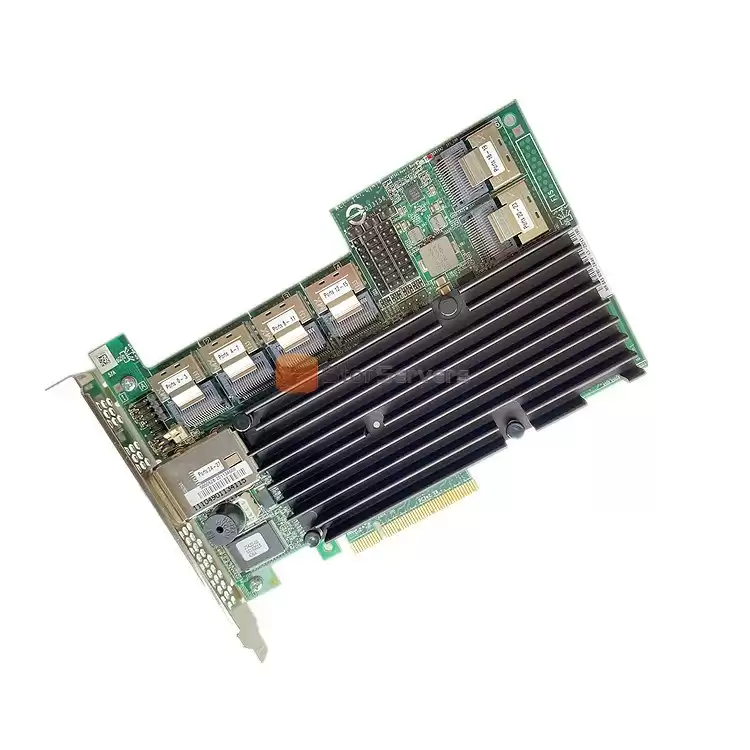

LSI SAS 9280-24i4e raid controller L5-25243-05 megaraid
Key Features
■ Twenty-Eight 6Gb/s SATA+SAS ports
■ Six Mini-SAS internal connectors(SFF-8087)
■ One Mini-SAS external connector (SFF-8088)
■ LSI SAS 2108 6Gb/s RAID-on-Chip –800MHz PowerPC®
■ 512MB 800MHz DDRII cache memory
■ Optional battery backup module
■ RAID Levels 0, 1, 5 and 6
■ RAID Spans 10, 50 and 60
Key Advantages
■ Internal drive storage and external
■ JBOD expansion
■ PCI Express® 2.0 provides faster signaling for high-bandwidth applications
■ Connect up to 240 3Gb/s and 6Gb/s SATA and SAS hard drives
■ Support for Advanced Software Options
Specification
|
Model
|
LSl 9280-24i4e
|
|
MPN
|
L5-25243-05
|
|
OPN
|
LSI00211
|
|
Internal Connectors
|
Six Mini-SAS SFF8087 4i internal connectors
|
|
External Connectors
|
One Mini-SAS SFF8088 4x external connector
|
|
Device Support
|
Up to 240 SAS and/or SATA hard drives
|
|
Data Transfer Rates
|
Up to 6 Gb/s per port
|
|
Cache Memory
|
512MB 800MHz DDR II SDRAM
|
|
Host Bus Type
|
x8 lane PCI Express 2.0 Compliant
|
|
l/0 Processor/SAS Controller
|
LSI SAS 2108 RAID on Chip (ROC) and LSI SAS 2x36 Expander
|
|
RAID levels
|
0，1，5，6，10，50，60
|
|
Physical Dimensions
|
Half-Length, Full Height (6.6” x 4.376”)
|
|
Availability
|
In Stock
|
