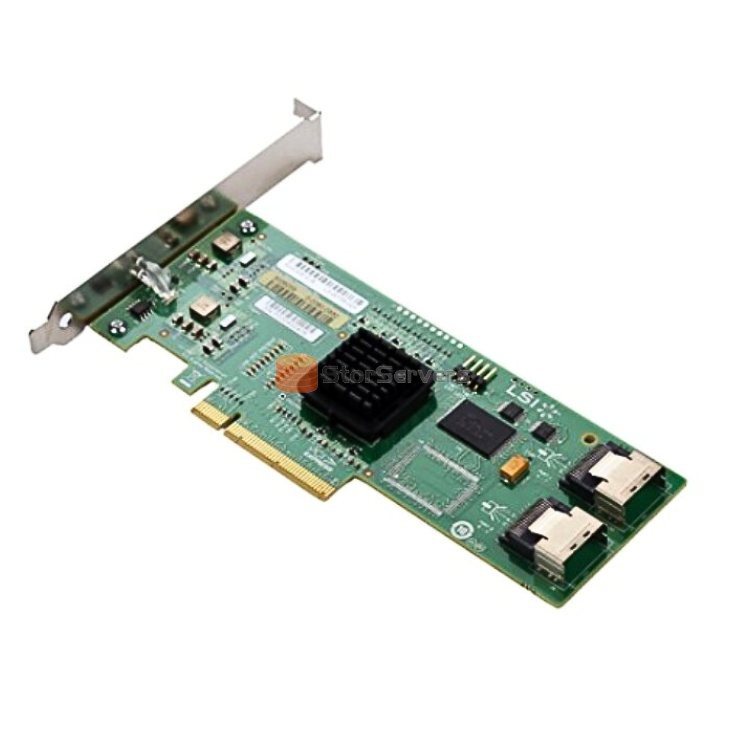

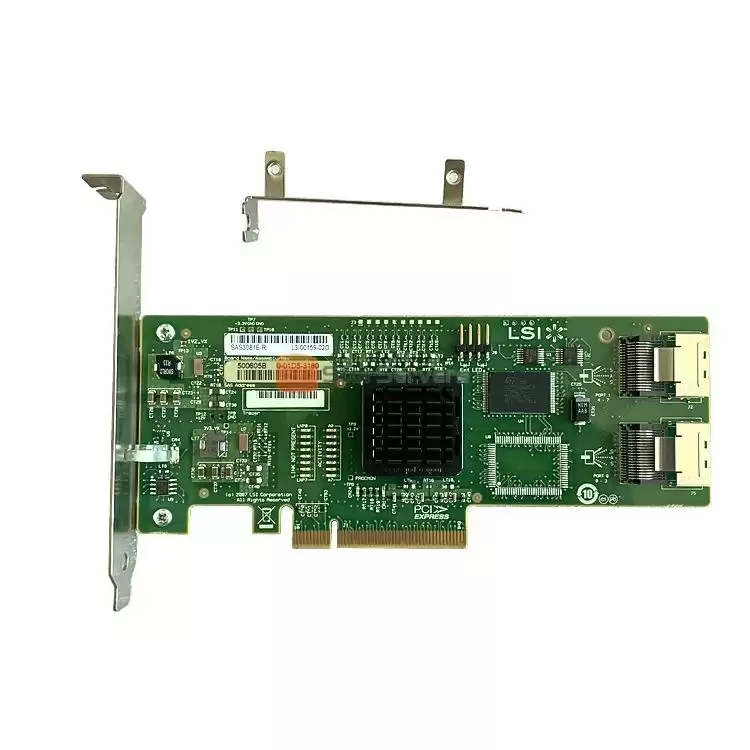

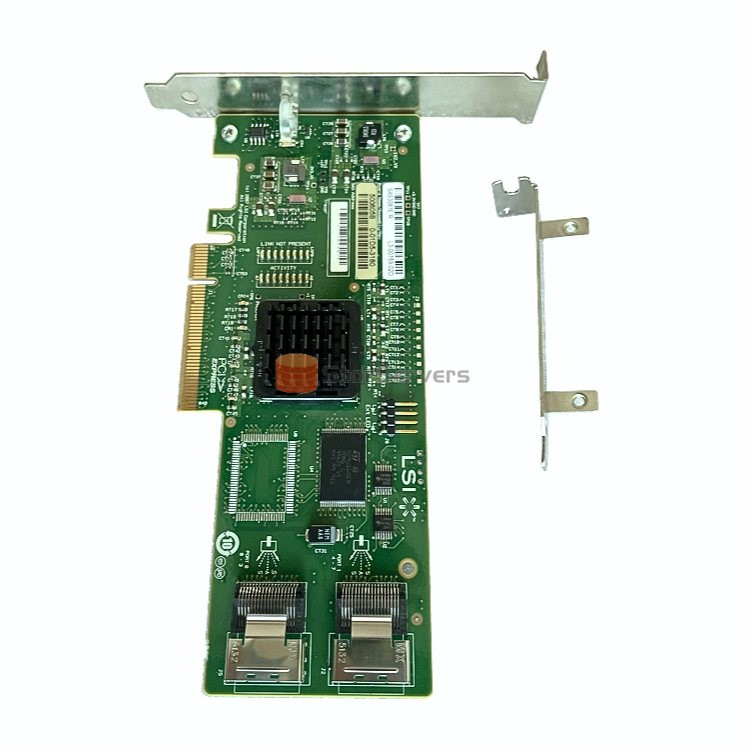

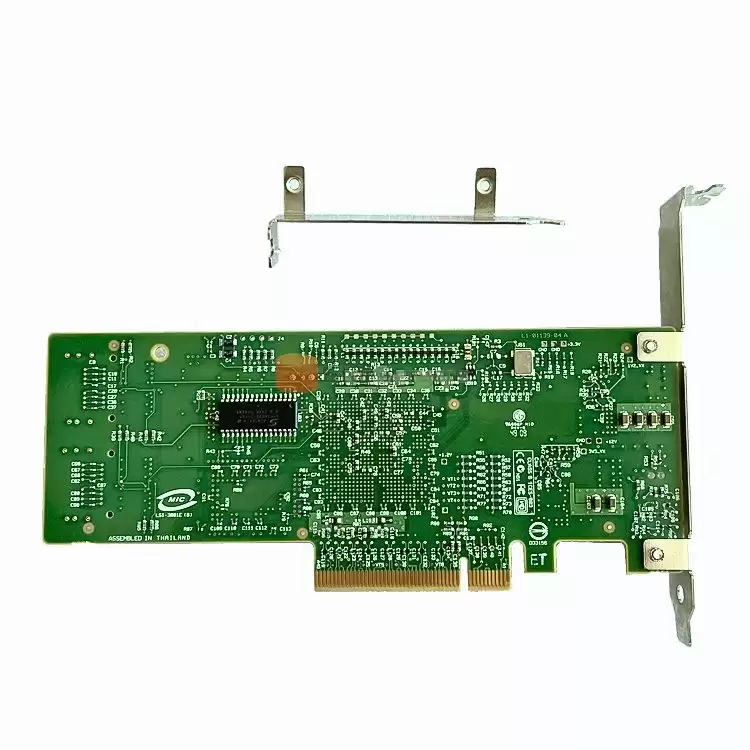

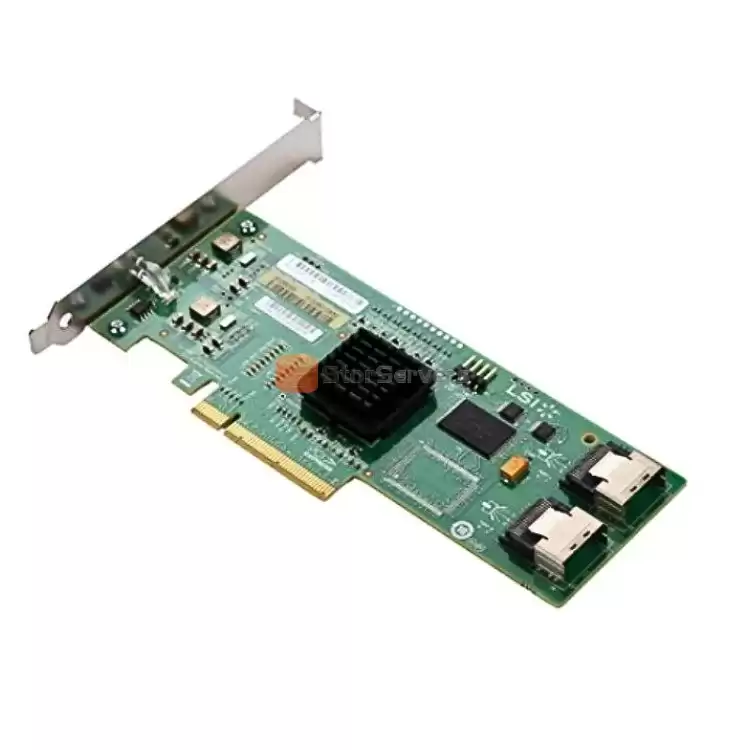

LSI SAS 3081E-R HBA card LSI00151
Applications
• High performance workstations
• Mid to high-end servers
• Internal storage connections
• 1U / 2U rack servers
Typical Uses
• Direct-attach internal SAS/SATA HDDs
• Small form-factor internal drive expansion
• Internal JBOD enclosures
• SAS Drives: mission-critical operations
• SATA Drives: data archive and back-up
Features
• 3Gb/s per port
• Two internal miniSAS connectors – 2 x4 SFF8087
• Integrated RAID 0, 1, 1E and 10E
• 8 lane 2.5Gb/s PCI Express
• Connects to both SAS and SATA hard disk drives
• Allows up to 244 total end-point devices
• Low-profile MD2 form factor PCI card
• Fusion-MPT™ architecture providing over 140,000 I/Os per second
• Supports all major operating systems
Key Advantages
• Flexible SAS/SATA array architecture optimizes cost
• Integrated RAID avoids additional host CPU overhead
• Proven SAS/SATA interconnect through robust LSI serial technology
• Complete product package includes all necessary cables and brackets
Specification
| Model |
LSISAS3081E-R |
| PN |
LSI00151 |
| Connectors |
Internal Two x4 Connectors (SFF-8087) |
SAS Bus
|
Eight 3Gb/s SAS/SATA Ports
|
| PCI Certification |
PCI Express 1.0a |
SAS Controller ASIC
|
LSISAS1068E
|
Integrated RAID Levels
|
RAID 0, 1, 1E and 10E
|
Bracket
|
Full Height and Low Profile
|
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
