Key Features
− 12Gb/s SAS
− 6Gb/s SATA
− Gen 4.0 PCIe (NVMe)
• Hardware Secure Boot
• Universal Bay Management (UBM) ready (SFF-TA-1005)
• 13,700 MBs (256K Seq Rd)
• 3M IOPs (4K RR)
• x8 PCIe Gen 4.0 Host Interface
− Supports x8, x4, x2, x1 PCIe lanes at a transfer rate up to 16.0 GT/s per lane, full duplex
− Lane and polarity reversal
• SFF-9402 Compliant Connector Pin-out
• Up to 1024 SAS/SATA devices
• Up to 32 NVMe devices
• Form Factor Friendly Cable Exit
Applications
• High-port direct attached connectivity applications
• Enterprise Databases
• Analytics Applications
• Medical Imaging
• Media Applications
• Flexible solutions for cloud computing
Specification

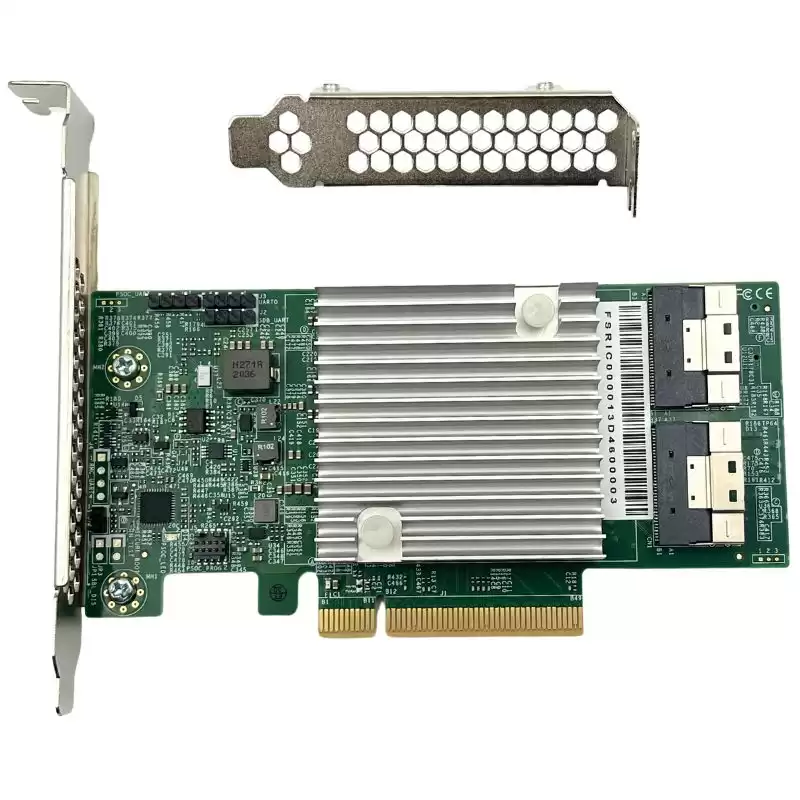

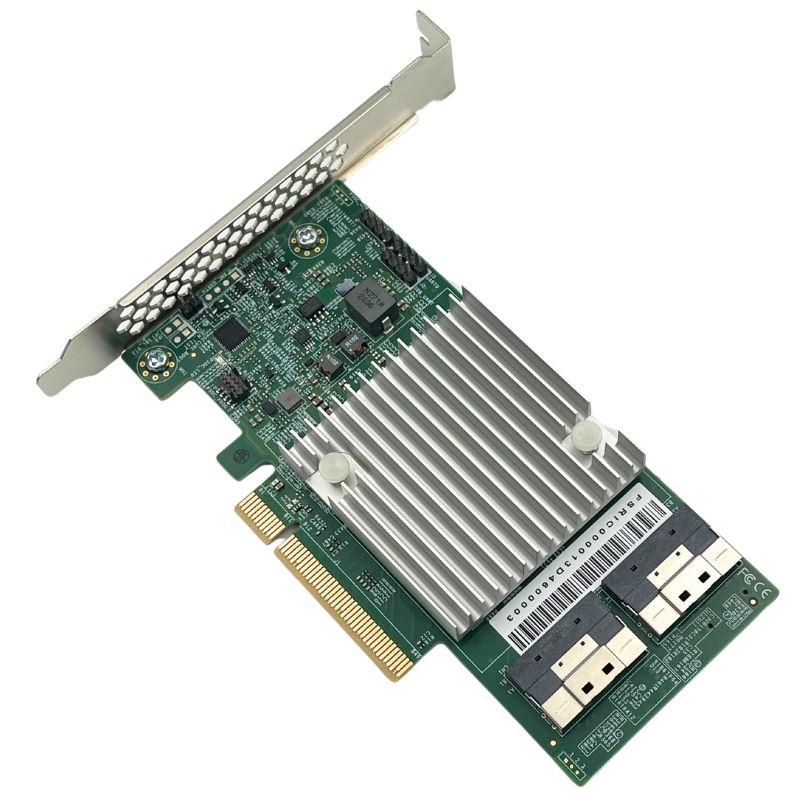

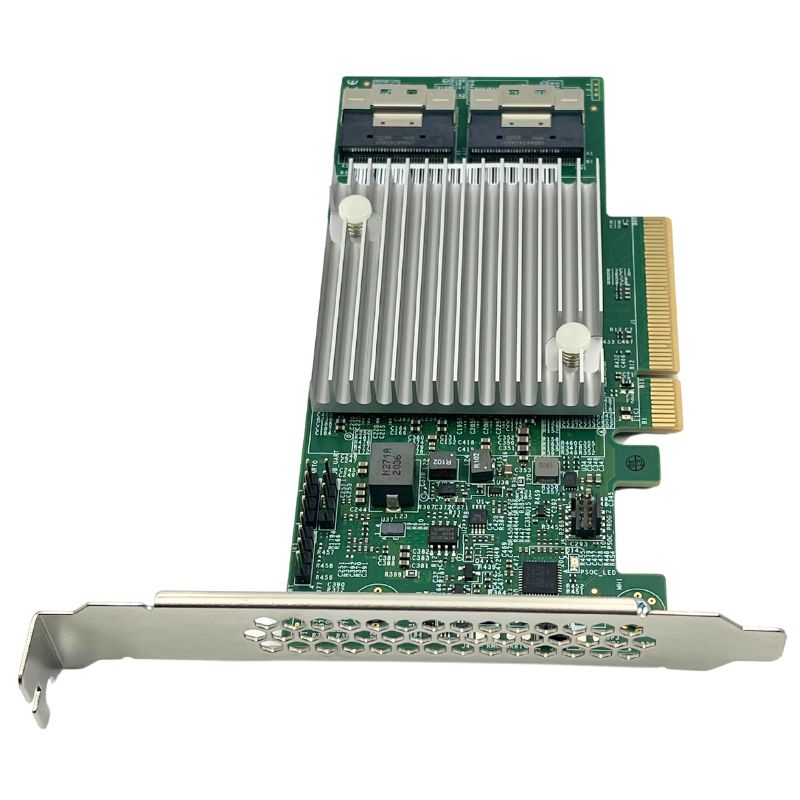

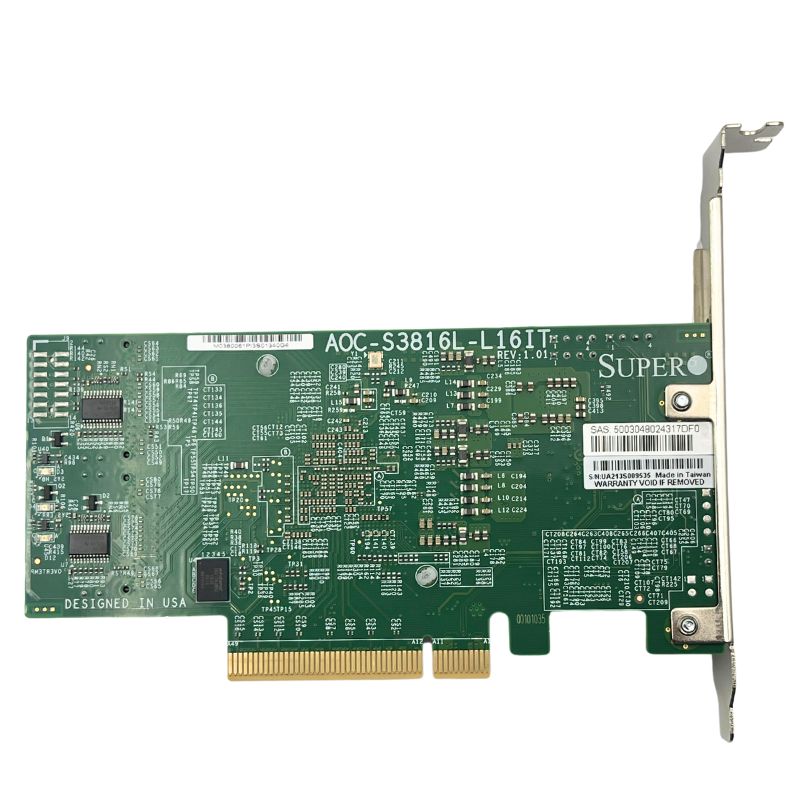

| Model |
AOC-S3816L-L16IT |
| Ports |
16 internal |
| Connectors |
Two x8 SFF-8654 |
| Storage Interface |
12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| I/O Processor/ SAS Controller |
SAS3816 |
| Host Interface |
x8 PCIe Gen 4.0 |
| Typical Power |
8.9W |
| Physical Dimensions |
6.127 in. × 2.712 in. (155.65 mm × 68.90 mm) |
| Cable Support |
Passive Copper |
About Us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcom!
Our Advantages
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
