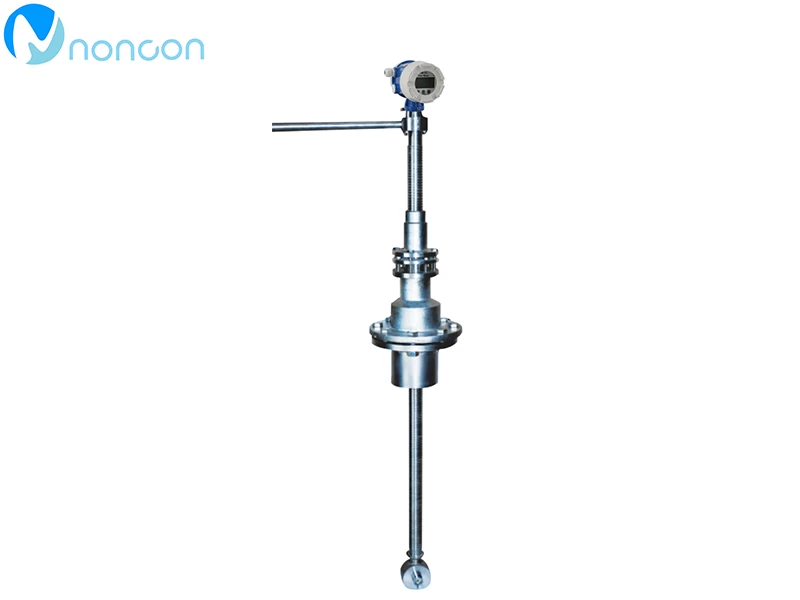

LWGC Insertion Type Turbine Flow Meter

LWGC (tangential) and LWCB (axial) plug-in type turbine flow sensors are matched with display meters to form a plug-in type turbine flow meter, which can be widely used for measurement of large caliber pipeline source water, circulating water, clean water and other liquid flows andtotal amount.



Instrument selection

Model

Description

LWGC

Impeller form

Q

Tangential type

B

Axial-flow type

Structure form

 or >

Means there is globe valve

Means no globe valve

Nominal diameter

<(mm)

Customer pipe diameter

※Example of model marking

Example 1: LWGCQ-100, indicating no globe valve, nominal diameter DN100mm

Example 2:LWGCB ≤ 400, indicating a globe valve, nominal diameter DN ≤ 400

Example 3:LWGCQ ≤ 800, indicating a globe valve, nominal diameter DN ≤ 800

Example 4:LWGCQ > 800, indicating a globe valve, nominal diameter DN > 800


Technical Parameters

1.LWGC Measurement range of plug-in turbine flowmeter:                                          Table 1

Model

The measured inner diameter of the pipe is measured mm

Plug-in rod length mm

Flow range corresponding to the nominal diameter DN  m³/h

Full flow range

Flow range of accuracy is ±2.5% of the displayed value

Flow range of accuracy is ±5% of the displayed

LWGCQ-100

100

6-150

10-150

<10-6

LWGCQ-150

150

13-200

20-200

<20-13

LWGCQ-200

200

23-300

40-300

<40-23

LWGCQ400

100

906

6-150

10-150

<10-6

150

13-200

20-200

<20-13

200

23-300

40-300

<40-23

250

36-450

62-450

<62-36

300

52-650

90-650

<90-52

350

70-900

120-900

<120-70

400

92-1100

160-1100

<160-92

LWGCQ800

500

1106

150-1800

250-1800

<250-150

600

220-2500

360-2500

<360-220

700

280-3500

450-3500

<450-280

800

380-4500

640-4500

<640-380

LWGCQ>800

900

1306

460-5800

800-5800

<800-460

1000

600-7000

990-7000

<990-600

1100

700-8500

1200-8500

<1200-700


                                                                                                                                    Table 2

Model

The measured inner diameter of the pipe is measured mm

Plug-in rod length mm

Flow range corresponding to the nominal diameter DN  m³/h

Full flow range

Flow range of accuracy is ±2.5% of the displayed value

Flow range of accuracy is ±5% of the displayed

LWGCB-100

100

3-150

5-150

<5-3

LWGCB-150

150

7-200

10-200

<10-7

LWGCB-200

200

12-300

20-300

<20-12

LWGCB400

100

900

3-150

5-150

<5-3

150

7-200

10-200

<10-7

200

12-300

20-300

<20-12

250

18-450

31-450

<31-18

300

26-650

45-650

<45-26

350

35-900

60-900

<60-35

400

46-1100

80-1100

<80-46

LWGCB800

500

1100

75-1800

125-1800

<125-75

600

110-2500

180-2500

<180-110

700

140-3500

225-3500

<225-140

800

190-4500

320-4500

<320-190

LWGCB>800

900

1300

230-5800

400-5800

<400-230

1000

300-7000

495-7000

<495-300

1100

350-8500

600-8500

<600-350
