Features
■ International standards is used and the product can replace similar imported products
■ Anti-corrosion and anti-rust material are used, suitable for the sanitary industry
■ Quick-connect structure is used, easy to install and maintain
■High precision and good repeatability
■High quality turbine, beyond the conventional range

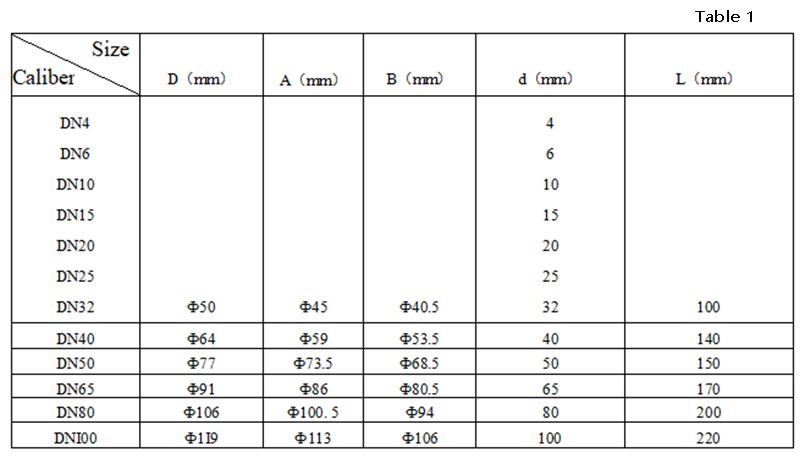

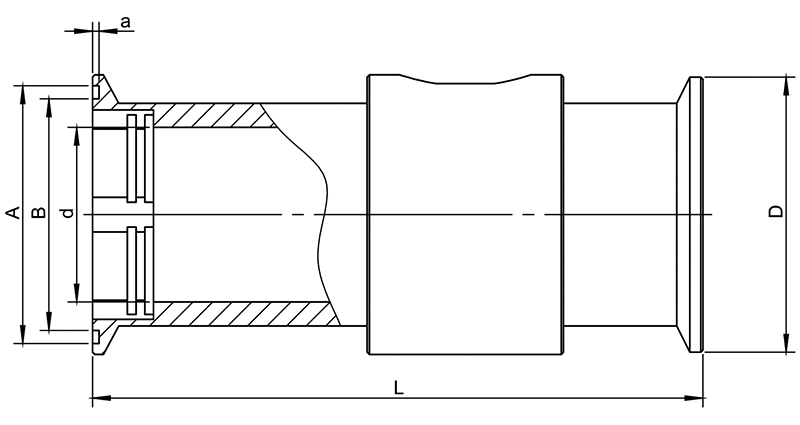

Dimensional drawing

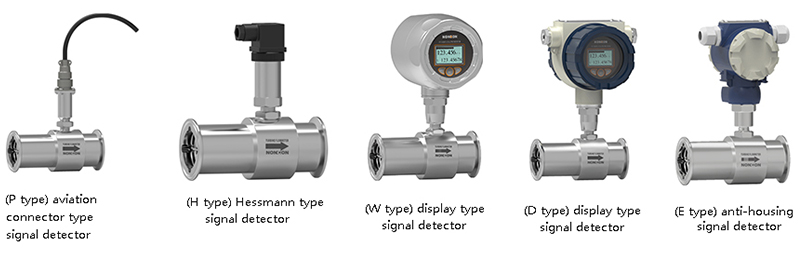

Detector Type
Meter Selection
Table 2
|
Model
|
Description
|
|
LWGS-
|
¨
|
/¨
|
/¨
|
/¨
|
/¨
|
|
Nominal diameter
|
4
|
DN4mm
|
|
6
|
DN6mm
|
|
10
|
DN10mm
|
|
15
|
DN15mm
|
|
20
|
DN20mm
|
|
25
|
DN25mm
|
|
32
|
DN32mm
|
|
40
|
DN40mm
|
|
50
|
DN50mm
|
|
Signal output type
|
P
H
E
D
W
|

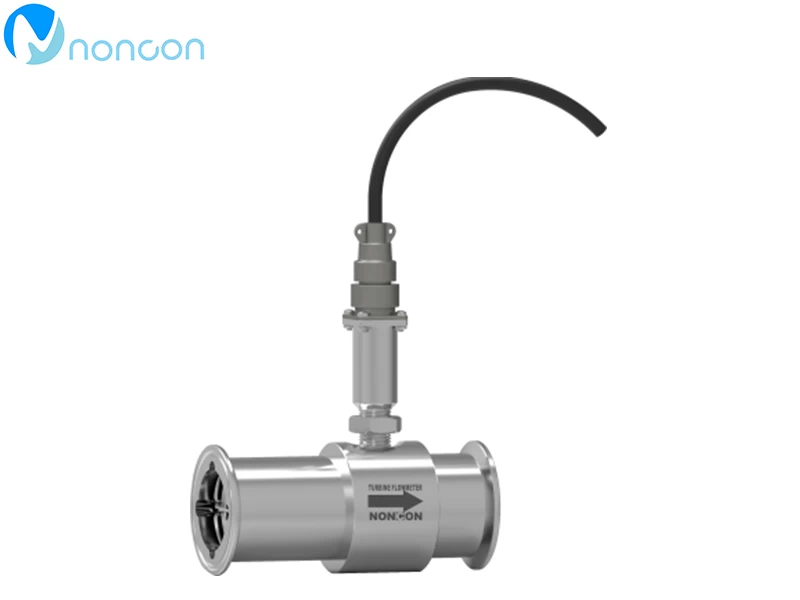

Normal aviation connector with 4 m cable (for N-type output type)

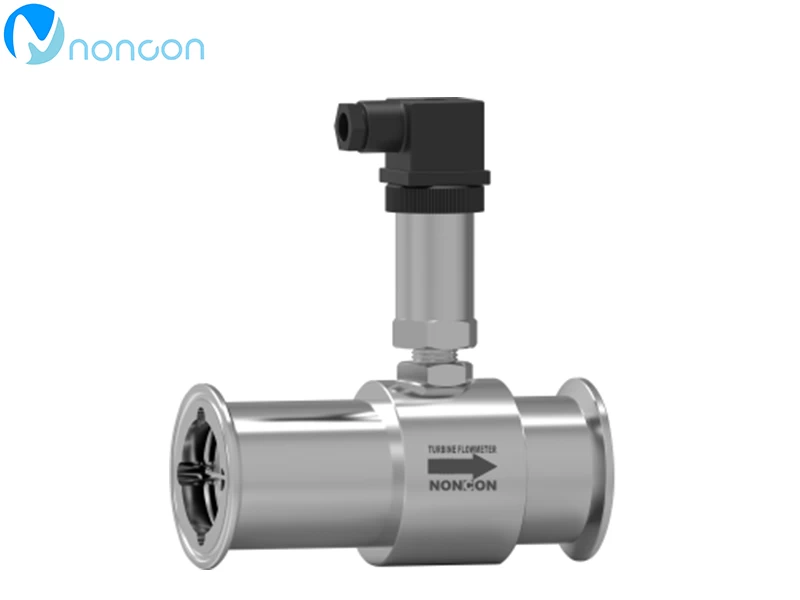

Hessmann connector (for N, A type output signal type)

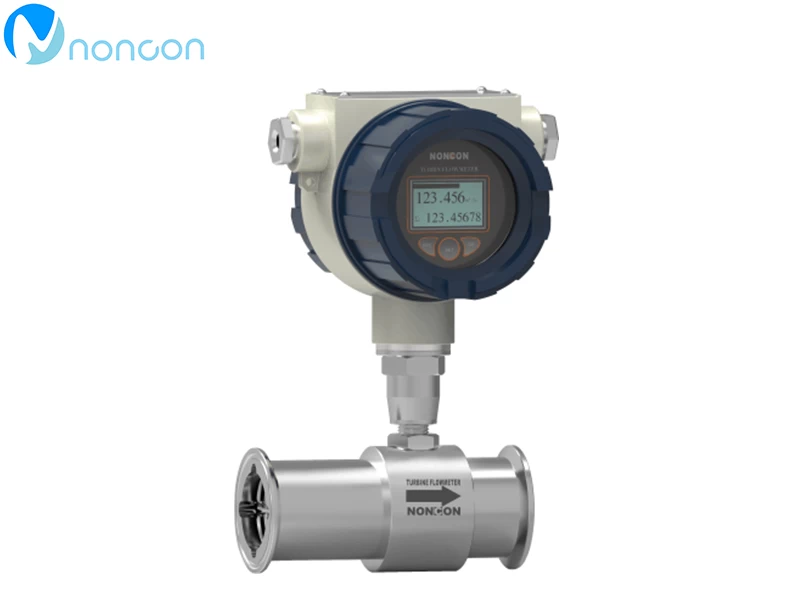

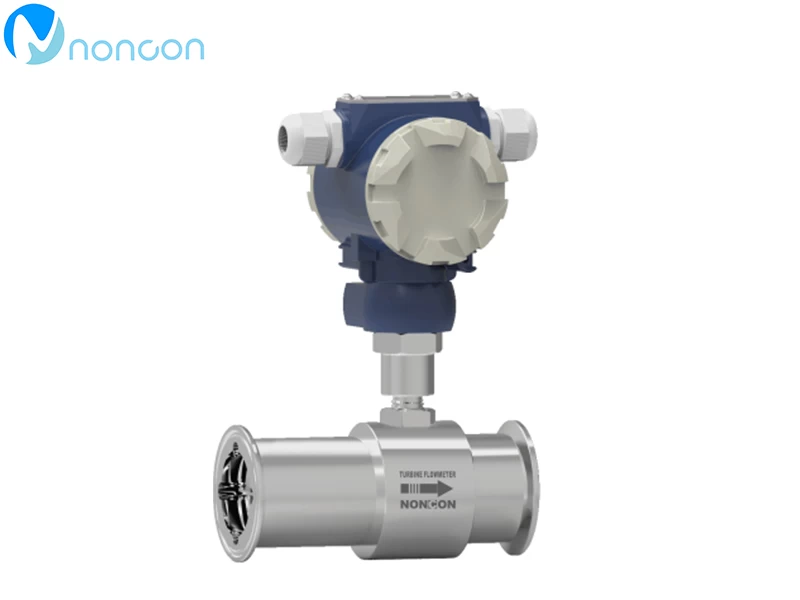

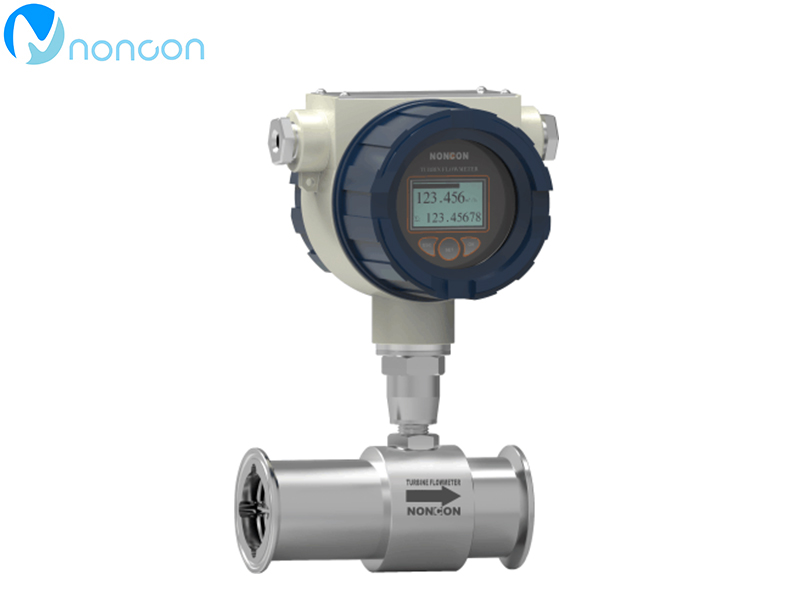

Explosion-proof housing type (for N, A type output type)

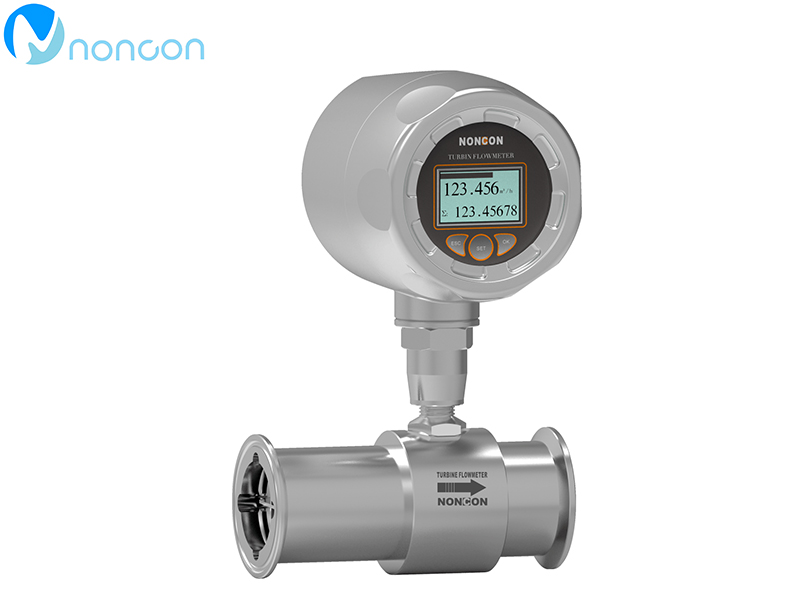

Display type housing (for B and C type output types)
All stainless steel sanitary display type housing (for B and C type output types)
|
|
H
|
Hessmann connector (for N, A type output signal type)
|
|
E
|
Explosion-proof housing type (for N, A type output type)
|
|
D
|
Display type housing (for B and C type output types)
|
|
W
|
All stainless steel sanitary display type housing (for B and C type output types)
|
|
Output type
|
N
A
B
Cl
C2
C3
|
Sensor type: 24VDC power supply, output three-wire pulse signal
Transmitter type: 24VDC power supply, output two-wire 4 ~ 20mA
Intelligent type : Lithium battery power supply, on-site display (dual power supply, pulse output can be optional)
Intelligent type: 24VDC power supply, on-site display, output 4 ~ 20mA (pulse output can be optional)
Intelligent type: 24VDC power supply, on-site display, output two-wire 4 ~ 20mA ,HART communication (pulse output can be optional)
Intelligent type: 24VDC power supply, on-site display, RS485 communication (dual power supply,pulse output can be optional)
|
|
A
|
Transmitter type: 24VDC power supply, output two-wire 4 ~ 20mA
|
|
B
|
Intelligent type : Lithium battery power supply, on-site display (dual power supply, pulse output can be optional)
|
|
C1
|
Intelligent type: 24VDC power supply, on-site display, output 4 ~ 20mA (pulse output can be optional)
|
|
C2
|
Intelligent type: 24VDC power supply, on-site display, output two-wire 4 ~ 20mA ,HART communication (pulse output can be optional)
|
|
C3
|
Intelligent type: 24VDC power supply, on-site display, RS485 communication (dual power supply,pulse output can be optional)
|
|
Accuracy grade
|
05
|
Accuracy grade 0.5
|
|
10
|
Accuracy grade 1.0
|
|
Material
Type
|
W
|
304 stainless steel
|
|
S
|
316L stainless steel (customized, long production time)
|
|
Explosion proof
|
N
|
Unmarked, non-explosion-proof
|
|
E
|
Explosion-proof type (ExdIICT6)
|
