M3 Cold Rolled Grain Oriented Silicon Steel

Grain oriented electrical steel is an important material in the production of energy efficient transformers and large, high performance generators. In the form of laminated, wound or punched sheets, it is the essential core material of distribution transformers, power transformers and small transformers.

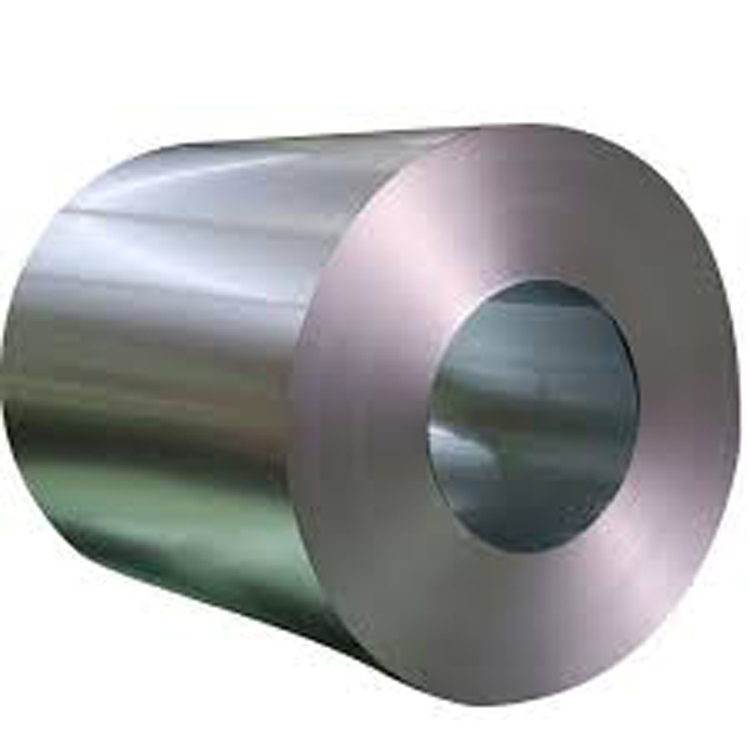

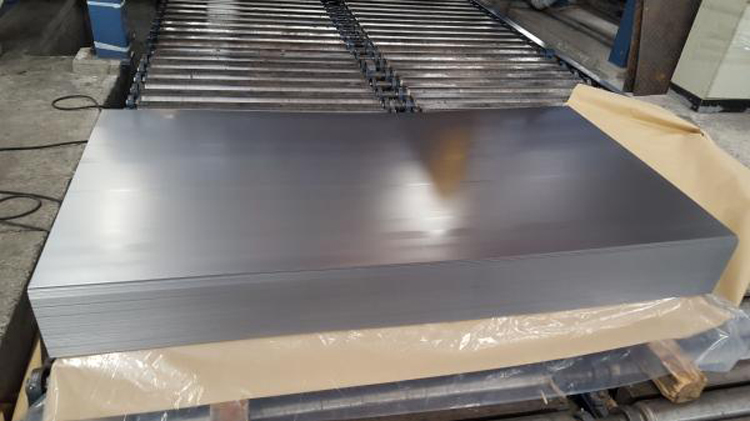

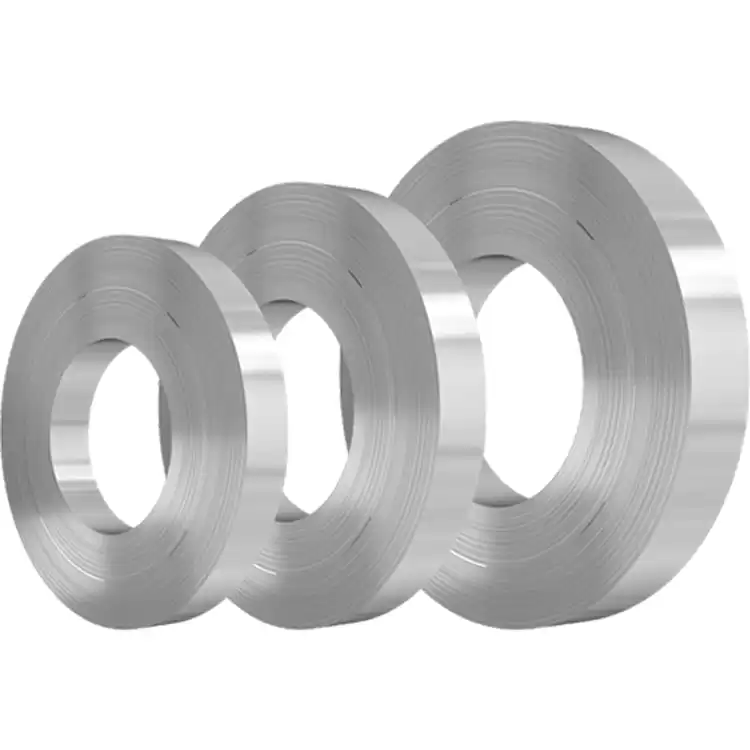

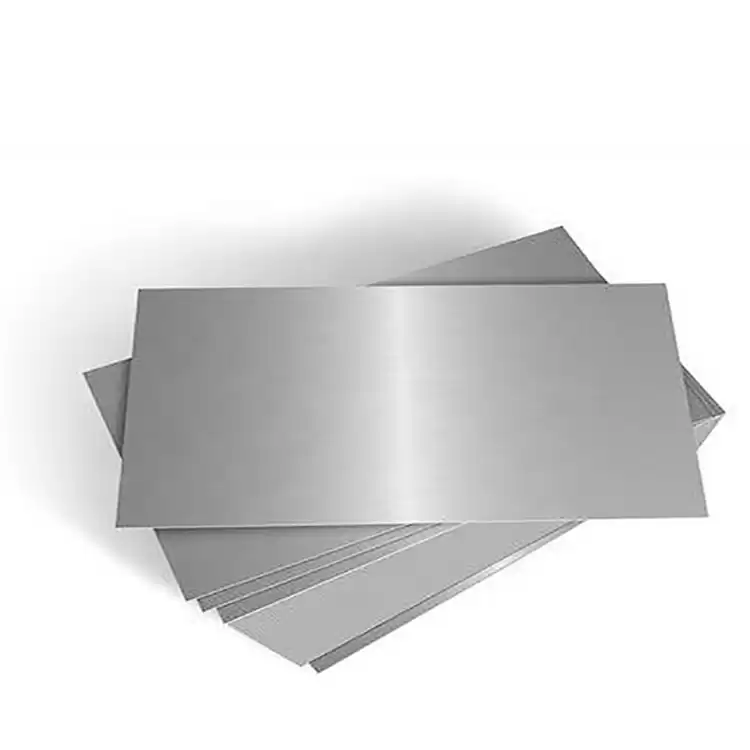

M3 Cold Rolled Grain Oriented Silicon Steel Sheet/Coil/Strip


WanJuan Steel is manufactured to exhibit excellent magnetic properties in one direction (the rolling direction) of a steel sheet. We offer grain-oriented electrical steel sheet/coil/strip with excellent magnetic flux density and iron loss characteristics.



Specificatiion

Category

Grain-Oriented Electrical Steel; Non-oriented electrical steel

Standard

AISI, ASTM, BS, DIN, GB, JIS, EN

Grade

M3

Thickness

0.1- 0.8 mm

Width

10-1200 mm

Processing Service

Bending, Welding, Decoiling, Cutting, Punching

Grade

CRGO 50W470/600/800

Technique

Cold Rolled

Tolerance

±1%


Mechanical Properties

THICKNESS

TYPICAL CORE LOSS AT

GUARANTEED CORE LOSS AT

TYPICAL POLARIZATION AT

GUARANTEED POLARIZATION AT

mm

inch

1.5 T
50 Hz
W/kg

1.7 T
50 Hz
W/kg

1.5 T
60 Hz
W/lb

1.7 T
60 Hz
W/lb

1.7 T
50 Hz
W/kg

1.7 T
60 Hz
W/lb

800 A/m
typ. T

800 A/m
min. T

0.23

0.009

0.55

0.74

0.33

0.44

0.75

0.45

1.91

1.88

0.23

0.009

0.56

0.76

0.34

0.46

0.78

0.47

1.19

1.88

0.23

0.009

0.57

0.78

0.34

0.47

0.80

0.48

1.91

1.88

0.23

0.009

0.60

0.83

0.36

0.50

0.85

0.51

1.90

1.88

0.23

0.009

0.62

0.88

0.37

0.53

0.90

0.54

1.90

1.88

0.23

0.009

0.67

0.98

0.40

0.59

1.00

0.60

1.88

1.85




Our Service

  • Heavy Gauge Slitting
  • Steel Coil Slitting
  • Steel Sheet Cut-to-Length
  • Electro cold Rolled & Hot Dipped Coating
  • Steel Sheet & Plate Painting
  • Finishing Services


Advantages to choose us


  • We partner with leading manufacturers to provide cold-rolled, hot-rolled, galvanized, pre-painted, coated and stainless steel for major home appliances.
  • Quality assured products at competitive price;
  • High quality assured & competitive price;
  • Customized service to meet your special requirements;



Product Tags grain oriented electrical steel sheet          grain oriented silicon steel          grain oriented steel          cold rolled grain oriented steel
