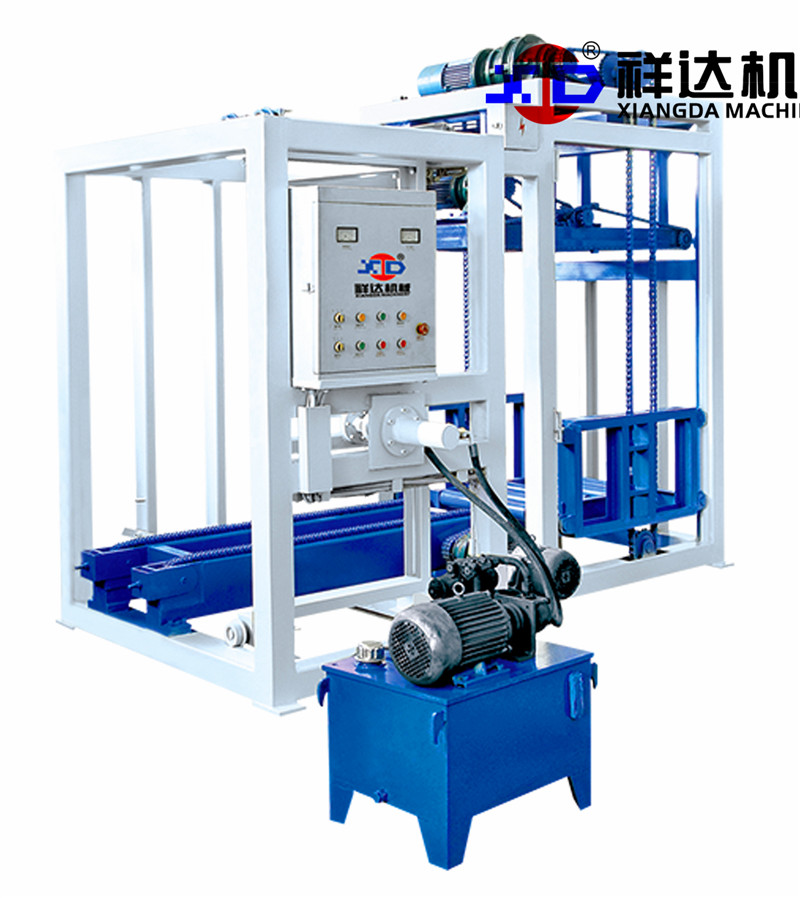

MACHINE FOR BLOCK MAKING QT4-15

MACHINE FOR BLOCK MAKING 4-15 block bricks machine Technical Parameters Capacity Feature and Advantage We used the Rubber pad (PU) under the Shaking box, Can reduce the noise when the machine working. More Stably. Product application scenarios Packaging & Shipping Packaging:standard Container,...




Quick Details

MACHINE FOR BLOCK MAKING


Condition:
 New
Type
 Hollow Block Making Machine
Brick Raw Materia
 Concrete
Processing
Brick Production Line
Method
Hydraulic Pressure
Automatic
Yes
Capacity
Solid brick 240*115*53mm: 5760 pcs/hour
Place of Origin
  Fujian, China (Mainland)
Brand Name
 Xiangda
Model Number
 XD4-15
Voltage
 Local Voltage
Power
26.8kw
Certification   CE/SGS/ISO9001
Warranty
 One Year
After-sales Service Provided
  Engineers available to service machinery overseas
Pollution
no
Products
  paver /concrete block(brick)
Shape
Nice
mini brick making machine



Main technical parameters

MACHINE FOR BLOCK MAKING

Dimension of host machine

2400*1660*2030mm

Host machine power

26.8kw

Weight  of host machine

6.5T

Mixer model

JS500

Molding area

800*680mm

Vibration force

50-60KN

Water consumption

4-6T/Day

Workshop

300㎡

The size of the pallet

860*540*25mm


Theoretical production capacity

MACHINE FOR BLOCK MAKING

Size(L*W*H)

Pcs/Mould

Pcs/Hr

Pcs/8Hr

400*100*200mm

8 1440 11520

400*150*200mm

5 900 7200

400*200*200mm

4 720 5760

400*250*200mm

4 720 5760

240*115*53mm

24 5320 42560

Paver:200*100*60mm

14 2100 16800

Paver:225*113*60mm

12 1800 14400


Detailed


MACHINE FOR BLOCK MAKING

Control center

A: Siemens PLC, self diagnosed for trouble shooting

B: touch screen controller, easy operation

C: International electrical components: Omron, Schneider


Hydraulic system

 Proportional electro-hydraulic relief valves

A: It’s working steady with low noise

B: Hi-precision

C: Easy micro-Adjusting




MACHINE FOR BLOCK MAKING
MACHINE FOR BLOCK MAKING

Mould

 heat treatment and wire cutting for the mould

A: Use the 16 manganese steel

B: heat treatment can reach HRC 61.

C: Working 150,000 times.


Link section

Perfect link to ensure the stable operation and service life of the machine

MACHINE FOR BLOCK MAKING

egg laying machine

MACHINE FOR BLOCK MAKING


MACHINE FOR BLOCK MAKING


Supply Ability

10 Set/Sets per Month if you need more , our company also can meet your demands

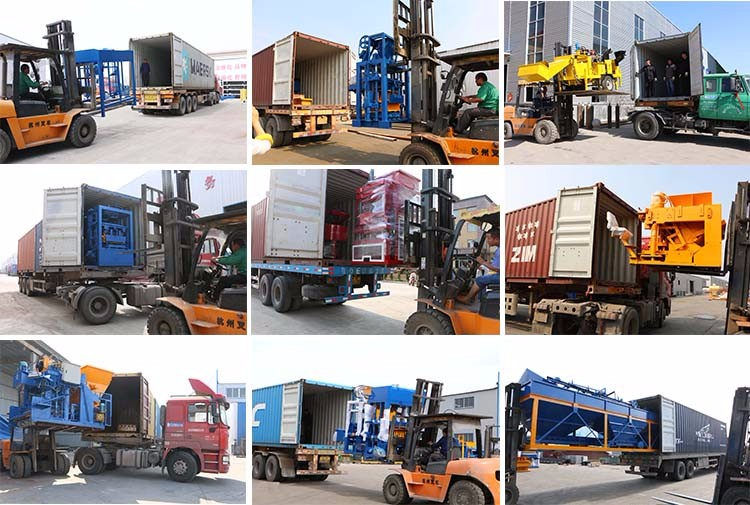

Packaging & Delivery

Packaging Details

The block machine and other steel structures will be packed nakedly in the container. The electrical components will be packed in strong wood cases with the above shipping mark clearly printed on each package. It must be suitable for long distance transportation.

Port:   Xiamen

Lead Time:   30days


MACHINE FOR BLOCK MAKING




Our Service

Pre-sales Service

(1) Professional suggestions (raw material matching, machine selection, the condition of building factory,

Feasibility analysis for brick machine production line)

(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)

(3) 24 hours on-line service

(4) Welcome to visit our factory and production line anytime.

(5) Introduce the company file, product categories and production process.

(6)Sample testing support.


Sale:

(1) Update the production scheduling in time

(2) Quality supervision

(3) Product acceptance

(4) Shipping on time


After-sale:

(1) Training how to install the machine, training how to use the machine.

(2)  Engineers available to service machinery overseas.

(3) Recall clients regularly , get feedback in time,keep well communication with each other

MACHINE FOR BLOCK MAKING

About  us

Quanzhou Xiangda Machinery Manufacture Co., Ltd. is a professional high-tech enterprise for concrete block making, owning R&D, manufacturing,sale and after-sale service.Xiangda Corporation is established in the beginning of 1990s, which is located in Quanzhou City, near to Xiamen Port, china. During over 20 years, we have been developing fast and getting more and more powerful with continous tech innovation and China patents.
