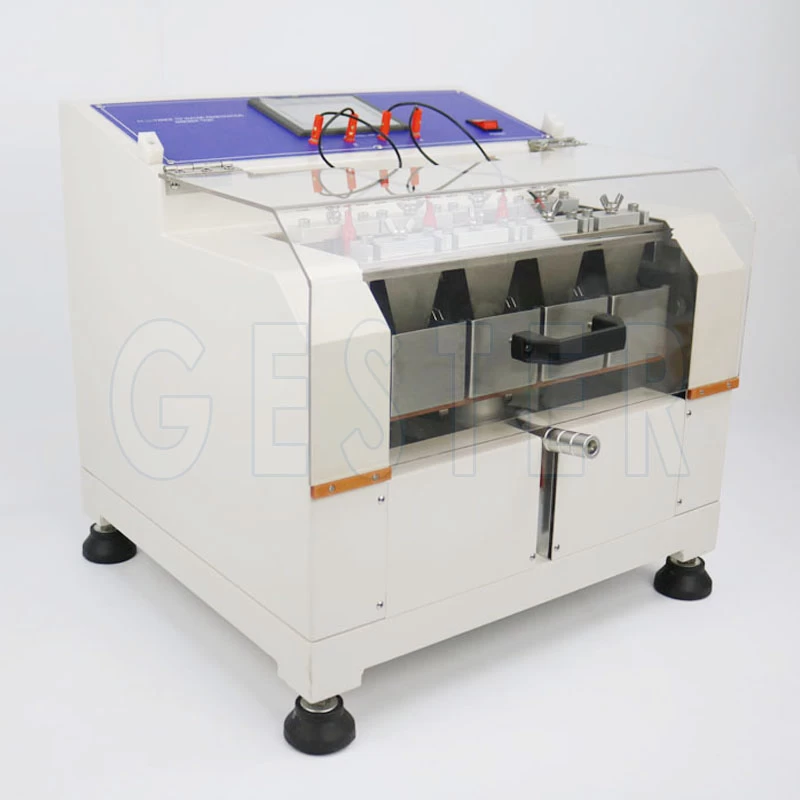

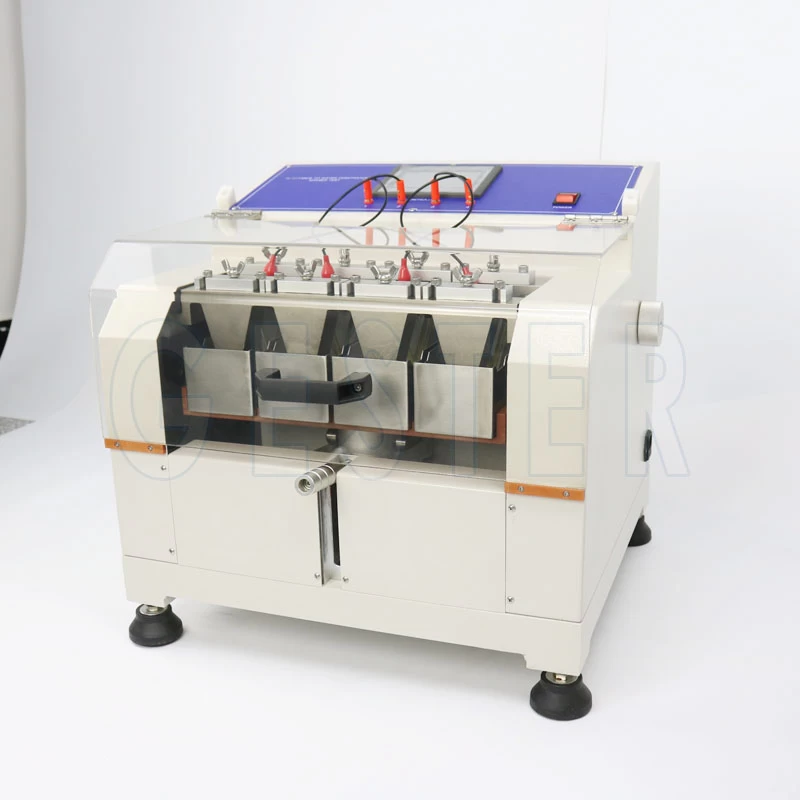

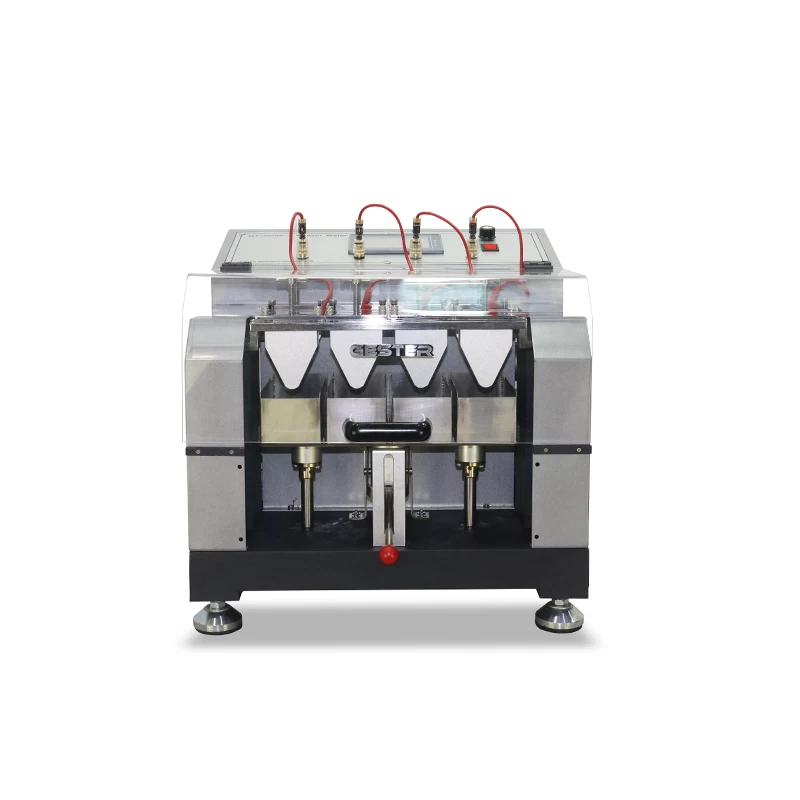

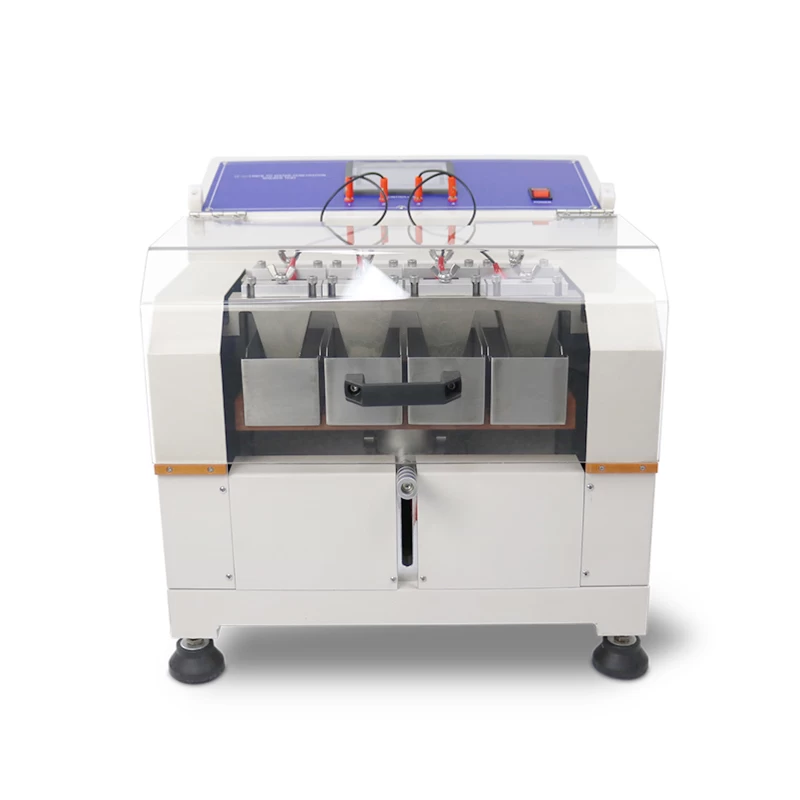

Maeser Water Penetration Tester GT-KC05
Product Introduction
|
Application:
Maeser Water Penetration Tester is used to determine the resistance of leather, artical leather, fabric and so on material to water penetration on flexing. The method is mainly applicable to footwear upper outer materials but can be used with any flexible sheet material.
Standards:
ISO 5423 section 5.2, EN ISO 20344 Section 6.5.2, AS/NZS 2210.2 Section 6.5.2, GB/T 20991 Section 6.5.2, GB20265 section 4.1, EN ISO 22288, SATRA TM25
|

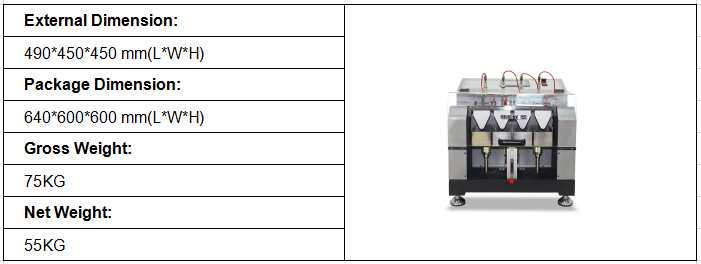

Dimensions
Principle

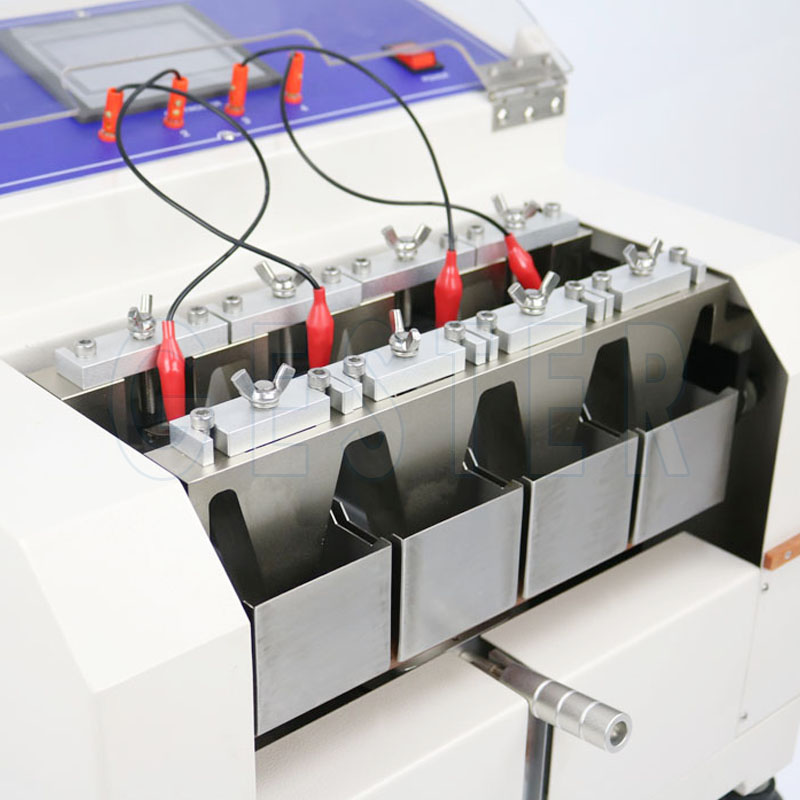

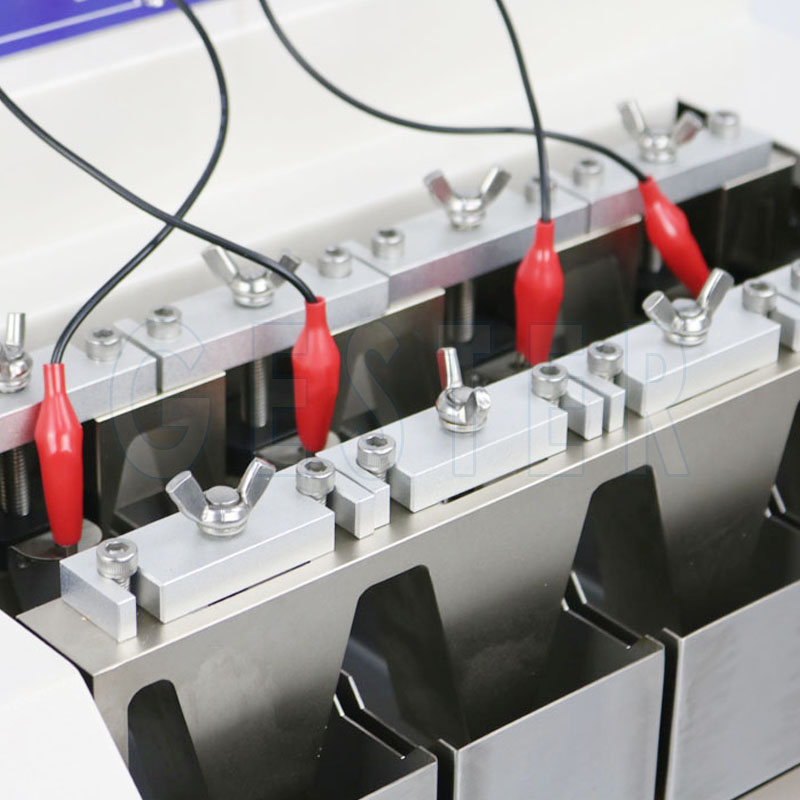

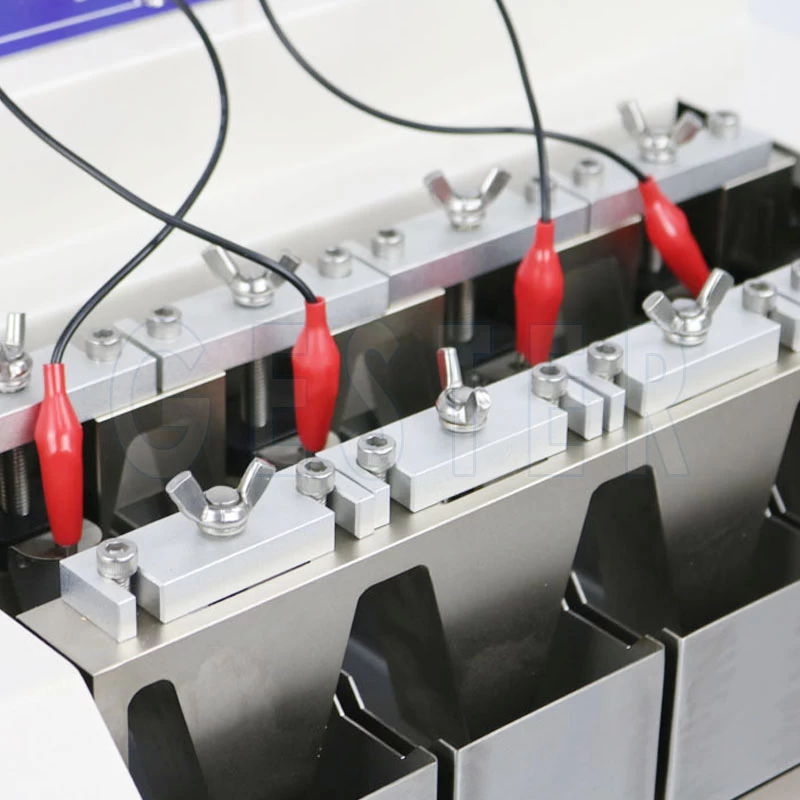

A square test specimen is folded and secured in two V-shaped clamps which have closed ends so as to form a trough. The trough is then immersed in water and the clamps oscillate at a constant speed so that the specimen is repeatedly flexed. The test is stopped at the first sign of water penetration through the test specimen.
Key Specifications
Model
|
GT-KC05-1
|
GT-KC05-2
|
GT-KC05-3
|
Position
|
4
|
Control method
|
Touch-screen control, 0~999,999
|
Clamps
|
V-shaped
|
Clamps tip radius
|
4mm
|
7.5±0.5mm
|
Moving fixture flexing displacement
|
25.4±1.3 mm
|
Non required
|
Moving fixture flexing angle
|
Non required
|
30 ± 1 °
|
32 ± 1 °
|
Test speed
|
90±5 r/min
|
Shutdown method
|
Electrode induction
|
Sample size
|
101.6 x 101.6 mm
|
114 x 114 mm
|
Power supply
|
1∮AC 220V 50/60HZ
|
Dimensions( L x W x H )
|
49x45 x45cm
|
Weight
|
55 kg
|
Standards
|
ASTM D2099
|
SATRA TM34 Type 1
|
SATR TM34 Type 2, ISO 5403-2
|
Standard Accessories
|
Stainless steel ball 550g
|
Electrode induction line 4pcs
|
Power line 1pcs
|
Option Accessories
|
GT-C48 Pneumatic Sample Press (Cutter: 101.6x101.6 mm and114 x114 mm)
|
Electronic balance (300g / 0.01g)
|
Application Industry
All kinds of materials can be tested on the Maeser Water Penetration Tester
