Magnesium-aluminum-zinc steel Posmac Ground Solar system

Magnesium-aluminum-zinc steel Posmac Ground Solar system is a ground solar mounting system made of magnesium-aluminum-zinc steel plate. Posmac is a new material, the installation cost is more economical.


  • Service Lifemore than 20 years
  • Warranty10 years
  • Fastener MaterialStainless steel SUS304
  • Design standardAS/NZS1170,JIS C 8955-2017
  • Module OrientationHorizontal, Vertical
  • Applicable module typeMono-crystalline, Poly-crystalline, Double wave and Thin film
  • Distance from module lowest point to the groundUp to request
  • Snow load1.4KN/m²
  • Installation foundationC-shape pilling
  • Installation angleUp to request
  • Wind load60m/s(216kmh/133mph)
  • Installation locationGround
  • BrandWintop

Magnesium-aluminum-zinc steel Posmac Ground Solar system


Product Description

Posmac Ground Solar system is a new type of environmentally friendly material, and its corrosion resistance is 5-10 times higher than that of general hot-dip galvanized sheets, so it is less prone to corrosion when used for ground mounting of solar systems.


Technical Parameters

Installation location Ground
Installation foundation C-shape pilling
Installation angle 1°-15°
Wind load 60m/s (216kmh/133mph)
Snow load 1.4KN/m²
Distance from module lowest point to the ground 1800-3500mm
Applicable module type Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation Horizontal, Vertical
Design standard AS/NZS1170,JIS C 8955-2017
Bracket material POSMAC
Fastener Material Stainless steel SUS304
Warranty&Duration 10 years&More than 20 years


Features & Benefits

  1. Easy transportation & installation and safe construction;
  2. Suitable for various designs and solutions;
  3. The maxiumum pre-assembly, save contruction time and labor cost;
  4. New material, more economical installation costs.


Components

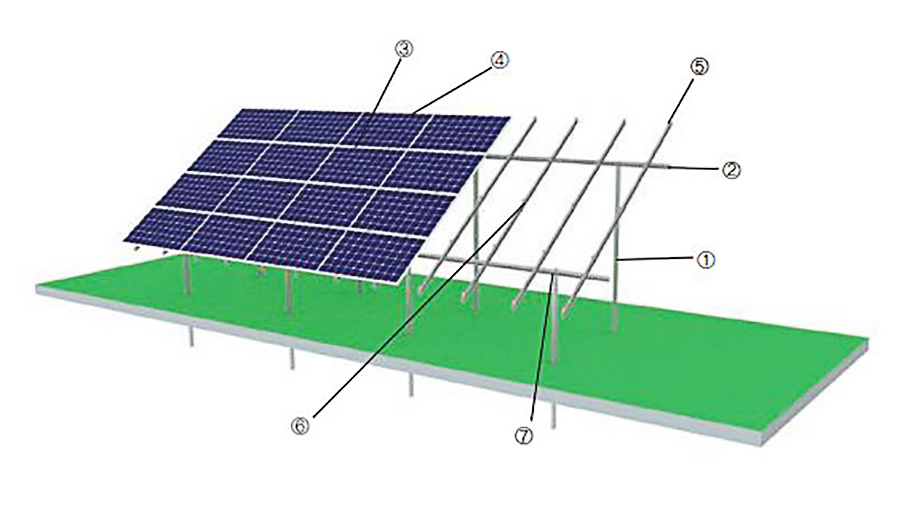

posmac ground mounting

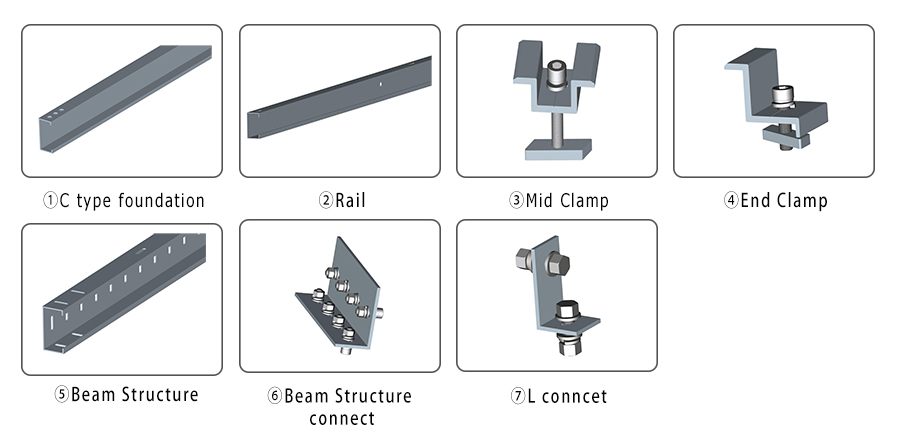

ground posmac mounting componments


Project

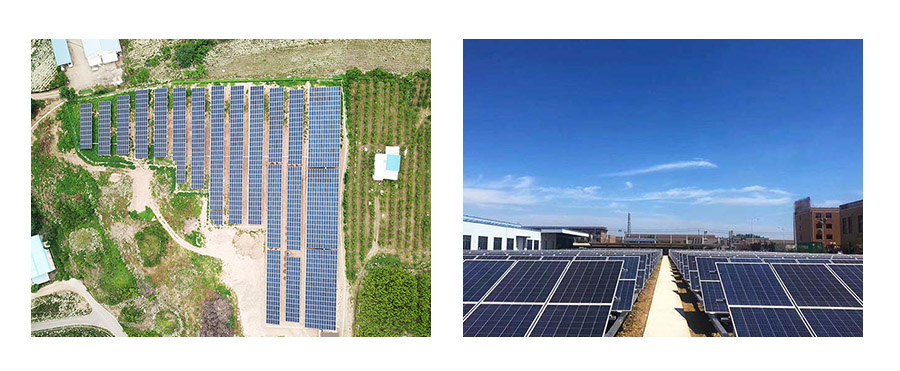

posmac groung system case


Certificate







QC

WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.
