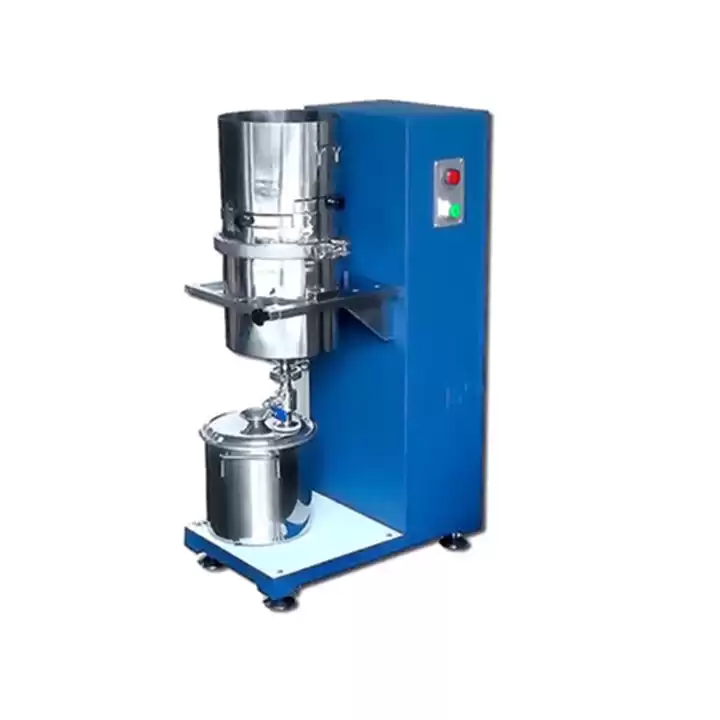

Magnetic De-Ironing Filtration System (5L) For Battery Electrode Slurry
MSK-FT02 is a CE Certified magnetic de-ironing filtration system. It is designed for optimizing the condition of slurry before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.
|
Structure
|
Containers Made of Stainless Steel 304
|
|
Voltage supply
|
Input:110VAC - 240VAC universal power
Output to machine: 24VDC via a CE, UL-certified adapter for worldwide use
|
|
Power
|
50W
|
|
Working Temperature
|
<=40°C
|
|
Process Capacity
|
5L
|
|
Magnetic Field Strength
|
8000 G
|
|
Filter
|
3 mesh filters: 80, 100, 120
Optional 150,200,250,325 mesh size is available upon an email request
|
|
Slurry Viscidity
|
<=15000CP
|
|
Humidity
|
0-90%RH
|
|
Deironing Function
|
8000-10000 GC
|
|
Overall Dimensions
|
500mm(L) x 300mm(W) x 850mm(H)
|
|
Shipping Weight & Dimension
|
130 lbs, 48"x40"x43"
|
|
Compliance
|
CE Certified
CE, TUV, UL, CSA certified in power supply
Machine is safe 24VDC input ， which can be used without any safety certification
|
|
Warranty
|
One year limited with lifetime support
Parts rusted without regular cleaning and maintenance are not covered by the warranty
|
