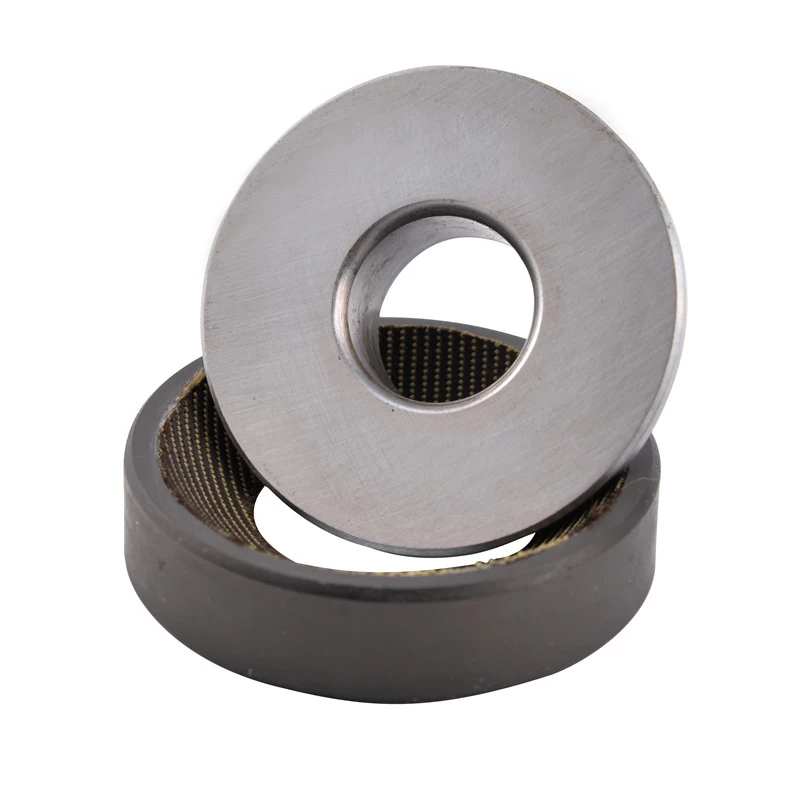

Maintenance Free Plain Bearings GX..T


Outer Race: Gcr15 Steel,Hardened HRC 58-64,Surface phosphated and with liner of PTFE fabric.

Inner Race: Gcr15 Steel,Hardened HRC 58-64,Precision ground,Hard chrome plated.

Sliding contact surfaces: Steel/PTFE fabric.




Spherical Plain Thrust Bearings GX60T

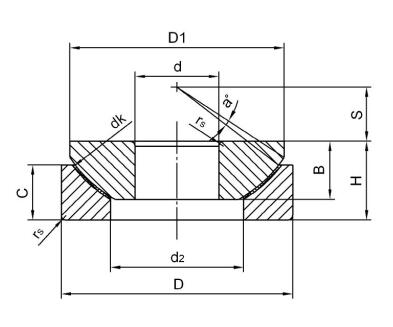

Bearing No. Dimensions(mm)
Load ratings
KN
a0
β‰ˆ
Weight
β‰ˆ kg
d D H B c d1
d2
min
D1
max
s rs Dynamic Static
GX10T 10 30 9.5 7.5 7 32 15.5 27.5 7 0.6 40 81 9 0.036
GX12T 12 35 13 9.5 9.3 38 18 32 8 0.6 56 112 8 0.072
GX15T 15 42 15 11 10.8 46 22.5 39 10 0.6 79 160 8 0.108
GX17T 17 47 16 11.8 11.2 52 27 43.5 11 0.6 92 186 10 0.137
GX20T 20 55 20 14.5 13.8 60 31 50 12.5 1 127 255 9 0.246
GX25T 25 62 22.5 16.5 16.7 68 34.5 58.5 14 1 203 407 7 0.415
GX30T 30 75 26 19 19 82 42 70 17.5 1 275 551 7 0.614
GX35T 35 90 28 22 20.7 98 50.5 84 22 1 403 806 9 0.973
GX40T 40 105 32 27 21.5 114 59 97 24.5 1 540 1080 9 1.59
GX45T 45 120 36.5 31 25.5 128 67 110 27.5 1 730 1470 7 2.24
GX50T 50 130 42.5 33 30.5 139 70 120 30 1 840 1670 8 3.14
GX60T 60 150 45 37 34 160 84 140 35 1 1140 2280 8 4.63
GX70T 70 160 50 42 36.5 176 94.5 153 35 1 1370 2750 8 5.37
GX80T 80 180 50 43.5 38 197 107.5 172 42.5 1 1700 3410 8 6.91
GX100T 100 210 59 51 46 222 127 198 45 1.1 1940 3890 8 10.9
GX120T 120 230 64 53.5 50 250 145 220 52.5 1.1 2170 4560 6 13.9
GX140T 140 260 72 61 54 274 177 243 52.5 1.5 2700 5440 6 18.1
GX160T 160 290 77 66 58 313 200 271 65 1.5 3265 6250 7 23.2
GX180T 180 320 86 74 62 340 225 299 67.5 1.5 3700 7220 8 30.9
GX200T 200 340 87 80 66 365 247 320 70 1.5 4780 9150 8 34.2
