Manual Coin Cell Electrode Table Hydraulic Press Machine
for Lab Use
Product Specification
1 TOB-YP180 Hydraulic press machine is a desktop manual pressing machine for materials / chemistry research laboratories to prepare compound ceramic sample.
2 The Hydraulic press machine is mainly used for laboratory tablet battery materials manual press, and Pressure powdery cake. It is mainly used for coin cell/ button battery electrode lab press.
3 The Manual press machine mould can be customized according to customer’s requirements.
|
Model
|
Hydraulic press machine TOB-YP180
|
|
Press die size
|
Diameter 68mm, customized
|
|
Press stroke
|
30mm
|
|
Advantages
|
By using aluminum alloy and high strength steel,
surface after the environmental protection electroplating processing will never rust
Using high quality imported mould material
|
|
Rocker Pressure
|
<6kg
|
|
Max Pressure
|
200kg/cm2
(The hydraulic drive pressure up to 8T, the battery sealing no vibration, no leakage)
|
|
Working Pressure
|
80-100kg/cm2
|
|
Dimension(L*W*H)
|
232*165*320mm
|
|
Weight
|
28kg
|

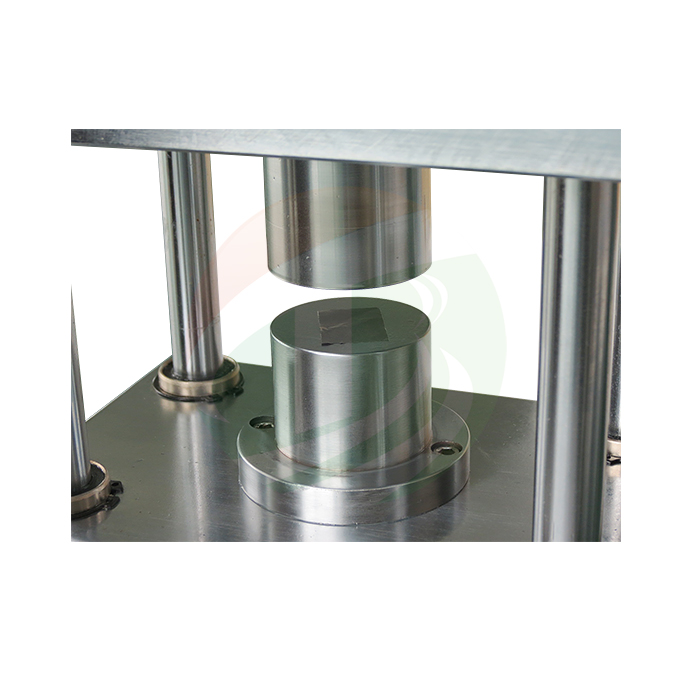

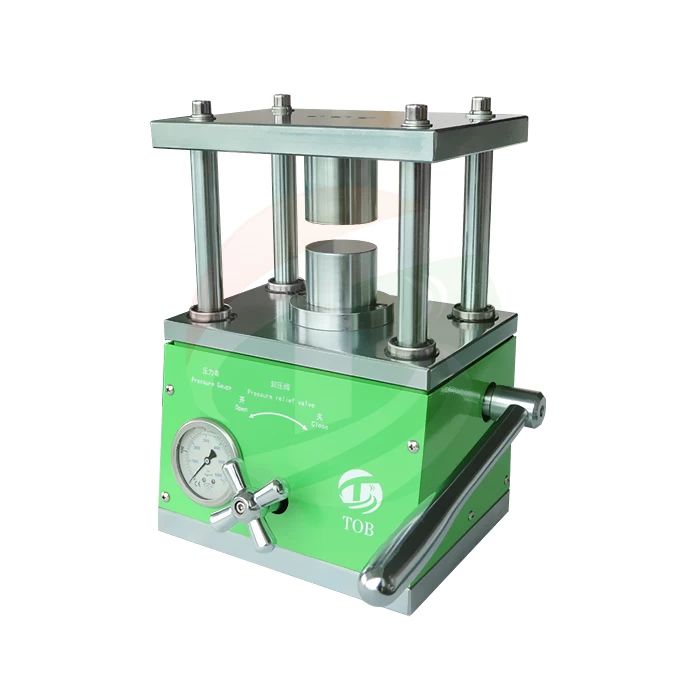

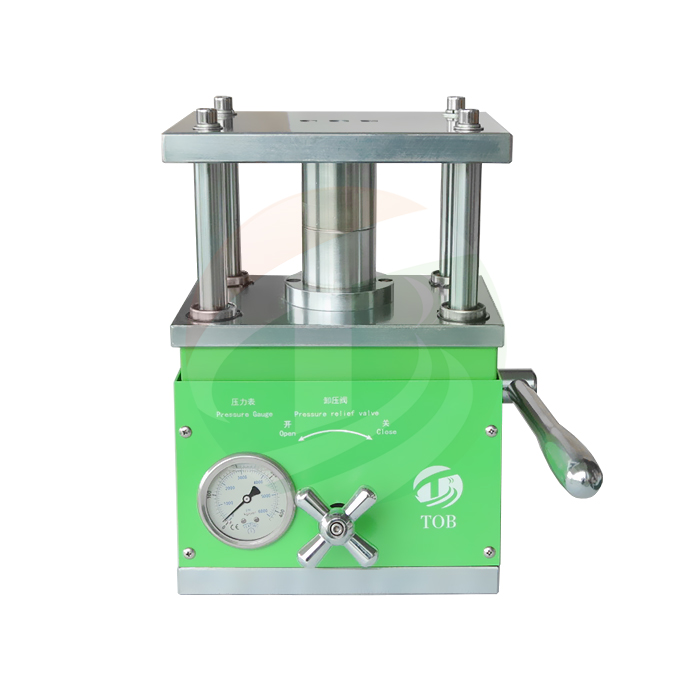

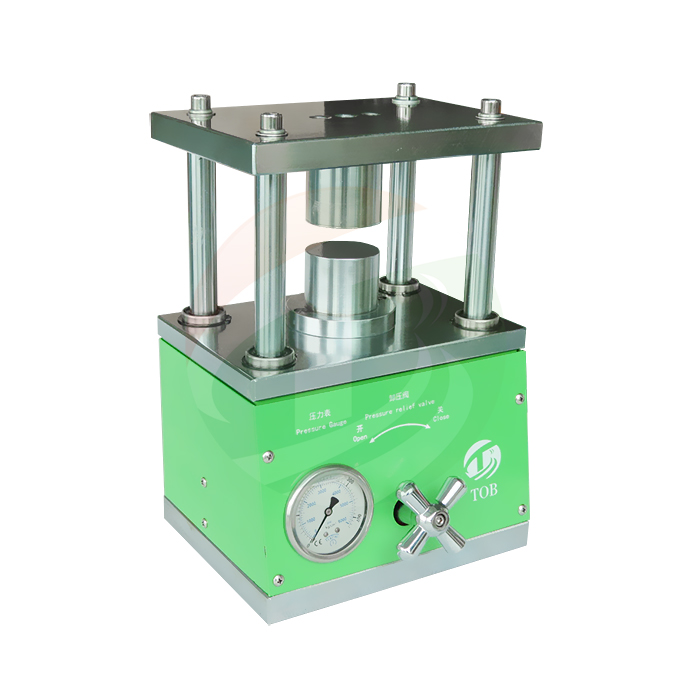

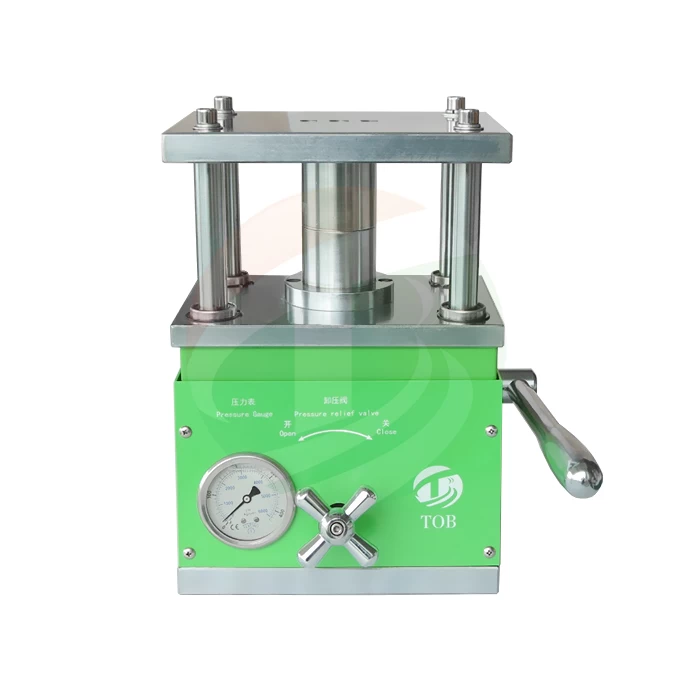

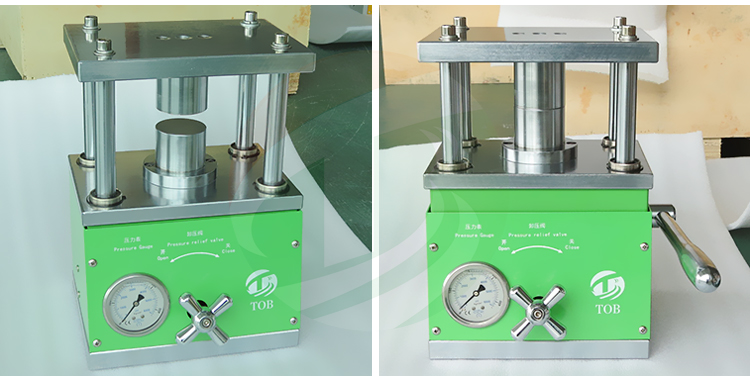

Product Image
Product Packing
