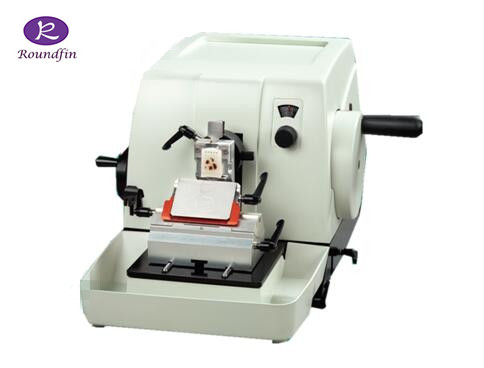

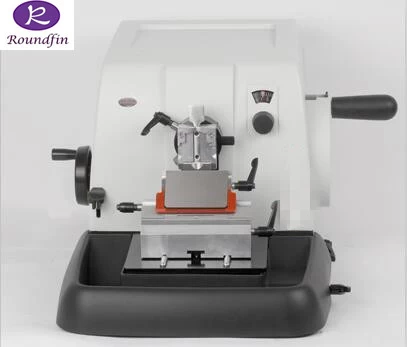

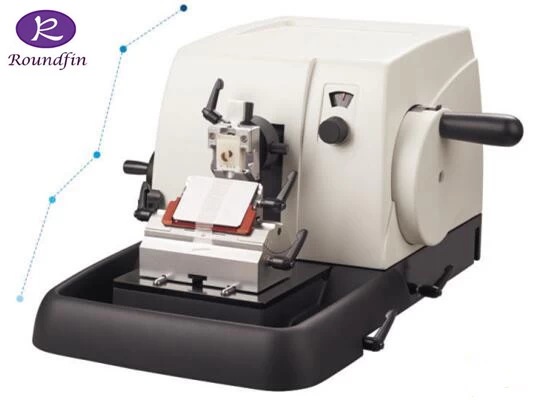

Manual Tissue Paraffin/Wax Microtome:
Model Number: RD-495;
Manual/Rotary Tissue Microtome: Model No.:RD-495
Feature:
01: Specimen orientation system
The absolute precise position of the specimen ensures the orientation system. Move the specimen holder with the vertical and horizontal orientation knob to its desired position.

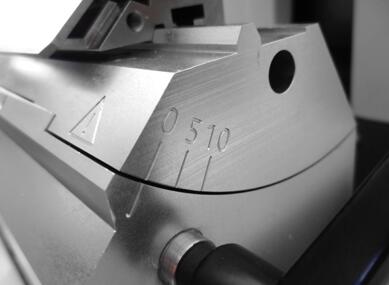

02: Clearance Angle
For the optimal position of the blade for sectioning the angle of the cutting facet of the blade can be adjusted by moving the blade holder.
03: Specimen retraction function
The specimen retraction protects the specimen and the blade from possible damage during the upwards movement. When the object after sectioning performs the return movement (upwards), it automatically moves back and before the next sectioning stroke, the object moves to its correct position.

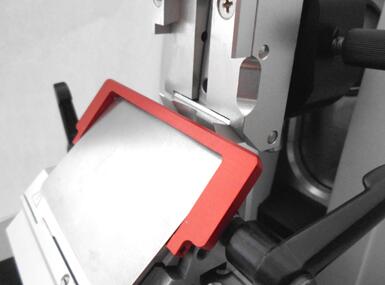

04:Protection guard
The red protection guard is to cover the cutting edge when the blade is inserted into the blade holder.
05: Hand wheel lock
With the conveniently integrated locking lever on the hand wheel the rotation of the wheel can be locked at the 12 o’clock position. It is designed for one thumb-use. The locking lever under the hand wheel locks the movement at any position.
06: Adjusting section thickness
Turning the section thickness adjusting knob the section thickness is adjusted. The scale on the displaying window indicates the thickness. The red pointer indicates the thickness while turning the adjusting knob.

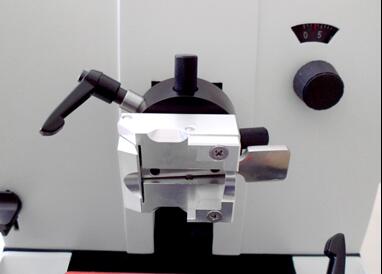

07:Specimen holder
Changing of specimen works quick and easy. The sample can be placed horizontally or vertically into the specimen holder.

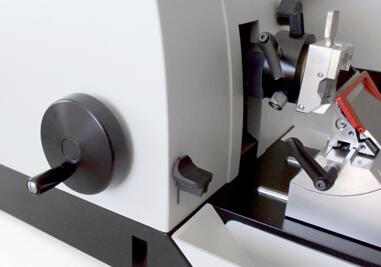

08: Coarse driving wheel
To adjust the distance between the blade and the specimen.
09:Waste tray
Collects the sectioning wastage and can be dismounted easily for cleaning purposes.
Specification list:
----Section thickness range: 1～60 μm
----Section thickness setting :
1～10 μm， 1 μm increment
10～20 μm， 2 μm increments
20～60 μm， 5 μm increments
----Trimming thickness : 10 μm and 30 μm
-----Specimen retraction : 60 μm
----Specimen vertical stroke : 70 mm
----Specimen horizontally stroke 25 mm
----Max. specimen size cassettes clamp (WXH) : 40x28 mm
----Dimensions (W×D×H) : 560×470×300 mm
----Weight : 35 kg
