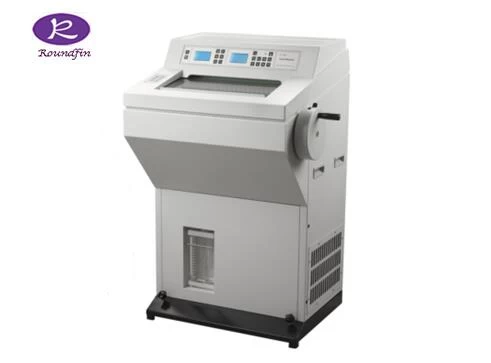

Cryostat Microtome Freezing Microtome Rapid freezing microtome:

We have sold this model since the year 2000, and keep improving and upgrading it. Its mechanical transmission of Model RD-2255 upgraded to semi-automatic one, specimen clamp upgraded to universal adjustable one, and freezing shelf upgraded to a wider one, each upgrade was in order to expand its range of application and bring convenience to customers and labs.

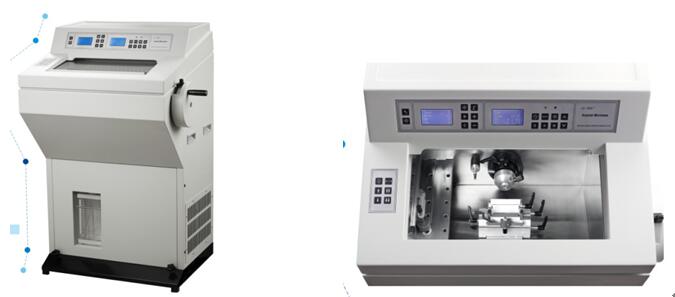

Design Features:

-Take both aesthetics and practicality into structure design

-Design ergonomically, and all drive parts are produced by machining center.

-Electronic control systemwith Powerful functions and convenient operation

-LCD screen displays total slicing number and thickness, section thickness, retraction, temperature, date, time, timing defrost, manually defrost, and timing power on/off.

Precise, comfort, and safe slicing experience

-Blade holder enables to clamp wide or narrow blades.

-Blade clamp enables to move horizontally to avoid danger from unintended touch on blade. A third of the blade can do the entire slicing, which makes the blade’s life time three times longer.

-Specimen clamp’ s x axis and y axis enable to adjust 8°, z axis enables to adjust 360°, which ensure the precision.

-Fast, steady refrigerant system

-Cryostat adopts a DANFOSS compressor to cool down freezing chamber by R404A environment friendlyfluoride-free refrigerant.

-Vacuumglass window with transparent electronic heating resistance on top layer enable to prevent fog and cold air leakage.

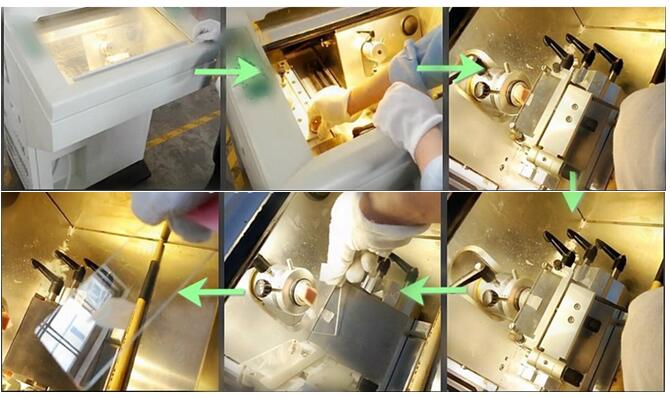

The machine is in operation:

Technical Specifications:

--Freezing chamber temperature range:-30°C~-10°C

--Time freezing shelf need tocool down to -30°C:60 minutes

--Freezing shelf minimum temperature:-45°C

--Minimum temperature of heat extractor on freezing shelf: -55°C

--Heat extractor working time: 15 minutes

--Maximum specimen size:35mm×35mm

--Specimen vertical stroke:60mm

--Specimen horizontal stroke:20mm

--Rough feeding speed: 0.7mm/s or0.35mm/s

--Section thickness range:1μm~80μm adjustable;

                                               1μm~20μm, in 1μm increment;

                                               20μm~40μm, in 2μm increments;

                                               40μm~80μm, in 5μm increments.

--Trimming thickness range: 10μm~400μm adjustable;

                                                   10μm~50μm, in 5μm increments;

                                                   50μm~100μm, in 10μm increments;

                                                   100μm~400μm, in 50μm increments.

--Retraction range: 0μm~80μm adjustable; in5μm increment.

--Voltage and frequency: AC220V±10%, 50Hz(Standard), orAC110V±10%, 60Hz

--Power: 650W

--Weight: 125kg

--Dimensions(W×D×H): 660×640×1130mm
