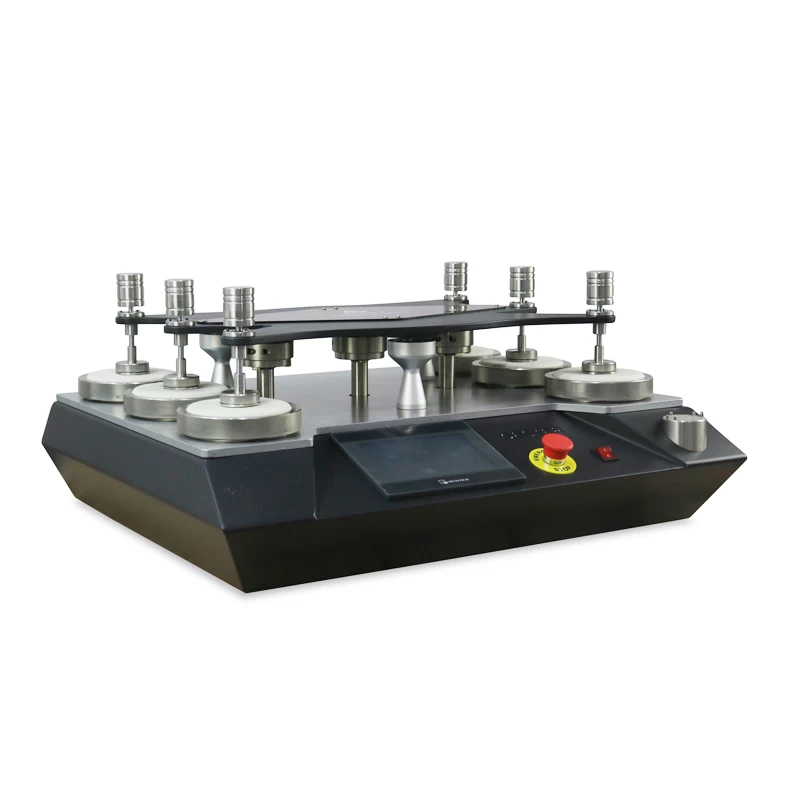

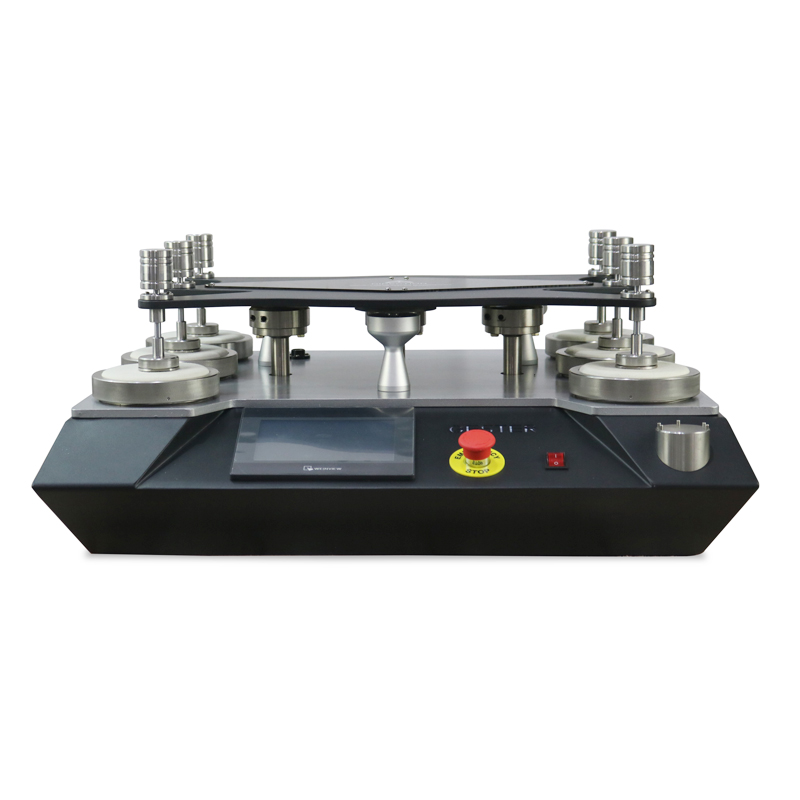

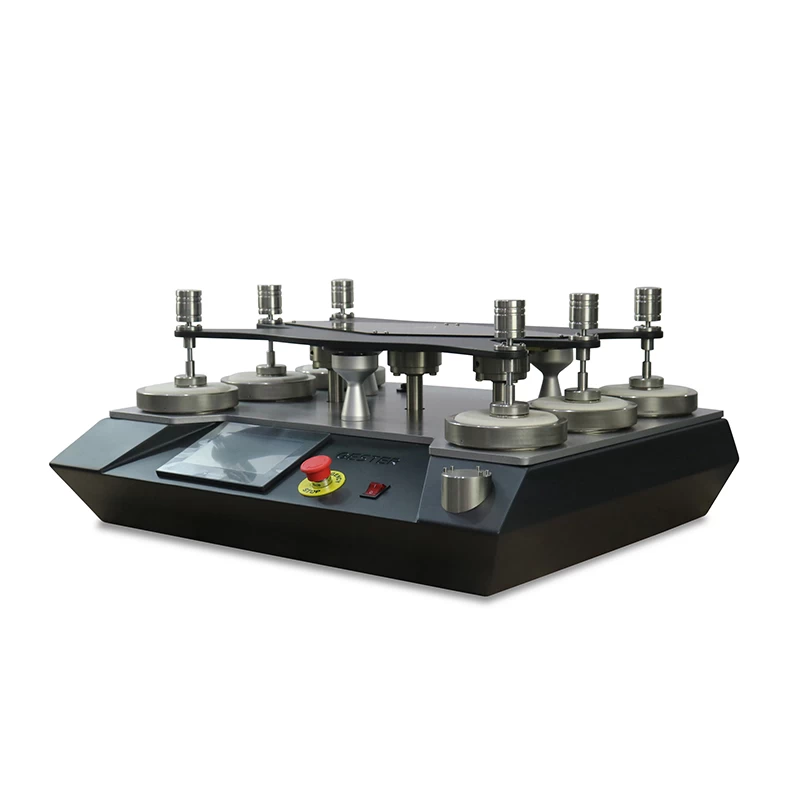

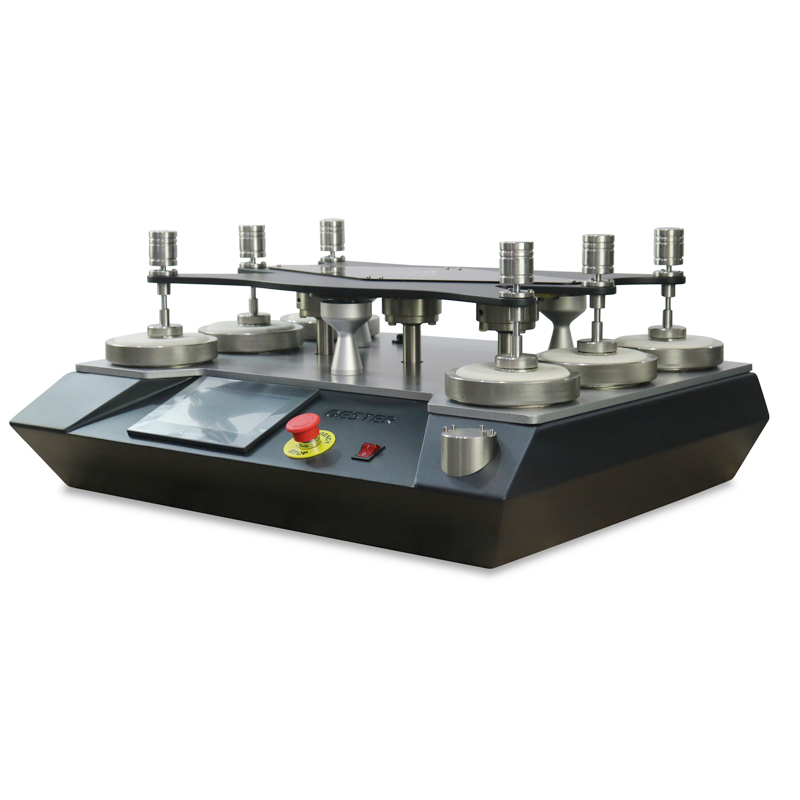

Martindale Abrasion and Pilling Tester GT-C13
Product Introduction
| Application of martindale tester:
The Martindale Abrasion and Pilling Tester is the standard method of determining the wear resistance of textiles or leather and the resistance to pilling. Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters. Adaptable to test a wide range of applications including textiles, socks, leather, coated upholstery, carpets, wood and shirt collars.
Four models are available, with 4, 6, 8 and 9 Abrading Tables respectively.
Standards of martindale tester:
Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966, IWS TM 112, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096
Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525 |

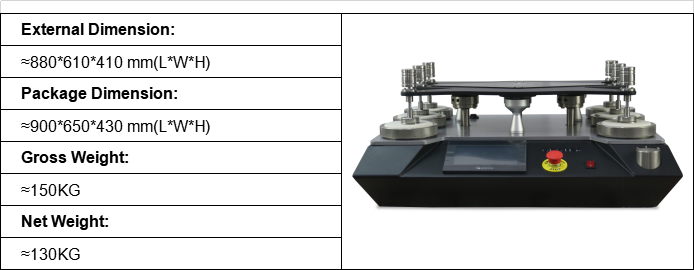

Dimensions
Feature of martindale
1.Test Standard: Lissajous figure.
2.Working positions: 4, 6, 8, 9 optional.
3.Counting Method: 1) count up. 2) count down.
4.The unique design allows removal of individual sample holders 5.for examination without lifting the top motion plate.
6.Standard sample holders with 9 and 12kpa weights included.
7.PLC, 7 inches color touch screen, Chinese and English operation interface.
8.Weights and key components are made up by 316 stainless steel 9.which is well-formed and durable in use.
10. To prevent distortion, the top motion plate was special made up by 316 aluminum alloy.
Key Specifications
Model
|
GT-C13B-4
|
GT-C13B-6
|
GT-C13B-8
|
GT-C13B-9
|
Working positions
|
4
|
6
|
8
|
9
|
Control mode
|
PLC control and touch screen display
|
Counter range
|
0~999999 times
|
Test pressure
|
Abrasion test
|
A) Specimen holder: (198 ±2)g
B) Larger loading piece: (597±5)g
C) The sum mass: (795± 7)g, for workwear, upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa)
|
A) Specimen holder: (198 ±2)g
B) Smaller loading piece: (397±5)g
C) The sum mass: (595± 7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa)
|
Pilling test
|
A) Stainless steel loading piece: (155 ± 1) g
B) Specimen holder: (260 ± 1)g
C) The sum mass: (415± 2)g
|
Holder effective diameter
|
A) Abrasion Holder : Φ(28.65 ± 0.05)mm
|
B) Pilling Holder : Φ(90 ± 0.10)mm
|
Rotational speed
|
50± 2r/min
|
Pressing weight
|
Mass : (2.5 ± 0.5) kg
|
Diameter: Φ(120 ± 10) mm
|
Power supply
|
AC220V 50/60Hz
|
Dimensions(L x W x H)
|
60×55×41cm
|
88×61×41cm
|
90×62×41cm
|
90×62×41cm
|
Weight
|
75kg
|
130kg
|
145kg
|
150kg
|
Standards
|
Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966,
IWS TM 112, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096, ( ISO17076-2 ball plate method, optional)
|
Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525
|
Application Industry
All kinds of materials can be tested on the Martindale Abrasion and Pilling Tester
