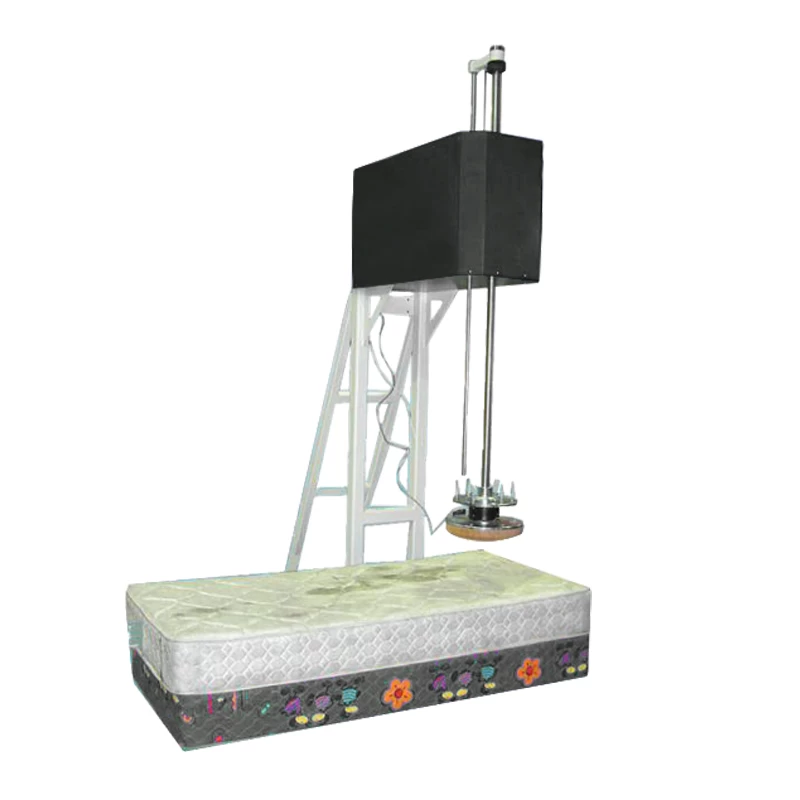

Mattress Impact & Drop Tester GT-LA01
Product Introduction
Application:
Mattress impact tester is widely used to determine and assess the impact resistance of built-in and box-type mattress , to evaluate sofa and mattress sustaining rapid drop on seat or jumping stress ability. The machine consists of a 79.5 ± 1kg platen, which drops down and impacts the test specimen from various heights as selected by the operator. It is suitable for common mattress, foam mattress and spring mattress.
Standards:
ASTM F1566 section 8
|

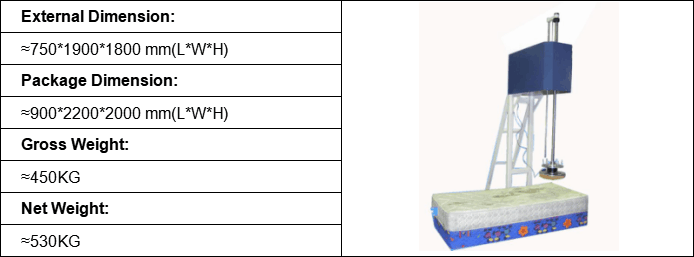

Dimensions
Feature
1.This machine is adopted Touch Screen+PLC control model, easy operation.
2.Main components is adopted exported Celtron sensor (Made in USA).
3.This machine could test the samples thickness, up to impact height and analyse the test result automatically.
Key Specifications
Model
|
GT-LA01
|
Controller
|
Touch screen+PLC programmable control
|
Load cell
|
Celtron,5KN
|
Platen
|
Weight
|
79.5 ± 1kg
|
Diameter
|
356±10mm
|
Thickness
|
91±5mm
|
Convex spherical curvature radius
|
300 mm
|
Edge radius
|
25±2.5mm
|
Power supply
|
1∮, AC 220V 50/60Hz
|
Dimension (WxDxH)
|
W750×D1900×H1800mm
|
Weight
|
≈450Kg
|
Standards
|
ASTM F1566 section 8
|

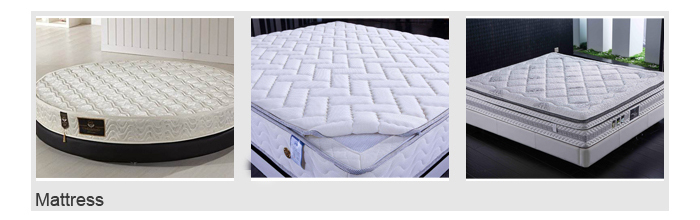

Applications Industry
All kinds of Mattress can be tested on the Mattress Impact & Drop Tester GT-LA01
