Applications:

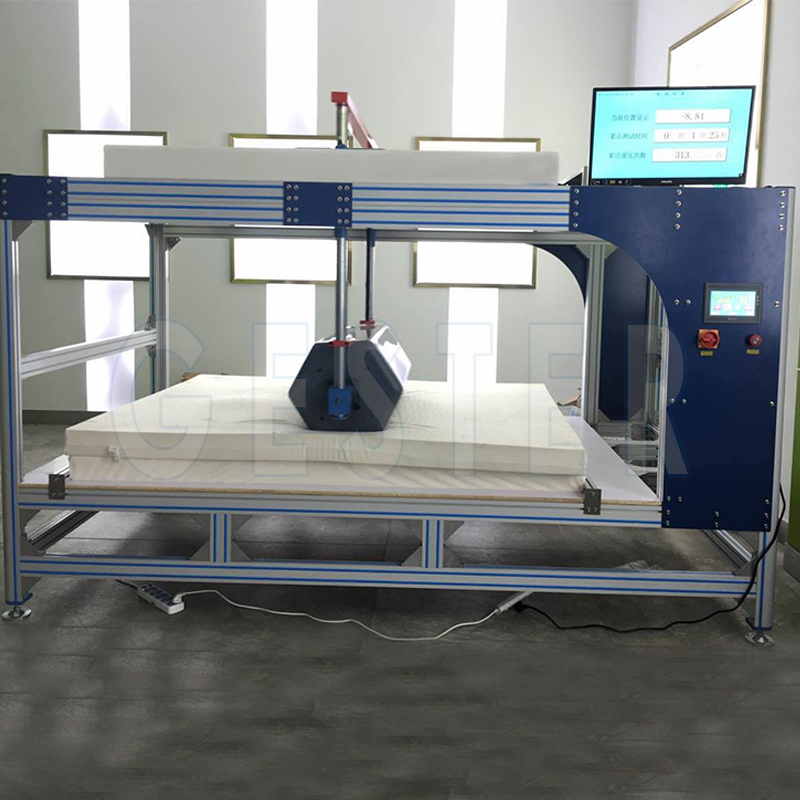

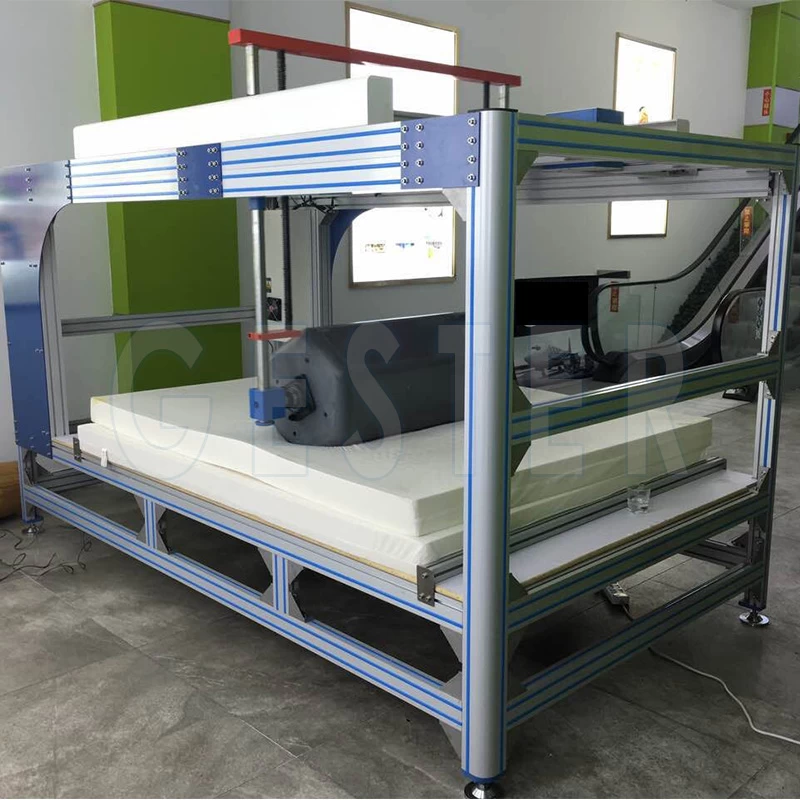

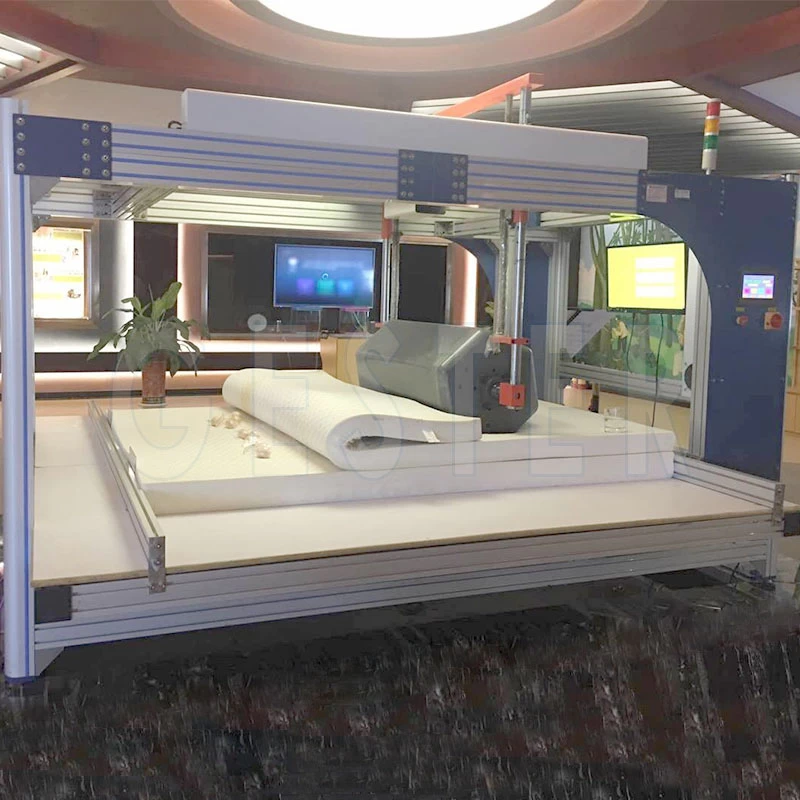

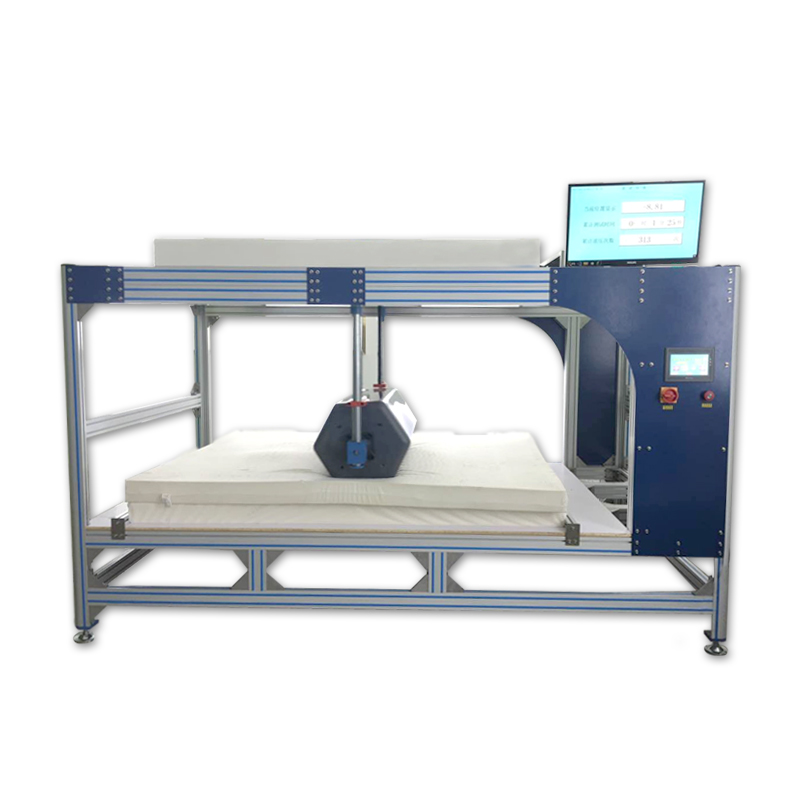

The Mattress Roller Tester is an instrument for testing the bearing capacity and durability of various types of mattresses for long-term repetitive loads.

Principle:

The Mattress Roller Tester is designed by imitating people continual roll over on the mattress (positive pressure, lateral pressure, and overturn, etc.).Use cylinder or hexagon to load the testing part of mattress which is horizontally placed for repeated loading, to determine the mattress endurance for long-term repetitive loading.

Standards:

ASTM F1566

BS EN 1957

QB/T 1952.2

1. The whole machine frame made of high quality aluminum, beautiful.

2. PLC and controller using the Japanese OMRON brand

3. Machine configuration two motors, one for the vertical direction of the roller, and the other is responsible for the horizontal direction of the drum drive, the two motors are used in Japan Matsushita servo motor

4. Machine configuration of the screw is my company specializes in high-speed customized screw, low noise, high wear resistance.

5. Machine configuration alarm device, indicating the safe operation
