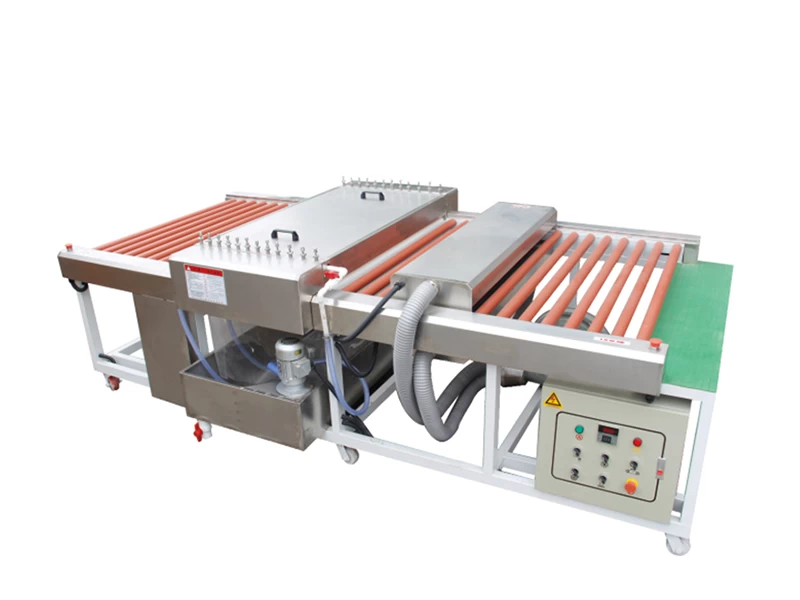

Max. 1200mm Washing Machine

SY-1200  glass washing machine could wash maximum glass 1200mm


  • Size Range400*400-1150mm
  • Warranty1 Year
  • Processing Rangeflat glass, thin glass




Structure configuration:

The national standard square tube skeleton; The cover is 1.5mm iron plate spray;

Cleaning section and drying section are stainless steel shell.

Four pairs of absorbent sponge rollers adopt imported pu material to withstand high temperature, long service life;

The drive part is controlled by variable frequency motor, and the cleaning speed can be adjusted arbitrarily.

Three pairs of brush (diameter of 0.25MM imported DuPont nylon silk, natural rubber roller to ensure cleaning effect.

The temperature controller can adjust the oven temperature.

The equipment for dense drum driven design, processing area, circulating water cleaning glass once completed.

Two sections cleaning: the first section can add acid lotion, two pairs of brush water spray; the second two pairs of brushes three pairs of sponge roll (can choose to dry wind knife, customized according to customer needs)

Technical requirements:

Cleaning and drying of glass (2-19mm)

The effective cleaning width is 800mm


Basic parameters:

Glass size range:150×150 — 800mm

Heating box 6KW, (1.2kw*6pc), 380V

Continuously variable transmission: 0.7kw, 380v (stepless speed regulation)

Water pump: 0.15Kw, 380v

Gear motor: 0.75kw,380v

Weight: 600kgs

Dimension: 2550*1180*1000mm


Direction for use

SY- washing machine could wash and dry (2-19mm) flat glass, and the machine adopts horizontal structure, flat glass place on horizontal transfer roller, though feed section, cleaning section, water absorption section, dry section, to the discharge section.

The speed of glass transmission can be stepless speed regulation according to process requirements. Hot air temperature can also be set in advance.

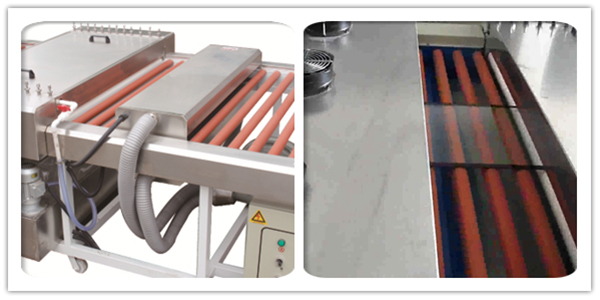

Related pictures
