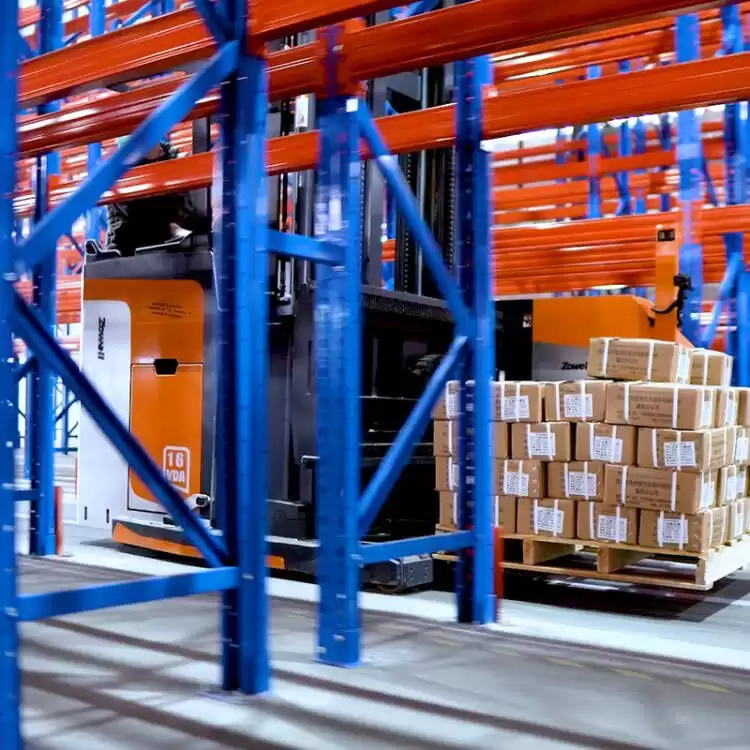

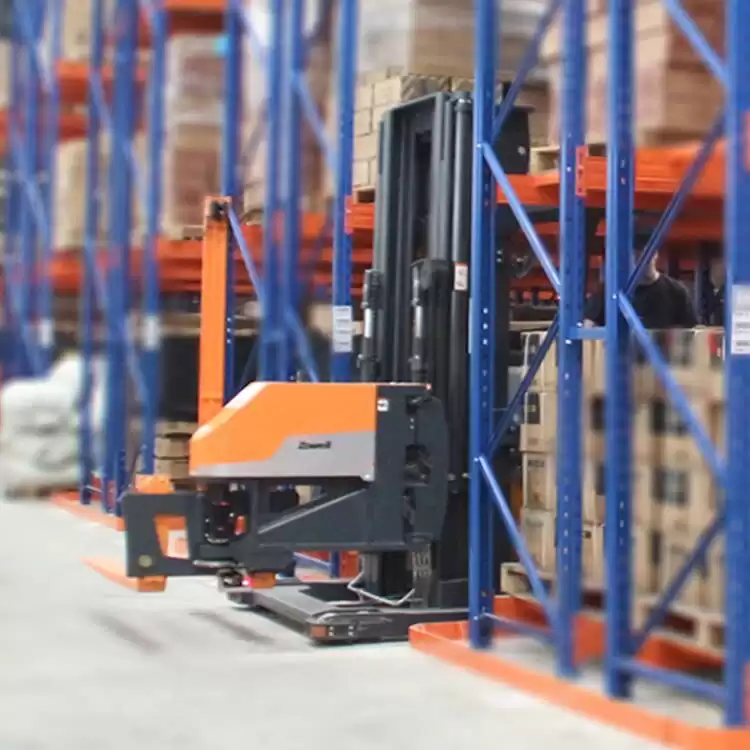

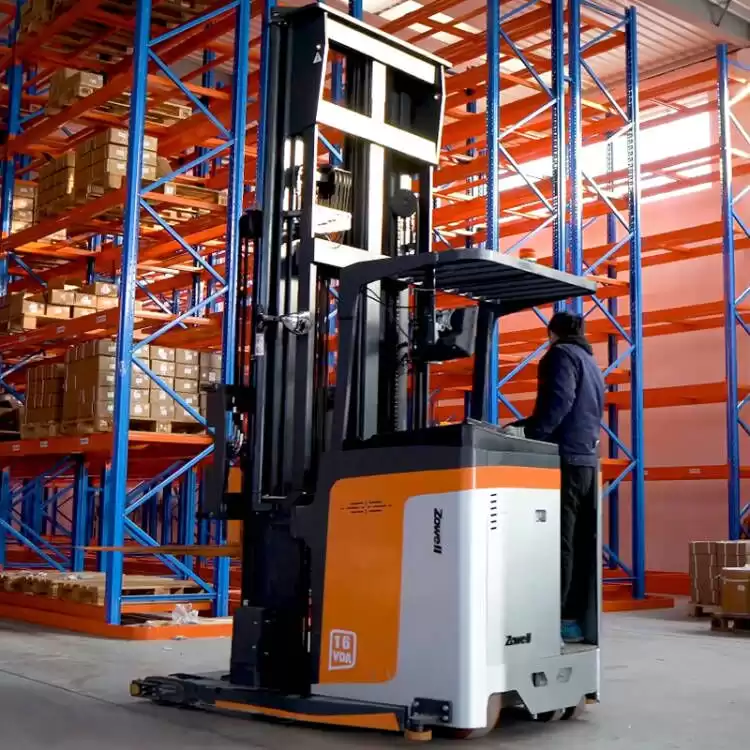

1.6 ton Man Down Type Tri-lateral Electric VNA Forklifts
|
Identification
|
1.1
|
manufacture
|
|
Zowell
|
|
1.2
|
Brand
|
|
Zowell
|
|
1.3
|
Model
|
|
VDA116S
|
|
1.4
|
Power
supply
|
|
Electric
|
|
1.5
|
Driving
type
|
|
Standing on
|
|
1.6
|
Load
center
|
Q(kg)
|
1600
|
|
1.7
|
Wheelbase
|
C(mm)
|
600
|
|
1.8
|
Wheelbase
|
y(mm)
|
1700
|
|
weight
|
2.1
|
Truck weight（Include battery）
|
kg
|
5450
|
|
2.2
|
Battery weight（±5%）
|
kg
|
735
|
|
Tyres
|
3.1
|
Tyres
type Front wheel/Rear wheel
|
|
PU
|
|
3.2
|
Front load wheels（Diameter×width)
|
mm
|
φ140×127
|
|
3.3
|
Rear driving wheel（Diameter×width)
|
mm
|
φ380×165
|
|
3.4
|
Tyres
quantity (Drive/Load wheel/univeral wheels)
|
pcs
|
1X/4/2
|
|
dimensions
|
4.1
|
Lifting
height
|
mm
|
3000-9000
|
|
4.2
|
Fork
rotation degree
|
°
|
180
|
|
4.3
|
Lifting
height
|
h1(mm)
|
See table
|
|
4.4
|
Overhead
guard height
|
h5(mm)
|
2260
|
|
4.5
|
Platform
height for standing
|
(mm)
|
355
|
|
4.6
|
Min
ground clearance
|
h8(mm)
|
45
|
|
4.7
|
Overall length （fork in side position）
|
l1(mm)
|
2945
|
|
4.8
|
Overall width（with guide wheels）
|
b1(mm)
|
1550
|
|
4.9
|
Fork
dimensions
|
l/e/s(mm)
|
1200/122/50
|
|
4.10
|
Rear
chassis width
|
b2(mm)
|
1190
|
|
4.11
|
Fork
width
|
b5(mm)
|
425-750
|
|
4.12
|
Min
turning radidus(go straight)
|
Wa(mm)
|
1980
|
|
4.13
|
Min
main aisle size
|
（mm）
|
3800
|
|
4.14
|
Min
aisle width(length×width)
1200×1000
|
（mm）
|
1600
|
|
Performance
|
5.1
|
Driving
speed loaded/unloaded
|
km/h
|
9/10
|
|
5.2
|
Lifting
speed loaded/unloaded
|
mm/s
|
250/300
|
|
5.3
|
Lowering
speed Loaded/unloaded
|
mm/s
|
300/300
|
|
5.4
|
Gradeability,
Loaded/unloaded
|
%(tanθ
)
|
4
|
|
Electric Motor
|
6.1
|
Driving
motor type
|
|
AC
|
|
6.2
|
Driving
motor (S2-60min)
|
kw
|
6
|
|
6.3
|
Lifting
motor type
|
|
AC
|
|
6.4
|
Lifting
motor (S3-15%)
|
kw
|
12.5
|
|
6.5
|
Steering
motor type
|
|
DC
|
|
6.6
|
Steering
motor
|
kw
|
0.4
|
|
6.7
|
Battery
voltage and capacity
|
V/Ah
|
48/450
|
|
Others
|
8.1
|
Camera
and monitor
|
|
Fork camera/Left
side camera
|
|
8.2
|
fork
aiming system
|
|
Laser line
|
Zowell have two choice for man down type very narrow aisle/VNA forklift.One is Mechanical guide VNA forklift,it is the standard one we offer.Another one is Magnetic guide VNA forklift.

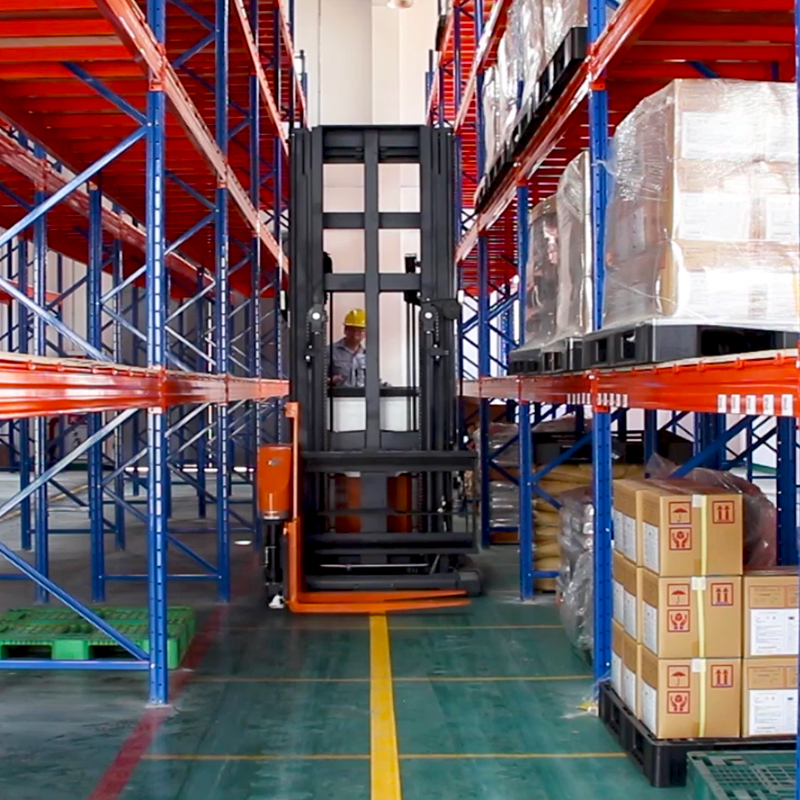

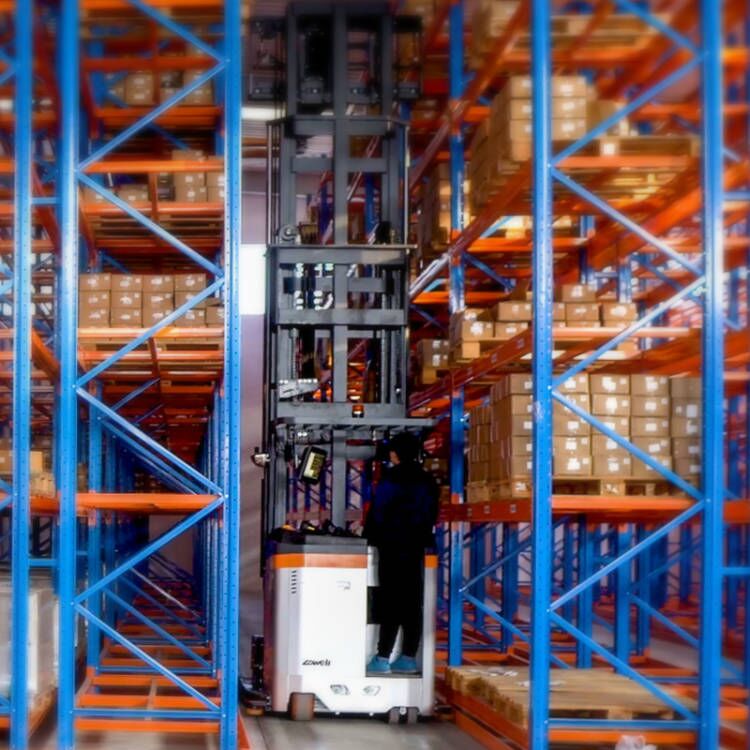

1.Mechanical guide VNA forklift
Narrow aisle racks are different from ordinary heavy beam racks. The aisle width between the racks are narrow. Guide rails are installed on both sides of the racks to guide the three-way VNA forklift to prevent the forklift from hitting the rack. Because the three-way forklift guide rail is installed, the guide rail forms a certain height on the ground, so that the pallet goods cannot be directly placed on the bottom floor of the narrow aisle rack. Otherwise, the level forklift will bring certain difficulties in accessing the goods, and it will also easily damage the goods and shelves. In order to put the goods at the bottom of the narrow aisle shelf, you shall install the beam and place the goods on the beam.

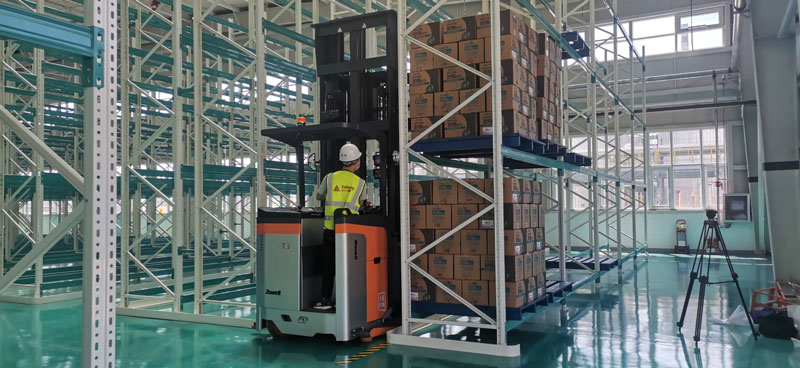

2.Magnetic guide VNA forklift
Guide rails are no needed to installed on both sides of the racks.Pallet goods can be placed on the ground directly.
