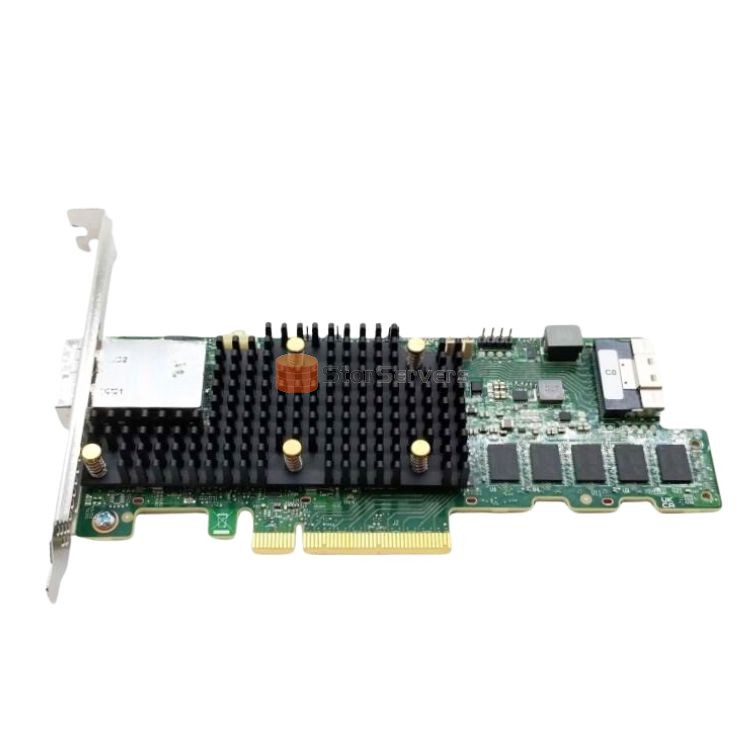

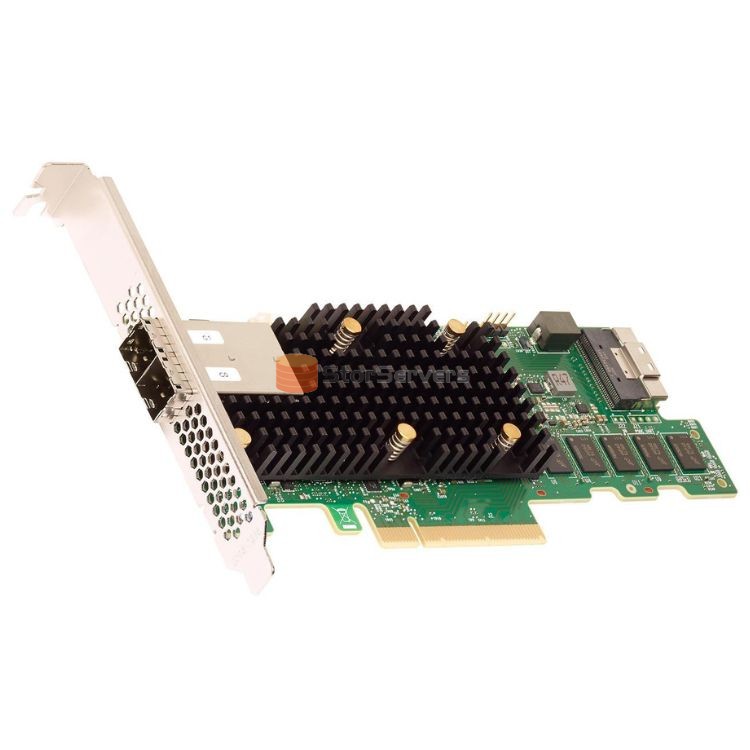

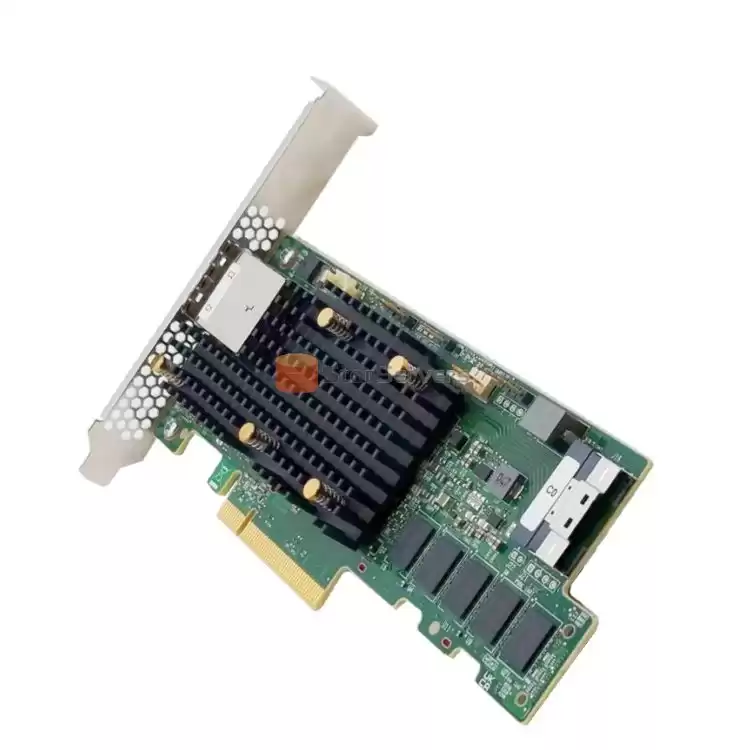

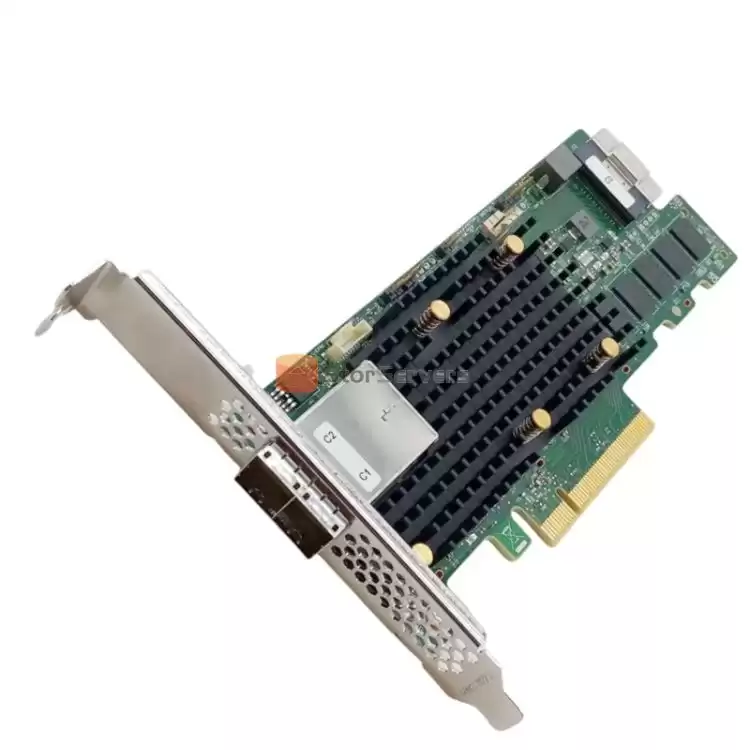

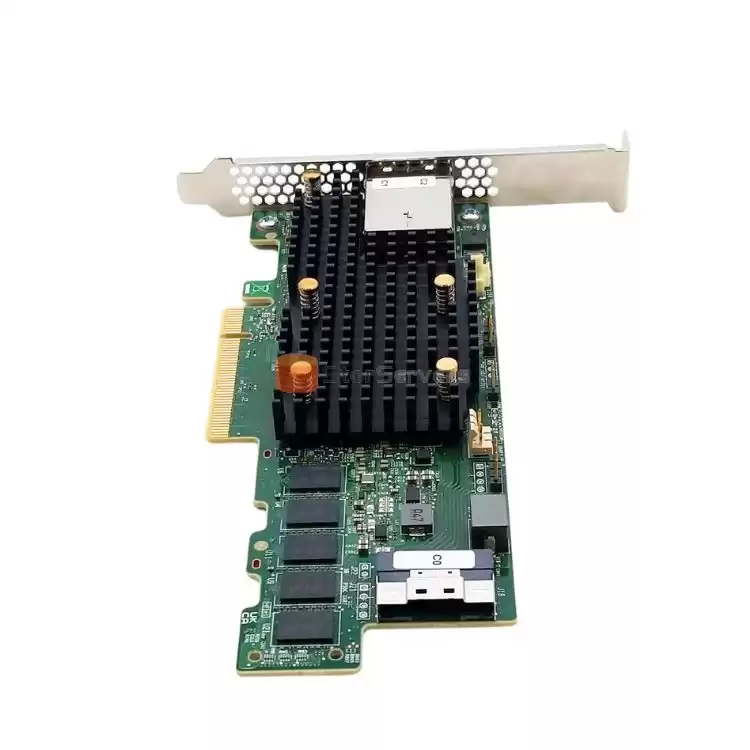

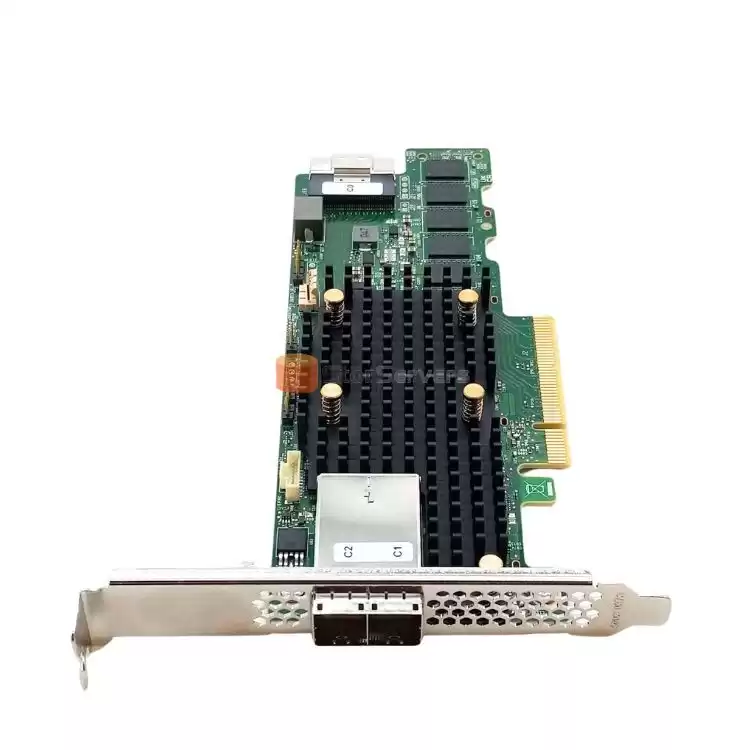

The 9580-8i8e is compatible with existing PCIe SFF-8639 Module (U.2) backplanes, allowing users to boost performance for today’s ever increasing bandwidth environments. Coupled with two industry initiatives expanding the deployment of Tri-Mode SerDes technology, the 9580-8i8e is instrumental in getting the most performance and flexibility out of U.3 backplanes
Raid Features
• Raid Levels 0, 1, 5, And 6
• Raid Spans 10, 50, And 60
• Jbod Mode With R0/1/10 And Jbod For Sds Environments
• Online Capacity Expansion (oce)
• Auto Resume After Loss Of System Power During Array Rebuild Or Oce
• Single Controller Multipathing
• Load Balancing
• Configurable Stripe Size Up To 1 Mb
• Fast Initialization For Quick Array Setup
• Check Consistency For Background Data Integrity
• Ssd Support With Ssd Guard™ Technology
• Patrol Read For Media Scanning And Repairing
• 64 Virtual Drive Support
• Ddf Compliant Configuration On Disk (cod)
• S.m.a.r.t. Support
• Global And Dedicated Hot Spare With Revertible Hot Spare Support:
- Automatic Rebuild
- Enclosure Affinity
- Emergency Sata Hot Spare For Sas Arrays
• Enclosure Management:
- Ses (inband)
- Sgpio (sideband)
- Universal Backplane Management (ubm) Ready
• Databolt Bandwidth Optimizer Technology Support For Compatible Expander-based Enclosures
• Shield State Drive Diagnostic Technology• Megaraid Safestore Software For Sed Key Management
