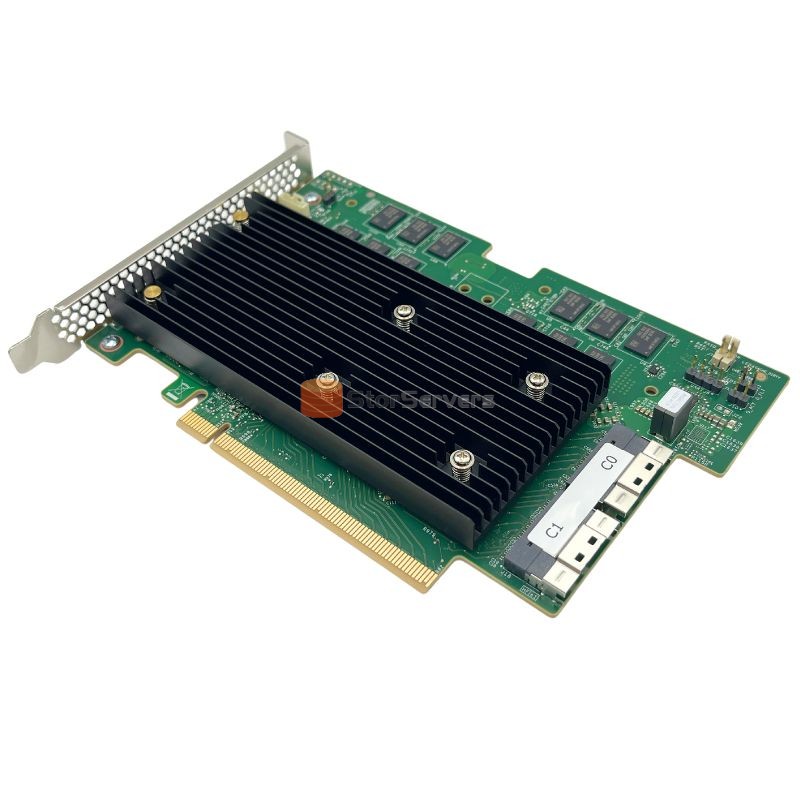

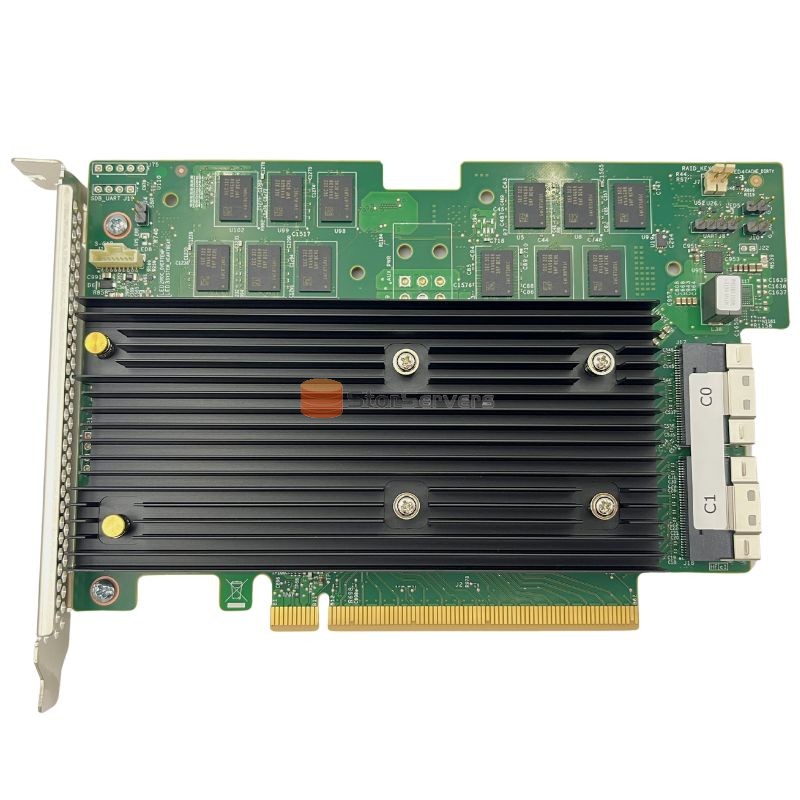

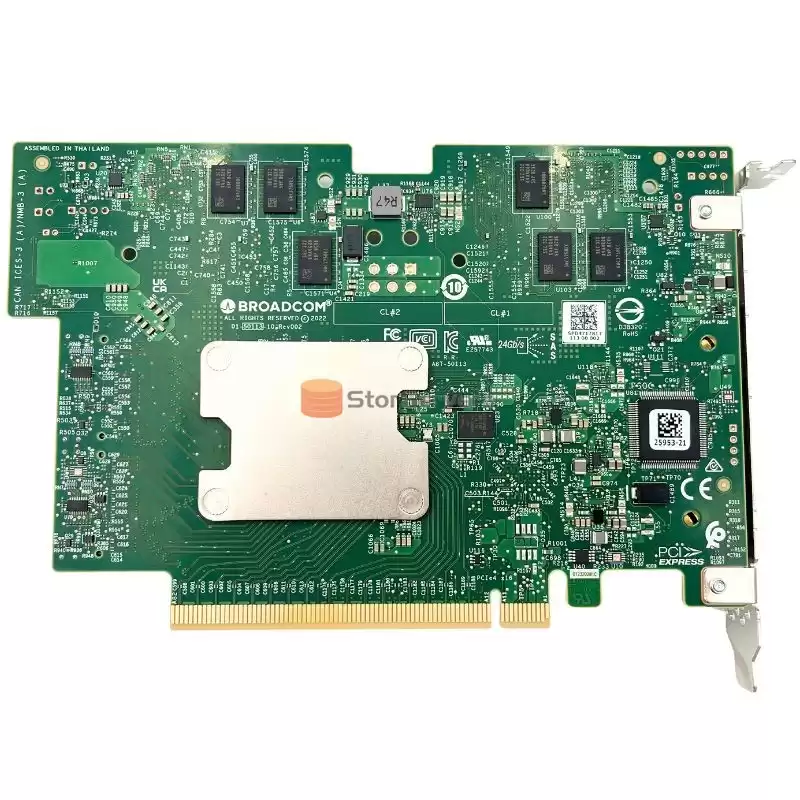

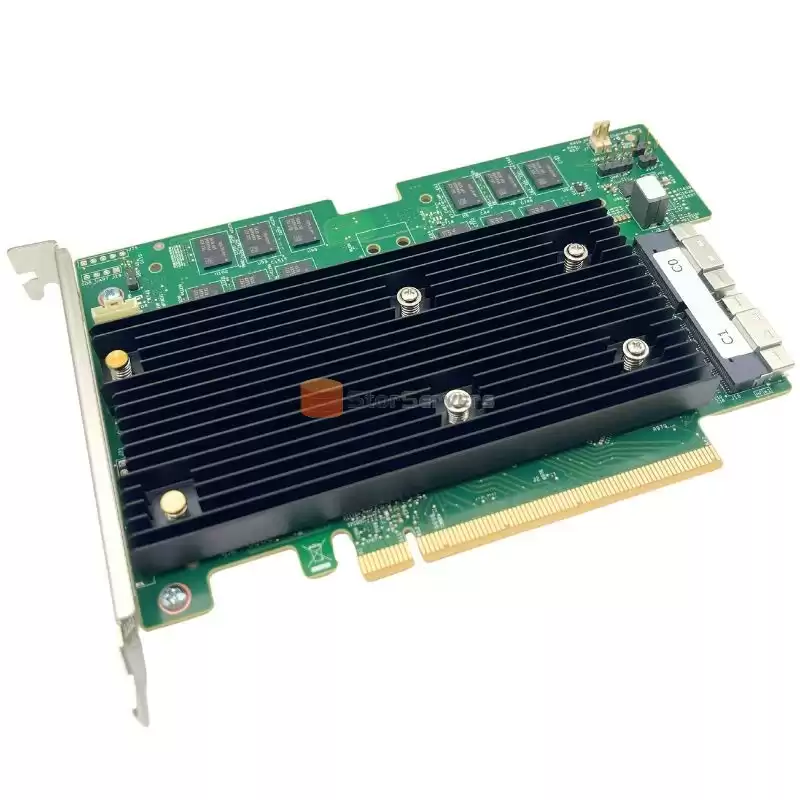

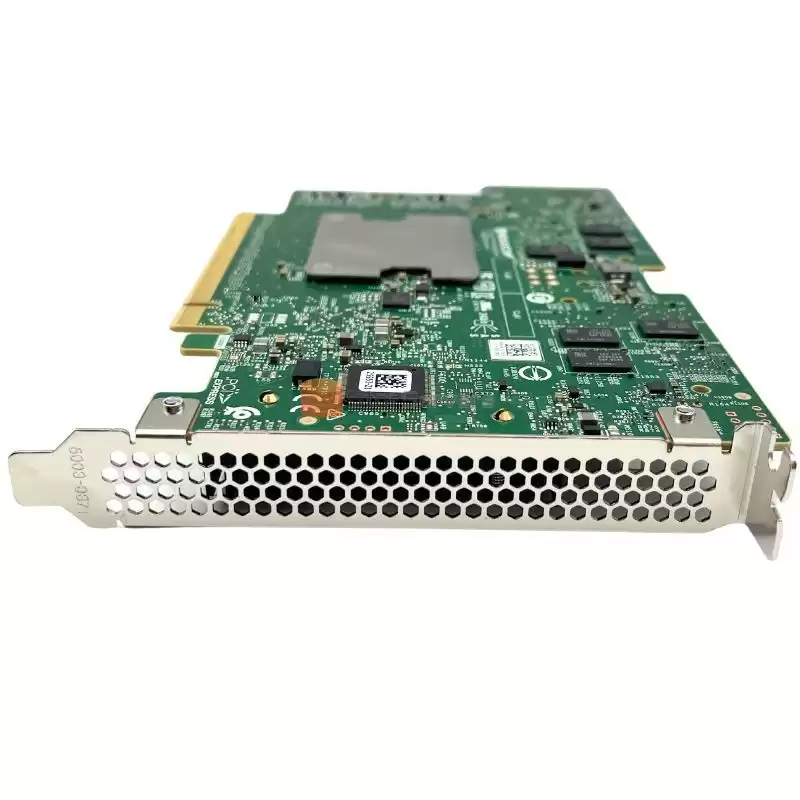

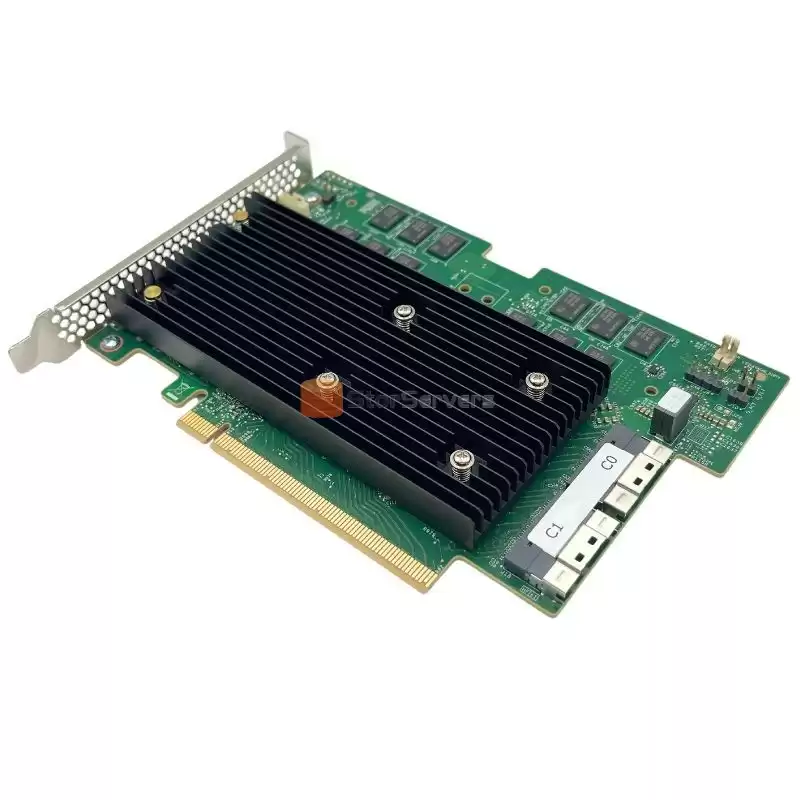

MegaRAID 9670W-16i 05-50113-00

LSI Storage Authority (LSA), StorCLI2 (Command-Line Interface), HII (UEFI Human Interface Infrastructure
Model 9670W-16i
PN 05-50113-00
Connectors 2x8 SFF-8654
Data Transfer Rates
 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA
Warranty 3 Years

Facebook Twitter Pinterest LinkedIn 分享
MegaRAID 9670W 16i 05 50113 00 8GB
Applications
The MegaRAID 9600 series represents cutting-edge Tri-Mode x8 and x16 NVMe/SAS/SATA storage adapters in their third generation. These adapters are specifically designed to provide optimal performance for NVMe SSD-based storage systems. The 9600 family offers significant improvements, including double the bandwidth, over four times the IOPs, a 25-fold reduction in write latency, and a remarkable 60-fold increase in performance during rebuilds compared to the previous generation.

Built upon the SAS4116W RAID-on-Chip (RoC), the MegaRAID 9670W-16i takes performance to the next level by delivering more than a fourfold increase in RAID5 Random Write Ops and twice the bandwidth compared to its predecessor. Notably, the 9670W-16i incorporates an advanced thermal solution that achieves these significant performance enhancements without imposing additional airflow requirements on the system, unlike previous generation adapters. Users can seamlessly integrate the 9670W-16i into their current platforms, unlocking groundbreaking SSD performance without the need for extra cooling or airflow accommodations.
Specification
Model 9670W-16i
Cache Memory 8GB
Cache Protection CVPM05
Connectors 2x8 SFF-8654
Data Transfer Rates 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA
Form Factor Plug-in Card
Devices Supported
 SAS/SATA: 240, NVMe: 32
Generation
 24G
Internal Ports
 16
Operating Humidity
 5% to 90% Non-condensing

Lead time

Quantity (pieces) 1-10 10-60 >60
Lead time (days) 3 3-5 To be negotiated
