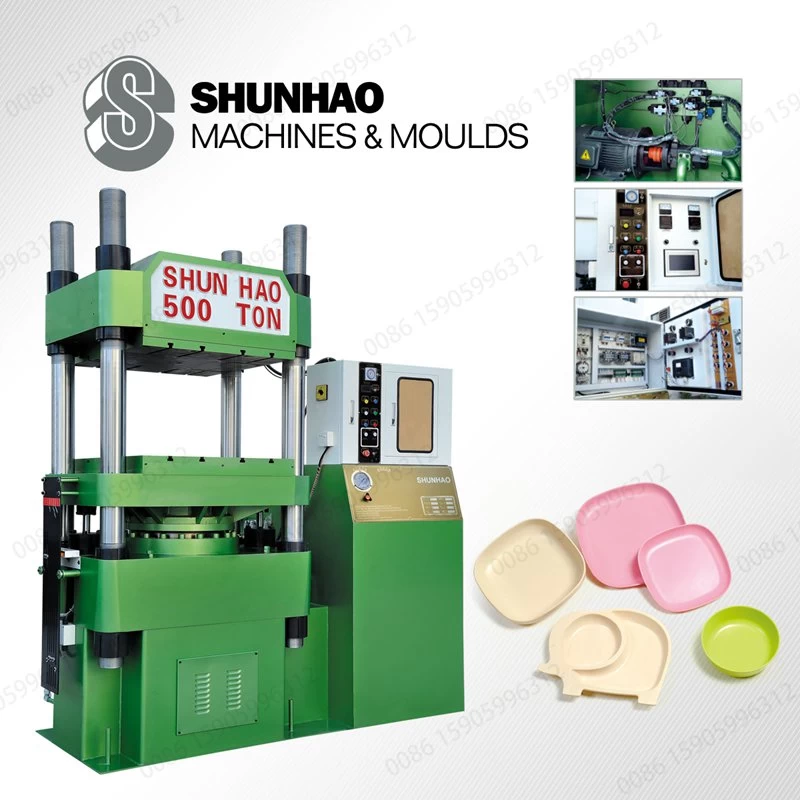

Automatic Single Color Melamine Tableware Molding Machine-DTB 500TONS
Competitive Advantage
1. CE certification
2. Fully automatic, energy saving
3. Proprietary technology provides overseas technical support
4. High-quality thermoforming machine, which automatically completes forming, drying and pressing in one machine
5. With over 18 years of experience in tableware molding machine. Shunhao is a reliable supplier in China
Features
-
Stable vertical pressure, the air release frequency is up to 99 times. Pressing time and air releasing time and air releasing distance can be freely set and adjusted.
-
Pressing circulation system model is customized additionally. Operation by slow speed and high speed to close and open molds，which can protect the molds and save time.
-
Easy and automatic operation, without noise.
-
Suitable for production of melamine tableware, urea items, and rubber items.
Technical Parameters
|
No.
|
Content
|
DTB 500
|
|
1
|
Main Cylinder
Nominal Pressure
|
500Tons
|
|
2
|
Maximum Working
Pressure
|
210kg/cm2
|
|
3
|
Main Cylinder
Piston Diameter
|
Ø560mm
|
|
4
|
Main Cylinder
Working Stroke
|
550mm
|
|
5
|
Adjustable Table
Distance
|
500~870mm
|
|
6
|
Heating Plate
Size
|
1000*1000mm
|
|
7
|
Working Layers
|
1 layer
|
|
8
|
Heating Plate
Material
|
45#
|
|
9
|
Tension Column
(Heat Treatment Grinding)
|
Ø140*2550mm
|
|
10
|
Oil Hydraulic
Pump
|
21Mpa
|
|
11
|
Motor
Specifications
|
15HP
|
|
12
|
Heating Sheet
Total Power
|
20.4KW
|
|
13
|
Machine Total
Power
|
31.7KW
|
|
14
|
Machine
Size(length * width * height)
|
2.58*1.6*3.0 M
|
|
15
|
Machine Weight
|
11300KGS
|
■ PS: Specifications subject to change without notice.
