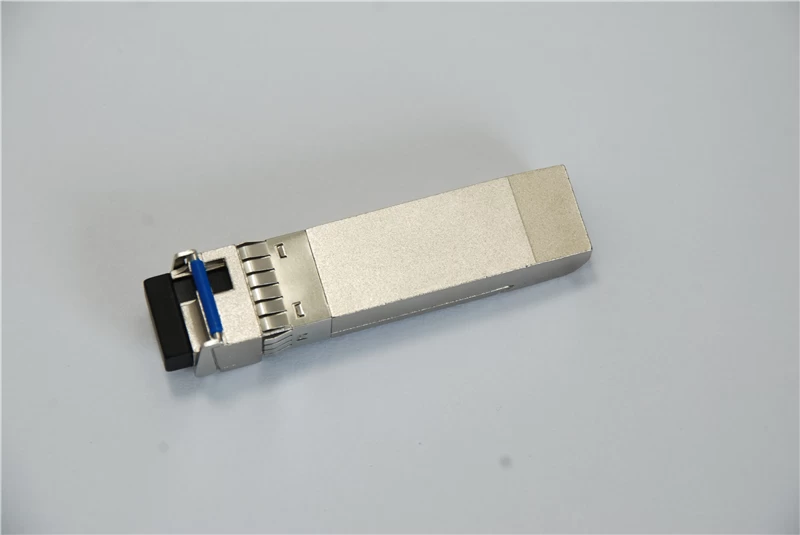

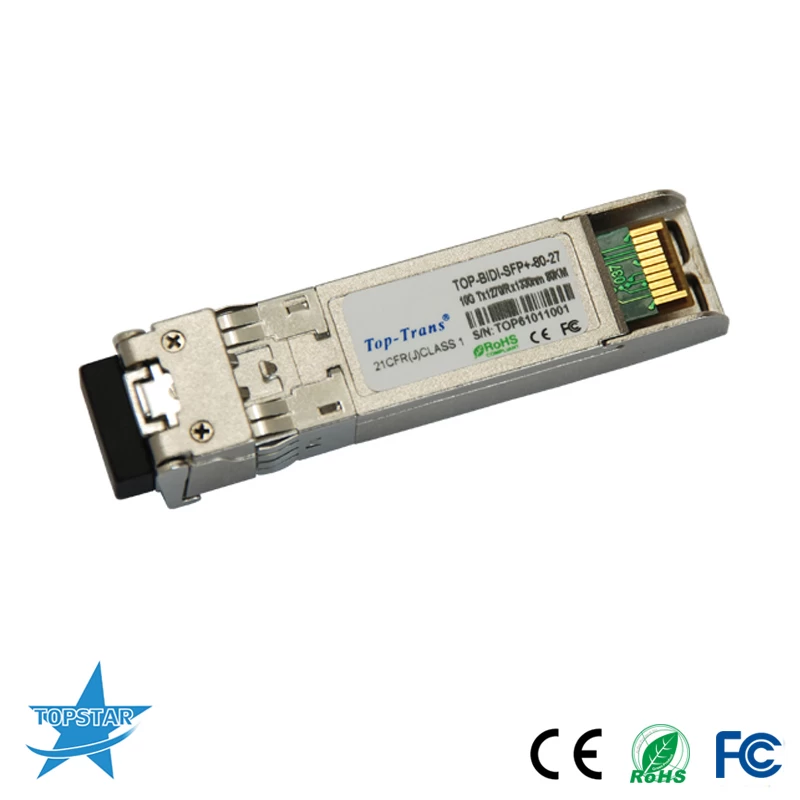

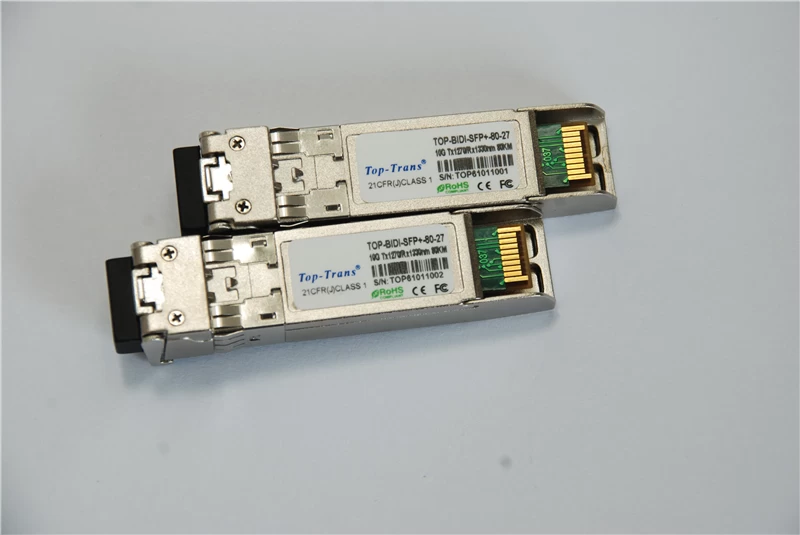

Mellanox Sfp Transceiver 10G Tx1270/Rx1330nm 80km 2 Core Single Mode Fiber Optic Cable

SFP+ 10G 80KM 1270 is hot pluggable 3.3V Small-Form-Factor transceiver  module. It designed  expressly  for high-speed communication applications  that require rates up to 10.7Gb/s,it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to 80km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with  partner.


  • ConnectorSingle port LC/SC
  • Data Rate10G
  • Distance80km
  • WavelengthTx1270/Rx1330nm
  • Temperature0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Warranty3 Years

Mellanox Sfp Transceiver 10G Tx1270/Rx1330nm 80km 2 Core Single Mode Fiber Optic Cable


Sfp Transceiver 10G Tx1270/Rx1330nm 80km


PRODUCT FEATURES

●  SFP MSA package with duplex LC connector

●  Very low EMI and excellent ESD protection

●  Digital Diagnostic Monitor Interface

●  Hot pluggable

●  10Gb/s serial optical interface

●  Up to 60km distance

●  Compliant with SFP+ MSA

●  High transmission margin

●  +3.3V single power supply

●  Below <1.8W power consumption



APPLICATIONS

● 10GBASE-BX at 10.3125 Gb/s

● 10GBASE-BX at 9.953 Gb/s



STANDARD

●  SFP+ MSA Compliant

●  SFF-8472 reversion 9.5 compliant

●  IEEE802.3-2005 compliant

●  Telcordia GR-468-CORE compliant

●  FCC 47 CFR Part 15,Class B compliant

●  FDA 21 CFR 1040.10 and 1040.11,class1 compliant

●  RoHS compliant



Professional Service

1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.


4.Customized label and package , OEM and ODM service offered
