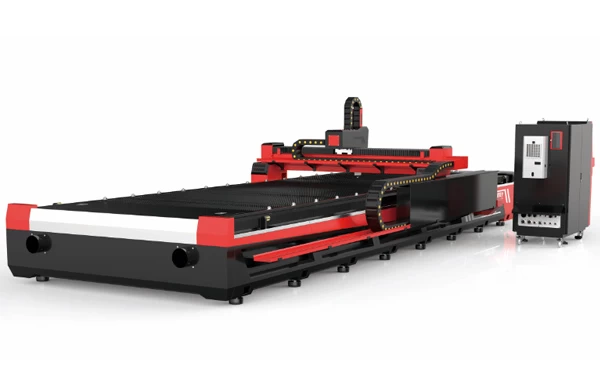

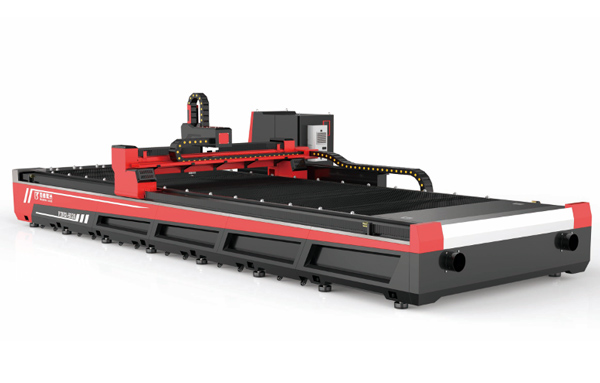

Metal Laser Cutting Machine with 6000*2000mm Work Size

6000*2000mm open flatbed cutting table , Metal Laser Cutting Machine for large sheet metal cutting ,highly meet the need of shipyard,large jobshop metal processing...hundreds of Baisheng laser users.





Standard 3000*1500mm cutting table may not suible for larger sheet processing ,therefore such 6000*2000mm single table laser is popular in some jobshops.




Parameters of Baisheng Fiber Laser cutting Machine:

Brand and manufacturer

Baisheng Laser

Machine Model

/F6020E/(F6015E,F4015E/F4020E options)

Dimension/ cutting size

8020*2520*1900mm /6000*2000mm

Laser power

700W,750w,1000w 1500W 2000W 2200W options

Machine weight

6500KG -6800KG

Fiber laser Generator

Raycus,IPG option

Laser wavelength

1064nm

Laser Beam quality

<0.373mrad

Worktable

Sawtooth slats  pneumatic loading & offloading equipment

Fiber Laser cutting head

Worthing WSX ,Raytools, Precitec

Working life of fiber module

More than 100000 hours

Motors & Drives

Japan Brand

Reducer

 high precision and torque, max one arc precise

Guide Rails

Taiwan/America  Brand

Transmit system

rack and pinion double drive system ,4 servo motors .

Chain system

Enclosed high quality

Water Chiller

TEYU( S&A) brand, Hanli

Control system

Professional laser control system--Cypcut



Position type

Red Dot pointer

Cutting thickness

≤7mm(stainless steel)

≤16mm(carbon steel)

Max. Idle Running Speed

120m/min idle acceleration

Max Cutting Speed

30M/Min

Geometric Position Accuracy

within ±0.05mm/M

Reorientation accuracy

within ±0.03mm/M

Lubrication system

Automatic ,evenly.

Min. Line Width

±0.02mm

Power Consumption

≤18KW

Auxiliary gas system

Japan SMC

Power supply Voltage

380V/50Hz/60Hz

Auxiliary Gas for cutting

Oxygen, Nitrogen, Air

Compatible software

Autocad, Coreldraw, etc

Graphic format

DXF/PLT/AI/

Working method

Industrial PC control with console desk and romote

Total power protection rating

IP54



4000*1500 4000*2000  6000*2000 6000*2500  8000*2000 work table options.

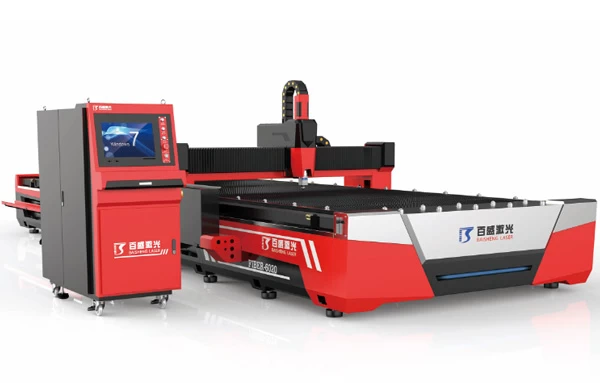

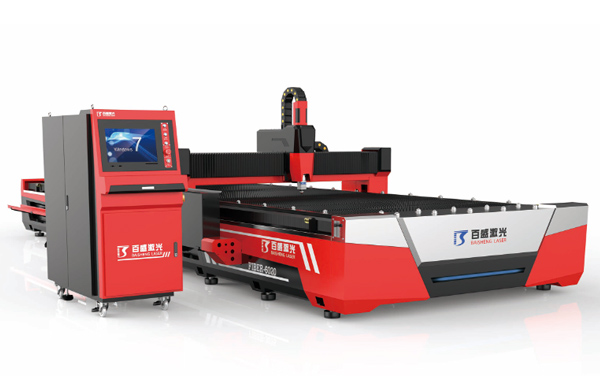

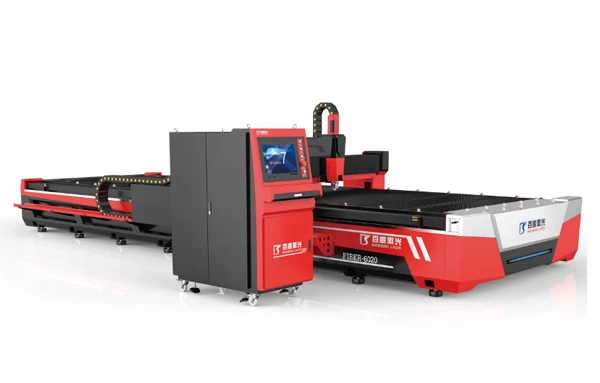

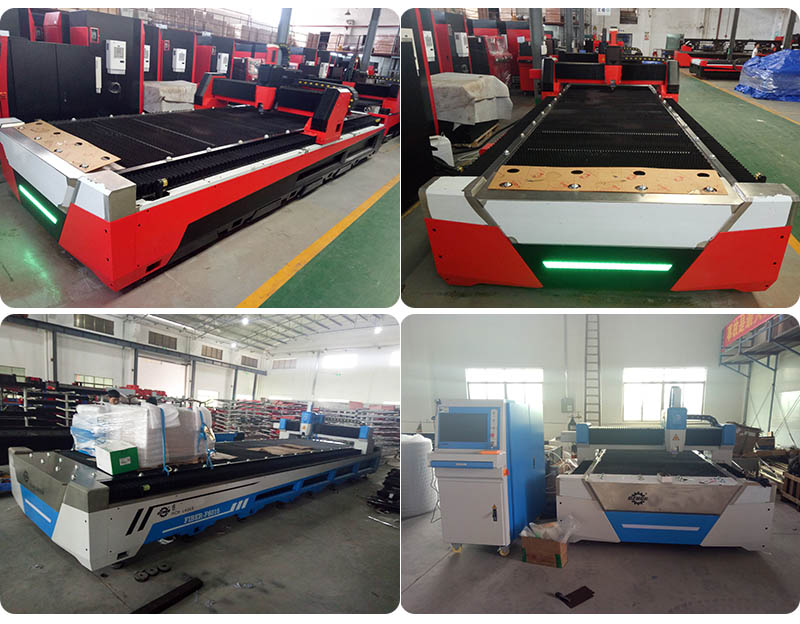

Laser cutting machine details Photos:

Laser stucture:

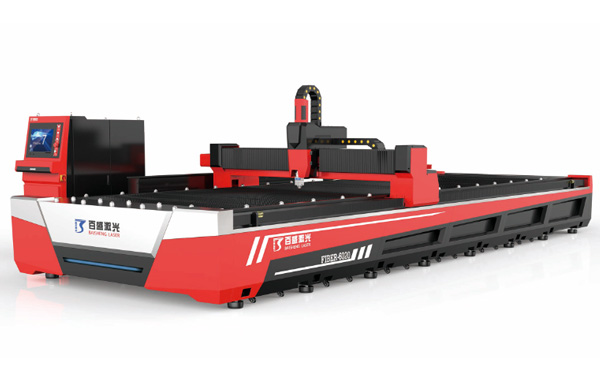

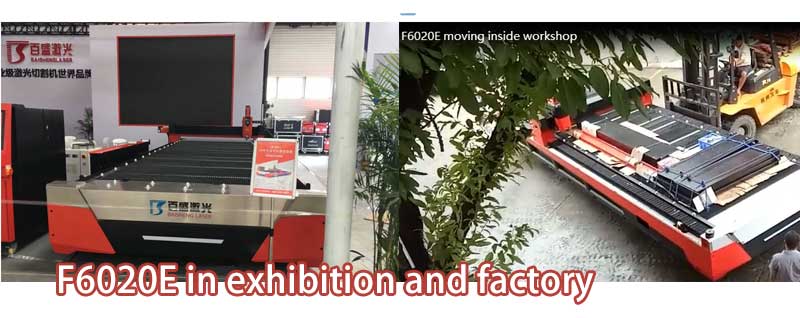

The F6020E has Baisheng unique machine bed and equipped with popular control system China Cypcut and WSX auto focusing cutting head .Its unique features is leading.
