Product features
The world's leading MEMS micropower flow chip patent technology.
Direct mass measurement, without temperature and pressure compensation, easy installation.
LED display,Clear intuitive.
Large data storage, easy to download and analyze historical data.
RS485 communication function can easily realize network management.
Standard current output of 4~20mA can be selected.
The aluminum alloy tube body is greatly reduced in weight and can be used for various gas measurements.
The grade of protection is IP65.
Mechanical dimensions
Technical parameters
Production license number of this series of products：CHUAN produce No.00000360
|
Model
|
Diameter(mm)
|
Maximum flow(Nm³/h)
|
Minimum flow(Nm³/h)
|
Begining flow(Nm³/h)
|
|
MF2025
|
25
|
100
|
2
|
0.2
|
|
MF2032
|
32
|
160
|
3
|
0.3
|
|
MF2050
|
50
|
400
|
10
|
1.0
|
|
Parameter
|
Valve/Unit
|
|
Flow signal
|
|
|
Precision
|
±(2.0+0.5FS)%
|
|
Mearsuring proportion
|
50:1
|
|
Pressure signal
|
|
|
Pressure range
|
15~700kPa
|
|
Precision
|
±2.5%
|
|
The maxi working pressure
|
1.0mPa(suggest working in 0.5mPa)
|
|
Environment temperature
|
-20~+60℃
|
|
Medium temperature
|
-10~+55℃
|
|
Humidity
|
10~90%RH(no ice,no frost)
|
|
The power supply mode
|
12~24Vdc
|
|
LED display
|
4digits for Instantaneous flow rate,8 digits for accumulative flow rate)
|
|
Output way
|
RS485,4~20mA
|
|
The main body material
|
Aluminum alloy, stainless steel (customized)
|
|
Shell material
|
Aluminum alloy
|
|
Mechanical connection
|
BSPTthread or flange
|
|
Calibration conditions
|
Air (20°C,101.325kPa)
|
|
Protection grade
|
IP65
|
Remark:The above parameters at 20 ° C, 101.325 kPa measured.

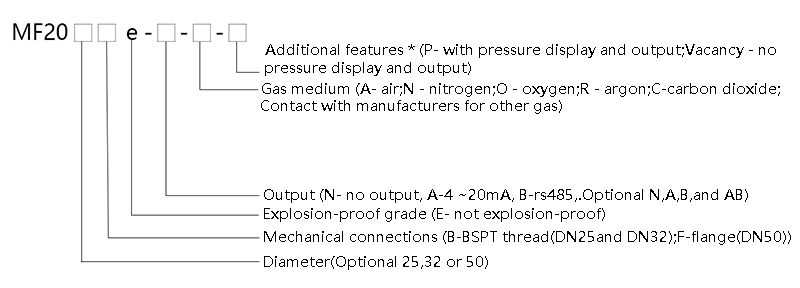

Product selection
