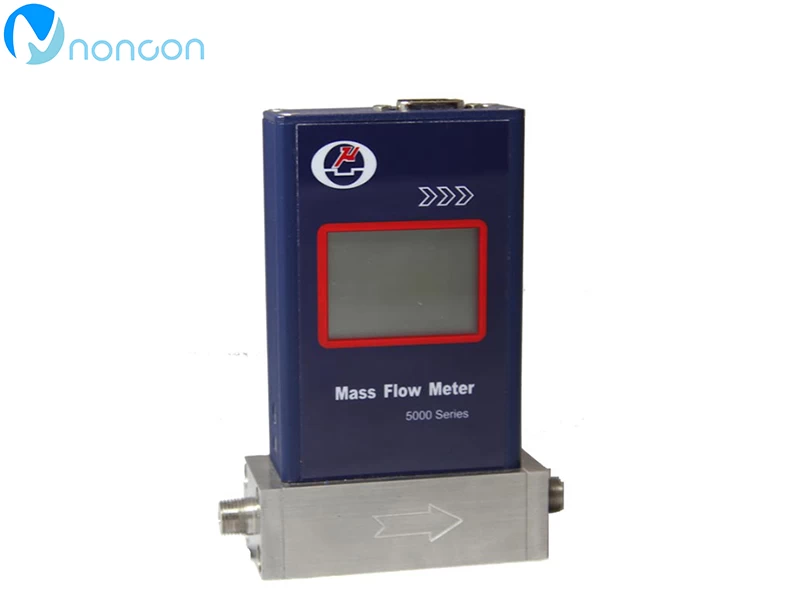

Product features
Using microelectromechanical system chip processing technology and mass integrated circuit production technology and material growth technology, the size of sensor hu has been reduced to micron level, which greatly improves the sensitivity of the flowmeter.
Multi-sensor integration is implemented on a single chip, which greatly improves the range ratio of the flowmeter.
The zero point stability of the sensor is greatly improved compared with the traditional thermal mass flowmeter.
Combined with the microcomputer intelligent technology of secondary instrument, the flowmeter has good repeatability, and the measurement is accurate and reliable.
Technological advances have simplified the structure that has greatly reduced pressure loss and greatly reduced energy consumption compared with traditional mechanical instruments.
Using LCD to display instantaneous flow rate and accumulated flow rate, clear and intuitive, easy to see the data.
The product integrates electromagnetic compatibility design technology and has higher anti-interference ability.
The flowmeter is equipped with RS485 communication module, which can realize centralized management with the upper computer network.
Optional 4-20ma standard current signal output and pulse output.

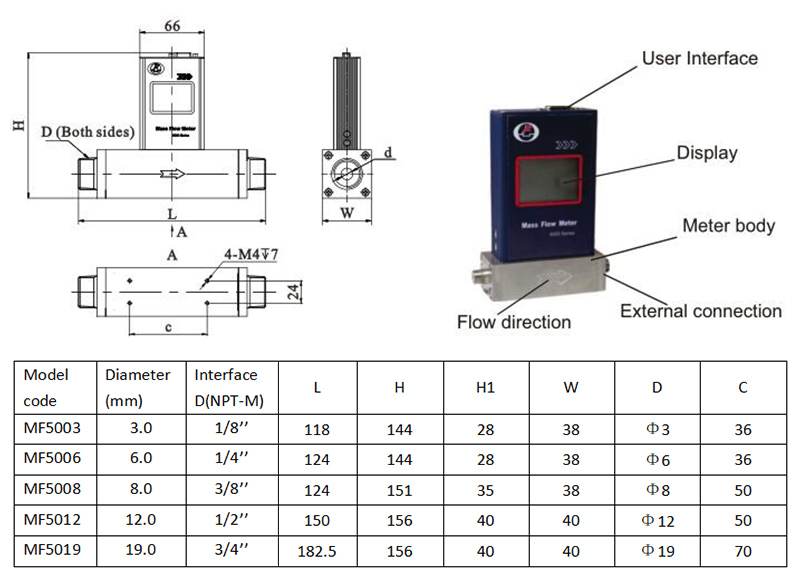

Mechanical dimensions
Technical parameters
Precision grade:±(1.5+0.5FS)% Environment temperature:－20~+60°C
Response time:125ms Medium temperature :－10~+55°C
Working power :12~24VDC.50mA(Explosion-proof type) The maximum Pressure :1.5MPa
5~7Vdc,20mA(Benan explosion proof type) Humidity :≤95%RH(No ice, no frost)
Output way :4~20mA,3.3V pulse Connection:NPT
Communication methods:RS485(Modbus agreement) Calibration of the air:(20°C,101.325kPa)
Display :Instantaneous ;accumulative flow rate Explosion-proof grade:ExiaIICT4
Protection grade:IP40
Remark:The above parameters at 20 ° C, 101.325 kPa measured.

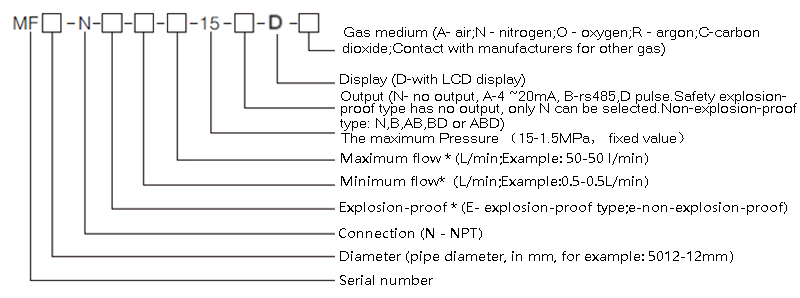

Product selection
In addition to the models listed in the model selection table, the company can also customize the products required by users according to special requirements (such as other installation methods).If need, please contact the manufacturer directly.Production license of this series of products:Chuan produce no.0000036:Explosion permit:GYB16.1326X.
* The default maximum flow and minimum flow unit is L/min, under the standard state (20 ° C, 101.325 kpa).
When selecting the default unit, write only Numbers: when selecting other units, you must write both Numbers and units.
Flow range
|
Model code
|
Diameter
(mm)
|
InterfaceD(NPT-M)
|
Flow range
|
|
mL/min(sccm)
|
L/min(SLPM)
|
m³/h(NCMH)
|
|
MF5003
|
3.0
|
1/8’’
|
150-15000
|
0.15~15
|
|
|
MF5006
|
6.0
|
1/4’’
|
|
0.5~50
|
0.03~3
|
|
MF5008
|
8.0
|
3/8’’
|
|
1.2~120
|
0.07~7
|
|
MF5012
|
12.0
|
1/2’’
|
|
3~300
|
0.18~18
|
|
MF5019
|
19.0
|
3/4’’
|
|
8~800
|
0.48~48
|
*The default unit of flow range is L/min, which is expressed as SLPM on the LCD display of the flowmeter.When other units mL/min and m³/h are selected, SCCM and NCMH are respectively represented on the LCD screen of the flowmeter.Above flow ranges are under the standard state (20 ° C, 101.325 kpa) .
**For carbon dioxide, the flow range is0.15~10,0.5~40,1.2~80,3~200 and 8~600SLPM
