Product features
Precise measurement and control of medical oxygen flow, which can measure the instantaneous oxygen use and the accumulated oxygen use;
Friendly display and operation interface;
Fully digital design ensures high performance;
With alarm function, the total amount can be set to exceed the limit alarm;
Digital, equipped with RS485 communication module, easy to achieve networking;
Automatic storage of historical data, statistical oxygen data statistics;
Password management to ensure data security;
Measure and display ambient temperature;
Low power consumption, battery power supply can work for long time.

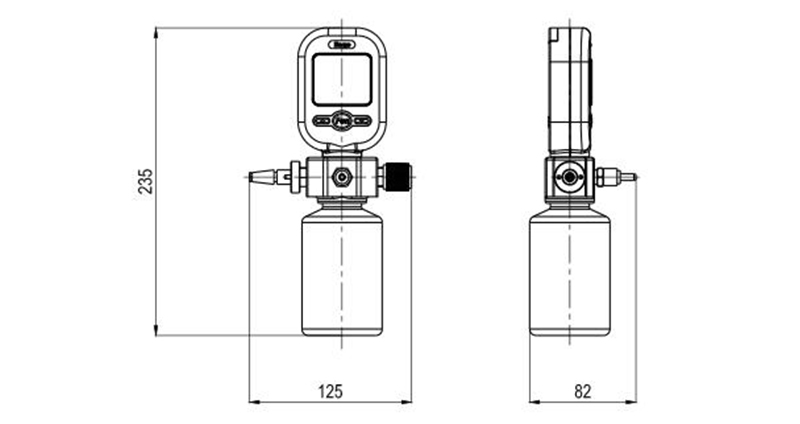

Mechanical dimensions
Remark:1.The dedicated medical oxygen supply interface is the inflow direction of the gas mass. If the reverse connection is made, the flow will always be 0.
2.The product can be optionally equipped with a 1-meter-long connecting communication cable with Mini USB plug, which can realize external power supply and communication
Technical parameters
|
Parameters
|
MF5806
|
Unit
|
|
Measuring flow
|
0~30
|
L/min
|
|
Precision
|
±(1.5+0.5FS)
|
%
|
|
Repetitive
|
0.5
|
%
|
|
Respone time
|
≤2
|
s
|
|
Working power
|
2 AA batteries (NO. 5 battery LR6) or external adaptor 6~24VDC
|
|
|
Power consumption
|
≤5
|
mW
|
|
Output way
|
RS485(Modbus)
|
|
|
Display way
|
LCD
|
|
|
Display unit
|
Instantaneous flow rate:L/min;The cumulative flow:m³:Oxygen time:hhHmm(hour Hminute)
|
|
|
Display resolution
|
Instantaneous flow rate:0.01L/min;The cumulative flow:0.001m³:Oxygen time:00H01(1 minute)
|
L/min
|
|
The keyboard
|
A button
|
|
|
The main function
|
Password Settings;Set and reset the total amount;Alarm function,time setting and reset:Alarm function
|
|
|
The max working pressure
|
0.6
|
MPa
|
|
Working temperature
|
-10~+55
|
℃
|
|
The pressure loss
|
≤500
|
Pa
|
|
Continuous battery life
|
800hours(Bluetooth switched on)/2300hours(Bluetooth switched off)
|
|
|
Standard calibration gas
|
oxygen(20°C,101.325kPa)
|
|
|
Lead
|
Special mini USB(optional)
|
|
|
Mechanical interface
|
Special medical oxygen supply interface can be customized as required
|
|
|
Weight
|
270
|
g
|
Remark:The above parameters at 20 ° C, 101.325 kPa measured.
