Ⅰ Product Features
1. Adopting ultra-high frequency broadband seamless interference technology.
2. Single switch technology controls power output.
3. High effective power (channel power) and long interference distance.
4. Effective segmentation, only interfering with drone control and video transmission frequencies, without causing interference to other frequencies.
5. Push pull design with detachable battery.
6. Multi band (8-band) interference can counteract most black flying drones.
7. Imported components and slow start circuit design can avoid ignition caused by mechanical switches, with high integration and stable operation.
8. Aiming scope with infrared radiation.

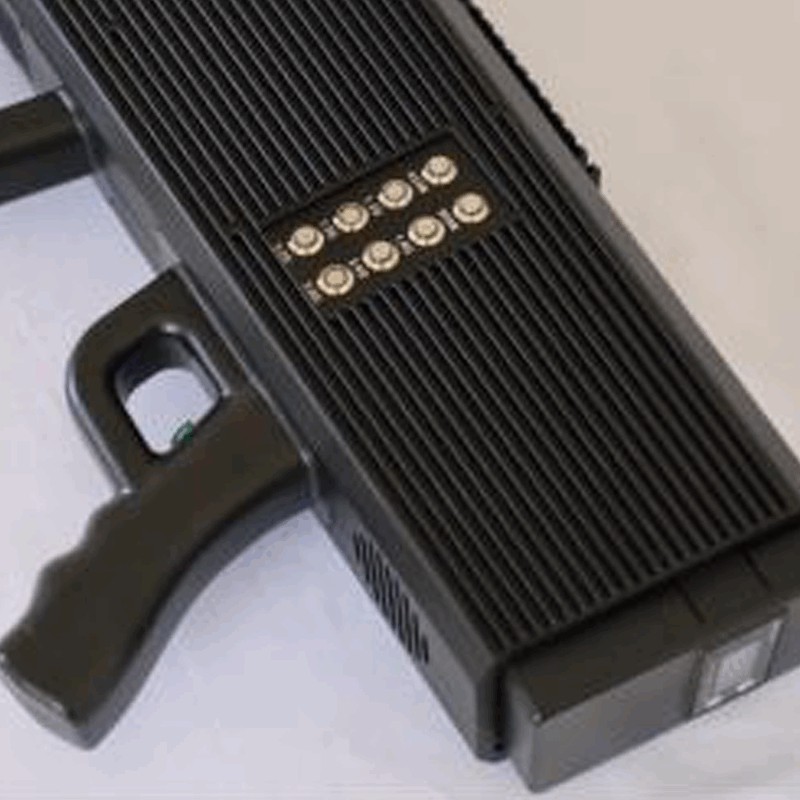

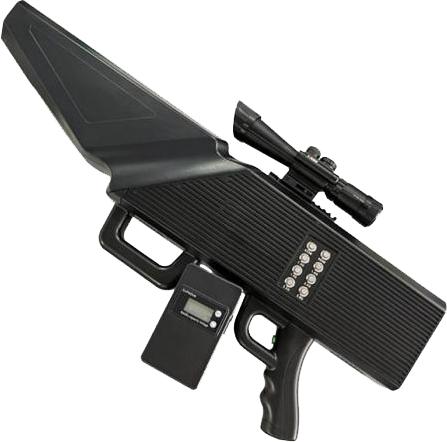

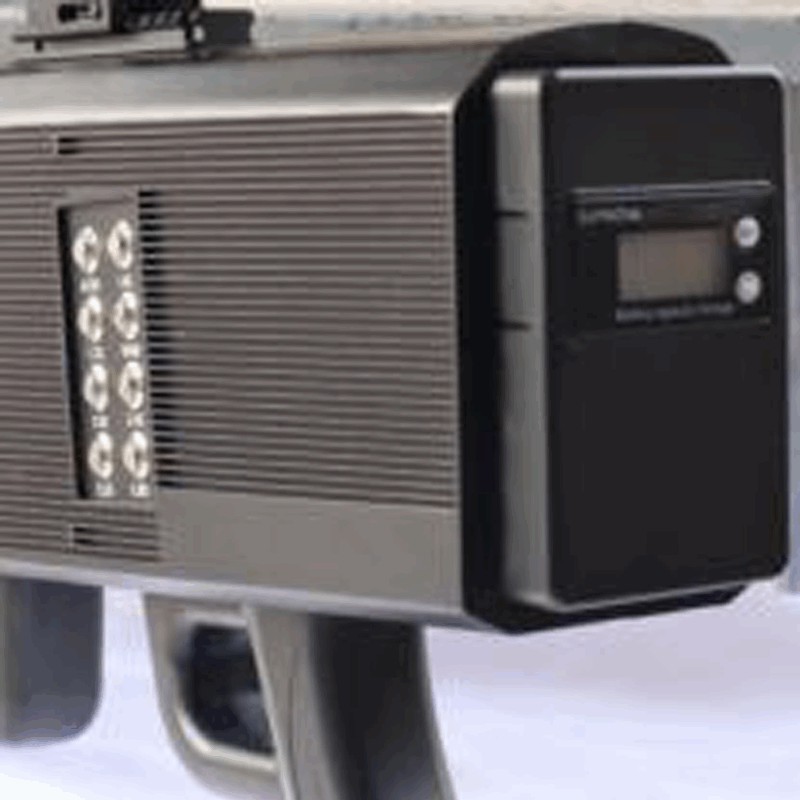

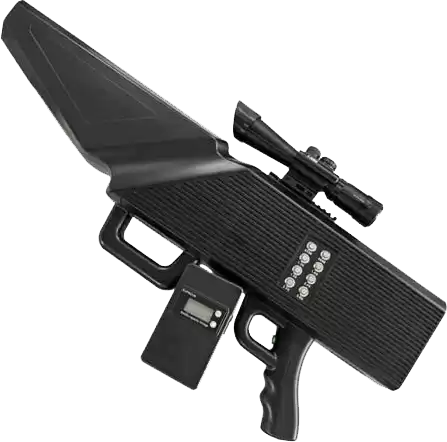

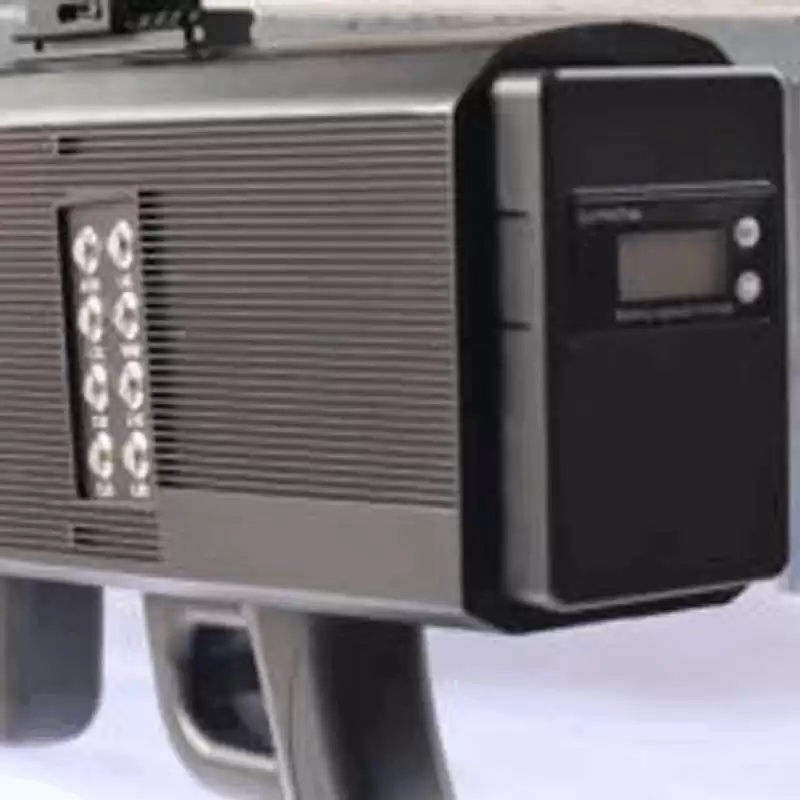

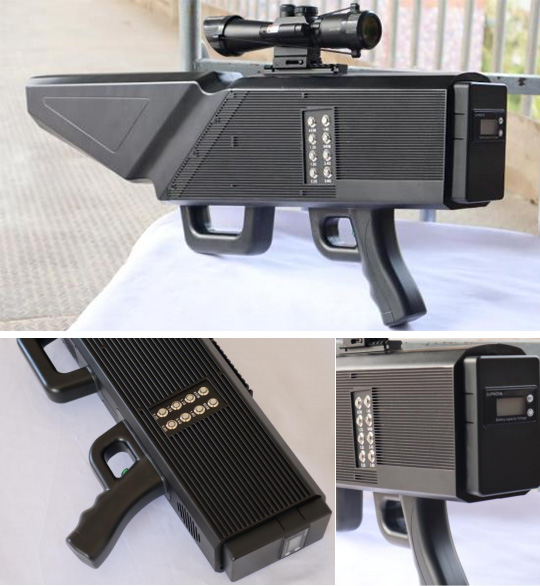

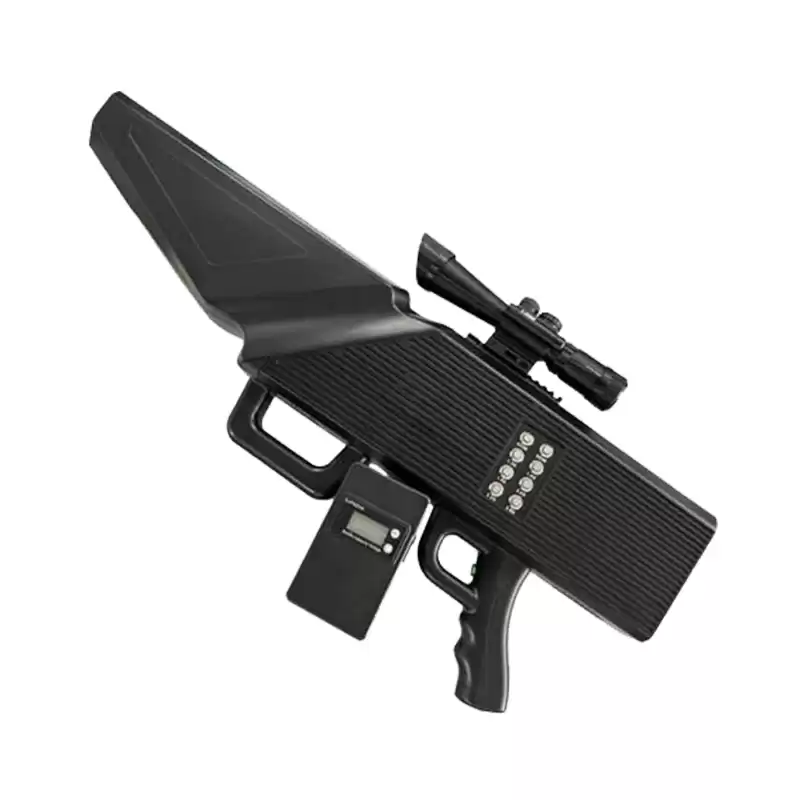

Ⅱ Product Photo
Ⅲ Product parameters
|
Output terminal
|
Working frequency
|
Output power
|
|
433M
|
433MHz
|
40dBm
|
|
900M
|
860-930MHz
|
43dBm
|
|
1.2G
|
1180-1280MHz
|
40dBm
|
|
1.4G
|
1400-1450MHz
|
40dBm
|
|
1.5G
|
1550-1620MHz
|
43dBm
|
|
2.4G
|
2400-2500MHz
|
47dBm
|
|
5.2G
|
5150-5350MHz
|
45dBm
|
|
5.8G
|
5725-5850MHz
|
47dBm
|
|
Battery: 7A Power: 29.4V 2A
|
|
Host weight: around 8.2kg Weight with package: 15.9kg
|
|
Host size: 88 * 35 * 10cm Packaging size: 98 * 51.5 * 22cm
|
|
Interference distance: 600-1500M (depending on the model of the drone and the distance between the drone and the pilot)
|
|
Product List: Host+Battery+Charger+Sight+Aviation Case (Quantity is one set, batteries can be purchased for extra)
|
Ⅳ Instructions
1. Before using, please check if the device is in good condition and if the accessories are complete.
2. Check the battery level. Before using, please fully charge the battery.

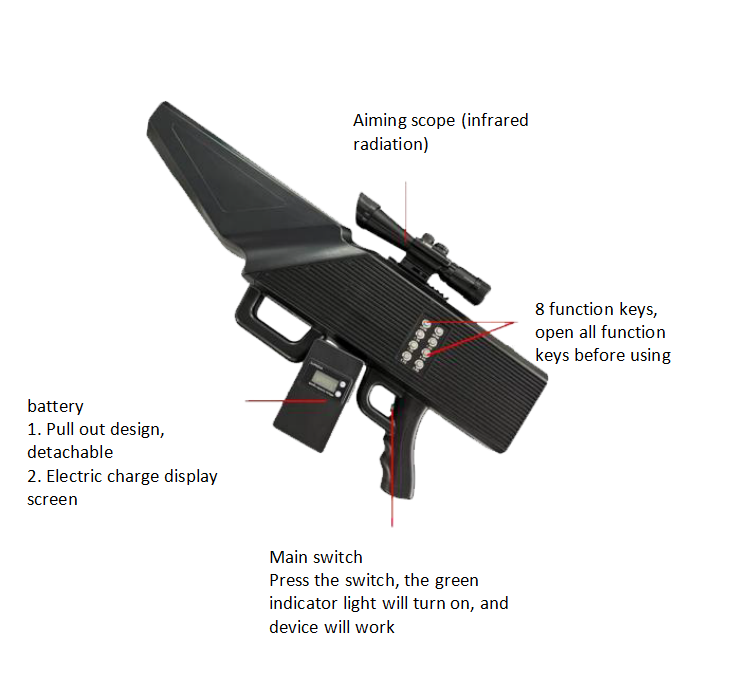

3. Operation: (1) Turn on the main switch, and the indicator light will light up. (2) Press the frequency button that needs to be used, the indicator light will turn on, and the device will start working. (3) Handheld device to target drones. (4) You can use a sight to increase your field of view.
4. Counter operation completed, turn off the main switch and frequency button, and put away the device.
Ⅴ Application scenes
1. Government departments: prisons, courts, police stations, other law enforcement agencies.
2. Infrastructure: gasoline stations, oil depots, natural gas stations, airports, drug enforcement departments, security departments, etc.
3. Public facilities: sports venues, important events, etc.
4. Transportation equipment: shipping docks, yachts, etc.
5. Detention centers, schools, libraries, examination centers, churches, hospitals, etc.
6. Private villas, various private places, etc.
Ⅵ Precautions
1. Due to the high power consumption when all frequency bands are turned on, please try to keep it open for 5 minutes to save power.
2. Please ensure that the device has sufficient battery before use to ensure normal operation.
3. Please ensure that the shielded frequency band is suitable for personal use purposes to improve product efficiency.
4. Please refrain from using the device while charging.
5. Please try to avoid obvious obstacles between drone countermeasures and drones.
