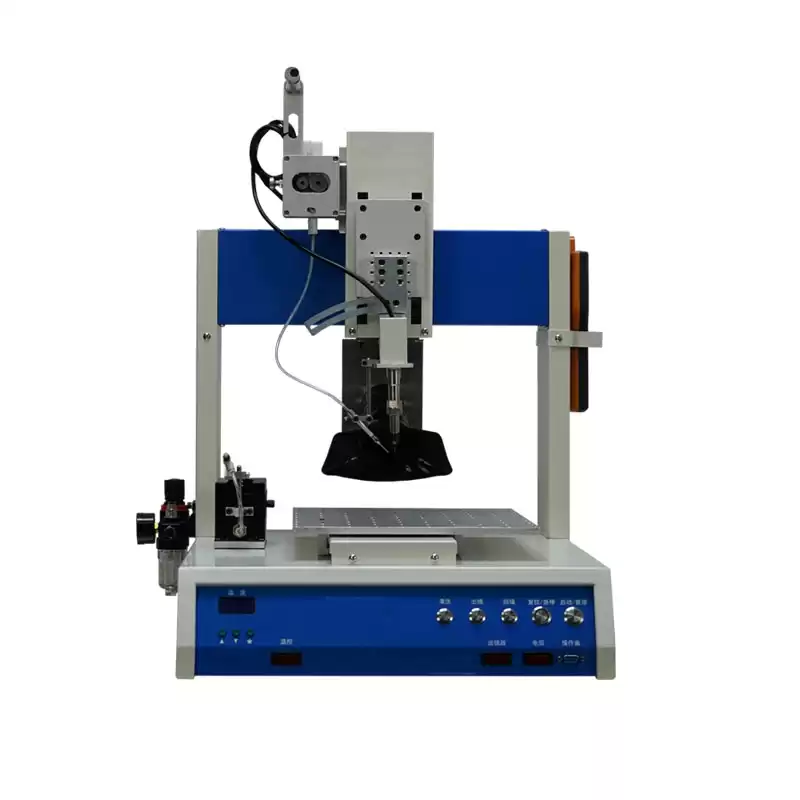

Min 3 Axis Robotic Soldering Machine Single Head With PLC Control
This mini desktop robotic soldering machine comes with single XYZ axis, single table and single head for low volume production. But it solves the shortcomings of manual soldering and saving management cost for workers.
Robotic Soldering Machine Features:
1. With automatic smoke collection to keep the air clean (optional).
2. High-strength solder head can be customized for high quality melding.
3. Program can be fast made by re-set ,insert and delete the spot of the soldering or full modification.
4. Clamping slot for easily fetch and change the products.
5. Feeding tins at anytime to apply for multiple welding and high efficiency.
6. Weller soldering temperature controller, control the temperature more accurately and more durable.
7. Auto anti-collapse.
8. Programming with teaching pendant for all new users to operate within 2 hours.
9. Auto transport tape is optional for full automatic.
10. The mode of two users managements of different right for engineer and operator.
11. With functions of calibration of R axis, correction of wrong operations.
12. ±0.02mm repeated precision to achieve precised soldering.
;
Robotic Soldering Machine Specifications:
|
Model
|
SMTSR113
|
|
Dimension
|
880*700*830mm
|
|
Weight
|
70Kg
|
|
Control
|
PLC
|
|
Programming
|
Teaching box
|
|
Driving mode
|
Stepper motor
|
|
Stroke
|
300(X)x300(Y)x80(Z)
|
|
Soldering head
|
1
|
|
Repeatability
|
±0.02mm(X/Y/Z)
|
|
Temp. Range
|
0-500℃
|
|
Solder Wire Spec
|
￠0.3-1.6mm
|
|
Number of axes
|
3
|
|
Working pressure
|
0.4~0.6Mpa(No water mist)
|
|
Power
|
AC110V/220V 300W
|
|
Display
|
LCD
|
Robotic Soldering Machine More Photos:
; ;
; ;
Robotic Soldering Machine Spare Parts Available:
1. Customized soldering tips
2. Heater
3. Customized fixture
4. Solder wire
5. Soldering head set
; ;
; ;
Robotic Soldering Machine Applications:
The Robotic Soldering Machine is widely used in PCB welding line, charger plug welding, connector welding, DC terminal tin LED light band connection and other fields. Instead of manual welding, automatic soldering robot improves work efficiency and welding quality.
Our Service:
1. Guarantee for 12 months.
2. Maintenance for whole life.
3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.
4. 24 ;hours x 7days online ;service, ;free ;technical ;support.
5. Machine ;has ;been tested before ;delivery.
6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.
7. Oversea on-site installation and trainning is available.
8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
