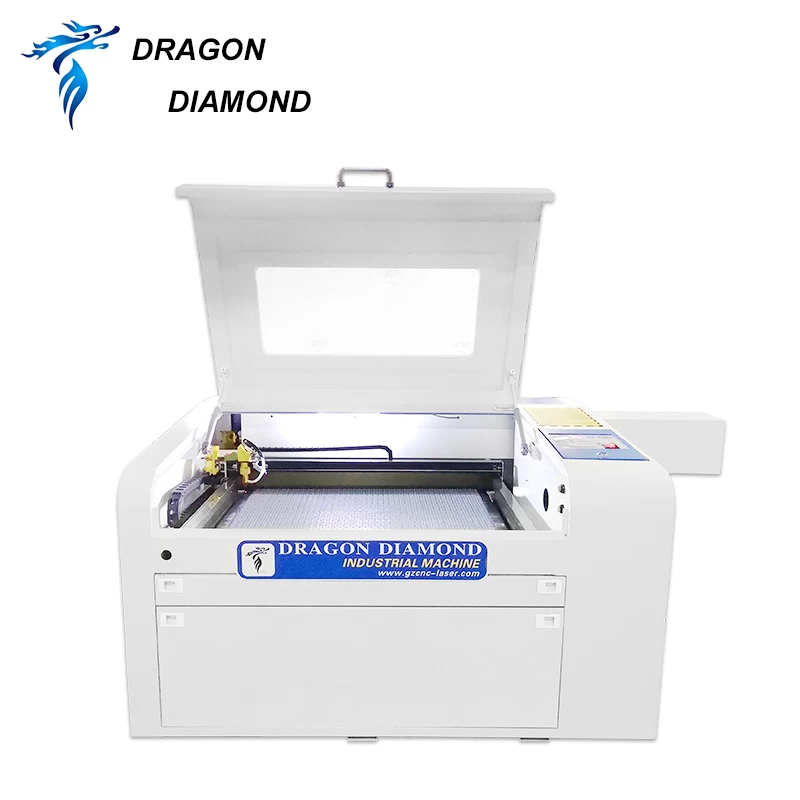

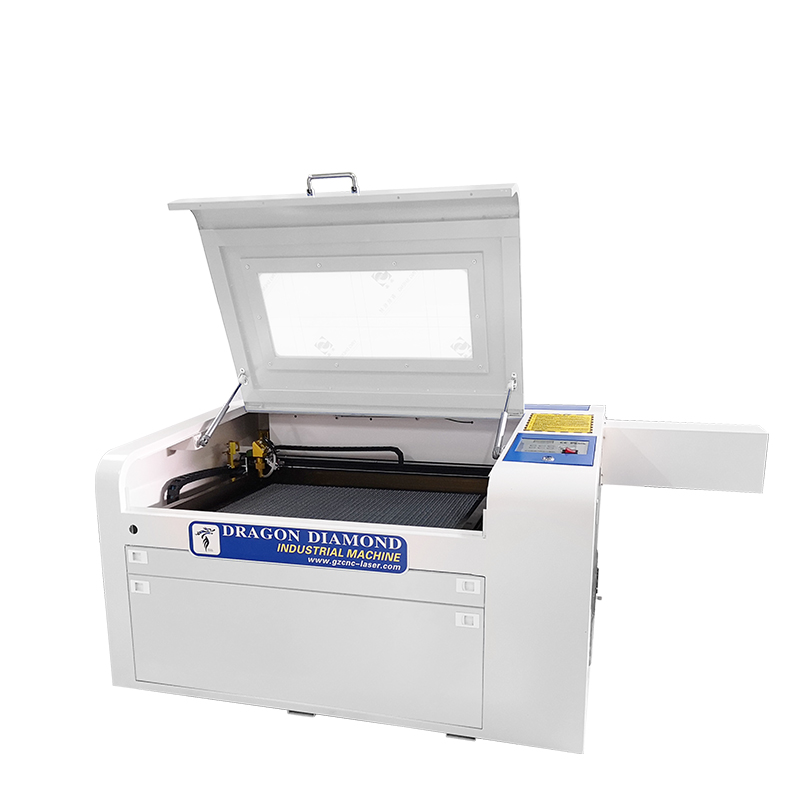

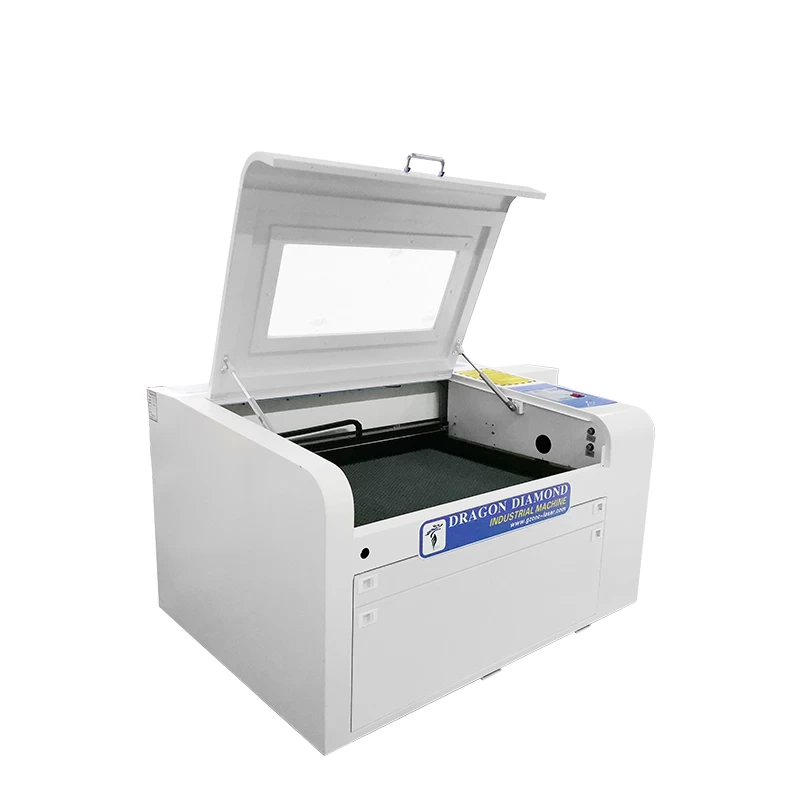

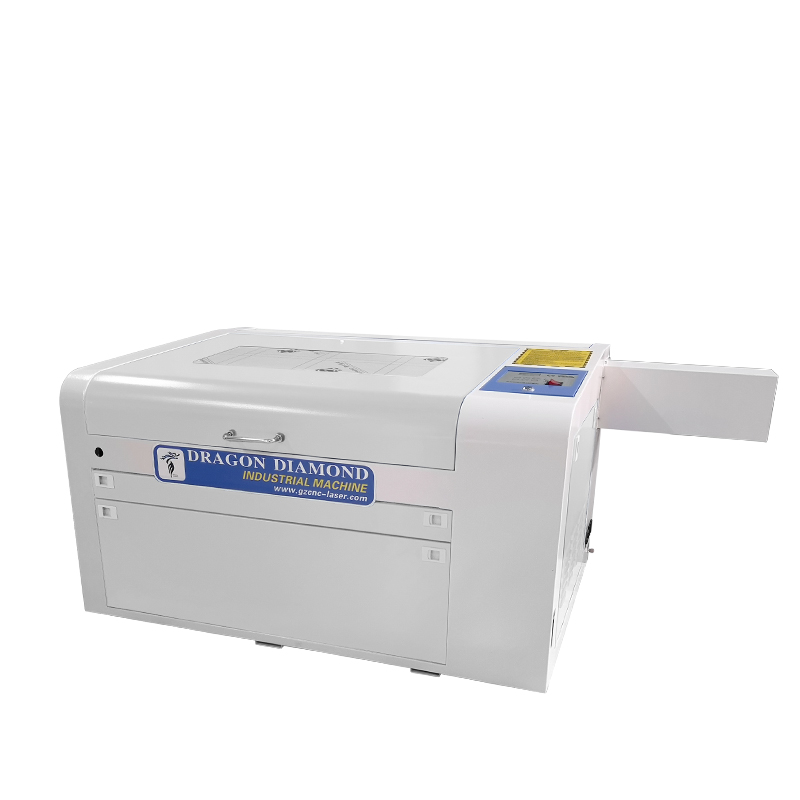

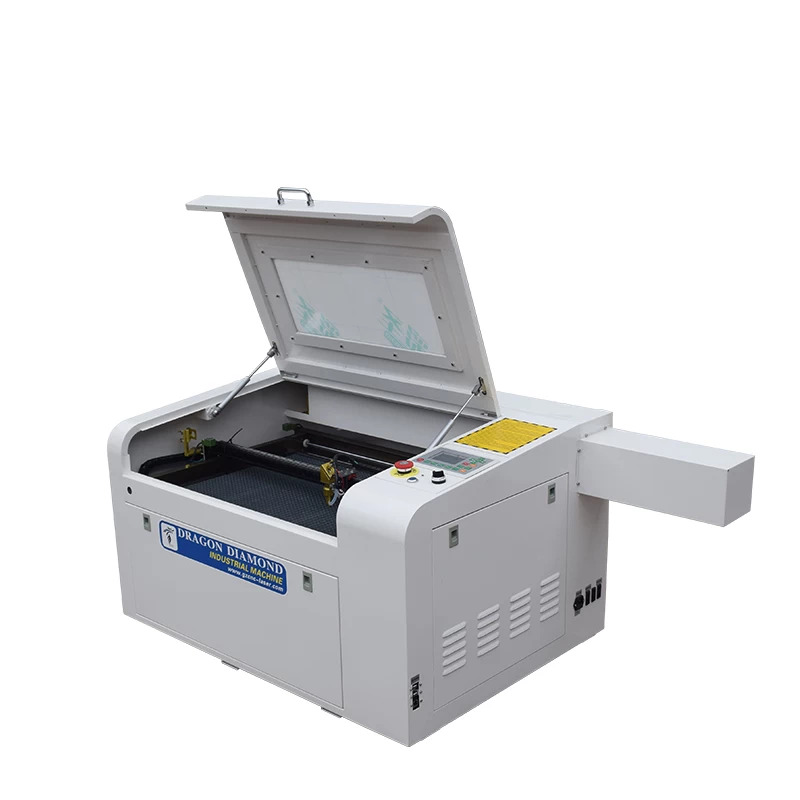

Mini Co2 Laser Engraver Machine for Craft
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-M46B
|
|
1
|
Working Area
|
400x600mm
|
|
2
|
Packing Size
|
1500x900x800mm
|
|
3
|
Working Table
|
HoneyComb With Lifting Table
|
|
4
|
Laser tube type
|
CO2 sealed laser tube
|
|
5
|
Cooling System
|
Water Pump
|
|
6
|
Drive Mode
|
Digital Subdivision Stepper Drive
|
|
7
|
Software
|
CorelDraw,CorelLaser
|
|
8
|
Compatible Software
|
CorelDraw, AutoCAD,, Laser CAD, etc
|
|
9
|
File output mode
|
USB Interface
|
|
10
|
Laser power
|
60W
|
|
11
|
Motor
|
Leadshine 42 Stepper Motor, 57 Stepper Motor
|
|
12
|
Cutting Thickness
|
0-20mm(depends on different material)
|
|
13
|
System Supported
|
WINDOWS
|
|
14
|
Guideway
|
Taiwan HIWIN Linear Guideway
|
|
15
|
Resolution ratio
|
≤4500dpi
|
|
16
|
Engraving Speed
|
0-350mm/s
|
|
17
|
Range of Electric Up-down (Z)
|
0-250mm
|
|
18
|
Graphic Format Supported
|
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc
|
|
19
|
Voltage
|
AC220V/380V,50HZ/60HZ
|
APPLICATION
Engraving and cutting of paper, fabric, plastic, nonwowen cloth in garment and toy industries, and inclusive of precise cutting to non-metal materials, like acrylic and MDF board in handbag, glove mold, adverstisements, electrical applice and plastic industries.
