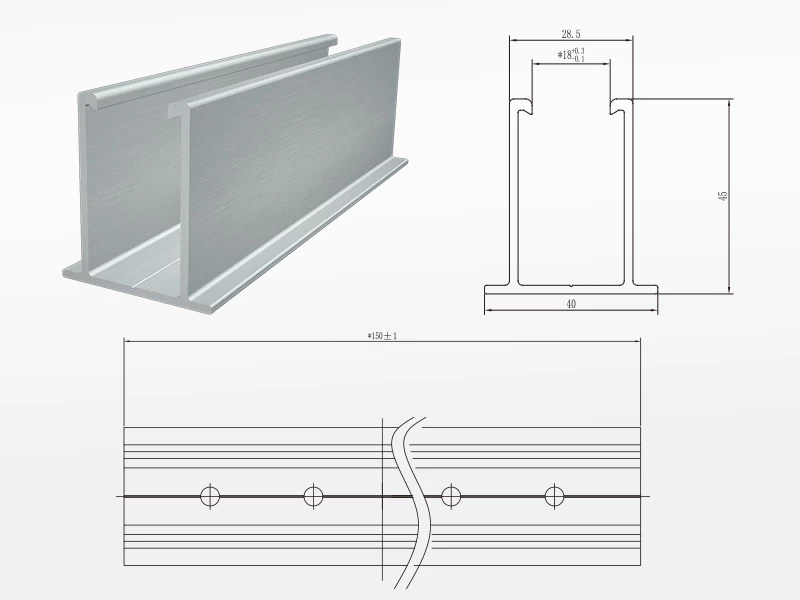

Overview

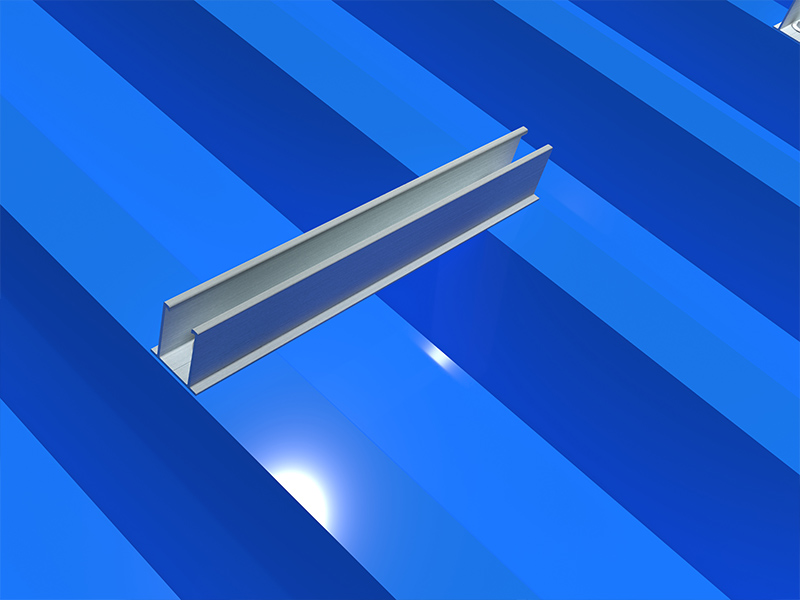

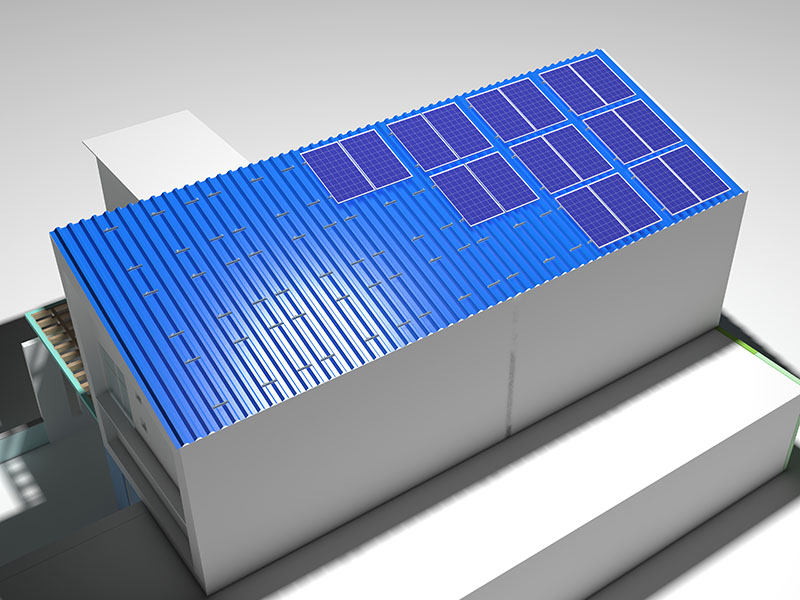

MRac Mini-Rail Kit is mainly applied to Trapezoidal Metal Roof
commercial and industrial solar projects. The system can achieve
stable and strong connection between the roof support structure
and solar modules with modular Patented design. Pre-assembled
kits save the installation time and cost onsite.
Features
1.Applicable for different metal roofs
Design project by project, selecting configuration of mounting system components flexibly.
2.Save Installation Time and Cost

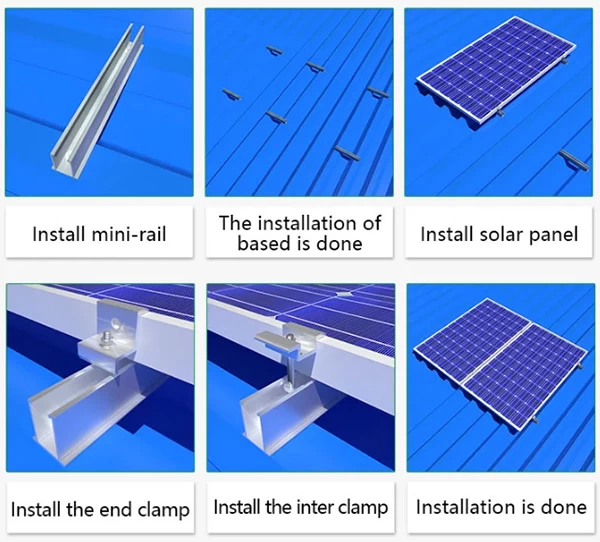

Pre-assembled components and clear installation manuals are supplied to save the onsite installation time and cost, lead to better RoI.
3.Compatible to Different Types of Solar Modules
Compatible to most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.
|
Technical Parameter
|
|
Installation Site
|
Pitched Roof
|
|
Roof Type
|
Trapezoidal Roof
|
|
Tilt Angle
|
0-15°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
System Name
|
Mini-Rail Kit
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel & Hot Dip Galvanized
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|

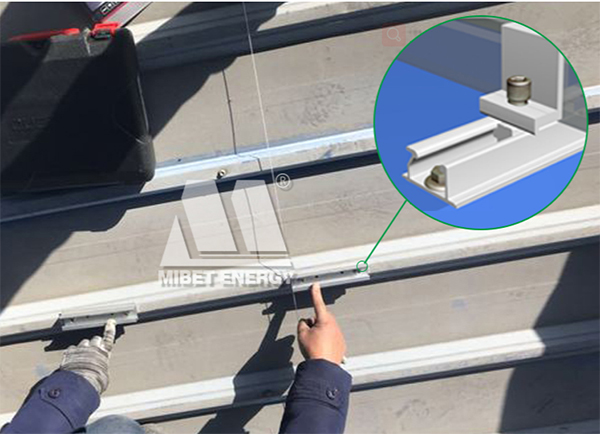

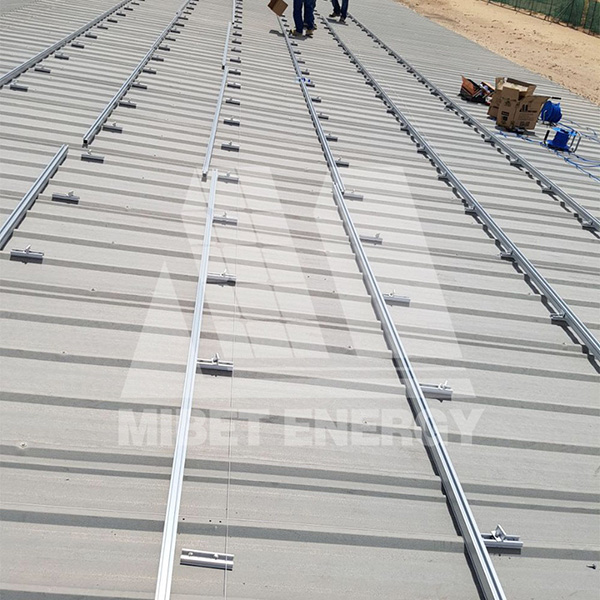

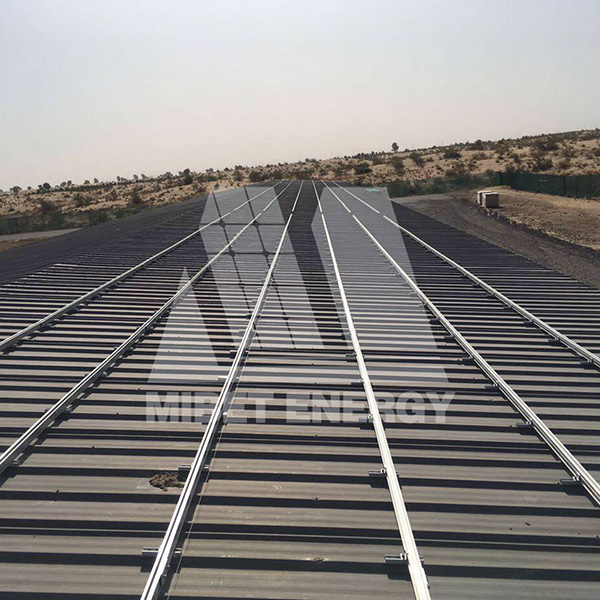

Project Reference
Tracking records of Mibet’s roof solar mounting systems are available in all 5 continents, typical markets like South-east Asian countries, Australia, European countries, USA, Middle-east, Southern American and African countries.
Technology Certification
