Overview

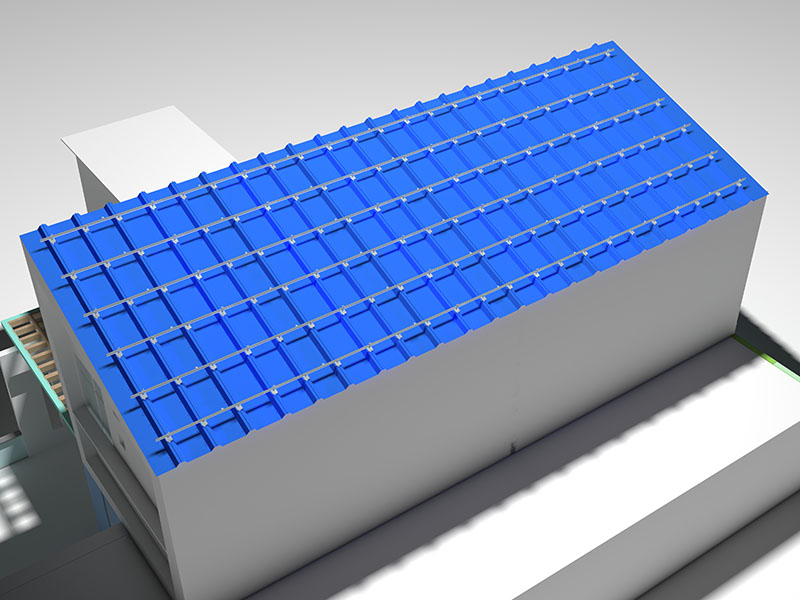

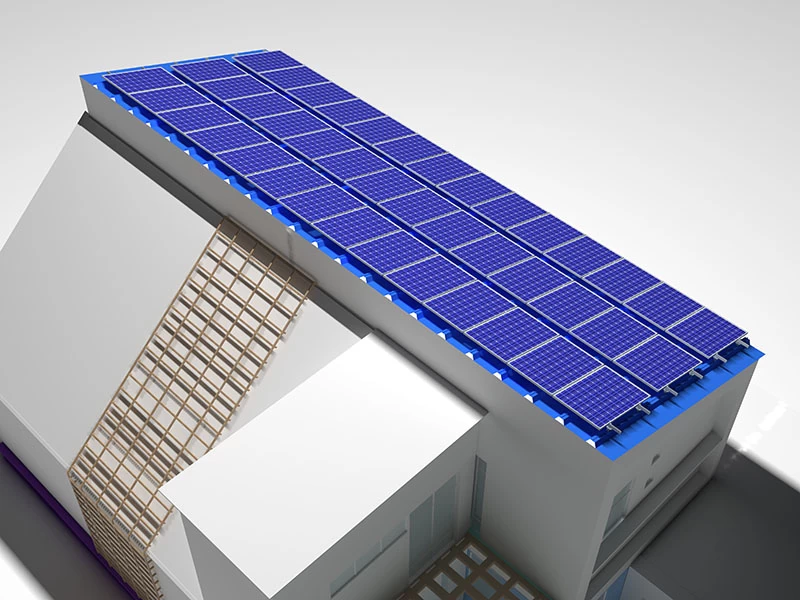

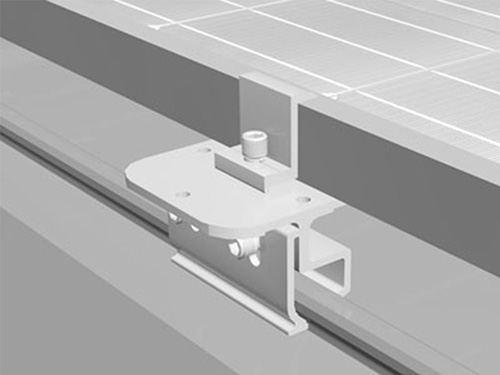

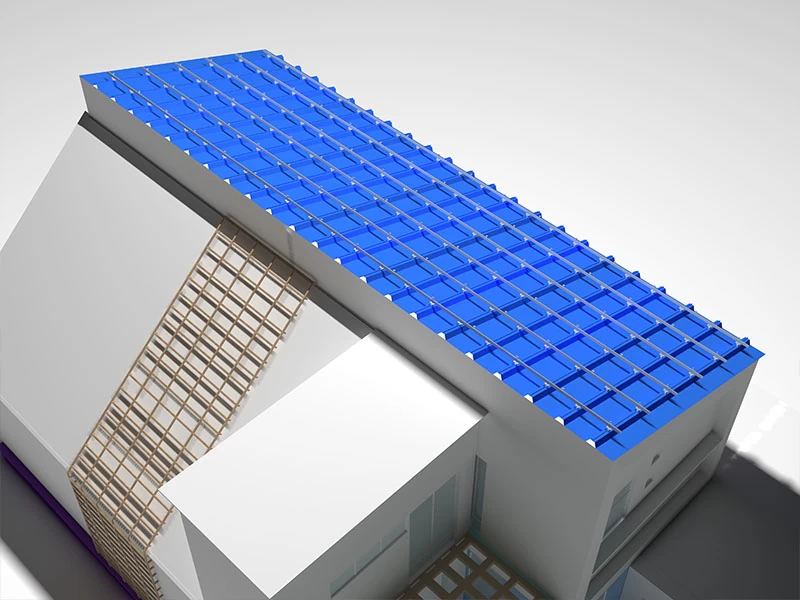

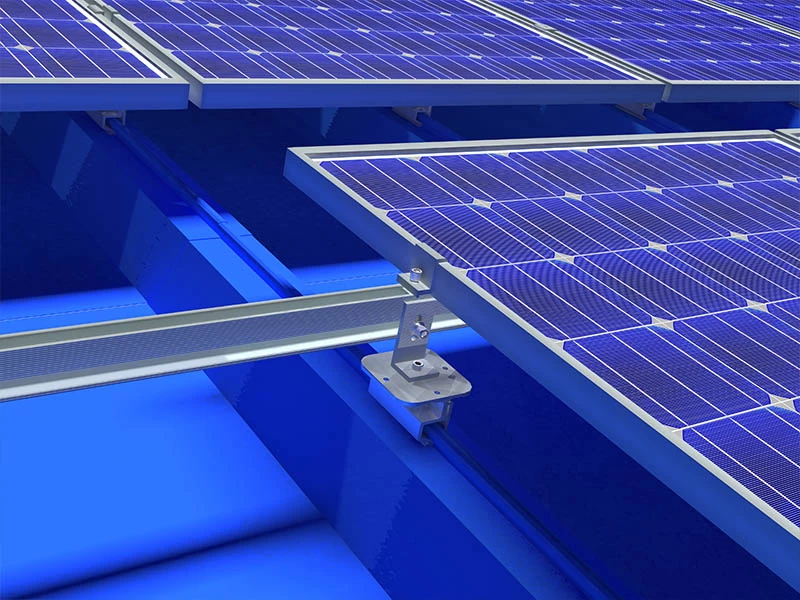

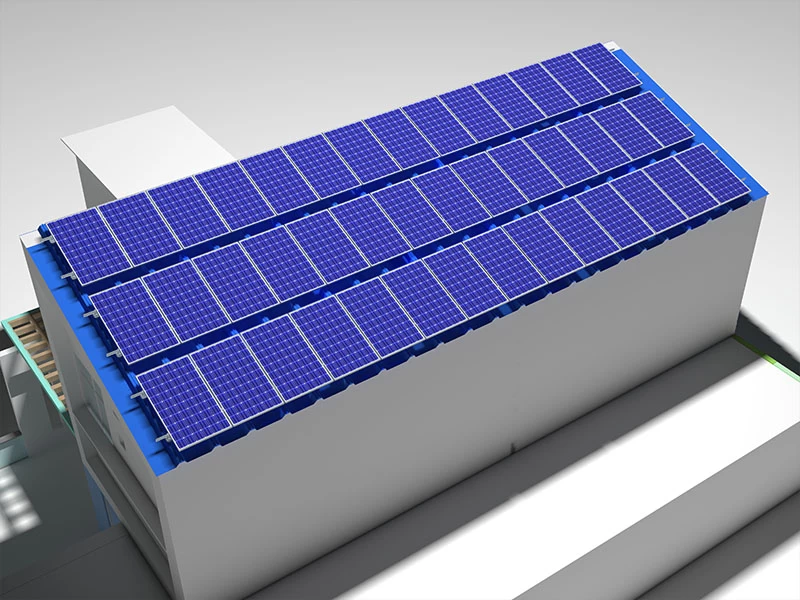

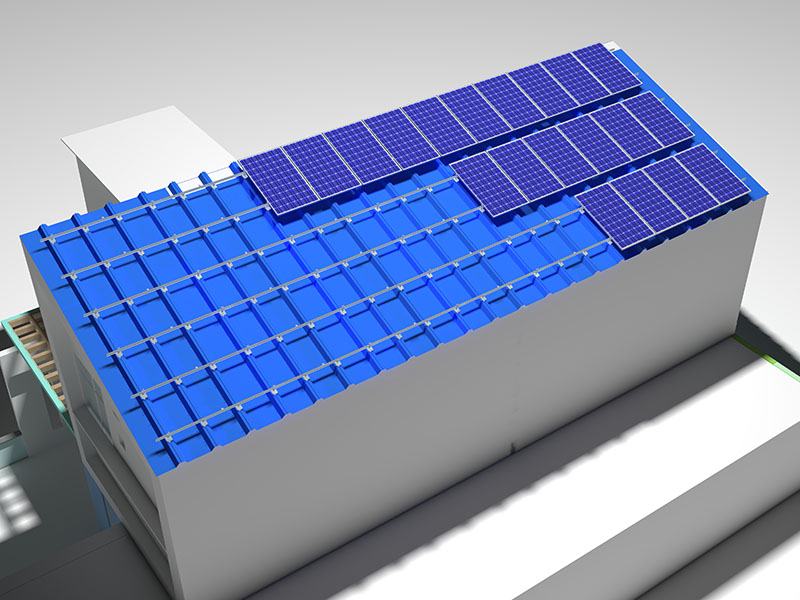

MRac Standing Seam Metal Roof Solar PV Mounting System is applied
to Standing Seam Metal Sheet Roof commercial and industrial solar
projects. The system can achieve stable and strong connection
between the roof support structure and solar modules with modular
Patented design. Pre-assembled kits save the installation time and cost
onsite.
|
Technical Parameter
|
|
Installation Site
|
Pitched Roof
|
|
Roof Type
|
Trapezoidal Metal Roof Support
|
|
Tilt Angle
|
0-15°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
System Name
|
MRac Standing Seam Roof Support
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel & Hot Dip Galvanized
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Features
Applicable for Different Metal Roofs
Design project by project, selecting configuration of
mounting system components flexibly
Save Installation Time and Cost
Pre-assembled components and clear installation manuals
are supplied to save the onsite installation time and cost,
lead to better RoI
Compatible to Different Types of Solar Modules
Compatible to most kinds of framed 60-cell, 72-cell, half-cut
cells modules and frameless modules.
Technology Certification
