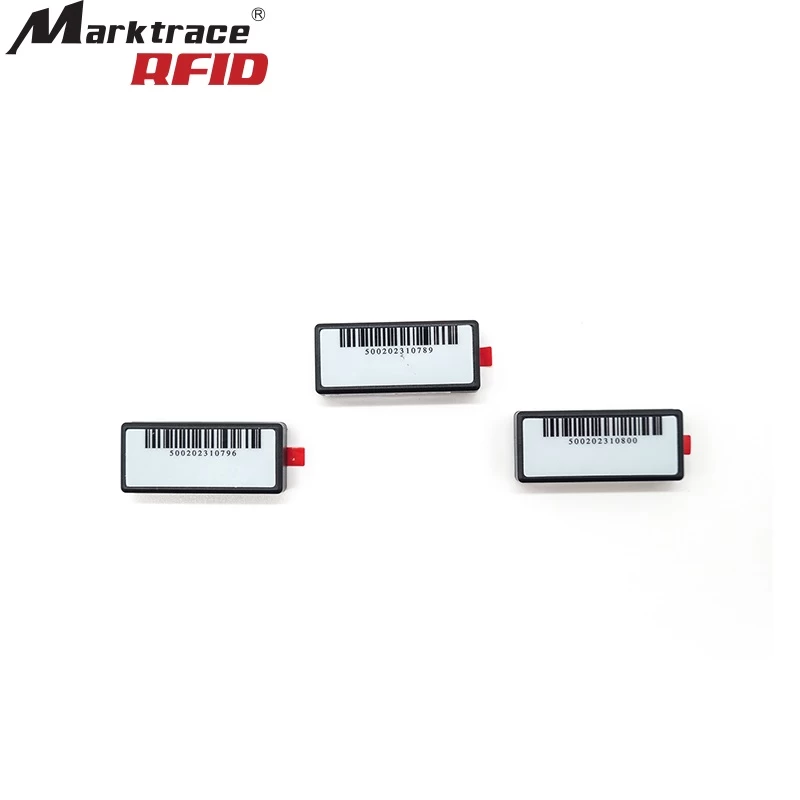

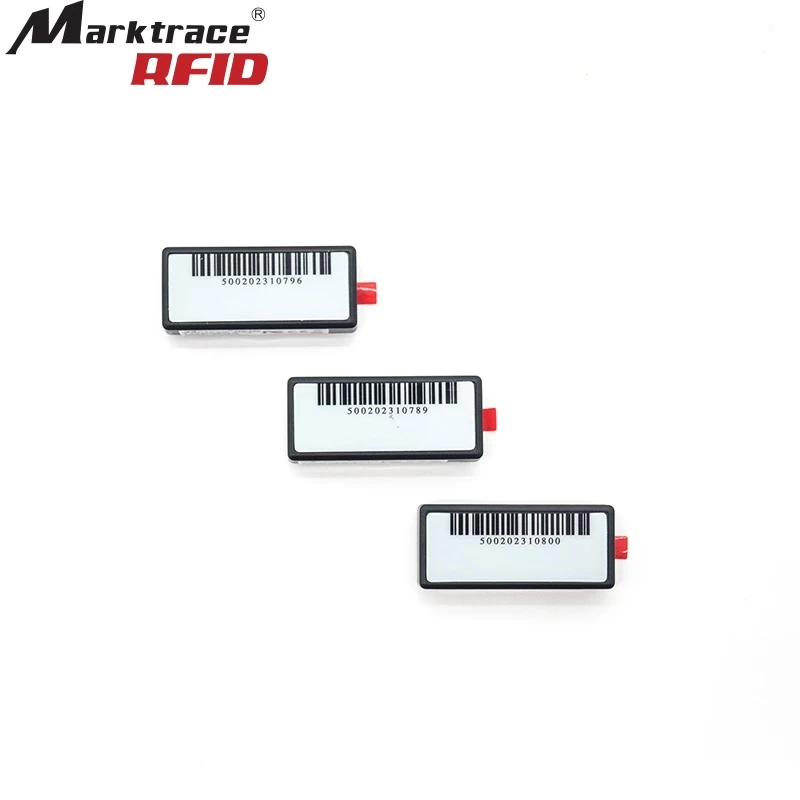

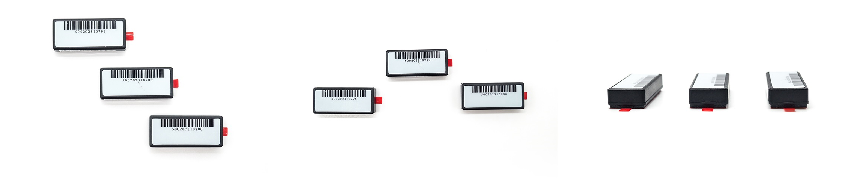

Mini Sticker 2.4GHz Active RFID Tags for Fixed Assets Management
Mini Sticker 2.4GHz Active RFID Tags for Fixed Assets Management
1.Suitable to adopt fixed
frequency working mode, with powerful anti-inteference ability.
2.Effective reading range
up to 80m (depend on reader and antenna software configurable).
3.Ultra-low power consumption
average working current< 10UA
4.Active tag, very important part of a RFID system, especially for people tracking and
assets management etc
5.Multi-tag reading at the same time(more than 100pcs per second), no
limitation or interference by tag quantity in the reading range
6.Inductively coupled with transformer model.
2.4Ghz Active RFID Tags Specification
Model No: MR3848
Type: 2.4G Card type (Beacon type, MAX RF
power)
Inductive mode: Initiative transmit, RF
Power 0dBm transmit every 3 second
Material: ABS, heat resistant ,black color

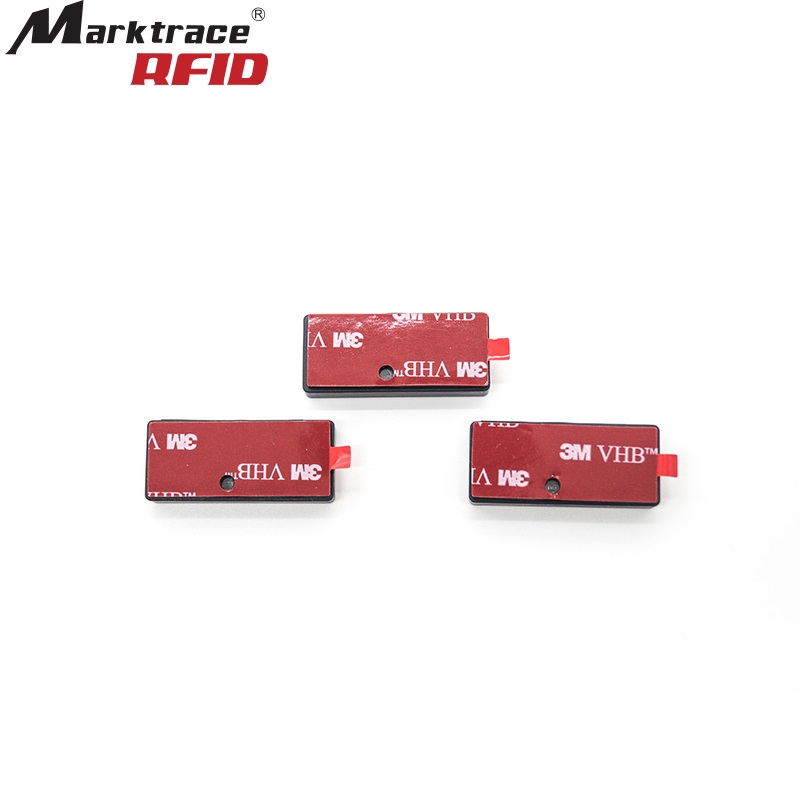

Dimension: 42*18.2*7.3mm (without 3M glue)
Battery: 3 years(singal time interval is 3s)
IP Grade: IP54
Installation: Carry on
2.4G RF
Feature
Signal modulation: GFSK
Communication speed: 1Mbit/s
Operation frequency: 2.44GHz
Output power: 0dbm
Electrical
Feature
Quiescent current: <3uA
Peak current: <15mA
Average current: <10uA
Battery model: CR1632
Battery capacity: 120mA×2
Working life: >3 years
Environmental
Feature
Operating temperature: -20℃~+45℃
Storage temperature: -30℃~+65℃
Our Advantage
1.ABS maternal, heat resistant
2.0-50m reading range
3.Easy usage for items tracking
4.Card type water-proof design
5.Continuously testing stability to ensure long stable work under
6.Long communication distance and good performance of anti-collision
7.Strong security and fast reading speed
Application
1.Zone Tracking Management 2.Servers Asset Management 3.Fixed Asset Real-time Tracking
