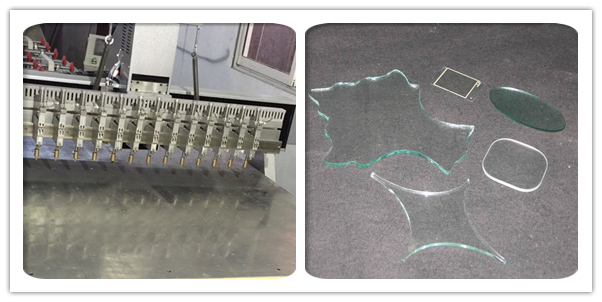

Ornaments, mosaics, handicrafts, liquid crystal displays, optical glass and other Irregular glass

Technical Parameter

Work table: 1200*1500mm

Max. Cutting: 1150*1450mm

Cutting thickness: 0.5-12mm

Cutting parallelism: ≤±0.10mm/500mm

Cutting speed: 0--20m/min (could supply Yaskawa servo system, speed 0-70m/min)

Dimension: 2300*1800*900mm

Power: 1.9kw (fan 1.5kw, X axis motor 0.3kw, Y axis motor 0.3kw, Z axis motor 0.2kw)

Voltage: 380V(fan)/220V(PC)/50H

Equipment configuration:

Stepping motor and drive (could supply Japan Yaskawa servo system)

Taiwan Guideway, ball screw rod, ensure accuracy and stability of equipment

Table with resin material, and the flatness is extremely high , and the self - milling treatment. Air suction device is attached to facilitate the upper and lower sheets, without scratching the glass.

Computer WINDOWS operation interface CAD graphics input, automatic cutting of various shapes of glass, easy to operate.

Function

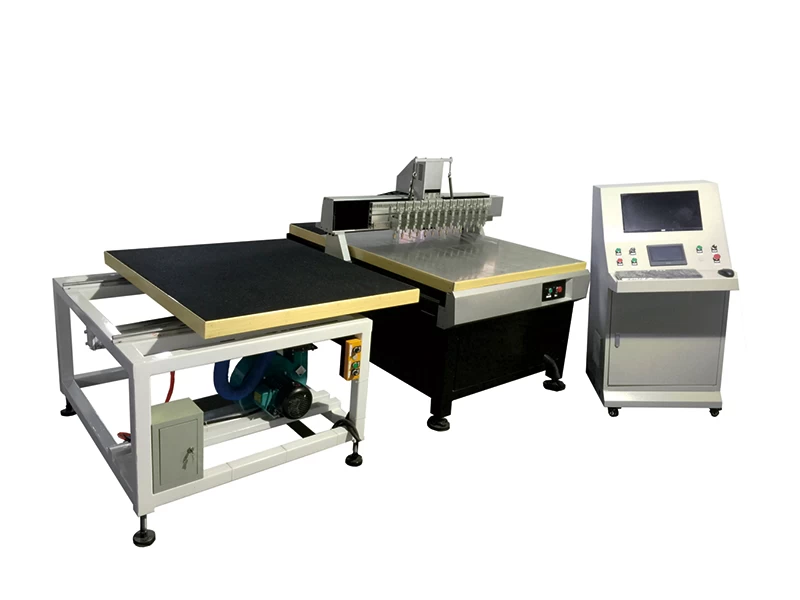

SY-automatic glass cutting machine adopts step motor, driver and NC control system, equipped with imported cutter wheel, can realize all kinds of glass and ultra-thin glass straight, shaped, circular cutting. The machine adopts man-machine interface and can be cut by CAD drawing.

After-sales service and maintenance

In order to ensure the normal operation of the machine, our company will carry out complete and detailed training to the operator of the customer until fully master the operation.

Equipment warranty for one year (non-human factors） no charge for maintenance. Carry out repairs for many years.

Machine Work Video Please visit NC multi cutter glass cutting machine
