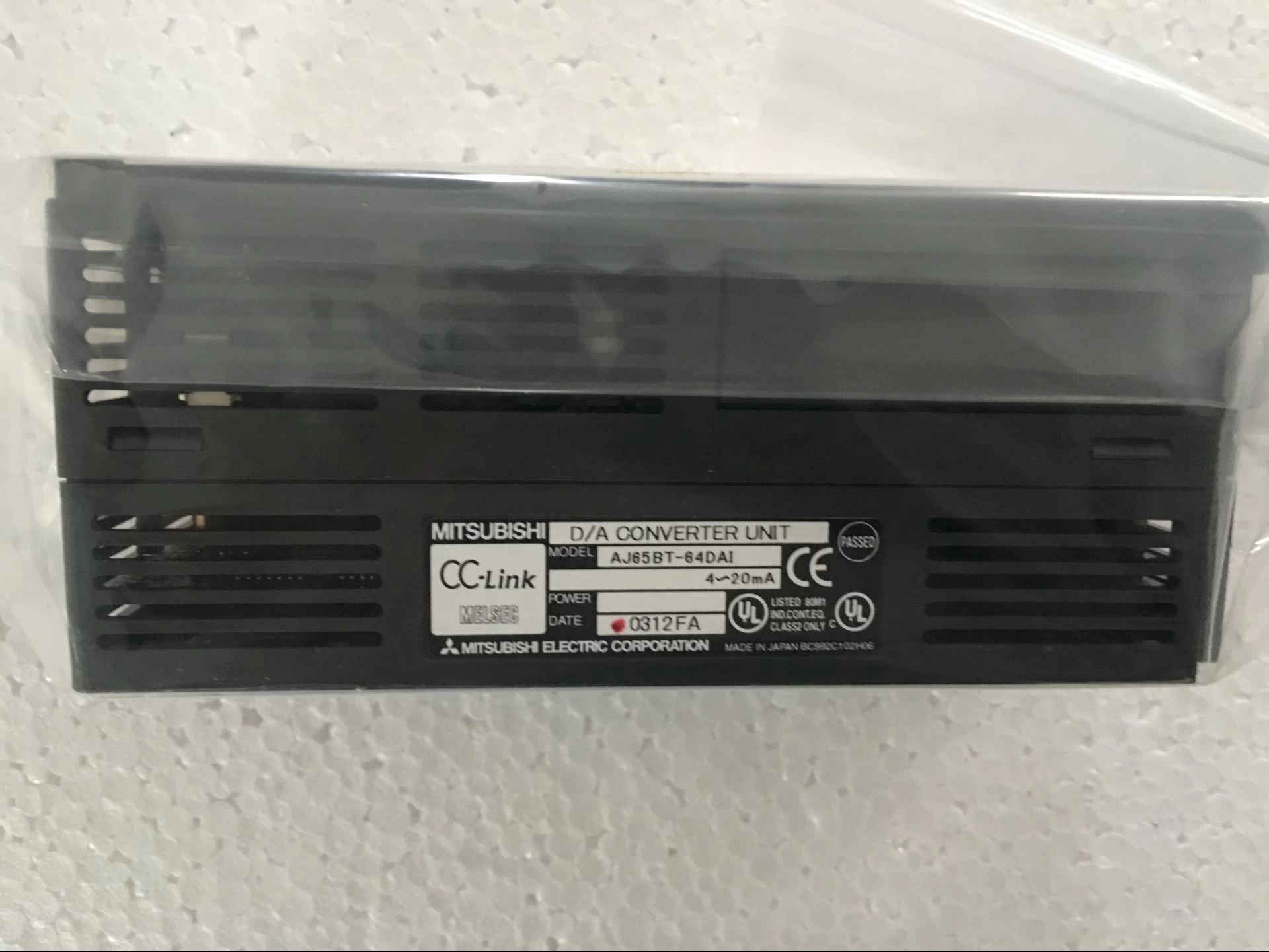

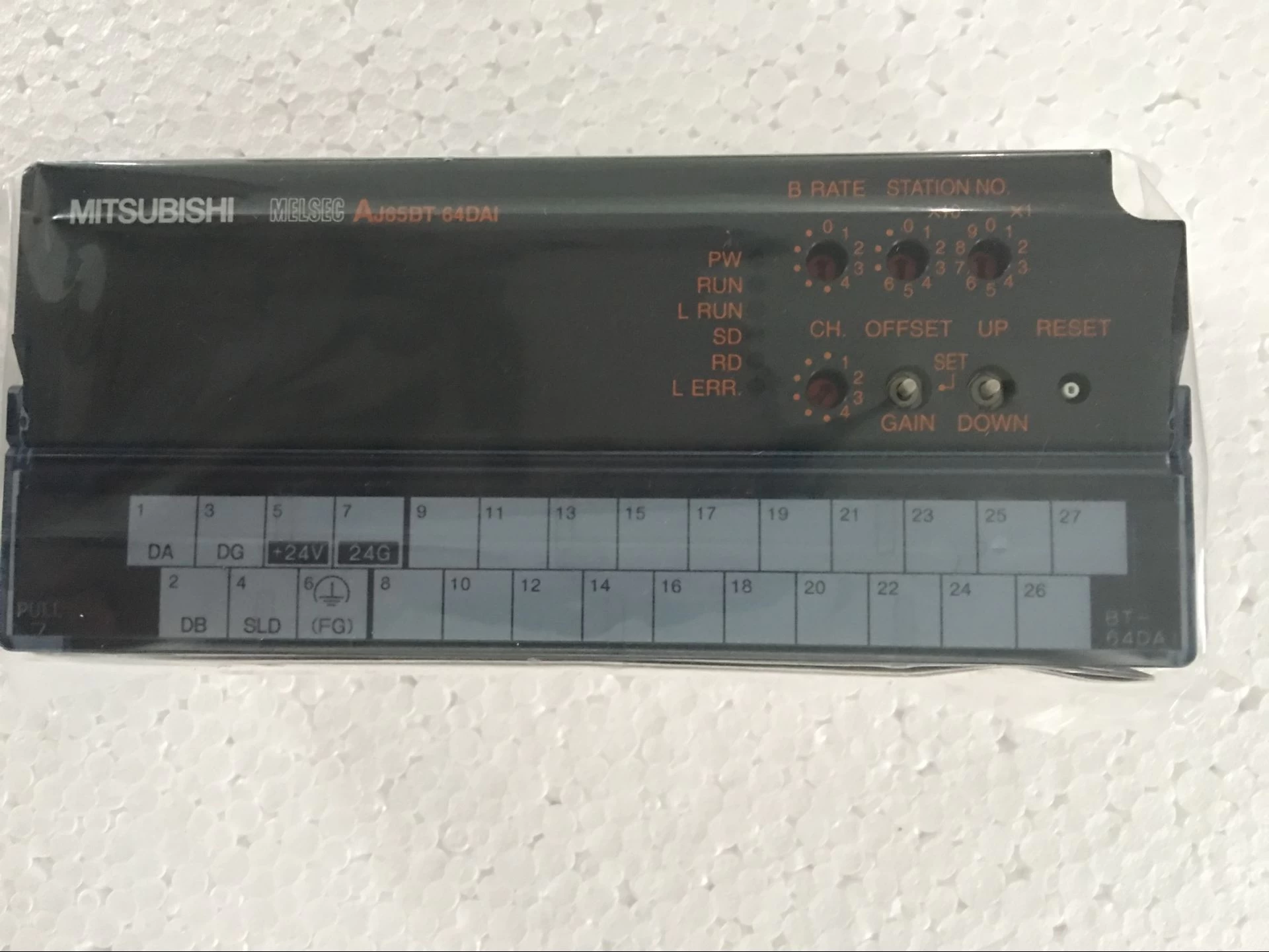

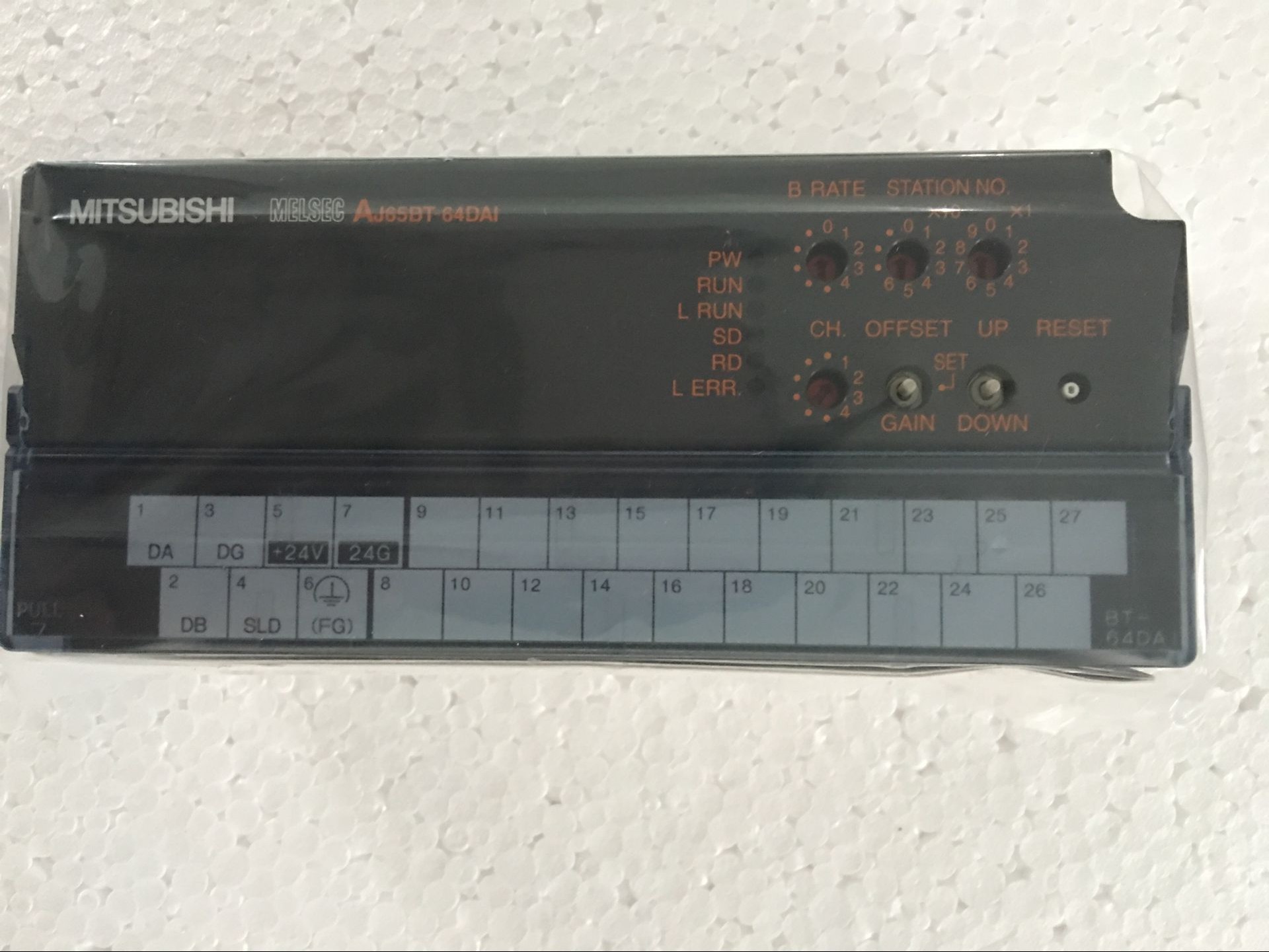

Mitsubishi PLC MELSEC AJ65BT-64DAI Digital Analog Converter Module
Product details
PLCs4
channel current output module, 4-20mA
This remote module is intended to be installed near the control target.
The main advantages are reduced cabling and the capability of acquiring data and operation results of individual machine modules autonomously.
Technical specification
|
|
Digital input current:
|
16-bit signed binary (0 to 4096)
|
|
Analogue output current:
|
4-20mA d.c.
(external load resistance: 0&Omega to 600Ω)
|
|
Output range switching:
|
None
|
|
Offset/gain setting:
|
Provided
|
|
Output short protection:
|
Provided
|
|
Max. conversion speed:
|
1ms/channel
|
|
No. of analogue output points:
|
4 channels/module
|
|
No. of occupied stations:
|
2 stations
(RX/RY: 32 points each, RWr/RWw: 8 words each)
|
|
Connectable terminal block:
|
27-point terminal block (M3.5)
|
|
Applicable wire size:
|
0.75 to 2.00mm2
|
|
Internal current consumption:
|
0.27A (24V d.c.)
|
|
No. of I/O modules:
|
Up to 64
|
|
Network speed:
|
Up to 10Mbps
|
|
Network distance:
|
Up to 1.2km
|
Features:
-
Up to 64 I/O modules with a maximum of 32 inputs or 32 outputs each can be connected
-
Compact design which is tough and highly shock-resistant
-
Status indicator LEDs for the inputs
-
Modules can be positioned in a horizontal arrangement or one of four orientations on a flat surface.
-
DIN rail or screw mounting
