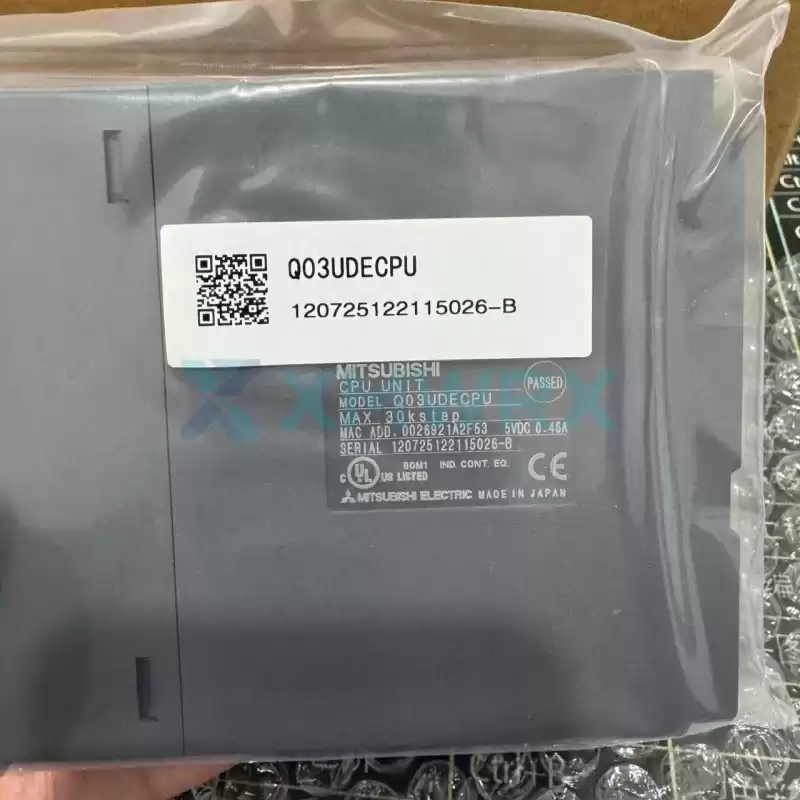

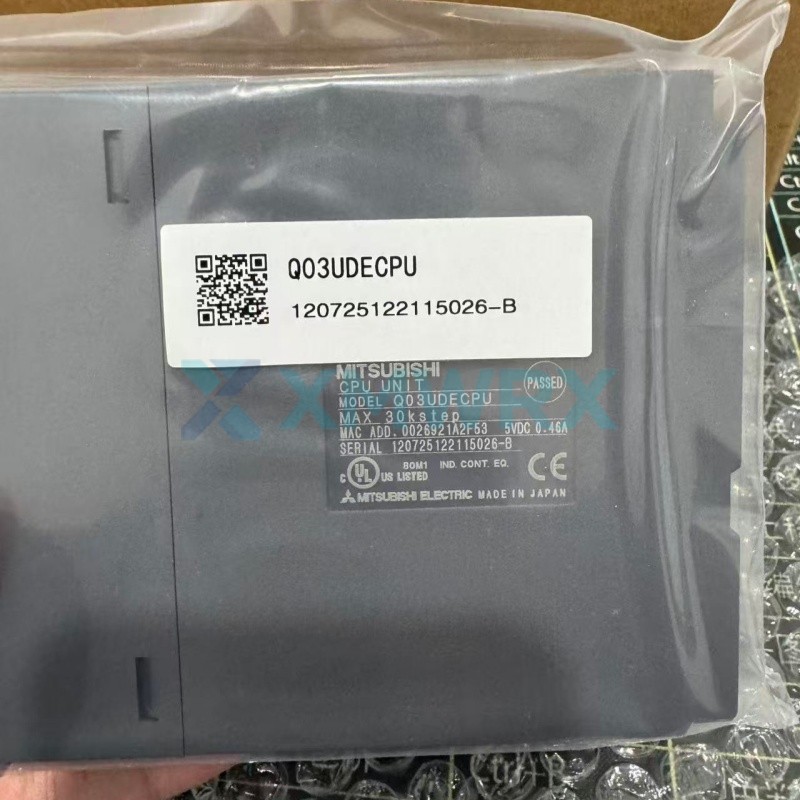

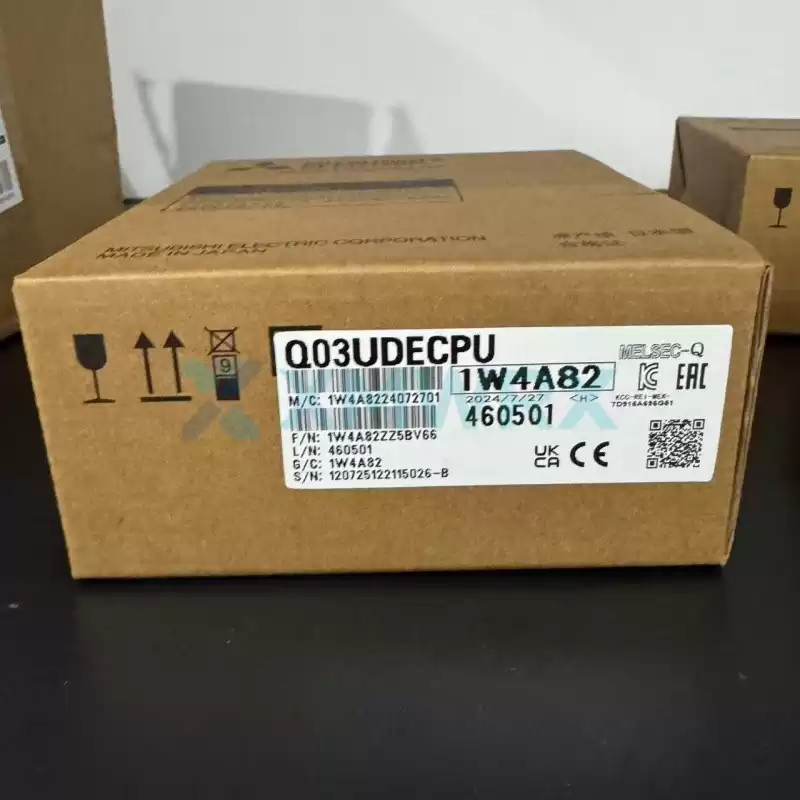

Mitsubishi Q03UDECPU Universal Model CPU Module with Ethernet, MELSEC-Q Series

βœ” IN STOCK βœ” New Original
  • Delivery time: Shipped in 3 days after payment
  • Condition: Brand New & Original Mitsubishi Factory Sealed
  • Warranty: 12 Months Standard Warranty
  • Quality Guarantee: 30-Day Return and Exchange Policy

Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 30K steps, basic operation processing speed (LD X0): 20 ns, program memory capacity: 120K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface

Facebook Twitter Pinterest LinkedIn εˆ†δΊ«

The Q03UDECPU is a high-performance, general-purpose CPU module in the Mitsubishi MELSEC-Q series, featuring a built-in Ethernet interface.

It boasts a 30,000-step program capacity, a high-speed processing capability of 0.02μs/instruction, and supports USB and Ethernet communication.

This CPU is suitable for complex automation scenarios, supports high-speed communication between multiple CPUs, and allows for SD memory card installation for easy data logging and program backup.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support Reliable Warranty

Technical Specifications

Brand Mitsubishi Electric
Series MELSEC-Q Series
Type CPU Module (Universal Model with Ethernet)
Conformance standard UL, cUL, CE (EMC/RoHS), KC (EMC), LR, NK, DNV, ABS, RINA, BV

General Specifications

Operating ambient temperature 0...55 °C
Storage ambient temperature -25...75 °C
Operating ambient humidity 5...95 %RH, non-condensing
Storage ambient humidity 5...95 %RH, non-condensing
Shock resistance Compliant with JIS B 3502 and IEC 61131-2
Operating atmosphere No corrosive gases
Operating altitude 0...2000 m
Installation location Inside a control panel
Overvoltage category II or less
Pollution degree 2 or less
Equipment class Class I

Why Source This Module From Us?

  • Genuine Guarantee: Guaranteed original Mitsubishi Electric product. We say no to counterfeits or refurbished parts, ensuring the absolute stability of your machinery.
  • Ready-to-Ship Inventory: Supported by a robust warehousing system, in-stock items are dispatched immediately upon order confirmation to minimize costly downtime.
  • End-to-End Support: From pre-sales model verification to after-sales CPU configuration guidance, our engineering team ensures a hassle-free procurement process.
  • Competitive Pricing: Leveraging our strong supply chain network, we offer highly competitive pricing and exclusive discounts for bulk orders.

Applications

  • Automotive Manufacturing: Main control unit for assembly lines requiring high-speed processing and multi-CPU data exchange.
  • Semiconductor Equipment: Precision logic control for complex machinery requiring high data-processing volumes.
  • Water Treatment Facilities: Networked control systems leveraging the built-in Ethernet for remote SCADA monitoring.
  • Automated Logistics (AS/RS): High-speed sorting and routing control in modern warehouse management systems.



Engineer's Tip: When setting up the built-in Ethernet port on the Q03UDECPU, remember to allocate a static IP address using GX Works2 parameters. Additionally, to prevent sudden program and parameter loss, always keep a spare Q6BAT backup battery on hand and schedule routine replacements based on the operational manual guidelines.
