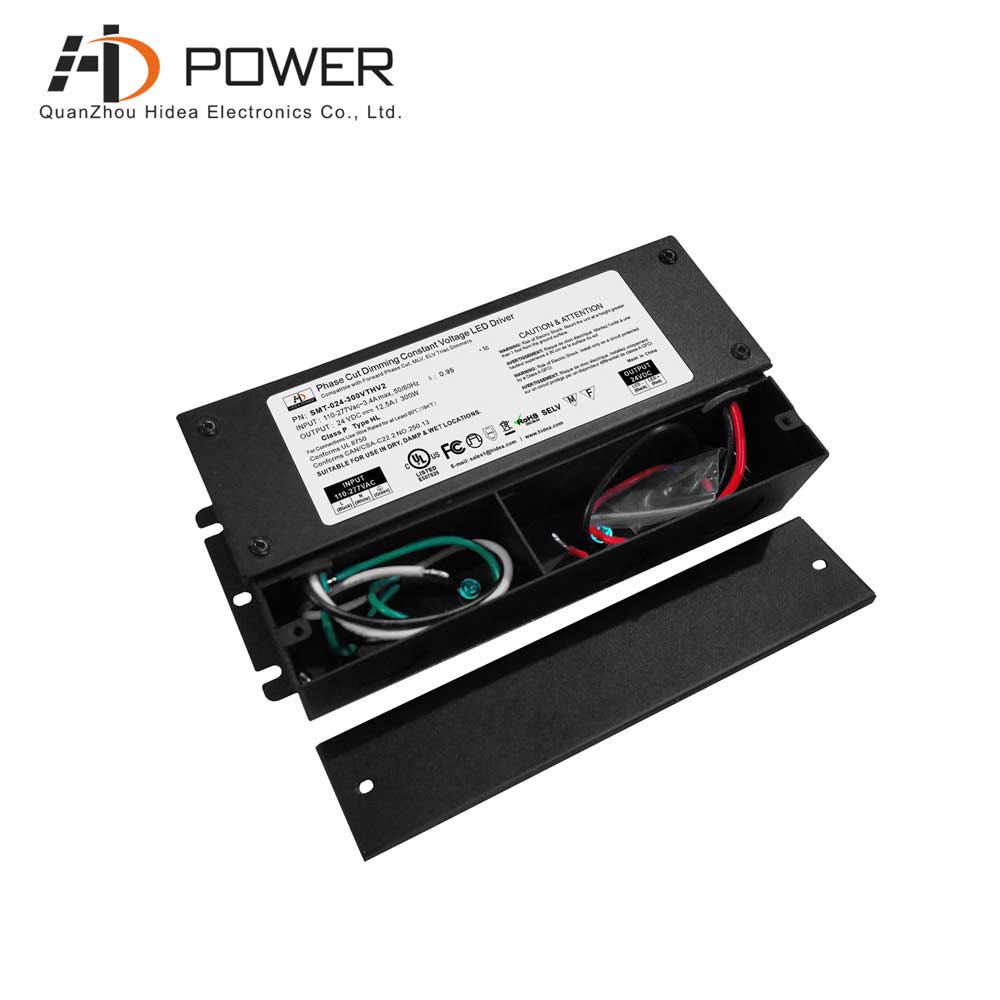

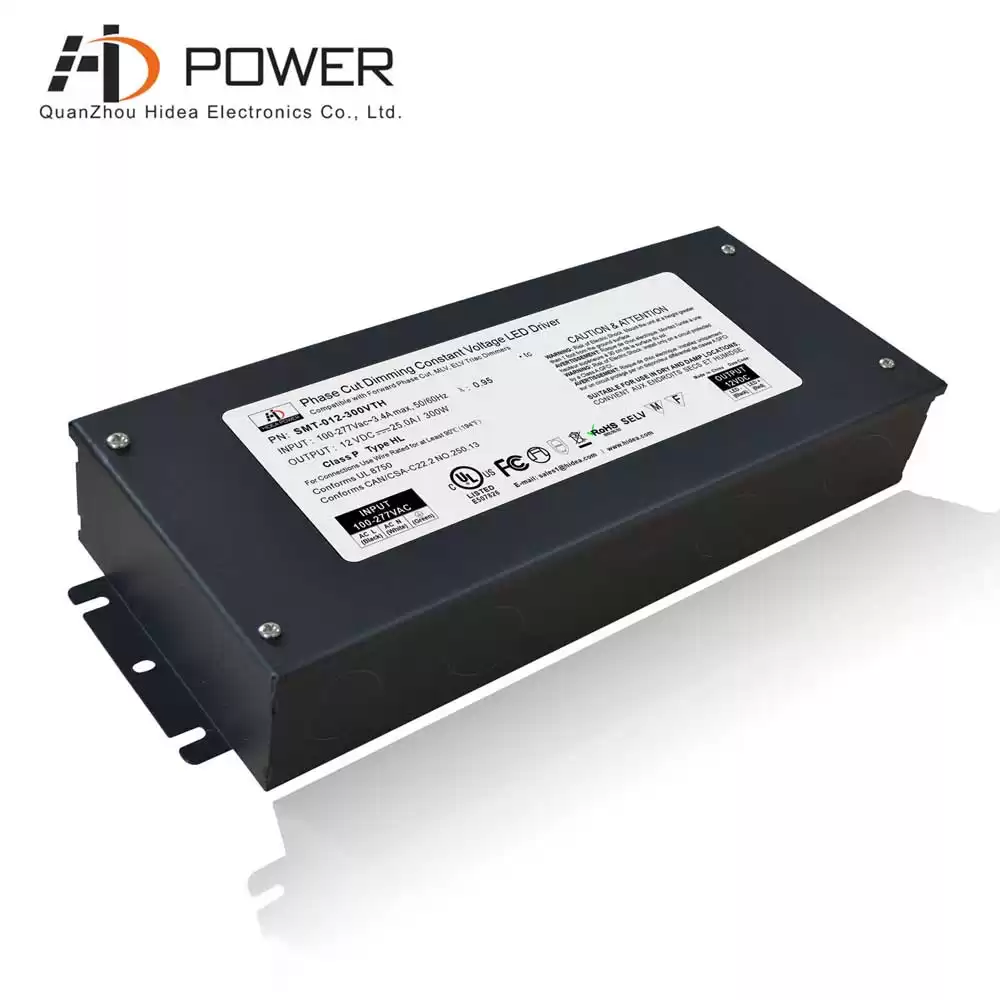

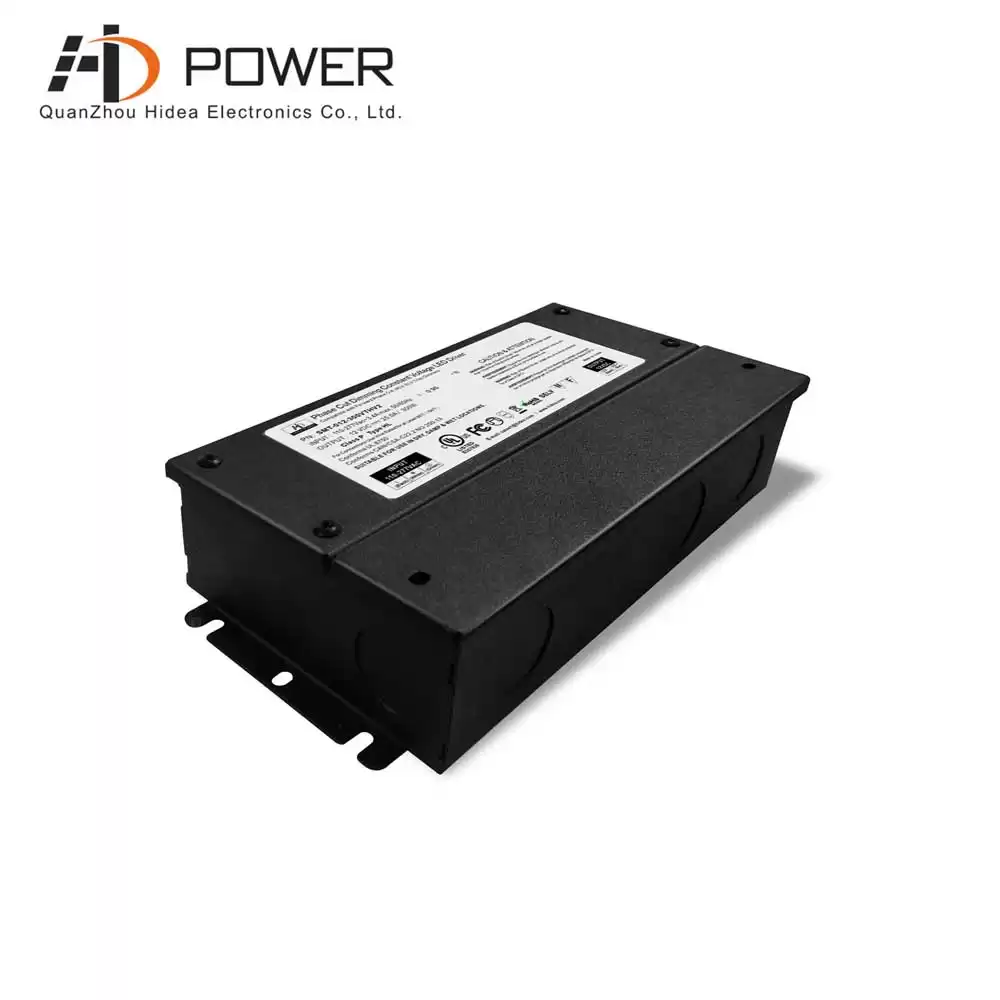

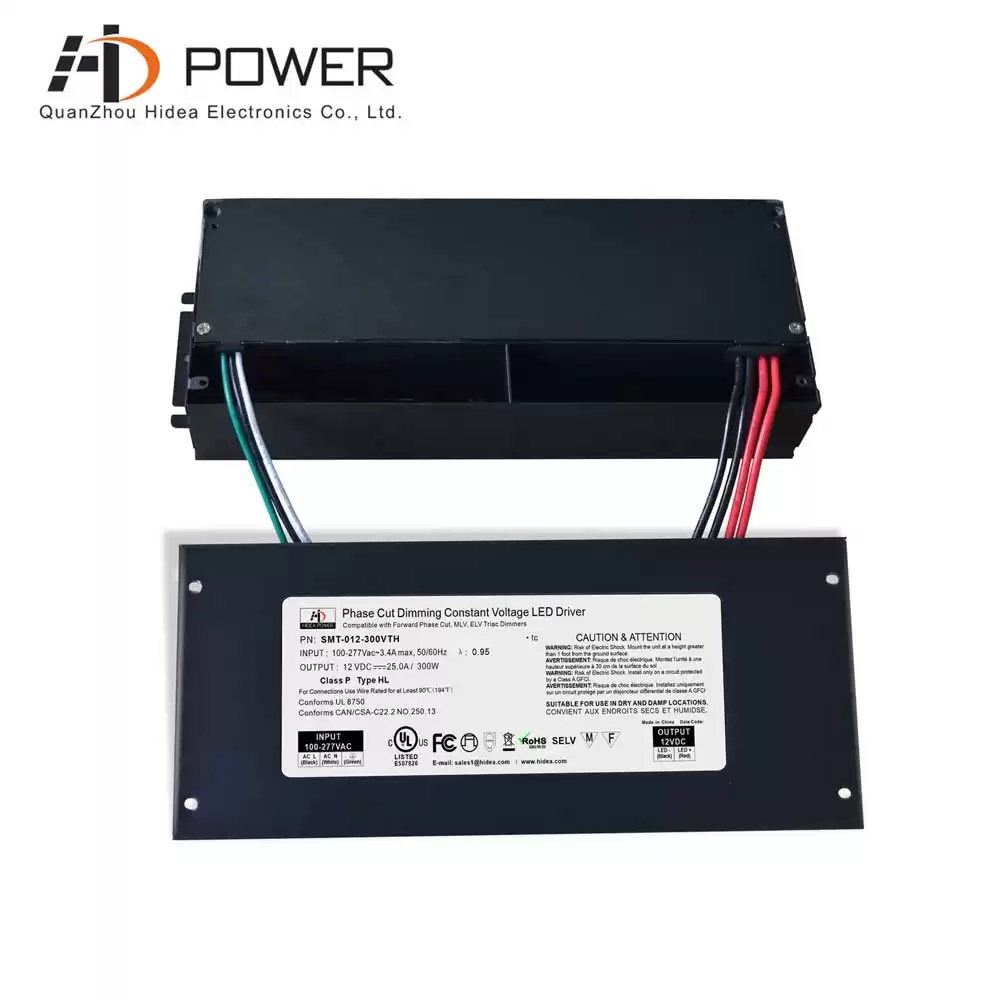

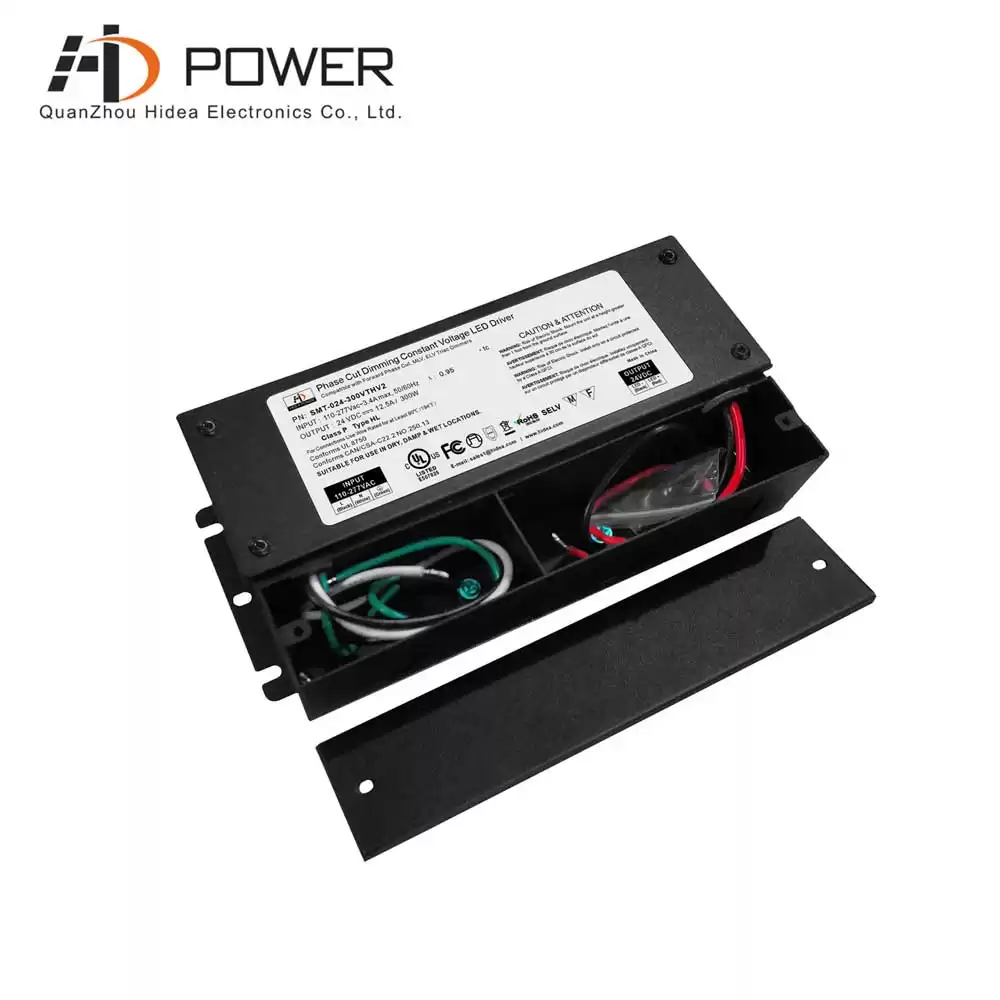

Waterproof IP67 12v 24v 300w triac dimmable led driver takes about 7 years warranty. mlv triac dimmer can protect the E26 E27 LED bulb of RUGGED GRADE Lighting and make it work normally.Through 100% full load burn-in test. It application with indoor & outdoor illuminating lights.
Specification
|
Model
|
SMT-012-300VTH (1.0 ver)
|
SMT-024-300VTH (1.0 ver)
|
|
SMT-012-300VTHV2 (2.0 ver)
|
SMT-024-300VTHV2 (2.0 ver)
|
|
SMT-012-300VTHWV2 (3.0 ver)
|
SMT-024-300VTHWV2 (3.0 ver)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
25A
|
12.5A
|
|
Rated Power
|
300W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC 0.97@277VAC
|
0.99@120VAC 0.97@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
86%
|
88%
|
|
AC Current(Max.)
|
3.4A@110VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.9ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90% RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 1.9Kg
|
|
Size
|
1.0 ver:278*108*46mm ; 2.0 ver: 278*110*45mm; 3.0 ver: 278*130*45mm
|
|
packaging
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

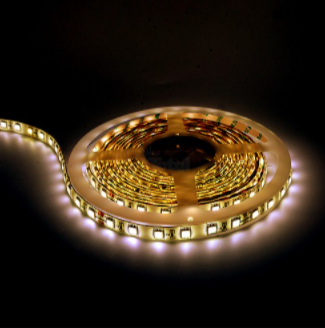

Spotless Strip 12v/24v IP20 LED strip light from NTEGRAL-LED can be matched well with waterproof IP67 12/24v 100w triac dimming led drivers from HIDEA.
