Mode Conditioning Fiber Optic Patch Cords SC LC FC ST Simplex Duplex Singlemode Multimode

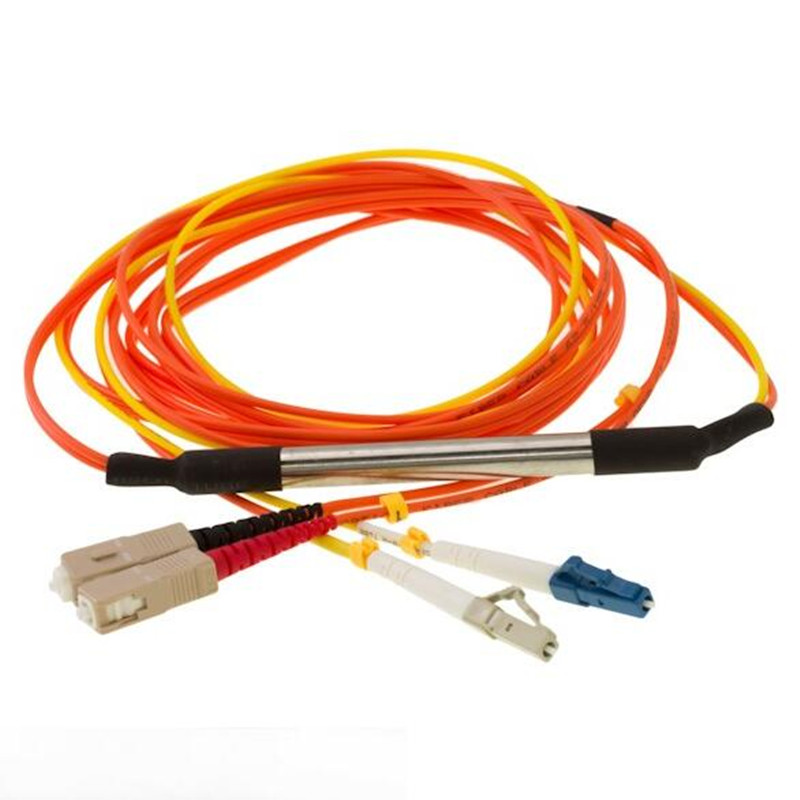

The conditioned channel of mode conditioning
patch cords consists of a single-mode fiber which has been fusion spliced to a
multimode fiber in an offset manner, with a precise core alignment and angle.
The non-conditioned channel of mode conditioning patch cords consists of one
length of multimode cable. Light is launched on to the multimode fiber of the
conditioned channel at a specific angle, giving the patch cord its mode
conditioning properties. The fusion splice is protected by a black over-wrap.

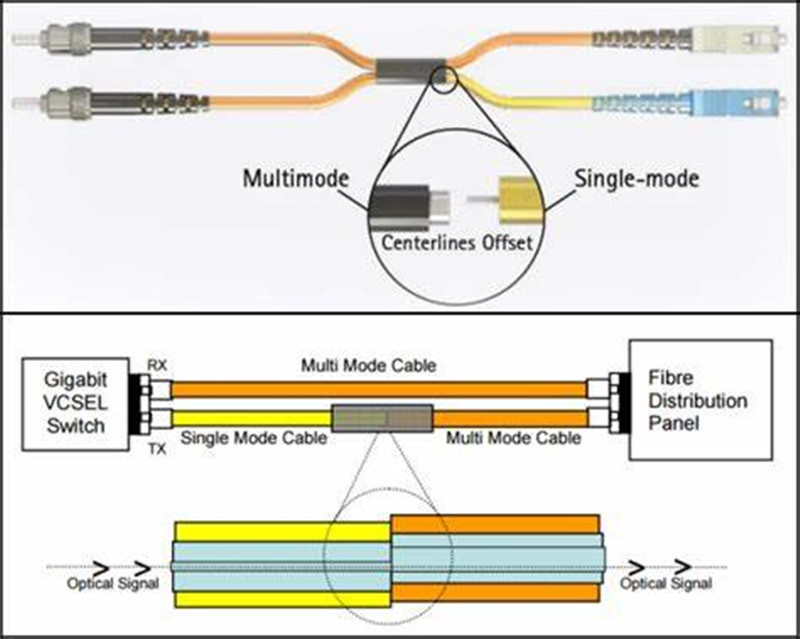

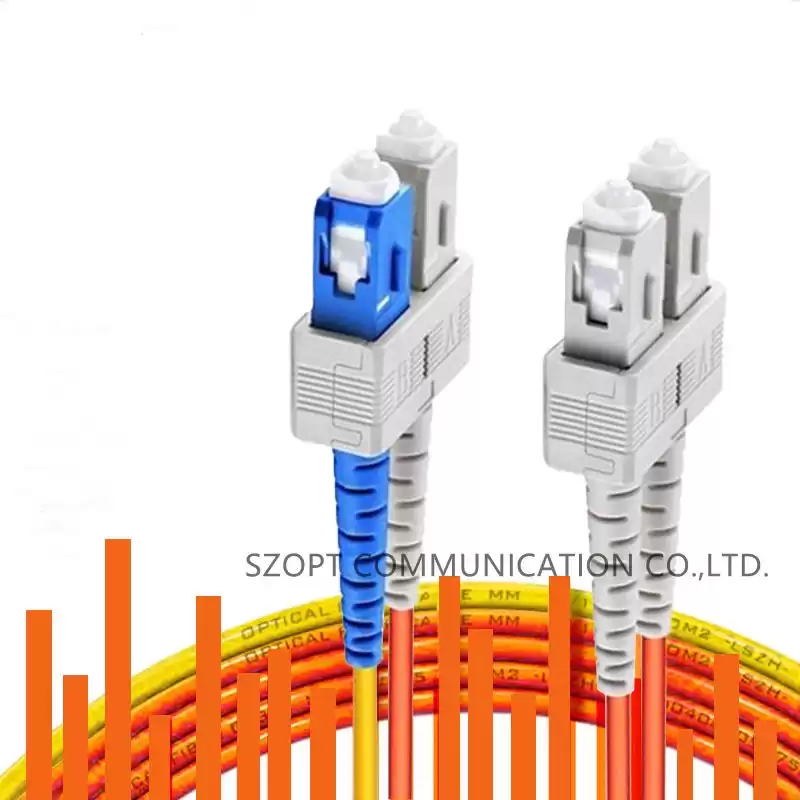

The other side has both a multimode and single-mode cable end. This side of the
cable connects to the Gigabit transceiver equipment with the single-mode leg
connecting to the transmit side. The side has two multimode cable ends
connecting to the cable plant.
Application:
Telecommunication System
Testing Equipment
CATV System
LAN System
Feature:
Low Insertion Loss
High Return Loss
High Reliability and Stability
0.9mm,2.0mm,3.0mm or custom diameter cable available
Package:
Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.
Specification:
|
Connector Type
|
Performance Data
|
|
Connector
|
Polishing Mode
|
IL(dB)
|
RL(dB)
|
|
SC/LC/FC/ST/MU/E2000
|
SM
|
UPC
|
≤0.3
|
≥50
|
|
APC
|
≤0.3
|
≥60
|
|
MM
|
PC
|
≤0.3
|
≥35
|
|
MTRJ
|
SM
|
PC
|
≤0.5
|
≥50
|
|
MM
|
PC
|
≤0.5
|
≥35
|
