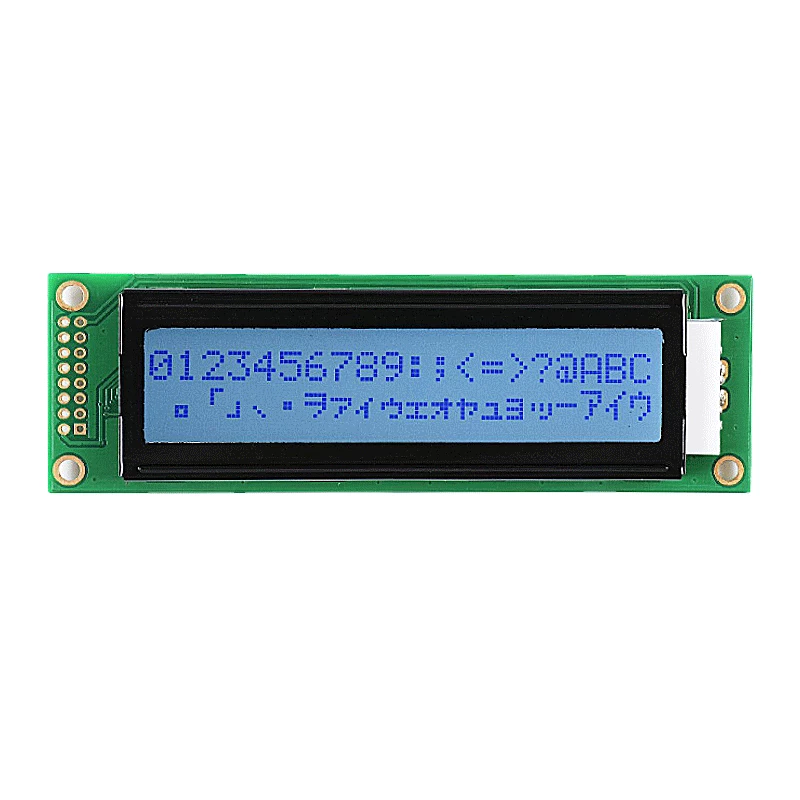

Mono 20*2 Character LCD screen with STN Negative BLUE

SC2002002-V01 is a Character LCD Display with 20*2 resolution, it built in with AIP31066 IC, 16 PIN, 6 o'clock View direction.

  • Driver ICAIP31066
  • Interface8bit MPU interface
  • Viewing Area (mm)149*23
  • Outline Dimension (mm)180*40*13.8
  • Resolution20*2
  • BacklightWhite
  • PIN16
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


LCD Type:                     STN Negative BLUE TRANSFLECTIVE

Resolution:                   20*2

Outline Dimension:       180*40*13.8

View area:                     149*23

View Direction:              6 o'clock

PIN:                                16

Backlight:                      White LED



General Specification


Item Standard Value Unit
 Display Type 20 Characters x 2 Lines Mm
 LCD Type STN,NEGATIVE(BLUE),TRANSMISSIVE Mm
 Driver Condition LCD Module : 1/16 Duty , 1/5 Bias Mm
 Viewing Direction 6 O'Clock Mm
 Backlight Type SIDE WHITE Mm
 Interface 8-bit MPU interface -
 Driver IC AIP31066 -
 Outline Dimension 180(L) x40 (W) x Max 13.8(T) mm
 Viewing Area 149(L) x 23( W) mm
 Dot size 1.1(W) ´ 1.1(H) mm
 Dot pitch 1.25(W) ´ 1.25 (H) mm
 Character size 6.1(W) ´ 9.85(H) mm



Interface Definition


No. Symbol Function
1 LED_K LED Power Supply - (0V)
2 LED_A LED Power Supply + (5.0V)
3 VSS Ground (0V)
4 VDD Supply Voltage for Logic (+5.0V )
5 VO Contrast Adjustment
6 RS Data/Instruction Select
7 R/W Read/Write Select
8 E Enable Signal
9--16 DB0-DB7 Data Bus
