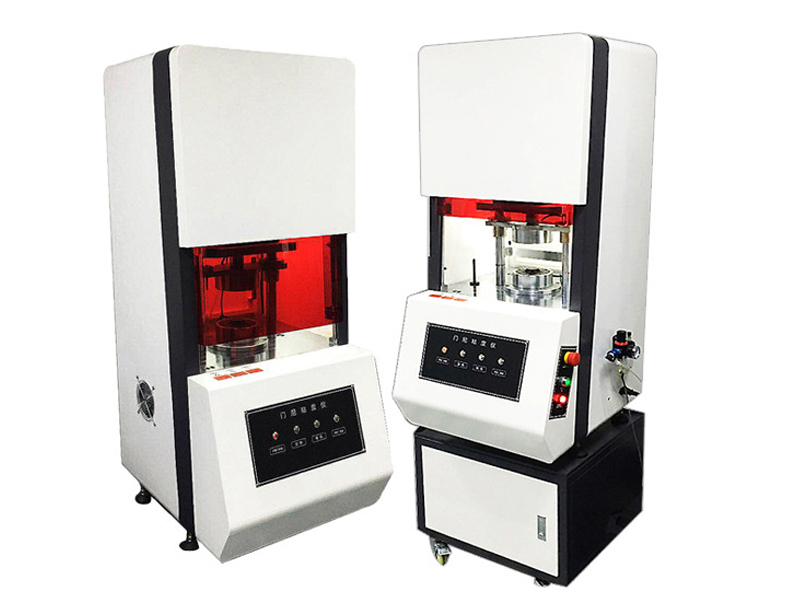

Mooney Viscosity Tester

Mooney Viscosity Tester is used to measure the Mooney viscosity of uncompounded rubbers and compounded rubbers.

Test Standards

ISO 289:2005, ASTM D 1646, DIN 53523,
BS 903: Part 58, AFNOR T43-00/005,
BS 1673, GOST 10722-76, JIS K6300 etc.

Parameters

Model AR-R7001
Item Mooney viscometer
Mooney viscometer RT~200℃
Temperature system PID microprocessor monitored
Temperature display resolution 0.01℃
Temperature control accuracy ±0.3℃
Calibration accuracy Mooney value ±0.5
Rotor speed 2 ± 0.02rotation/ min
Die rotor Large 38.10±0.03mm, small 30.48±0.03mm in diameter
Closing force 11.5KN
Torque range Mooney value 0-200
Torque resolution Mooney value 0.1
Communication interface Ethernet, RS 232
Test Report Date, time, temperature, Mooney scorch curve, Stress Relaxation and
MV,T5,T35,T3,T18,@15,@30, Initial viscosity, ML/MS 1+X, X+Y+Z,
Power supply 50Hz，AC 220V±10％ 1 phase
Air source Min. 0.6Mpa

If you are looking for more lab testing equipment, please feel free to contact .
