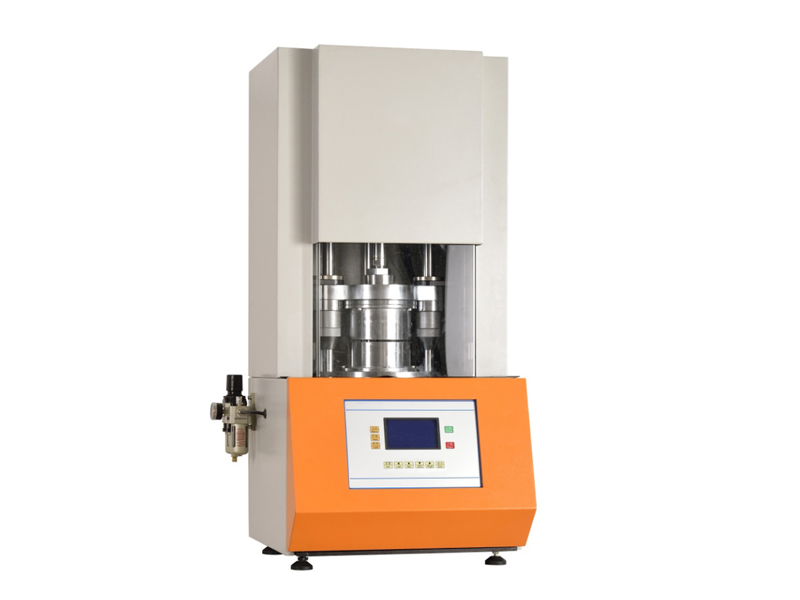

Rotorless Rheometer

Rubber rheometer is intended to measure the viscoelastic properties and stress relaxation of uncompounded or compounded rubbers under defined conditions.

Test Standards

 ISO6502, ASTM D5289 DIN 53529 etc.

Parameters

Model AT-R7002
Temperature range RT~200℃
Minimum temperature display 0.1℃
Temperature fluctuation range ±0.15℃
Heating rate About 15℃/min
Temperature display resolution 0.01℃
Temperature recovery time after clamping ＜1.5min
Temperature unit  ℃, ℉,
Die cavity Biconical, closed system, Sealed
Torque range 0~20N.m
Torque minimum reading 0.001N.m
Oscillation angle ±0.5°(Standard), ±1°, ±3°
Oscillation speed 100r/min (1.67Hz)
Torque accuracy 0.3%
Torque unit Ibf.in, N.m, dN.m, kgf.cm
Data acquisition rate 200Hz
Calculated data TS1, TS2, T10, T30, T50, T70, T90, VC1, VC2
Software connection USB
Test report printed contents Date, time, temperature, vulcanization curve, temperature curve, ML,MH, TS1, TS2, T10, T50, T90, VC1, VC2
Power supply 220V+/-10% or specified
Air source Min. 0.6Mpa
