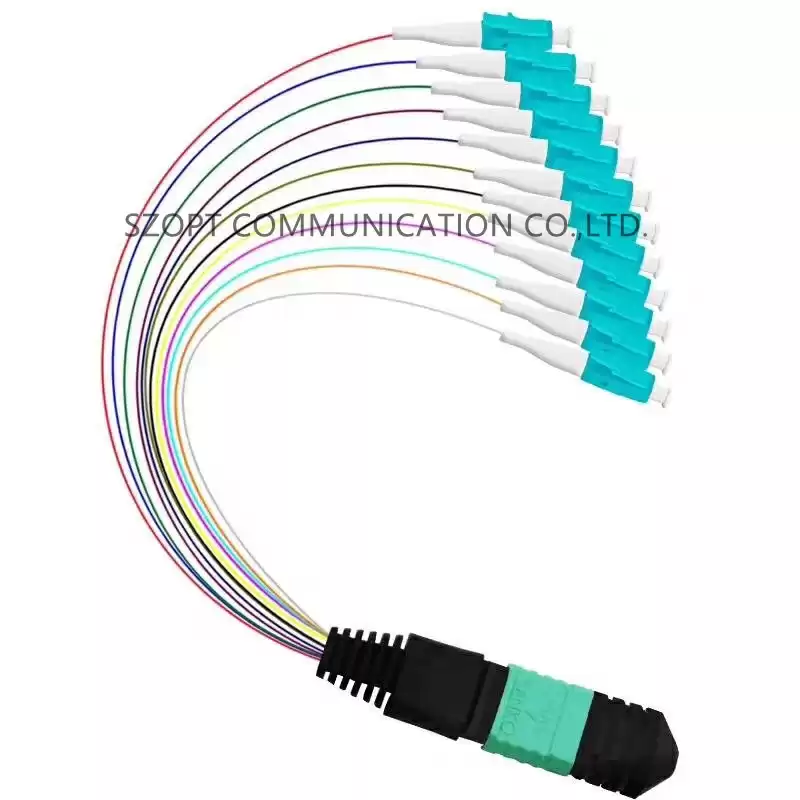

MPO/MTP-LC SM OM3 OM4 OM5 Harness Patch Cable 0.9mm

MPO/MTP harness cable 0.9mm, also known as MPO/MTP breakout cable or MPO/MTP fan-out cable, is a kind of patch cords terminated with MPO/MTP connectors on one end and MTP/MPO/LC/FC/SC/S,etc. connectors(generally MTP to LC) on the other end used for inside the MPO/MTP cassette.Female and Male MPO/MTP Connector is available.SZOPT can offer Single mode and Multimode MTP fiber optical patch cables in colors or custom,please reach us for details.



MPO/MTP-LC SM OM3 OM4 OM5 Harness Patch Cable 0.9mm

From raw materials such as cables,housings,zirconia ferrules,etc.we take a strict quality control system,throughout production process,inspection and packing,etc. to ensure all the finished products are 100% qualified before exporting . We never let any defect out of factory.

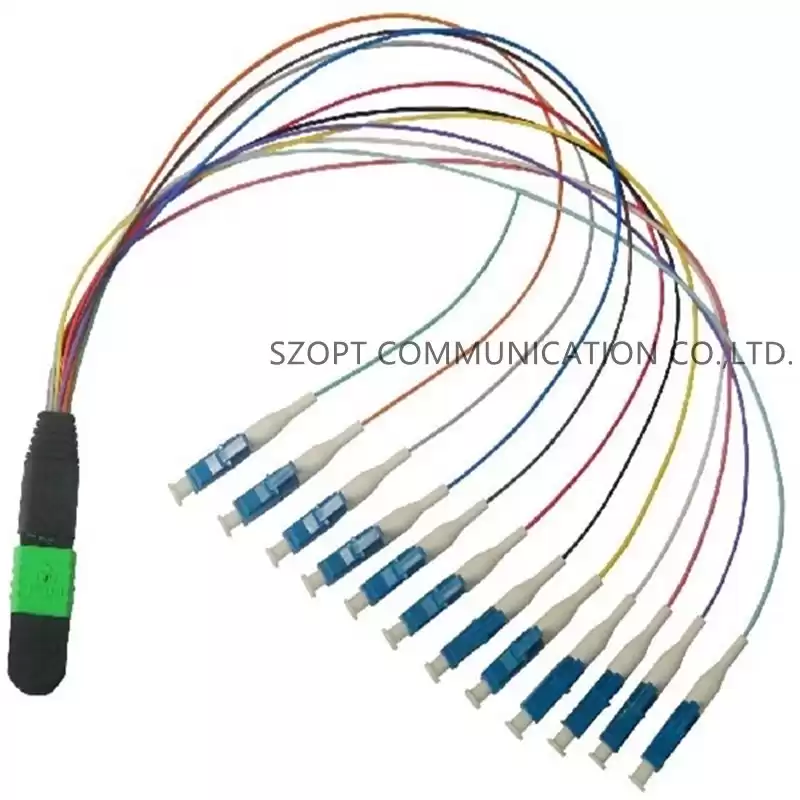

MPO/MTP-LC SM Patch Cord

Different MPO MTP Connectors

MPO MTP Polarities

MPO MTP cable assemblies


Test of patch cables

MPO MTP Workshop

MPO appliance

Goods ready to ship


Application:

Telecommunication System

Testing Equipment

CATV System

LAN System


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom


Package:

Each piece in a small PE bag,then 10pcs or 20pcs in a big bag,finally put into carton box.


Specification

Connector

Fiber Mode

Endface

Standard

Elite(Premium)

IL(max) (dB)

RL(min) (dB)

IL(max) (dB)

RL(min) (dB)

MPO/MTP

Singlemode

APC

≤0.75

≥60

≤0.35

≥60

Multimode

PC

≤0.60

≥20

≤0.35

≥20
