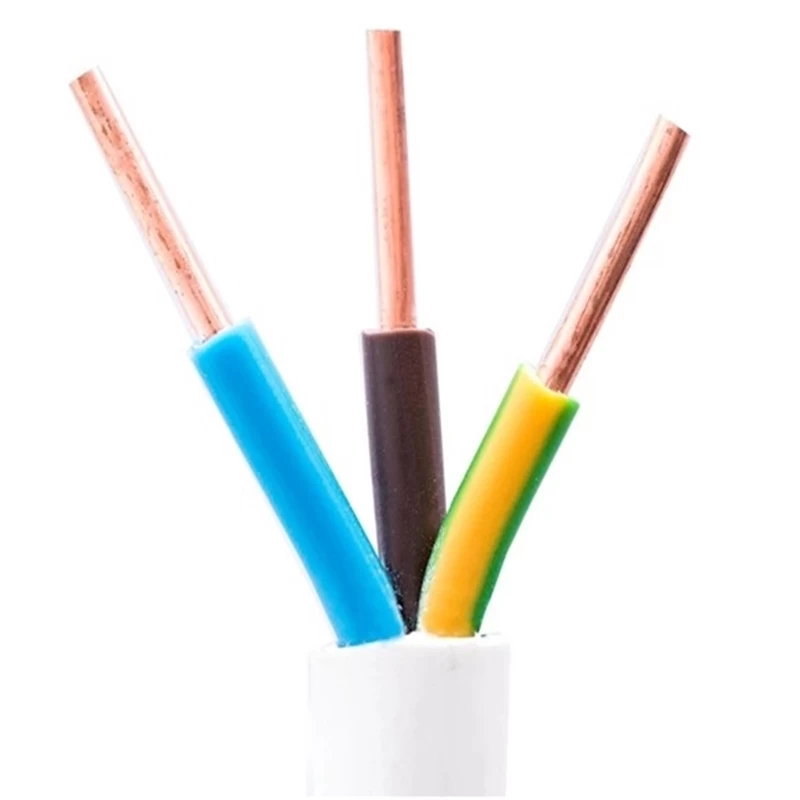

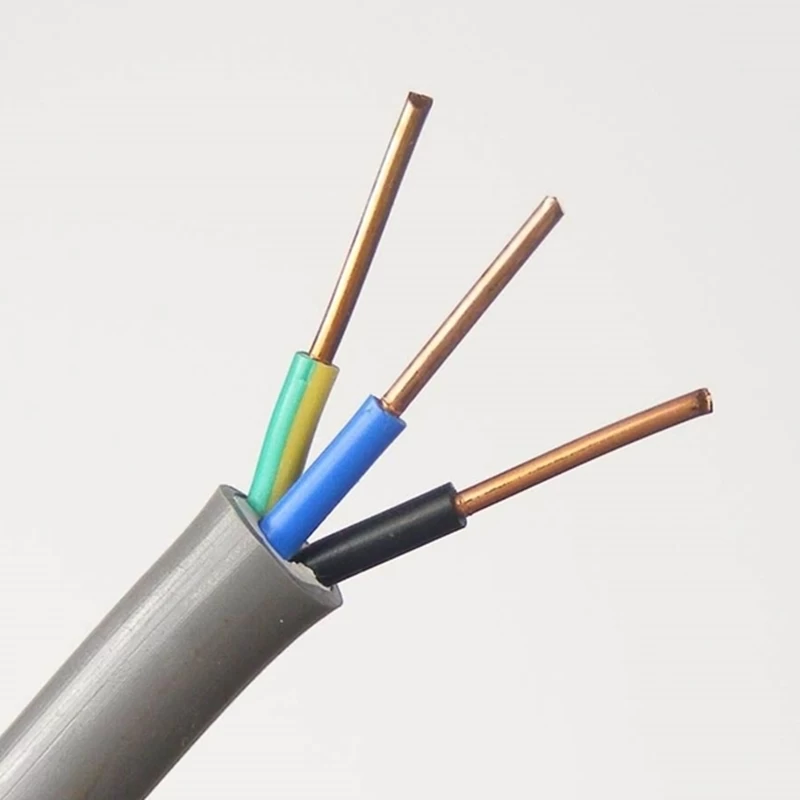

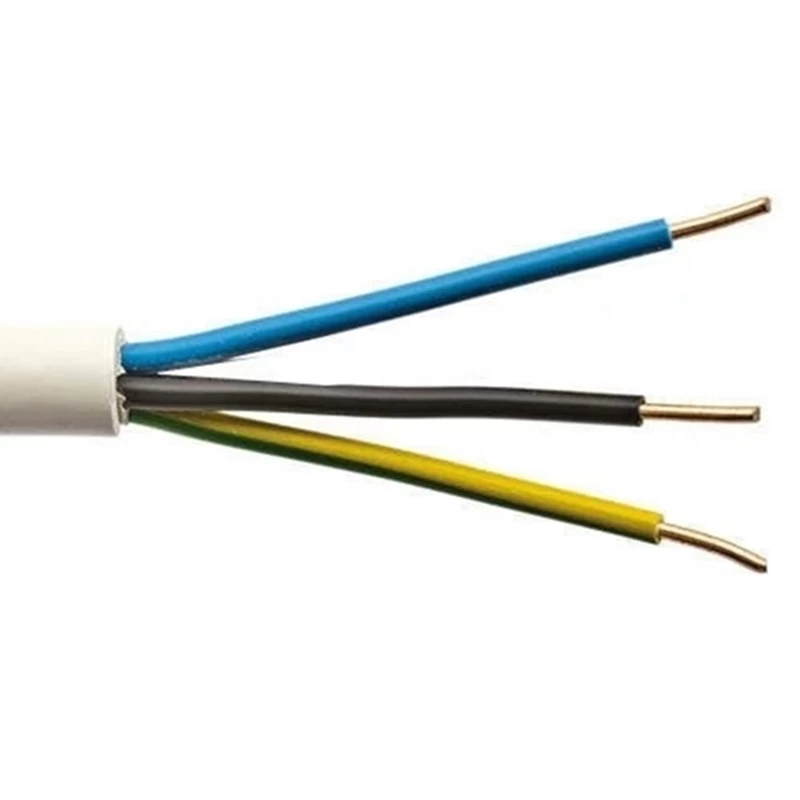

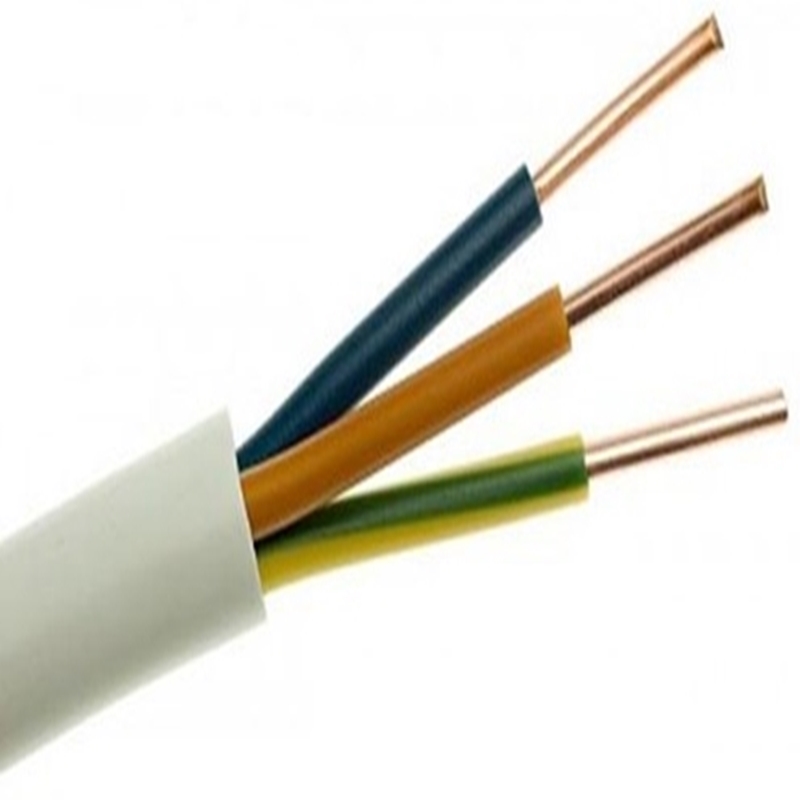

Multi-cores PVC
Insulation and Sheath BVV NYM Electrical Cables
MAIN KEYWORDS
BVV, BVVR, NVV, NYM, NYM-J, NYM-O, H05VV-U, H05VV-R, H07VV-U, H07VV-R, SDI
Insulated Cable, CU/PVC/PVC, 60227IEC 10 BVV.
APPLICATION AND CHARACTERISTICS
BVV multi-core cable is used to connect household appliances, indoor
circuits, lighting, switch, sockets and small electric tools, etc. For the
appearance, the multi-cores BVV cable is similar to VV power cable. But the thickness
of insulation and sheath, the multi-cores BVV cable is thinner than VV power
cable; for the voltage rate, the multi-cores BVV cable is lower than the VV
power cable; about the production procession, the multi-core BVV cable is
simple than VV power cable.

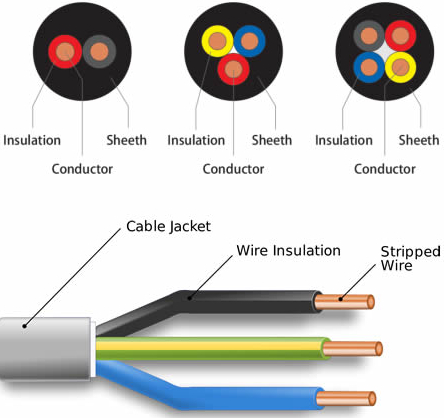

PRODUCTS STRUCTURE
---Conductor Material
Plain annealed copper wire, class 1 solid, or class 2 strand.
---Insulation Material (inner insulation)
PVC (polyvinyl chloride).
---Insulation Colour
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
Remark: we will choose other colors according to the customer request.
---Sheath Material (out insulation)
PVC (polyvinyl chloride)
---Sheath Colour
Black, white, orange, or others.
---Core Number
2 cores, 2C; 3 cores, 3C; 4 cores, 4C; 5 cores, 5C.
---Voltage Rate (U0/U)
300/500V.
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
Fixed:
6 x Out Diameter.
---Production Standard
JB/T 8734, GB/T 5023, IEC 60227, BS 6500, TIS 11 part 4-2553.
---Products Delivery
Within 5-7 working days as soon as we received the deposit.
REMARK
---The above specification is only for you reference, the formal technical data, please refer and check the actual cables.
---The above cable maybe has the inner
sheath, and the material of inner sheath is PVC.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, and their working temperature can be 90
or 105 degree, but the production process, materials and production standard
maybe has a few of different.
---For the BVV multi-core BVV cable, according
to the practice, the common specification is 1.5～6 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-Create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable: Good
Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
FREQUENTLY ASKED QUESTIONS
1. Are you the manufacturer or
trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is
the professional in wire and cables manufacturer. We can control your
order from the first begining to the last. Welcome to visit Hante Cable,
we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your
quality?
Hante Cable can provide the free sample to you, but you will pay the express
charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200
meters; of cources, the MOQ can be negotiated. But in order to save the
shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires
should be more than 3000 meters, and the MOQ of power cable should be more than
500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls
kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote
your company.
