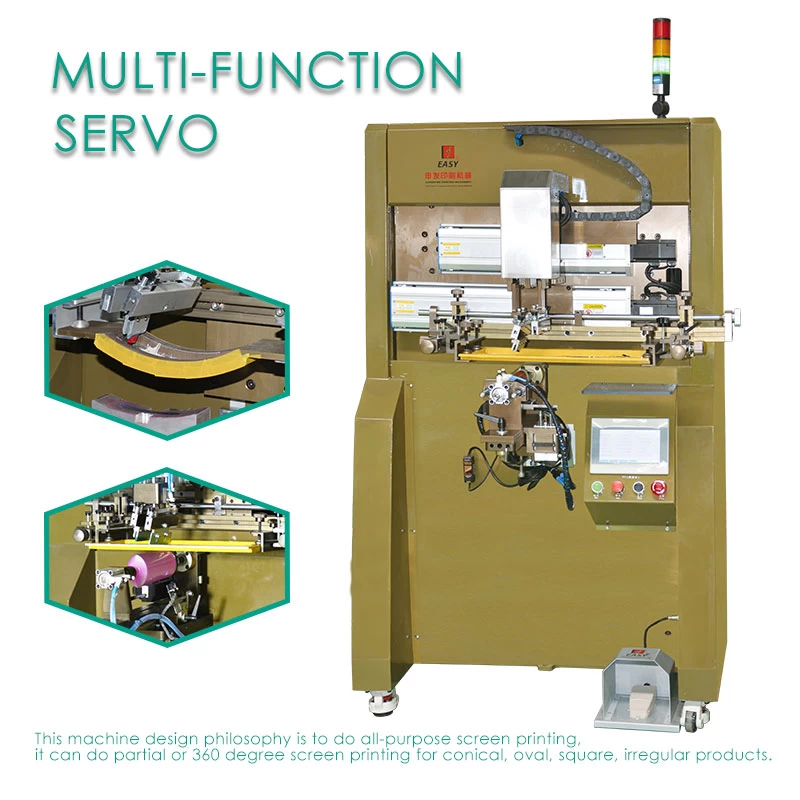

Multi-Function Servo Screen Printing Machine

This machine design philosophy is to do all-purpose screen printing,

it can do partial or 360 degree screen printing for conical, oval, square, irregular products.





Technical Data

Model:SF-SS100

Product size:(8-100)x(8-100)x(10-230)mm

Max. speed:25pcs/min

Air pressure:5-7bar

Power:AC220V 50/60Hz 2Kw

Dimensions:1000x1100x1450mm

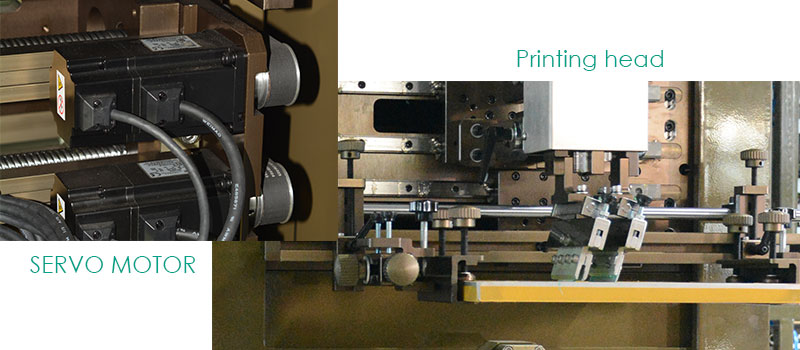

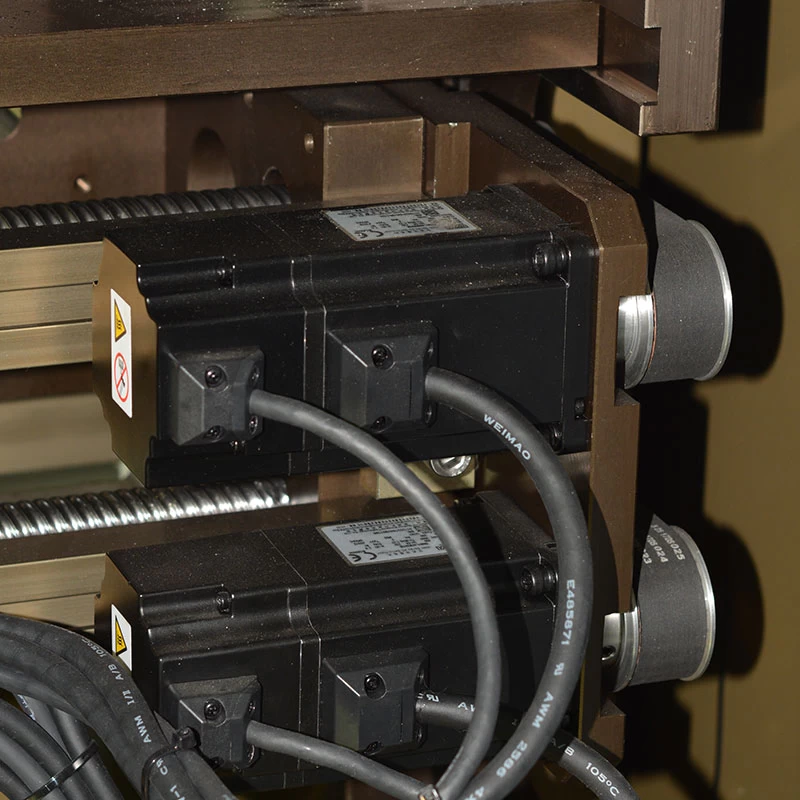

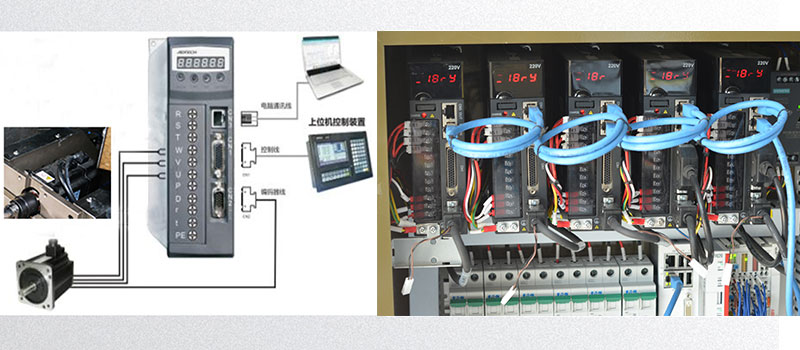

Servo-control system


Servo-control system

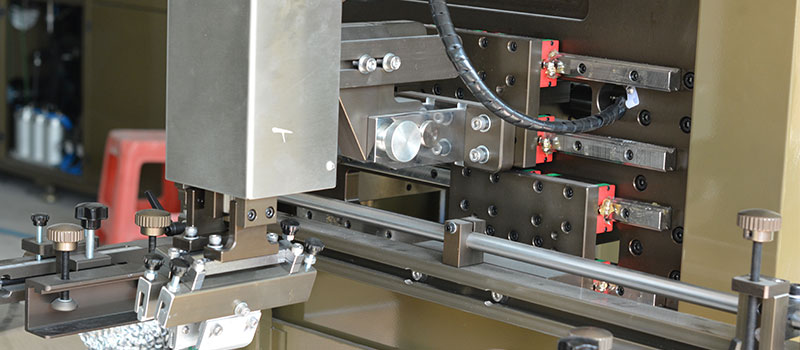

Screen frame Left Right servo control




Ink squeegee UP DOWN servo control

Ink squeegee UP DOWN servo control

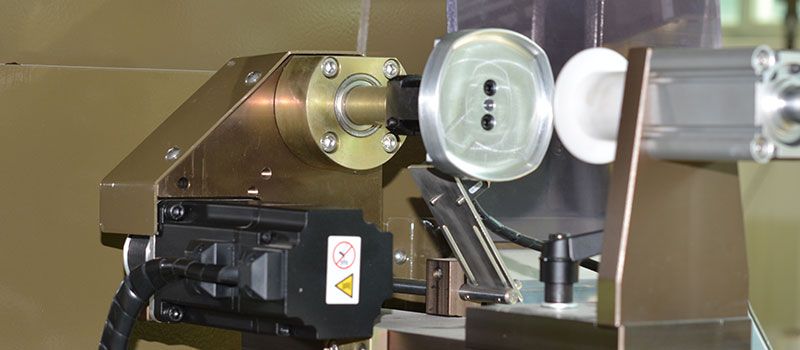

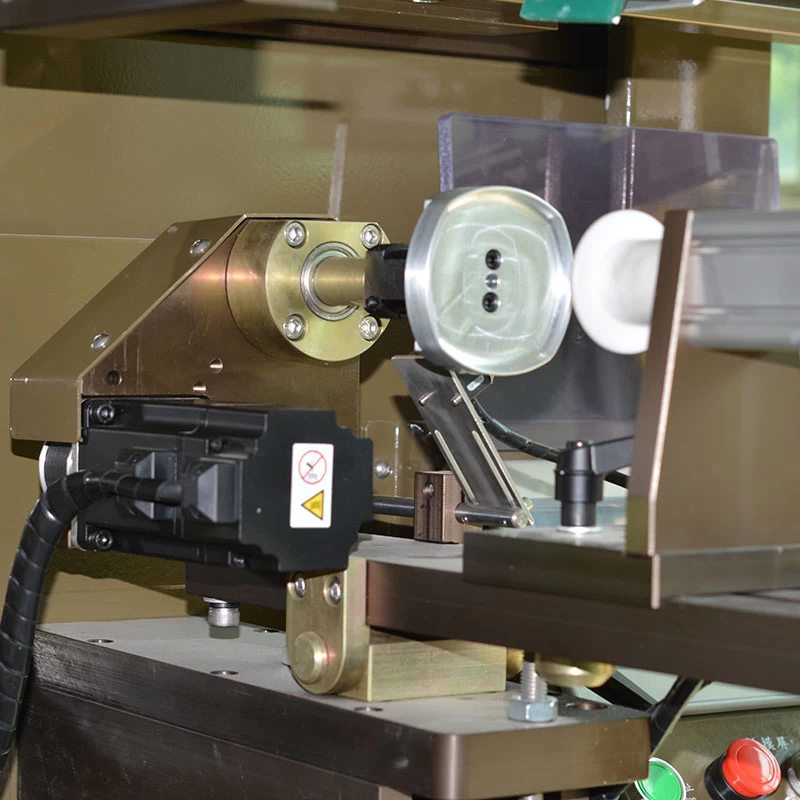

Tooling registration servo control


Tooling registration servo control

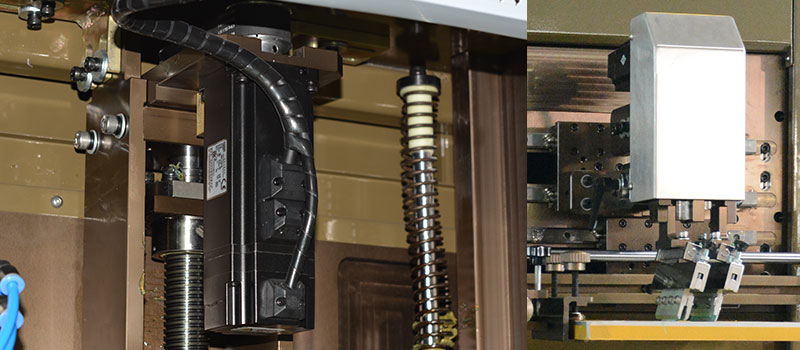

Printing head UP DOWN servo control


Printing head UP DOWN servo control

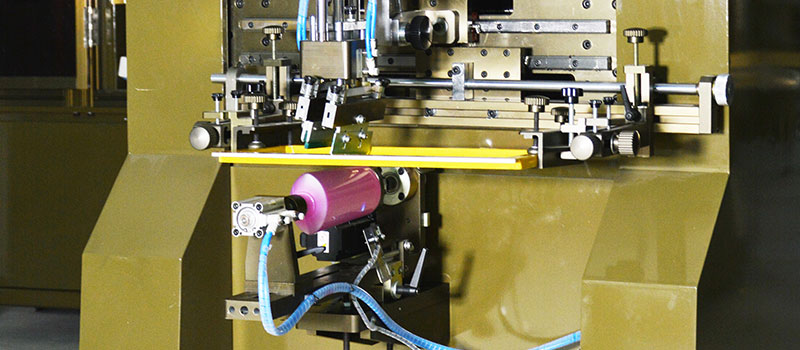

Screen printing type     flat frame


Screen printing type flat frame

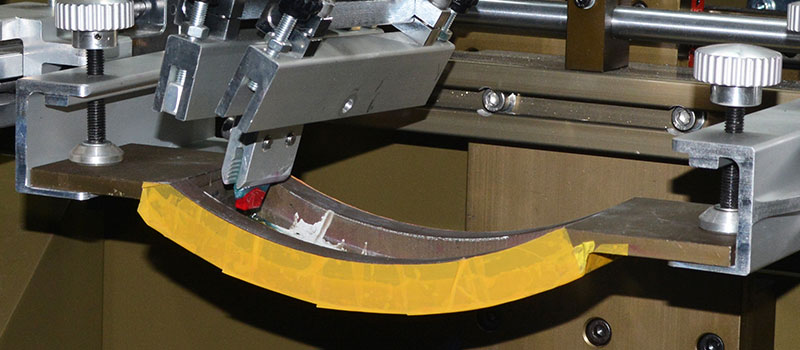

Screen printing type     arc frame


Screen printing type arc frame

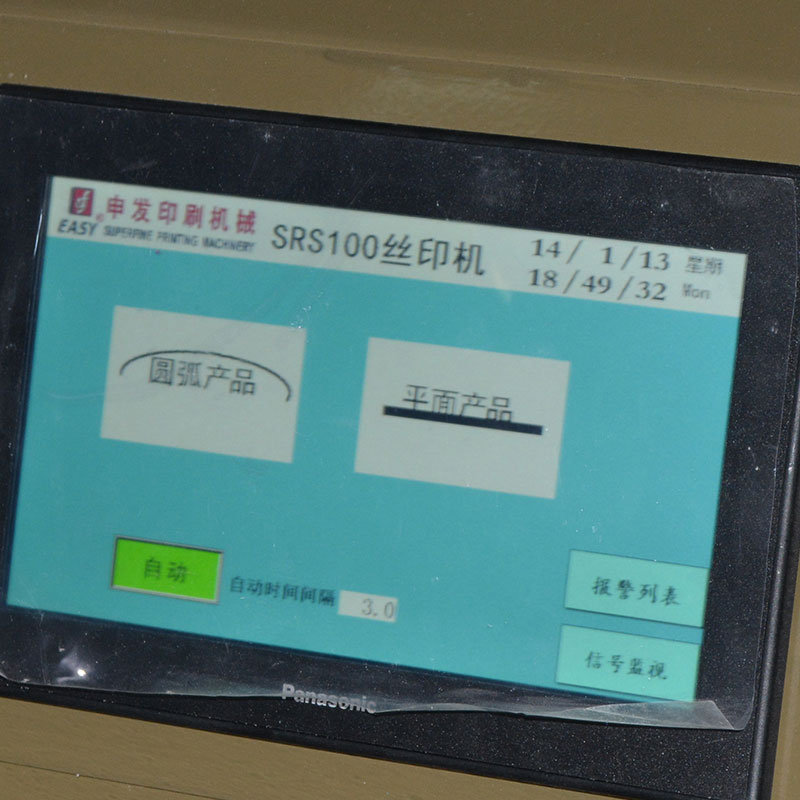

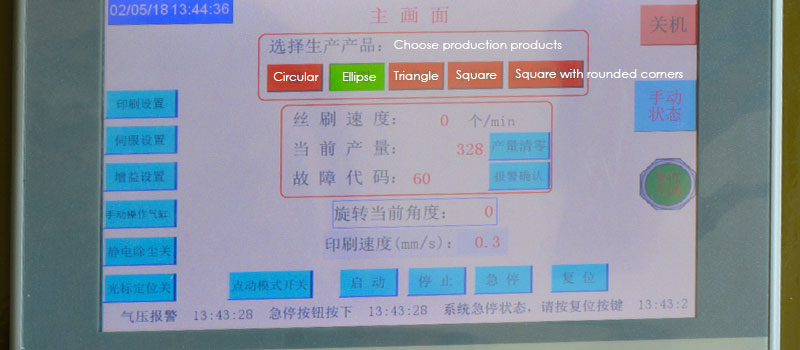

PLC selection interface


PLC selection interface


Machine running video
